travel -x axis 800 mm︱travel -y axis 550 mm︱travel -x axis 500 mm︱control ︱quill stroke 80 mm︱swivelling +/- 90 Grad︱total power requirement kW︱weight of the machine ca. 4,5 t︱dimensions of the machine ca. 5,7 x 5,4 m︱

---

x-travel 730 mm︱y-travel 730 mm︱z-travel 880 mm︱Control Fanuc 31i-B ︱weight of the machine ca. 11,5 t︱dimensions of the machine ca. 5.450 x 2.680 x 2.880 mm︱

---

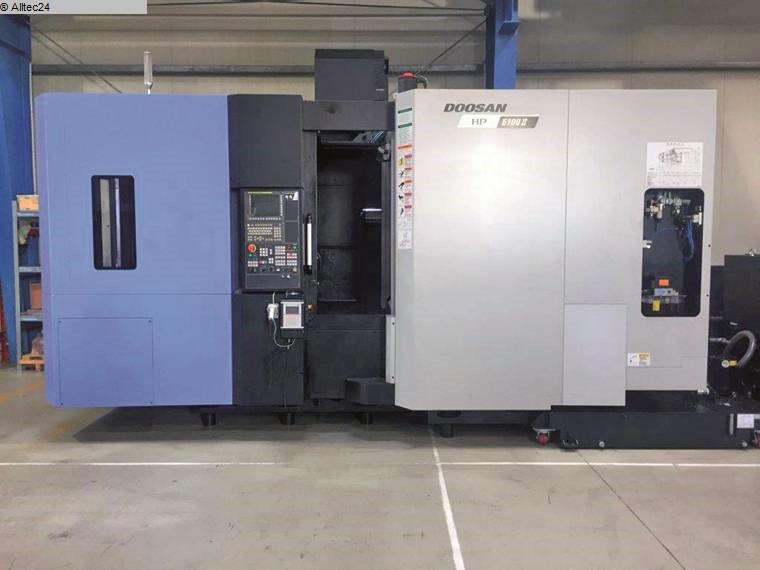

CNC machining center - horizontal DOOSAN HP 5000 15 "color screen Pallet size: 500 x 500 mm Max. Workpiece diameter: 800 mm Tool changer: 60-fold Tool change data: - T-T-T less than 8 kg: 0.9 sec - more than 8 kg: 1.3 sec - C-T-C less than 8 kg: 2.8 sec - more than 8 kg: 3.2 sec max: spindle speed: 15,000 rpm Tool: HSK63A domestic equipments -------------------- minute Indexing angle of the pallet 0,001 ° Chip conveyor hinged band DOOSAN Tool Monitoring System - Tool Monitoring Confirmation of pallet clamping via air-conditioning control internal coolant supply approx. 63.5 bar (50 Hz), 3.7 kW with paper roll filter Preparation for hydraulic tensioner 8 pairs of pipes Hydraulic unit 210 bar Rotary union

x-travel 850 mm︱y-travel 700 mm︱z-travel 750 mm︱Control Fanuc 31i-B ︱weight of the machine ca. 15 t︱dimensions of the machine ca. 5.315 x 2.795 x 2.993 mm︱

---

CNC machining center - horizontal DOOSAN HP 5000 15 "color screen Pallet size: 500 x 500 mm Max. Workpiece diameter: 800 mm max. workpiece height: 930 mm Tool changer: 80 times max: spindle speed: 14,000 rpm Tool holder: BIG PLUS BT 40 domestic equipments ------------------- oil skimmers B axis, smallest indexing 0.001 ° DOOSAN Tool Monitoring - Tool Monitoring Cooling by spindle approx. 29 bar 3.7 kW with cyclone filter Workpiece reference point: pallet center Machine room flushing in the upper warehouse automatic tool measurement TS27R Renishaw

spindle diameter 70 mm︱x-travel 1000 mm︱y-travel 850 mm︱Control HEIDENHAIN 355︱z-travel 600 mm︱

---

NC table boring machine SAN ROCCO Quill diameter: 240 mm Spindle diameter: 70 mm with front bearing Hydraulically lock rotary table with manual adjustment and 90 degree positions. Spindle cone: SK 40 Spindle speed: up to 1400 rpm electrical tool voltage Coolant system

x-travel 520 mm︱y-travel 360 mm︱z-travel 350 mm︱Control Fanuc 0I-MD ︱total power requirement kW︱weight of the machine ca. 5 t︱dimensions of the machine ca. 3.850 x 1.700 x 2.870 mm︱

---

CNC machining center - vertical DOOSAN DT 360 D new Machine cover: Type splash guard with roof Internal coolant supply approx. 13.5 bar (50 Hz) 1.5 kW oil skimmers DOOSAN Tool Load Monitoring System (DTMT tool break monitoring using active power measurement) Max. Spindle speed: 12,000 rpm Tool holder: BT 30 Power of the spindle (30 min./continuous): 5.5 / 3.5 kW Max. Main spindle torque (S3-15%): 82.7 Nm Number of tool slots: 12 Max. Tool diameter: 80 mm Max. Tool diameter without adjacent tool: 150 mm Max. Tool length: 200 mm Table dimensions: 2 x 630 x 375 mm (rotating pallet changer) Table surface: threaded holes 2 x 32-M12 x P 1.75 Max. Workpiece weight: 2 x 200 kg Distance between spindle and table surface: 150 - 500 mm Max. Workpiece height: 300 mm Servomotor X-Y-Z: 1.8 / 1.8 / 1.8 kW Rapid traverse X-Y-Z: 48 m / min. Max. Feed: 24,000 mm / min. Tool at tool time: 1.5 seconds Chip-to-chip time: 2.5 seconds standard accessories -------------------- * Work room lamp * 3-color signal light * Hand tools * Base cooling system * Door lock switch elec. Connected load 19 KVA

x-travel 750 mm︱y-travel 600 mm︱z-travel 560 mm︱Control HEIDENHAIN ︱

---

COVER MAHO GILDEMEISTER HSC 75 Number of axes: 5 Travel: X; Y; Z: 750 x 600 x 560 Max. Workpiece weight on the table: 800 kg B-axis swivel range: + 10 / -110 ° C axis: 360 ° Round table diameter: 750 mm tool changer -------------------- Tool magazine: 120-fold Tool holder: HSK-A 63 Stepless: 20 - 18,000 rpm Rapid traverse: 90 m / min Connection: 50Hz 3x: 400 volts Spindle power; 55 / 43.5 kW equipment ---------------------- Coolant system: 980 l Coolant through the spindle: 40 bar Paper filter facility Laser tool inspection: Blum Pallet changing ------------------------------ Number of pallets: 20-fold Length: 320 mm Width: 320 mm Palettenhubgerät Pallet grippers Aluminum UPC pallets with steel centering: 2 Aluminum UPC pallets: 28 Electronic handwheel lighting state light spindle cooling Rotating viewing window Probe: HEIDENHAIN switch cabinet air conditioning calibration accessories Direct absolute position measuring systems Bed rinsing and scraper conveyor 3D control

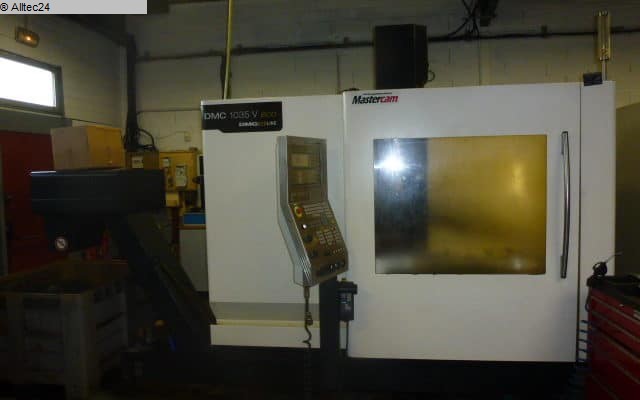

x-travel 1035 mm︱y-travel 560 mm︱z-travel 510 mm︱Control SIEMENS 810D POWERLINE︱

---

Spindle: 8,000 rpm Recording: SK40 Tool changer: 24-fold chip conveyor Electronic handwheel transformer --------------------- Spindle bearing + tool clamping system new Sheet metal cover X-axis new

x-travel 885 mm︱y-travel 600 mm︱z-travel 600 mm︱Control HEIDENHAIN iTNC 530︱

---

DECKEL MAHO GILDEMEISTER DMC 75v Linear Number of axes: 5 Travel: X; Y; Z: 885 x 600 x 600 mm Max. Workpiece weight on the table: 600 kg B-axis swivel range: + 10 / -110 ° C axis: 360 ° Table speed: 100 rpm tool changer -------------------- Tool magazine: 60-fold Tool holder: HSK-A 63 Stepless up to: 28,000 rpm Rapid traverse: 90 m / min Connection: 50Hz 3x: 400 volts Spindle power; 55 / 43.5 kW Spindle hours: 8,300 equipment ---------------------- Coolant system Tool breakage detection Laser tool setting system Measuring probe: HEIDENHAIN TS 640

x-travel 630 mm︱y-travel 500 mm︱z-travel 500 mm︱Control HEIDENHAIN TNC 426︱Overall size 3,22 x 2,02 x 2,4 mm︱weight of the machine ca. 4200 kg︱

---

x-travel 1.700 mm︱y-travel 400 mm︱z-travel 400 mm︱Control HEIDENHAIN ︱weight of the machine ca. 5 t︱dimensions of the machine ca. 3-600 x 2.655 x 2.980 mm︱

---

Machining center Hedelius BC 40 * Delivery without table construction as shown. traverse --------------------- X-axis: 1,700 mm Y-axis: 400 mm Z axis: 400 mm milling head -------------------- Tool holder: DIN 69874 - A 40 Spindle speed: 30-6000 / 9000 min tool magazine ------------------- 20 fold Max. Factory back weight: 4 kg Max. Tool bar: 250 mm Total weight of the tool: 30kg drive power ------------------- Power: 16.25 KW Torque: 102Nm feed -------------------- Infinitely X, Y, Z: 30/30/30 min Max. feed force: 8,000N equipment ------------------- Scraper conveyor

x-travel 4000 mm︱y-travel 1200 mm︱z-travel 800 mm︱Control HEIDENHAIN TNC 530︱weight of the machine ca. 36 t︱dimensions of the machine ca. 10620x6520x3100 m︱

---

Traveling column milling machine Keppler FSH 400 Commissioning was in KW 47/2011 - The machine is equipped with a WZ magazine with 60 places. - The machine is with a 7,000 rpm spindle, - and a 1,000l coolant tank with 60bar IKZ. - The machine has approximately 13,800 operating hours and 12,500 spindle hours. - 2 x oil mist extraction. - Flush gun for machine room cleaning.

x-travel 4000 mm︱y-travel 1200 mm︱z-travel 800 mm︱Control HEIDENHAIN TNC 530︱weight of the machine ca. 36 t︱dimensions of the machine ca. 10620x6520x3100 m︱

---

Traveling column milling machine Keppler FSH 400 Commissioning was in KW 22/2010. - The machine is equipped with a WZ magazine with 60 places. - The machine is with a 7,000 rpm spindle, - and a 1,000l coolant tank with 60bar IKZ. - The machine has approximately 13,800 operating hours and 12,500 spindle hours. - 2 x oil mist extraction. - Flush gun for machine room cleaning.
