turning diameter over slide rest 250 mm︱centre distance 2000 mm︱copying travel longitudinal 2000 mm︱turning speeds 22 - 1120 U/min︱voltage 380 V︱total power requirement 11 kW︱weight of the machine ca. 3,65 t︱dimensions of the machine ca. 4 x 1,5 x 1,5 m︱

---

We quote a copying lathe of type HEYLIGENSTAEDT HEYCOP 2/2000. This machine is in good running conditions and comes from company in our neighbourship. The quality and the shape of machine is in good manner. There can be turned parts up to dia. 250mm and lenght 2000mm, with chuck or between centers. The machine has copying devoice and is suitable for turning of quantity of same parts in short time. With the machine will be delivered chuck, lynette, oil bassin with high pressure pump, manual in German language and separate OUT-Button. Come for inspection to our company in Giebelstadt, about 80min from FRANKFURT AIRPORT.

max. wheel diameter 40 mm︱gear width 28 mm︱max. module 1 ︱min. module 0 ︱total power requirement 1 kW︱weight of the machine ca. 200 kg︱dimensions of the machine ca. 1 x 1 x 1,5 m︱

---

We quote a conventional gear hobber of type MIKRON M79. This machine is in good condition and can be used for manual hobbing of smal straight gears. This machine can be inspected in our storage in Würzburg, nearby Frankfurt. There are no accessoires with the machine. No changing wheels and also no cooling pump. Come for inspection to Würzburg, about 80min. from FRANKFURT AIRPORT

max. wheel diameter 40 mm︱gear width 28 mm︱max. module 1 ︱min. module 0 ︱total power requirement 1 kW︱weight of the machine ca. 200 kg︱dimensions of the machine ca. 1 x 1 x 1,5 m︱

---

We quote a conventional gear hobber of type MIKRON M79. This machine is in good condition and can be used for manual hobbing of smal straight gears. This machine can be inspected in our storage in Würzburg, nearby Frankfurt. There are no accessoires with the machine. No changing wheels and also no cooling pump with bassin.

max. wheel diameter 300 mm︱centre distance 500 mm︱max. module 6 mm︱min. module 0,1 mm︱total power requirement 35 kW︱weight of the machine ca. 1,5 t︱dimensions of the machine ca. 2,5 x 1,0 x 1,7 m︱brake tailstock ︱workpiece steady rest ︱

---

The gear noise tester HURTH ZP 300 is used for noise tests of external gears with chance of error detection. Our machine is disassembled in our stock. The machine is in good working condition and can be overtaken now. Come and inspect the tester in Giebelstadt, nearby 80 min to Frankfurt airport. Description: This tester HURTH ZP 300 was in ´2000 complete mechanical overhauled and modernized by company FORTUNA (grinding machine specialist) with: - 2 new servo motors directly adapted to spindles, type BAUMÜLLER DS 100-S (17kW, 4000rpmn, 36Nm) - 2 new spindles of typeFORTUNA FIVY 90RL 190 HSK-40.301 for max. 6000rpm - 2 new couplings between servo and spindle of type KTR - HEIDENHAIN linear encoder for measuring of axial shift - HEIDENHAIN linear encoder LS 476 ML120mm for measuring of radial shift - 4 new BRUCKNER centers With this machine there is no controlling unit. So the machine is predestinated for customer, who wants to install new controller! Of this type we have 2 similar machines in stock.

max. wheel diameter 300 mm︱centre distance 500 mm︱max. module 6 mm︱min. module 0,1 mm︱total power requirement 35 kW︱weight of the machine ca. 1,5 t︱dimensions of the machine ca. 2,5 x 1,0 x 1,7 m︱brake tailstock ︱workpiece steady rest ︱

---

The gear noise tester HURTH ZP 300 is used for noise tests of external gears with chance of error detection. Our machine is disassembled in our stock. The machine is in good working condition and can be overtaken now. Come and inspect the tester in Giebelstadt, nearby 80 min to Frankfurt airport. Description: This tester HURTH ZP 300 was in ´2000 complete mechanical overhauled and modernized by company FORTUNA (grinding machine specialist) with: - 2 new servo motors directly adapted to spindles, type BAUMÜLLER DS 100-S (17kW, 4000rpmn, 36Nm) - 2 new spindles of typeFORTUNA FIVY 90RL 190 HSK-40.301 for max. 6000rpm - 2 new couplings between servo and spindle of type KTR - HEIDENHAIN linear encoder for measuring of axial shift - HEIDENHAIN linear encoder LS 476 ML120mm for measuring of radial shift - 4 new BRUCKNER centers With this machine there is no controlling unit. So the machine is predestinated for customer, who wants to install new controller! Of this type we have 2 similar machines in stock.

grinding length 1000 mm︱grinding width 300 mm︱workpiece height 350 mm︱grinding wheel diameter max. 250 mm︱turning speeds max. 2700 U/min︱connected load frequency 380V 50Hz V︱total power requirement 6 kW︱weight of the machine ca. 3 t︱dimensions of the machine ca. 4,1 × 2,2 × 2 m︱

---

We quote a horizontal grinder TOS HOSTIVAR of type BPH300. This machine has magnetic table with dimension of 1000 x 300 mm. Come for inspection to our storage nearby Würzburg, about 80min. from Frankfurt airport.

grinding diameter 100 - 420 mm︱grinding length 600 mm︱module 0,5 - 50 ︱total power requirement 14 kW︱weight of the machine ca. 8 t︱dimensions of the machine ca. 3,0 x 2,0 x 2,0 m︱max.helical angle +/- 45° °︱clamping slot depth - max. 100 mm︱T-slot pitch 50" bis unendlich mm︱max. stroke of grinding wheel 800 mm︱grinding wheel diameter 240 - 350 mm︱grinding wheel turining speeds 1.300 - 1.900 U/min︱grinding wheel speed 0 - 12 m/min︱taper in workpiece headstock ISO40 ︱

---

We quote a hob sharpener in running condition with all neccessary attachment of type KLINGELNBERG AGW 420. This machine can sharpen hobs and cutters up to diameter 420 mm and width up to 600 mm with helic angle up to 45° under cooling fluid, wet. With the machine are: - control cabin - cooling unit - hydraulic unit - exhausting unit If requested, we can quote additional geometric protocol of machine, partial overhauling or modernization by KLINGELNBERG specialists according to your need and at your charge. Come for inspection.

workpiece diameter 120 mm︱swing diameter 120 mm︱workpiece length 80 mm︱total power requirement 27 kW︱weight of the machine ca. 2500 kg︱dimensions of the machine ca. 1,8 x 1,7 x 2,8 m︱voltage/frequency 3x400 V / 50 Hz ︱hob spindle speed 50 - 3.000 U/min RPM︱workpiece speed 50 - 1.000 U/min RPM︱

---

This microfinish machine THIELENHAUS WZP 120 is in very good shape. The machine has 1 operation station and with this can be surface finished in highest accuray (Rz < 2 µm) in short time of 15 - 30 sec. The machine has loading and unloading belt and a double gripper for automatic loading in the operation area. The machine has inprocess control and the control unit from SIEMENS COROS OP25. A filtermist unit is not with the machine! Come and inspect this machine in our stock.

workpiece diameter ca. 0 - 100 mm︱swing diameter ca. 150 mm︱workpiece length 455 mm︱Control SIEMENS S5-115U, Typ 944B ︱connected load frequency 3x400V 50Hz ︱stroke 40 mm︱total power requirement 10 kW︱weight of the machine ca. 2,2 t︱dimensions of the machine ca. 5,9 x 7,7 x 2,4 m︱

---

We quote a superfinish machiine of type SUPFINA 455 with automatic loading system. This machine number 300.805 from ´1995 is in good shape and can be inspected dismantled in our company in Giebelstadt, about 80min. from FRANKFURT AIRPORT. With the machine can be realized roughness of Rz 1,0µm, form 2,0µm convex and parallelity of 2,0µm. The machine is equipped with superfinish attachment of type SUPFINA 200 with 4 SF stone guides. They are on guide and can be installed in length up to 455mm. The workpieces are hold on 2 driven rollers. The axe distance of rollers can be changed and adapted to diameter of workpiece. With the machine is an loading and unloading portal from SK-Hydroautomation of type 5192 including controlling unit SIEMENS WS 400-22 and fences. The former conveyor belt from EWAB is not with the machine. All documentatio in German language is with the machine. Come for inspection.

pulling force - max. 2 t︱stroke length max. 800 mm︱Table dimensions 360 x 320 mm︱cutting speed 1,5 m/min︱return speed 3,0 m/min︱power requirement 3 kW︱coolant ︱voltage 380 V︱bore diameter 70 mm︱total power requirement 3 kW︱weight of the machine ca. 1200 kg︱dimensions of the machine ca. 1,2 x 0,9 x 2,7 m︱

---

We quote an older, but complete and running vertical broaching machine in highest stability of typ FORST RSIA 2. This machine with 6,5 HP has a vertical stoke of 800mm. The table is 360 x 320 mm with bore of 70mm. This machine is from 1st hand out of job shop in neighborship to our company. Come for inspection to our location in Giebelstadt, about 80 min. from FRANKFURT AIRPORT.

amplification -fold 20 x ︱workpiece height max. 200 mm︱glass plate - dimensions 60 x 50 cm︱radial slide travel 50 mm︱maximum axial offset 25 mm︱Vertikal stroke 80 mm︱total power requirement 1 kW︱weight of the machine ca. 200 kg︱dimensions of the machine ca. 60 x 100 x 220 cm︱

---

We quote a optical profile projector of type HAUSER 215K, machine no. 2260-266 with 2-axe digital display. The tester is in good shape. This projector is equipped with cross table for radial travel of 25mm and axial travel of +/- 25mm. The height adjustment is 80mm. There are 2 linear encoder from MSA type RSI. Both are connected to digital display of type R.S.F. type Z-502. The projector is complete running and can be inspected under power in our storage. Come for inspection to Giebelstadt, about 80min from Frankfurt airport. Attachment: The tester has an enlargement lense of factor 20x integrated. The unit has a hood with curtain. Actually we have some different projectors in warehouse. So come and you can select the suitable unit for your need.

amplification -fold 20 x ︱workpiece height max. 200 mm︱glass plate - dimensions 60 x 50 cm︱radial slide travel 50 mm︱maximum axial offset 25 mm︱Vertikal stroke 80 mm︱total power requirement 1 kW︱weight of the machine ca. 200 kg︱dimensions of the machine ca. 60 x 100 x 220 cm︱

---

We quote a optical profile projector of type HAUSER 215K, machine no. Z2130-213 with 2-axe digital display. The tester is in good shape. This projector is equipped with cross table for radial travel of 25mm and axial travel of +/- 25mm. On top is mounted a center support for shaft parts. The height adjustment is 80mm. There are 2 linear encoder from MSA type RSI. Both are connected to digital display of type R.S.F. type Z-502. The projector is complete running and can be inspected under power in our storage. Come for inspection to Giebelstadt, about 80min from Frankfurt airport. Attachment: The tester has an enlargement lense of factor 20x, 10x and 50x integrated. The unit has a hood with curtain. The front glas will be actually changed to a nes one from producer. Actually we have some different projectors in warehouse. So come and you can select the suitable unit for your need.

amplification -fold 20 x ︱workpiece height max. 200 mm︱glass plate - dimensions 60 x 50 cm︱radial slide travel 50 mm︱maximum axial offset 25 mm︱Vertikal stroke 80 mm︱total power requirement 1 kW︱weight of the machine ca. 200 kg︱dimensions of the machine ca. 60 x 100 x 220 cm︱

---

We quote a optical profile projector of type HAUSER 215K, machine no. 1635-164 with 2-axe digital display. The tester is in good shape. This projector is equipped with cross table for radial travel of 25mm and axial travel of +/- 25mm. The height adjustment is 80mm. There are 2 linear encoder from MSA type RSI. Both are connected to digital display of type R.S.F. type Z-502. The projector is complete running and can be inspected under power in our storage. Come for inspection to Giebelstadt, about 80min from Frankfurt airport. Attachment: The tester has an enlargement lense of factor 20x and 10x integrated. The unit has a hood with curtain. Actually we have some different projectors in warehouse. So come and you can select the suitable unit for your need.

amperage - max. 4 x 450 A A︱range L-W-H ca. 4 x 4 x 3 m︱filter press ︱cooling unit ︱

---

We quote a ECM deburring machine EXTRUDE HONE in very good shape. The machine was used for deburring of SYNCHRONIZER. The machine can be inspected in our stock in Würzburg/Bavaria. Some datas: ECM-machine EXTRUDE HONE EH 23211/4x450 A • YOP 2006 • Machine number 2733 • complete unit for processing • including filter press • including air blasting system • including control cabin with 4 separate controlled modules + 1 new control module as spare part • including electrolyt bassin • including cooling unit for electrolyt • with tooling for SYNCHRONIZER • according attached pictures • with some accessoires from VW • with many drawings and manuals from VW for deburring SYNCHRONIZER •

total power requirement 21 kW︱dimensions of the machine ca. 3,0x3,0x2,8 m︱diameter 400 mm︱workpiece length 400 mm︱work piece width 400 mm︱weight of the machine ca. 2,5 t︱current intensivity 300 A︱connected load frequency 400 VAC︱Required air-pressure 6 bar︱work stroke 400 mm︱daylight - vertical 655 mm︱

---

We quote a ECM-deburring machine of type VMB ECM 400-30 E with 1 station and all neccessary attachment. We deliver: ECM-machine from 1999 in running condition with - machine number 356 - filter press with 15bar - control cabin in machine body with control SIEMENS OP5 - electrolyth basin integrated in machine body - separate cooling unit KÄLTE-MUSCHLER type MKK 020, volume 8,3m³/h - washing station of brand VORNDRAN Metallbau - floor pin - manual and electric plan Come for inspection now into our stock in Bavaria/Germany at ZÜFLE GMBH, LEVI-STRAUS-STRASSE 121, GERMANY-97232 GIEBELSTADT

total power requirement 100 kW︱dimensions of the machine ca. 6x6x2,3 m︱diameter 400 mm︱workpiece length 400 mm︱work piece width 400 mm︱weight of the machine ca. 3,5 t︱current intensivity 1000 A︱connected load frequency 400 VAC︱Required air-pressure 6 bar︱work stroke 400 mm︱

---

We offer a 2-station ECM deburring system of the type VMB ECM 1000-24-2K with all accessories. The machine is complete and can be viewed in our warehouse in Giebelstadt. Scope of delivery: • Year of manufacture 1992 • Machine number 235 • Fully functional • Machine with separate control cabinet • Electrolyte container in the machine floor • with floor pan • with complete documentation Further accessories: • Filter press NETZSCH size 14 15bar • with pump • with suction device • with cooling unit KÄLTE-MUTSCHLER MIK160 for 22m³ / h • with wash basin Come and visit our warehouse in Giebelstadt, south of Würzburg

x-travel 750 mm︱y-travel 120 mm︱z-travel 0 mm︱Control PC-Steuerung ︱swing diameter 240 mm︱centre distance 750 mm︱total power requirement 2 kW︱weight of the machine ca. 500 kg︱dimensions of the machine ca. 1,5 x 1,0 x 2,0 m︱

---

We quote an universal gear tester for shaft parts including spline testing of FRENCO. This tester from 2007 has the type URM-R HGA and is a horizontal tester with tailstock and automatic measuring cycle. There are 6 measuring heads adapted and can measure parameters like: - dimension over balls (min./max./average) - runout of gears according to centres - Excentricity - pitch deviations with correlation to excentricity The max. lenght of shaft is 750mm and max. diameter up to 240mm. There are used encoders of HEIDENHAIN and pneumatic by FESTO. Come and inspect this tester in excellent condition in our stock under power. We are about 80min. away from FRANKFURT AIRPORT.

diameter 315 mm︱weight of the machine ca. 60 kg︱Max. Speed RPM 4200 rpm︱F max. 8000 daN︱Sigma S max. ︱

---

Chuck of brand: RÖHM / GERMANY Type: KFD-HS 315/3 Id. 427257-00205 Spezifikation: Fmax. 8000 daN n max. 4200 U/min

diameter 315 mm︱weight of the machine ca. 60 kg︱Max. Speed RPM 4200 rpm︱F max. 8000 daN︱Sigma S max. ︱

---

Chuck of brand: RÖHM / GERMANY Type: KFD-HS 315/3 Id. 427257-N0313 Spezifikation: Fmax. 8000 daN n max. 4200 U/min

diameter 315 mm︱weight of the machine ca. 60 kg︱F max. 3000 daN︱Max. Speed RPM ︱Sigma S max. ︱

---

Chuck of brand: RÖHM / GERMANY Type: 0VV 417526/50623500 Spezification: Fmax = 3000DAN

diameter 315 mm︱weight of the machine ca. 60 kg︱F max. 3000 daN︱Max. Speed RPM ︱Sigma S max. ︱

---

Chuck of brand: RÖHM / GERMANY Type: 0VV 417526/50623500 Spezification: Fmax = 3000DAN

diameter 270 mm︱weight of the machine ca. 60 kg︱Max. Speed RPM 3000 rpm︱F max. 3000 daN︱Sigma S max. ︱

---

Chuck of brand: RÖHM / GERMANY Type: 1025592 Spezification: Fmax = 3000daN nmax = 3000 rpm

cooling capacity 8900 W︱power capacity 1 kW︱method of construction Kältemittel R404A ︱connected load frequency 400 VAC 50Hz ︱filling amount 10 kg︱total power requirement 10 kW︱weight of the machine ca. 290 kg︱dimensions of the machine ca. 1000 x 1200 x 1400 mm︱

---

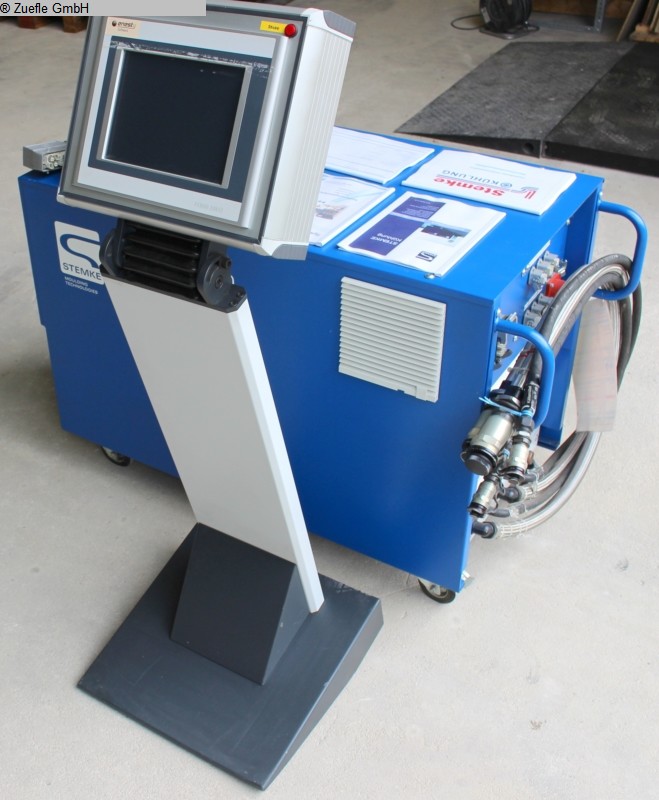

We offer a temperature control solution for injection- and die-casting tools. This tool cooler is from German manufacturer STEMKE type SK 7000. It allows plastic molds of larger dimensions with up to 8900 W cooling capacity can be greatly cooled down and thus will reduce the cycle times will strongly. The offered facility in light blue color is from the year 2011 and in good condition. The control of the system is carried out via a touchscreen on separate stand. Before reusing this equipment, the seals of system must be changed by refrigeration technician. To the device can additional hose connections be included. A complete documentation and operating instructions etc. are available. As a refrigerant is used R404A. We would like to point out that we have from this equipment family currently 13 STEMKE units in stock. Come to a visit to Giebelstadt, about 80 min. from FRANKFURT airport.

cooling capacity 1500 W︱power capacity 1 kW︱method of construction Kältemittel R404A ︱connected load frequency 400 VAC 50Hz ︱filling amount 10 kg︱total power requirement 1,8 kW︱weight of the machine ca. 120 kg︱dimensions of the machine ca. 400 x 750 x 1100 mm︱

---

We offer a temperature control solution for injection- and die-casting tools. This tool cooler is from German manufacturer STEMKE type SK1500. It allows plastic molds of larger dimensions with up to 1500 W cooling capacity can be greatly cooled down and thus will reduce the cycle times will strongly. The offered facility in light blue color is from the year 2007 and in good condition. The control of the system is carried out via a touchscreen. Before reusing this equipment, the seals of system must be changed by refrigeration technician. To the device can additional hose connections be included. A complete documentation and operating instructions etc. are available. As a refrigerant is used R404A. We would like to point out that we have from this equipment family currently 13 STEMKE units in stock. Come to a visit to Giebelstadt, about 80 min. from FRANKFURT airport.
