          VÖGTLE SERVICE GMBH - Stockist for used machines

          Machinelist:


          Crank Press - Double Column

          used  Crank Press - Double Column BRET 2 PACK 25 B


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-163020 · Crank Press - Double Column

          BRET - 2 PACK 25 B - - 1994 - Siemens S 5

          Technical details
          pressure 250 t︱distance between columns 1650 / 1400 mm︱stroke fix 150 mm︱no. of strokes 30 - 75 Hub/min︱dayligth (stroke and adjustment up) 665 mm︱column travel -side 550 mm︱table surface area 1600 x 900 mm︱hole in the table 1000 x 300 mm︱table height over floor 980 mm︱ram surface 1400 x 900 mm︱power requirement 42,0 kW︱weight of the machine ca. 33,00 t︱required space 2,8 x 2,5 x 4,4 m︱
          permitted for automatic mode according to the German Safety Regulations (UVV) with infinitely variable drive, clutch/brake combination (Ortlinghaus), tool changing system, electronic roll feed (Normatic, AESL 500-2,8) distance table - ram without tool changing system approx. 765 mm can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
            pressure 250 t
            distance between columns 1650 / 1400 mm
            stroke fix 150 mm
            no. of strokes 30 - 75 Hub/min
            dayligth (stroke and adjustment . 665 mm
            column travel -side 550 mm
            table surface area 1600 x 900 mm
            hole in the table 1000 x 300 mm
            table height over floor 980 mm
            ram surface 1400 x 900 mm
            power requirement 42,0 kW
            weight of the machine ca. 33,00 t
            required space 2,8 x 2,5 x 4,4 m
            Description :
            permitted for automatic mode according to the German Safety Regulations (UVV)
            with infinitely variable drive, clutch/brake combination (Ortlinghaus), tool changing system, electronic roll feed (Normatic, AESL 500-2,8)
            distance table - ram without tool changing system approx. 765 mm
            can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
          Datasheet
          Request / Contact
          used  Crank Press - Double Column SCHULER EBS 4-600-3,6-350


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-173051 · Crank Press - Double Column

          SCHULER - EBS 4-600-3,6-350 - - 1993 - Siemens S 7

          Technical details
          pressure 600 t︱distance between columns 3640 mm︱stroke fix 350 mm︱no. of strokes 11 - 44 /min︱dayligth (stroke and adjustment up) 1550 mm︱column travel -side 2200 mm︱table surface area 3600 x 2500 mm︱ram surface 3600 x 2500 mm︱ram adjustment 400 mm︱power requirement 112,0 + 35,0 kW︱weight of the machine ca. 390,00 t︱required space 7,3 x 5,1 x 15,0 m︱height over floor 9,10 mm︱height under floor 5,9 mm︱
          Blanking Line with pneumatic clutch/brake combination, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment moving tables (2x) without rails for the moving tables roll feed Schleicher, WV-SYS-A 160-2000 decoiler Schleicher straightening machine Schnutz, RME 18/50/13-2000, yom 1994 blank stacker NSM-Magnettechnik stored in dismantled condition video at seller's site before dismantling available
            pressure 600 t
            distance between columns 3640 mm
            stroke fix 350 mm
            no. of strokes 11 - 44 /min
            dayligth (stroke and adjustment . 1550 mm
            column travel -side 2200 mm
            table surface area 3600 x 2500 mm
            ram surface 3600 x 2500 mm
            ram adjustment 400 mm
            power requirement 112,0 + 35,0 kW
            weight of the machine ca. 390,00 t
            required space 7,3 x 5,1 x 15,0 m
            height over floor 9,10 mm
            height under floor 5,9 mm
            Description :
            Blanking Line

            with pneumatic clutch/brake combination, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment
            moving tables (2x) without rails for the moving tables
            roll feed Schleicher, WV-SYS-A 160-2000
            decoiler Schleicher
            straightening machine Schnutz, RME 18/50/13-2000, yom 1994
            blank stacker NSM-Magnettechnik
            stored in dismantled condition
            video at seller's site before dismantling available
          Datasheet
          Request / Contact
          used  Crank Press - Double Column WEINGARTEN HU 2-500


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-173001 · Crank Press - Double Column

          WEINGARTEN - HU 2-500 - - 1985 - keine / Option neu

          Technical details
          pressure 500 t︱distance between columns 3100 mm︱stroke fix 300 mm︱no. of strokes 20 - 70 Hub/min︱dayligth (stroke and adjustment up) 1000 mm︱column travel -side 1400 mm︱table surface area 2800 x 1600 mm︱hole in the table mm︱table height over floor mm︱ram surface 2800 x 1450 mm︱power requirement 90,0 kW︱weight of the machine ca. 100,00 t︱required space 5,75 x 3,2 x 7,8 m︱ram adjustment 100 mm︱height over floor 6,4 mm︱
          permitted for automatic mode according to the German Safety Regulations (UVV) with infinitely variable drive, pneumatic clutch (Ortlinghaus), hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment stored in dismantled condition in warehouse can be offered without putting into operation (no PLC available) or alternatively with new control Siemens S 7-1500 F
            pressure 500 t
            distance between columns 3100 mm
            stroke fix 300 mm
            no. of strokes 20 - 70 Hub/min
            dayligth (stroke and adjustment . 1000 mm
            column travel -side 1400 mm
            table surface area 2800 x 1600 mm
            ram surface 2800 x 1450 mm
            power requirement 90,0 kW
            weight of the machine ca. 100,00 t
            required space 5,75 x 3,2 x 7,8 m
            ram adjustment 100 mm
            height over floor 6,4 mm
            Description :
            permitted for automatic mode according to the German Safety Regulations (UVV)
            with infinitely variable drive, pneumatic clutch (Ortlinghaus), hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment
            stored in dismantled condition in warehouse
            can be offered without putting into operation (no PLC available) or alternatively with new control Siemens S 7-1500 F
          Datasheet
          Request / Contact
          used  Crank Press - Double Column HAULICK RVD 160-1250 R


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-093056 · Crank Press - Double Column

          HAULICK - RVD 160-1250 R - - 1983 - konventionell

          Technical details
          pressure 160 t︱stroke fix 160 mm︱no. of strokes 30 - 120 /min︱distance between columns 1190 mm︱dayligth (stroke and adjustment up) 735 mm︱column travel -side 600 mm︱table surface area 1200 x 1000 mm︱hole in the table 500 x 300 mm︱table height over floor 900 mm︱ram surface 1000 x 800 mm︱ram adjustment 125 mm︱material width 550 mm︱material thickness 0 - 6,0 mm︱material cross-cut 1100 mm²︱feed length 350 mm︱power requirement 45,0 kW︱Weight 25,0 t︱dimensions of the machine ca. 2,3 x 2,1 x 4,7 mxmxm︱
          permitted for automatic mode according to the German Safety Regulations (UVV) with infinitely variable drive (PIV), hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment, ram interlocking, mechanical pincer feed (Haulick, RS 350/550 SL 90)
            pressure 160 t
            stroke fix 160 mm
            no. of strokes 30 - 120 /min
            distance between columns 1190 mm
            dayligth (stroke and adjustment . 735 mm
            column travel -side 600 mm
            table surface area 1200 x 1000 mm
            hole in the table 500 x 300 mm
            table height over floor 900 mm
            ram surface 1000 x 800 mm
            ram adjustment 125 mm
            material width 550 mm
            material thickness 0 - 6,0 mm
            material cross-cut 1100 mm²
            feed length 350 mm
            power requirement 45,0 kW
            Weight 25,0 t
            dimensions of the machine ca. 2,3 x 2,1 x 4,7 mxmxm
            Description :
            permitted for automatic mode according to the German Safety Regulations (UVV)
            with infinitely variable drive (PIV), hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment, ram interlocking, mechanical pincer feed (Haulick, RS 350/550 SL 90)
          Datasheet
          Request / Contact
          used  Crank Press - Double Column DREES VE 100/100


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-073112 · Crank Press - Double Column

          DREES - VE 100/100 - - 1980 - konventionell

          Technical details
          pressure 100 t︱stroke 20 - 200 mm︱no. of strokes 20 - 60 /min︱distance between columns 1230 mm︱dayligth (stroke and adjustment up) 650 mm︱column travel -side 540 mm︱table surface area 1050 x 750 mm︱table height over floor 760 mm︱ram surface 1000 x 750 mm︱ram adjustment 100 mm︱power requirement 18,0 kW︱Weight 20,5 t︱dimensions of the machine ca. 2,8 x 1,9 x 4,3 mxmxm︱
          permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) with infinitely variable drive (PIV), pneumatic clutch, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment
            pressure 100 t
            stroke 20 - 200 mm
            no. of strokes 20 - 60 /min
            distance between columns 1230 mm
            dayligth (stroke and adjustment . 650 mm
            column travel -side 540 mm
            table surface area 1050 x 750 mm
            table height over floor 760 mm
            ram surface 1000 x 750 mm
            ram adjustment 100 mm
            power requirement 18,0 kW
            Weight 20,5 t
            dimensions of the machine ca. 2,8 x 1,9 x 4,3 mxmxm
            Description :
            permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV)
            with infinitely variable drive (PIV), pneumatic clutch, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment
          Datasheet
          Request / Contact
          used  Crank Press - Double Column WEINGARTEN VK 500.34.85


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-113100 · Crank Press - Double Column

          WEINGARTEN - VK 500.34.85 - - 1974 - konventionell

          Technical details
          pressure 500 t︱distance between columns 1620 mm︱stroke 40 - 160 mm︱no. of strokes 32 / 48 Hub/min︱dayligth (stroke and adjustment up) 660 mm︱column travel -side 400 x 430 mm︱table surface area 1600 x 1300 mm︱hole in the table mm︱table height over floor 750 mm︱ram surface 1400 x 1200 mm︱power requirement 44,0 / 66,0 kW︱weight of the machine ca. 56,00 t︱required space 3,55 x 2,55 x 5,1 m︱ram adjustment 350 mm︱height over floor 8,3 mm︱height under floor 6,0 mm︱
          with link drive, hydraulic overload protection in ram, motoric ram adjustment, drawing cushion in table, 2x tool changing device stored in dismantled condition can only be offered without putting into operation
            pressure 500 t
            distance between columns 1620 mm
            stroke 40 - 160 mm
            no. of strokes 32 / 48 Hub/min
            dayligth (stroke and adjustment . 660 mm
            column travel -side 400 x 430 mm
            table surface area 1600 x 1300 mm
            table height over floor 750 mm
            ram surface 1400 x 1200 mm
            power requirement 44,0 / 66,0 kW
            weight of the machine ca. 56,00 t
            required space 3,55 x 2,55 x 5,1 m
            ram adjustment 350 mm
            height over floor 8,3 mm
            height under floor 6,0 mm
            Description :
            with link drive, hydraulic overload protection in ram, motoric ram adjustment, drawing cushion in table, 2x tool changing device
            stored in dismantled condition
            can only be offered without putting into operation
          Datasheet
          Request / Contact
          used  Crank Press - Double Column DREES ZE 500/160


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-083148 · Crank Press - Double Column

          DREES - ZE 500/160 - - 1973 - konventionell

          Technical details
          pressure 500 t︱distance between columns 1620 mm︱stroke 40 - 160 mm︱no. of strokes 32 / 48 Hub/min︱dayligth (stroke and adjustment up) 660 mm︱column travel -side 400 x 430 mm︱table surface area 1600 x 1300 mm︱hole in the table mm︱table height over floor 750 mm︱ram surface 1400 x 1200 mm︱power requirement 44,0 / 66,0 kW︱weight of the machine ca. 56,00 t︱required space 3,55 x 2,55 x 5,1 m︱
          with pneumatic clutch/brake combination (Desch), mechanical overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
            pressure 500 t
            distance between columns 1620 mm
            stroke 40 - 160 mm
            no. of strokes 32 / 48 Hub/min
            dayligth (stroke and adjustment . 660 mm
            column travel -side 400 x 430 mm
            table surface area 1600 x 1300 mm
            table height over floor 750 mm
            ram surface 1400 x 1200 mm
            power requirement 44,0 / 66,0 kW
            weight of the machine ca. 56,00 t
            required space 3,55 x 2,55 x 5,1 m
            Description :
            with pneumatic clutch/brake combination (Desch), mechanical overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment
            can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
          Datasheet
          Request / Contact
          used  Crank Press - Double Column KIESERLING & ALBRECHT PEZF 400/1250


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-023119 · Crank Press - Double Column

          KIESERLING & ALBRECHT - PEZF 400/1250 - - 1973 - konventionell

          Technical details
          pressure 400 t︱stroke fix 250 mm︱no. of strokes 45 /min︱distance between columns 1250 mm︱dayligth (stroke and adjustment up) 825 mm︱column travel -side 400 x 700 mm︱table surface area 1000 x 900 mm︱ram surface 1000 x 900 mm︱ram adjustment 100 mm︱power requirement 270,0 kW︱Weight 44,0 t︱dimensions of the machine ca. 2,4 x 3,6 x 7,2 mxmxm︱total height over floor 6,40 m︱height under floor m︱
          with ejector in table (40 t / 160 mm)
            pressure 400 t
            stroke fix 250 mm
            no. of strokes 45 /min
            distance between columns 1250 mm
            dayligth (stroke and adjustment . 825 mm
            column travel -side 400 x 700 mm
            table surface area 1000 x 900 mm
            ram surface 1000 x 900 mm
            ram adjustment 100 mm
            power requirement 270,0 kW
            Weight 44,0 t
            dimensions of the machine ca. 2,4 x 3,6 x 7,2 mxmxm
            total height over floor 6,40 m
            Description :
            with ejector in table (40 t / 160 mm)
          Datasheet
          Request / Contact

          Die-Hob Press

          used  Die-Hob Press SACK & KIESSELBACH C2/Z-1250


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-223038 · Die-Hob Press

          SACK & KIESSELBACH - C2/Z-1250 - - 1966 - konventionell

          Technical details
          pressure 1250 t︱diameter 700 mm︱stroke 330 mm︱distance between columns 590 mm︱max. distance table - ram 400 mm︱power capacity 5,0 kW︱weight of the machine ca. 8,0 t︱dimensions of the machine ca. 2,3 x 1,0 x 2,0 m︱
          hydraulic die-hob press permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure and way
            pressure 1250 t
            diameter 700 mm
            stroke 330 mm
            distance between columns 590 mm
            max. distance table - ram 400 mm
            power capacity 5,0 kW
            weight of the machine ca. 8,0 t
            dimensions of the machine ca. 2,3 x 1,0 x 2,0 m
            Description :
            hydraulic die-hob press
            permitted for manual loading according to the German Safety Regulations (UVV)
            with oil-hydraulic drive, controllable dependent on pressure and way
          Datasheet
          Request / Contact
          used  Die-Hob Press SACK & KIESSELBACH C 1/2 - 630


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-183040 · Die-Hob Press

          SACK & KIESSELBACH - C 1/2 - 630 - - 1965 - konventionell

          Technical details
          pressure 630 t︱diameter 500 mm︱stroke 310 mm︱distance between columns 420 mm︱max. distance table - ram 320 mm︱power capacity 4,0 kW︱required space 1,3 x 0,8 x 1,8 m︱weight of the machine ca. 3,1 t︱
          hydraulic die-hob press permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) with oil-hydraulic drive
            pressure 630 t
            diameter 500 mm
            stroke 310 mm
            distance between columns 420 mm
            max. distance table - ram 320 mm
            power capacity 4,0 kW
            required space 1,3 x 0,8 x 1,8 m
            weight of the machine ca. 3,1 t
            Description :
            hydraulic die-hob press
            permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV)
            with oil-hydraulic drive
          Datasheet
          Request / Contact

          difference way press

          used  difference way press LEINHAAS NDDP 2UR 1000


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-213011V · difference way press

          LEINHAAS - NDDP 2UR 1000 - - 1988 - Siemens S 5

          Technical details
          pressure 100 t︱distance between columns mm︱stroke 3 - 120 mm︱no. of strokes - 95 /min︱distance table/ram, stroke up 500 mm︱table surface area 1100 x 700 mm︱Hole in the table 220 x 100 mm︱table height over floor 800 mm︱side window 400 mm︱ram surface 750 x350 mm︱ram adjustment 100 mm︱Oil volume 1300 l︱power requirement 42,0 kW︱weight 10,0 t︱dimensions (WxDxH) 1,8 x 1,8 x 3,55 m︱
          permitted for manual put-in according to the German Safety Regulations (UVV) with hydraulic driven knuckle-joint system, controllable dependent on pressure and way, two-hand operation can be offered with or without putting into operation - video at seller's site before dismantling available Option additionally: roll feed Alba / decoiler Fecker (price on request)
            pressure 100 t
            stroke 3 - 120 mm
            no. of strokes - 95 /min
            distance table/ram, stroke up 500 mm
            table surface area 1100 x 700 mm
            Hole in the table 220 x 100 mm
            table height over floor 800 mm
            side window 400 mm
            ram surface 750 x350 mm
            ram adjustment 100 mm
            Oil volume 1300 l
            power requirement 42,0 kW
            weight 10,0 t
            dimensions (WxDxH) 1,8 x 1,8 x 3,55 m
            Description :
            permitted for manual put-in according to the German Safety Regulations (UVV)
            with hydraulic driven knuckle-joint system, controllable dependent on pressure and way, two-hand operation
            can be offered with or without putting into operation - video at seller's site before dismantling available
            Option additionally: roll feed Alba / decoiler Fecker (price on request)
          Datasheet
          Request / Contact
          used  difference way press LEINHAAS DDP/R11 100 HH


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-113080 · difference way press

          LEINHAAS - DDP/R11 100 HH - - 1988 - Siemens S 5

          Technical details
          pressure 100 t︱distance between columns 1180 mm︱stroke 1 - 120 mm︱no. of strokes 90 /min︱distance table/ram, stroke up 470 mm︱table surface area 1100 x 700 mm︱table height over floor 800 mm︱side window 400 mm︱ram surface 740 x 350 mm︱ram adjustment 100 mm︱power requirement 37,0 kW︱weight 11,0 t︱dimensions (WxDxH) 2,3 x 2,0 x 3,5 m︱
          difference-way press with hydraulic driven knuckle-joint system, controllable dependent on pressure and way, two-hand operation T-slots in table and ram according to customer's specification - price on request No foundation pit necessary can be offered with or without putting into operation
            pressure 100 t
            distance between columns 1180 mm
            stroke 1 - 120 mm
            no. of strokes 90 /min
            distance table/ram, stroke up 470 mm
            table surface area 1100 x 700 mm
            table height over floor 800 mm
            side window 400 mm
            ram surface 740 x 350 mm
            ram adjustment 100 mm
            power requirement 37,0 kW
            weight 11,0 t
            dimensions (WxDxH) 2,3 x 2,0 x 3,5 m
            Description :
            difference-way press
            with hydraulic driven knuckle-joint system, controllable dependent on pressure and way, two-hand operation
            T-slots in table and ram according to customer's specification - price on request
            No foundation pit necessary
            can be offered with or without putting into operation
          Datasheet
          Request / Contact

          Double Column Drawing Press -Hydr.

          used  Double Column Drawing Press -Hydr. HYDRAP HPDZB 315


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de

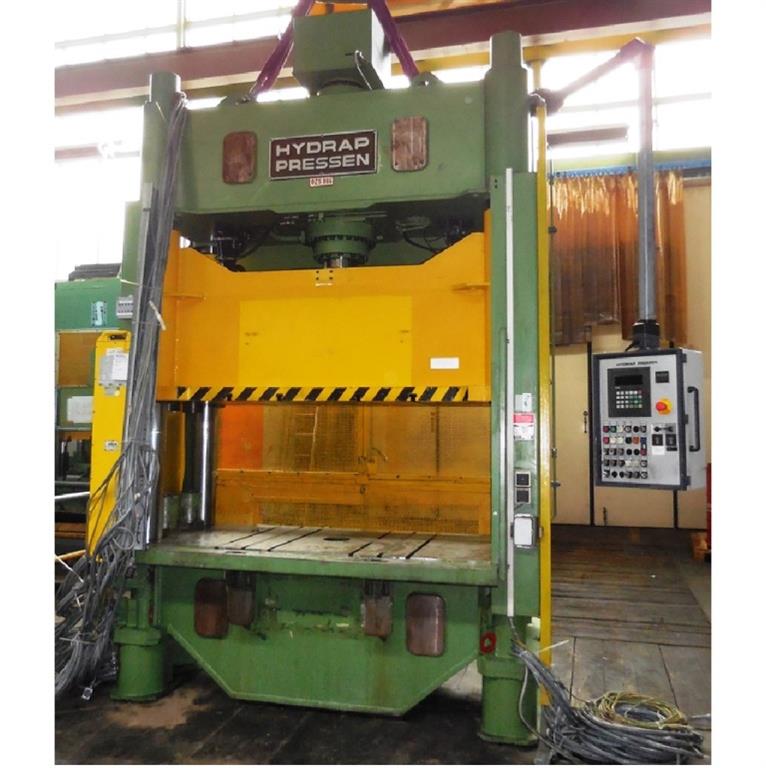

          #1050-133008 · Double Column Drawing Press -Hydr.

          HYDRAP - HPDZB 315 - - 2018 - Siemens S 7

          Technical details
          Pressure 315 t︱stroke 750 mm︱distance between columns 1700 mm︱Distance table/ram, max. stroke up, adjustment up 1250 mm︱Table surface area 1600 x 1300 mm︱pressure of drawing cushion in table 125 t︱Die cushion stroke in table 350 mm︱Die cushion pressure in ram 1000 x 900 t︱Die cushion stroke in ram mm︱Ram surface 1600 x 1300 mm︱Side window 1100 mm︱feed down 400 mm/s︱feed up 400 mm/s︱working feed 12 - 44 mm/s︱oil volume 2500 l︱power requirement 35,0 kW︱Weight 43,50 t︱dimensions of the machine ca. 3,6 x 3,1 x 6,0 mxmxm︱height over floor 4,9 mm︱height under floor m︱
          permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning, ram interlocking, controllable dependant on pressure/time and way, two-hand operation new electric control Siemens S 7 (2018) new ligh guard at the front (Sick C 4000) yom 1987 press can be inspected in running condition in our warehouse
            Pressure 315 t
            stroke 750 mm
            distance between columns 1700 mm
            Distance table/ram, max. stroke . 1250 mm
            Table surface area 1600 x 1300 mm
            pressure of drawing cushion in t. 125 t
            Die cushion stroke in table 350 mm
            Die cushion pressure in ram 1000 x 900 t
            Ram surface 1600 x 1300 mm
            Side window 1100 mm
            feed down 400 mm/s
            feed up 400 mm/s
            working feed 12 - 44 mm/s
            oil volume 2500 l
            power requirement 35,0 kW
            Weight 43,50 t
            dimensions of the machine ca. 3,6 x 3,1 x 6,0 mxmxm
            height over floor 4,9 mm
            Description :
            permitted for manual loading according to the German Safety Regulations (UVV)
            with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning, ram interlocking, controllable dependant on pressure/time and way, two-hand operation
            new electric control Siemens S 7 (2018)
            new ligh guard at the front (Sick C 4000)
            yom 1987
            press can be inspected in running condition in our warehouse
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MUELLER KEZ 315 - 18/6.1.1


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-153035V · Double Column Drawing Press -Hydr.

          MUELLER - KEZ 315 - 18/6.1.1 - - 2010 - Siemens S 7

          Technical details
          pressure 315 t︱distance between columns 1800 mm︱stroke 400 mm︱Distance table/ram, max. stroke up, adjustment up 650 mm︱table surface area 1800 x 1000 mm︱table height over floor 900 mm︱die cushion pressure in table 80 t︱die cushion stroke in table 100 mm︱Die cushion area in table 1300 x 600 mm︱side window 600 mm︱ram surface 1800 x 1000 mm︱speed down 400 mm/s︱speed up 300 mm/s︱working speed 15 - 80 mm/s︱oil volume 1700 l︱power requirement 55,0 kW︱weight 27,5 t︱dimensions (WxDxH) 3,1 x 2,2 x 4,6 m︱
          year of manufacture 1980 modernization 2010 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table No foundation pit necessary
            pressure 315 t
            distance between columns 1800 mm
            stroke 400 mm
            Distance table/ram, max. stroke . 650 mm
            table surface area 1800 x 1000 mm
            table height over floor 900 mm
            die cushion pressure in table 80 t
            die cushion stroke in table 100 mm
            Die cushion area in table 1300 x 600 mm
            side window 600 mm
            ram surface 1800 x 1000 mm
            speed down 400 mm/s
            speed up 300 mm/s
            working speed 15 - 80 mm/s
            oil volume 1700 l
            power requirement 55,0 kW
            weight 27,5 t
            dimensions (WxDxH) 3,1 x 2,2 x 4,6 m
            Description :
            year of manufacture 1980
            modernization 2010
            permitted for manual loading according to the German Safety Regulations (UVV)
            with oil-hydraulic drive, hydraulic drawing cushion in table
            No foundation pit necessary
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MUELLER ZE 315-16.24.1 (CE)


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-143044 · Double Column Drawing Press -Hydr.

          MUELLER - ZE 315-16.24.1 (CE) - - 2007 - Siemens S 7

          Technical details
          pressure 315 t︱distance between columns 1750 mm︱stroke 700 mm︱distance table/ram, max. stroke up, adjustment up 1200 mm︱table surface area 1600 x 1500 mm︱pressure of drawing cushion in table 125 t︱stroke of drawing cushion in table 200 mm︱die cushion area 1200 x 1400 mm︱table height over floor 750 mm︱ram surface 1640 x 1500 mm︱oil volume l︱power requirement 55,0 + 11,0 kW︱weight 29,5 t︱dimensions (WxDxH) 3,2 x 4,5 x 5,8 m︱Height above floor 5,1 m︱
          year of manufacture 1983 overhaul 2007 permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic cutting impact cushioning can be offered with or without putting into operation or alternatively with new control Siemens S 7-1500 F
            pressure 315 t
            distance between columns 1750 mm
            stroke 700 mm
            distance table/ram, max. stroke . 1200 mm
            table surface area 1600 x 1500 mm
            pressure of drawing cushion in t. 125 t
            stroke of drawing cushion in tab. 200 mm
            die cushion area 1200 x 1400 mm
            table height over floor 750 mm
            ram surface 1640 x 1500 mm
            power requirement 55,0 + 11,0 kW
            weight 29,5 t
            dimensions (WxDxH) 3,2 x 4,5 x 5,8 m
            Height above floor 5,1 m
            Description :
            year of manufacture 1983
            overhaul 2007
            permitted for manual put-in according to the CE Regulations
            with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic cutting impact cushioning
            can be offered with or without putting into operation or alternatively with new control Siemens S 7-1500 F
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MÜLLER ZE 1000-40.3.2


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-163053A · Double Column Drawing Press -Hydr.

          MÜLLER - ZE 1000-40.3.2 - - 2005 - Siemens S 7

          Technical details
          Pressure 1000 t︱distance between columns 4100 mm︱stroke 1200 mm︱Distance table/ram, stroke up 2100 mm︱Table surface area 4000 x 2200 mm︱pressure of drawing cushion in table 360 t︱Die cushion stroke in table 300 mm︱Die cushion area in table 3500 x 1600 mm︱Die cushion pressure in ram 100 t︱Die cushion stroke in ram 160 mm︱Die cushion area in ram 3250 x 1600 mm︱Ram surface 4000 x 2200 mm︱Side window 1300 mm︱Oil volume 8000 l︱Power capacity 300,0 kW︱Weight t︱Dimensions (WxDxH) 5,75 x 4,3 x 9,55 m︱Height above floor 7,7 m︱
          year of manufacture 1973 modernization 2005 with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning stored in dismantled condition Video at seller’s site before dismantling available
            Pressure 1000 t
            distance between columns 4100 mm
            stroke 1200 mm
            Distance table/ram, stroke up 2100 mm
            Table surface area 4000 x 2200 mm
            pressure of drawing cushion in t. 360 t
            Die cushion stroke in table 300 mm
            Die cushion area in table 3500 x 1600 mm
            Die cushion pressure in ram 100 t
            Die cushion stroke in ram 160 mm
            Die cushion area in ram 3250 x 1600 mm
            Ram surface 4000 x 2200 mm
            Side window 1300 mm
            Oil volume 8000 l
            Power capacity 300,0 kW
            Dimensions (WxDxH) 5,75 x 4,3 x 9,55 m
            Height above floor 7,7 m
            Description :
            year of manufacture 1973
            modernization 2005
            with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning
            stored in dismantled condition
            Video at seller’s site before dismantling available
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MÜLLER ZE 600 25.4.1


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-163064A · Double Column Drawing Press -Hydr.

          MÜLLER - ZE 600 25.4.1 - - 2005 - Siemens S 7

          Technical details
          Pressure 600 t︱distance between columns 2600 mm︱stroke 900 mm︱Distance table/ram, max. stroke up, adjustment up 1600 mm︱Table surface area 2500 x 1730 mm︱pressure of drawing cushion in table 250 t︱Die cushion stroke in table 400 mm︱Die cushion area in table 2300 x 1300 mm︱Die cushion pressure in ram 63 t︱Die cushion stroke in ram 160 mm︱Die cushion area in ram 1900 x 1300 mm︱Ram surface 2500 x 1730 mm︱Side window 1100 mm︱Oil volume 3500 l︱Power capacity 200,0 kW︱Weight t︱Dimensions (WxDxH) 4,1 x 2,8 x 9,6 m︱Height above floor 6,4 m︱
          year of manufacture 1974 overhaul 2005 with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning stored in dismantled condition Video at seller’s site before dismantling available
            Pressure 600 t
            distance between columns 2600 mm
            stroke 900 mm
            Distance table/ram, max. stroke . 1600 mm
            Table surface area 2500 x 1730 mm
            pressure of drawing cushion in t. 250 t
            Die cushion stroke in table 400 mm
            Die cushion area in table 2300 x 1300 mm
            Die cushion pressure in ram 63 t
            Die cushion stroke in ram 160 mm
            Die cushion area in ram 1900 x 1300 mm
            Ram surface 2500 x 1730 mm
            Side window 1100 mm
            Oil volume 3500 l
            Power capacity 200,0 kW
            Dimensions (WxDxH) 4,1 x 2,8 x 9,6 m
            Height above floor 6,4 m
            Description :
            year of manufacture 1974
            overhaul 2005
            with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning
            stored in dismantled condition
            Video at seller’s site before dismantling available
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MÜLLER BZE 800-25.3.1


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-163063A · Double Column Drawing Press -Hydr.

          MÜLLER - BZE 800-25.3.1 - - 2005 - Siemens S 7

          Technical details
          Pressure 800 t︱distance between columns 2560 mm︱stroke 1050 mm︱Distance table/ram, stroke up 1870 mm︱Table surface area 2500 x 1730 mm︱pressure of drawing cushion in table 300 t︱Die cushion stroke in table 395 mm︱Die cushion area in table 2300 x 1300 mm︱Ram surface 2500 x 1730 mm︱Die cushion pressure in ram 63 t︱Die cushion stroke in ram 150 mm︱Side window 1000 mm︱Oil volume 4300 l︱Power capacity 200,0 kW︱Weight t︱Dimensions (WxDxH) 4,1 x 2,8 x 10,0 m︱Height above floor 7,0 m︱
          year of manufacture 1974 overhaul 2005 mit ölhydraulischem Antrieb, hydraulischem gesteuertem Ziehkissen im Tisch und Stößel stored in dismantled condition Video at seller’s site before dismantling available
            Pressure 800 t
            distance between columns 2560 mm
            stroke 1050 mm
            Distance table/ram, stroke up 1870 mm
            Table surface area 2500 x 1730 mm
            pressure of drawing cushion in t. 300 t
            Die cushion stroke in table 395 mm
            Die cushion area in table 2300 x 1300 mm
            Ram surface 2500 x 1730 mm
            Die cushion pressure in ram 63 t
            Die cushion stroke in ram 150 mm
            Side window 1000 mm
            Oil volume 4300 l
            Power capacity 200,0 kW
            Dimensions (WxDxH) 4,1 x 2,8 x 10,0 m
            Height above floor 7,0 m
            Description :
            year of manufacture 1974
            overhaul 2005
            mit ölhydraulischem Antrieb, hydraulischem gesteuertem Ziehkissen im Tisch und Stößel
            stored in dismantled condition
            Video at seller’s site before dismantling available
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MÜLLER ZE 800-35.2.1


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-163069A · Double Column Drawing Press -Hydr.

          MÜLLER - ZE 800-35.2.1 - - 1998 - konventionell

          Technical details
          Pressure 800 t︱distance between columns 3550 mm︱stroke 1100 mm︱Distance table/ram, max. stroke up, adjustment up 1900 mm︱Table surface area 3500 x 1800 mm︱pressure of drawing cushion in table 350 t︱Die cushion stroke in table 280 mm︱Die cushion pressure in ram 80 t︱Die cushion stroke in ram 160 mm︱Ram surface 3500 x 1800 mm︱Side window 1900 mm︱Power capacity kW︱Weight 100,0 t︱Floor Space (WxD) 5,3 x 4,3 m︱Height above floor 7,3 m︱Height below floor 5,0 - 6,0 m︱
          year of manufacture 1970 overhaul 1998 with oil-hydraulic drive, hydraulic controllable drawing cushion in table and ram, hydraulic cutting impact cushioning, moving table (without rails for the moving table) Height beneath floor approx. 5 - 6 m stored in dismantled condition Video at seller’s site before dismantling available
            Pressure 800 t
            distance between columns 3550 mm
            stroke 1100 mm
            Distance table/ram, max. stroke . 1900 mm
            Table surface area 3500 x 1800 mm
            pressure of drawing cushion in t. 350 t
            Die cushion stroke in table 280 mm
            Die cushion pressure in ram 80 t
            Die cushion stroke in ram 160 mm
            Ram surface 3500 x 1800 mm
            Side window 1900 mm
            Weight 100,0 t
            Floor Space (WxD) 5,3 x 4,3 m
            Height above floor 7,3 m
            Height below floor 5,0 - 6,0 m
            Description :
            year of manufacture 1970
            overhaul 1998
            with oil-hydraulic drive, hydraulic controllable drawing cushion in table and ram, hydraulic cutting impact cushioning, moving table (without rails for the moving table)
            Height beneath floor approx. 5 - 6 m
            stored in dismantled condition
            Video at seller’s site before dismantling available
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. SMG HZPU 500 (UVV)


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-063196 · Double Column Drawing Press -Hydr.

          SMG - HZPU 500 (UVV) - - 1997 - Siemens S 5

          Technical details
          Pressure 500 t︱distance between columns 1550 mm︱stroke 600 mm︱distance table/ram, max. stroke up, adjustment up 900 mm︱table surface area 1200 x 1300 mm︱pressure of drawing cushion in table 250 t︱stroke of drawing cushion in table 150 mm︱die cushion area 950 x 950 mm︱table height over floor 1245 mm︱side window 1250 mm︱ram surface 1200 x 1300 mm︱speed down 750 mm/s︱speed up 780 mm/s︱working speed 105 mm/s︱oil volume 4000 l︱power requirement 263,0 kW︱weight 45,0 t︱Dimensions (WxDxH) 3,3 x 3,3 x 6,1 m︱height over floor 6,1 m︱
          YOM 1978 - overhaul 1997 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning (motoric adjustable), depth stop, ram interlocking
            Pressure 500 t
            distance between columns 1550 mm
            stroke 600 mm
            distance table/ram, max. stroke . 900 mm
            table surface area 1200 x 1300 mm
            pressure of drawing cushion in t. 250 t
            stroke of drawing cushion in tab. 150 mm
            die cushion area 950 x 950 mm
            table height over floor 1245 mm
            side window 1250 mm
            ram surface 1200 x 1300 mm
            speed down 750 mm/s
            speed up 780 mm/s
            working speed 105 mm/s
            oil volume 4000 l
            power requirement 263,0 kW
            weight 45,0 t
            Dimensions (WxDxH) 3,3 x 3,3 x 6,1 m
            height over floor 6,1 m
            Description :
            YOM 1978 - overhaul 1997
            permitted for manual loading according to the German Safety Regulations (UVV)
            with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning (motoric adjustable), depth stop, ram interlocking
          Datasheet
          Request / Contact

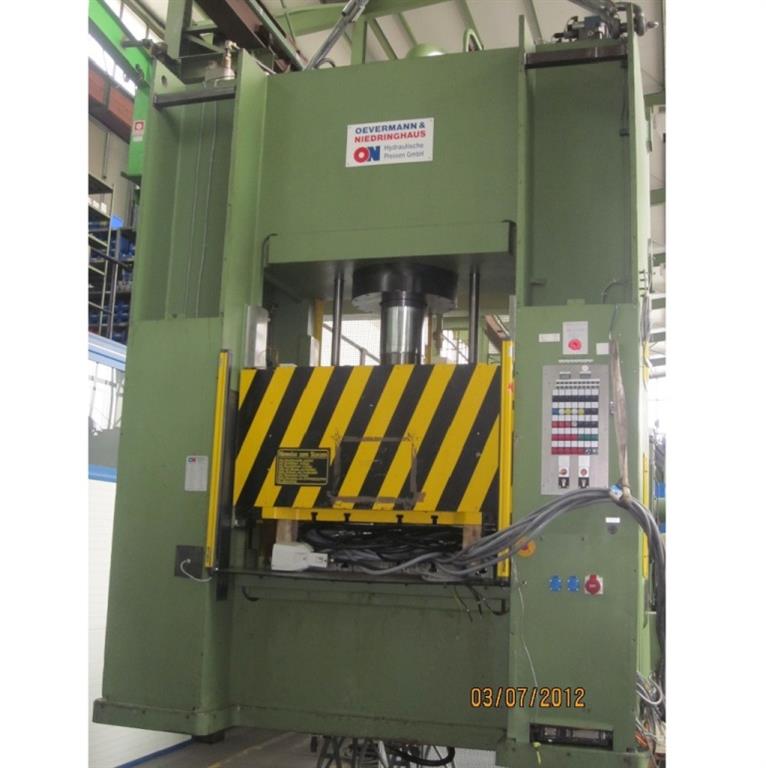

          used  Double Column Drawing Press -Hydr. OEVERMANN & NIEDRINGHAUS DPS 160 (CE)


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-123002 · Double Column Drawing Press -Hydr.

          OEVERMANN & NIEDRINGHAUS - DPS 160 (CE) - - 1996 - Siemens S 7

          Technical details
          pressure 160 t︱distance between columns 1380 mm︱stroke 300 mm︱distance table/ram, max. stroke up, adjustment up 500 mm︱table surface area 1250 x 850 mm︱pressure of drawing cushion in table 80 t︱stroke of drawing cushion in table 150 mm︱die cushion area 450 x 450 mm︱table height over floor 900 mm︱side window 250 x 400 mm︱ram surface 1350 x 850 mm︱speed down 400 mm/s︱speed up 350 mm/s︱working speed 50 mm/s︱oil volume 1850 l︱power requirement 58,0 + 11,0 kW︱weight 24,1 t︱dimensions (WxDxH) 2,85 x 2,15 x 4,6 m︱
          permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, controllable dependent on pressure and way, hydraulic drawing cushion / ejector in table, cutting impact cushioning, mechanical depth stop (motoric adjustable), ram interlocking can be offered with or without putting into operation
            pressure 160 t
            distance between columns 1380 mm
            stroke 300 mm
            distance table/ram, max. stroke . 500 mm
            table surface area 1250 x 850 mm
            pressure of drawing cushion in t. 80 t
            stroke of drawing cushion in tab. 150 mm
            die cushion area 450 x 450 mm
            table height over floor 900 mm
            side window 250 x 400 mm
            ram surface 1350 x 850 mm
            speed down 400 mm/s
            speed up 350 mm/s
            working speed 50 mm/s
            oil volume 1850 l
            power requirement 58,0 + 11,0 kW
            weight 24,1 t
            dimensions (WxDxH) 2,85 x 2,15 x 4,6 m
            Description :
            permitted for manual put-in according to the CE Regulations
            with oil-hydraulic drive, controllable dependent on pressure and way, hydraulic drawing cushion / ejector in table, cutting impact cushioning, mechanical depth stop (motoric adjustable), ram interlocking
            can be offered with or without putting into operation
          Datasheet
          Request / Contact

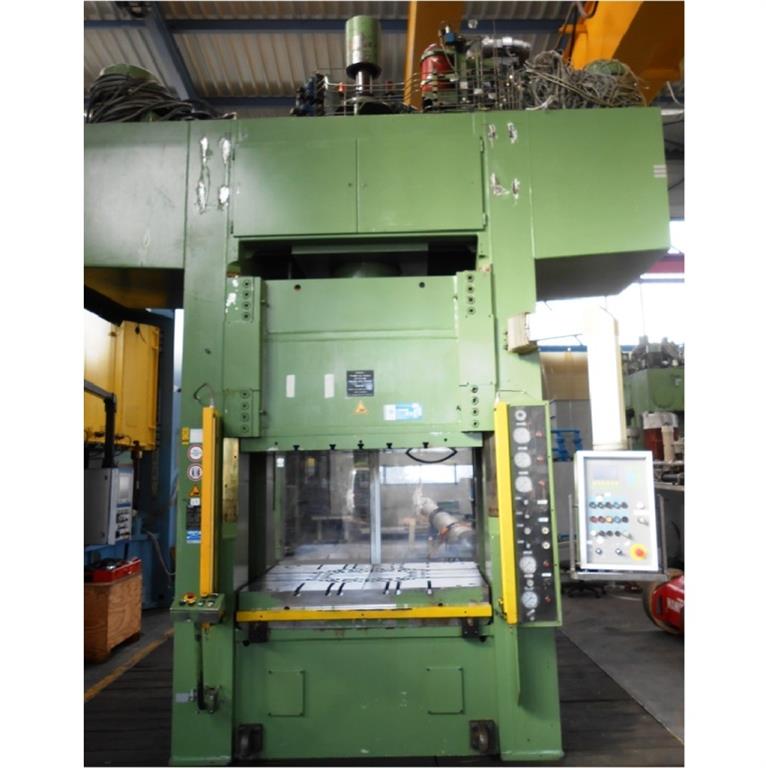

          used  Double Column Drawing Press -Hydr. LAUFFER RZU 100


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-193026V · Double Column Drawing Press -Hydr.

          LAUFFER - RZU 100 - - 1996 - Siemens S 5

          Technical details
          pressure 100 t︱distance between columns 1525 mm︱stroke 450 mm︱distance table/ram, max. stroke up, adjustment up 850 mm︱table surface area 1500 x 1150 mm︱pressure of drawing cushion in table 30 t︱stroke of drawing cushion in table 150 mm︱die cushion area mm︱table height over floor 940 mm︱side window 480 mm︱ram surface 1500 x 1150 mm︱speed down mm/s︱speed up mm/s︱working speed mm/s︱oil volume 1200 l︱power requirement kW︱weight 25,0 t︱dimensions (WxDxH) 4,2 x 1,75 x 5,1 m︱light guard Sick
          permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, hydraulic drawing cushion / ejector in table, hydraulic ejector in ram, hydraulic cutting impact cushioning, mechanical depth stop No foundation pit necessary
            pressure 100 t
            distance between columns 1525 mm
            stroke 450 mm
            distance table/ram, max. stroke . 850 mm
            table surface area 1500 x 1150 mm
            pressure of drawing cushion in t. 30 t
            stroke of drawing cushion in tab. 150 mm
            table height over floor 940 mm
            side window 480 mm
            ram surface 1500 x 1150 mm
            oil volume 1200 l
            weight 25,0 t
            dimensions (WxDxH) 4,2 x 1,75 x 5,1 m
            light guard Sick
            Description :
            permitted for manual put-in according to the CE Regulations
            with oil-hydraulic drive, hydraulic drawing cushion / ejector in table, hydraulic ejector in ram, hydraulic cutting impact cushioning, mechanical depth stop
            No foundation pit necessary
          Datasheet
          Request / Contact
          used  Double Column Drawing Press -Hydr. MÜLLER ZE 1500.50.4.1


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-203030V · Double Column Drawing Press -Hydr.

          MÜLLER - ZE 1500.50.4.1 - - 1993 - konventionell

          Technical details
          Pressure 1500 t︱distance between columns 5050 mm︱stroke 1100 mm︱Distance table/ram, stroke up 2300 mm︱Table surface area 5000 x 2700 mm︱pressure of drawing cushion in table 320 t︱Die cushion stroke in table 300 mm︱Die cushion area in table 4300 x 1830 mm︱Die cushion pressure in ram 120 t︱Die cushion stroke in ram 200 mm︱Die cushion area in ram 3410 x 1650 mm︱Ram surface 5000 x 2400 mm︱Speed down 360 mm/s︱Speed up 168 - 505 mm/s︱Working speed 19 - 86 mm/s︱Oil volume 10500 l︱Power capacity 450,0 kW︱Weight 400,0 t︱Dimensions (WxDxH) 3,47 x 6,95 x 12,21 m︱Height above floor 8,21 m︱
          year of manufacture 1983 overhaul 1993 with oilhydraulic drive, drawing cushion in table, drawing cushion in ram (drawing cushion surface) approx. 3410 x 1650 mm), cutting impact cushioning, controllabel dependant on pressure/time and way machine can be inspected under power as is where is WITHOUT dismantling, WITHOUT loading
            Pressure 1500 t
            distance between columns 5050 mm
            stroke 1100 mm
            Distance table/ram, stroke up 2300 mm
            Table surface area 5000 x 2700 mm
            pressure of drawing cushion in t. 320 t
            Die cushion stroke in table 300 mm
            Die cushion area in table 4300 x 1830 mm
            Die cushion pressure in ram 120 t
            Die cushion stroke in ram 200 mm
            Die cushion area in ram 3410 x 1650 mm
            Ram surface 5000 x 2400 mm
            Speed down 360 mm/s
            Speed up 168 - 505 mm/s
            Working speed 19 - 86 mm/s
            Oil volume 10500 l
            Power capacity 450,0 kW
            Weight 400,0 t
            Dimensions (WxDxH) 3,47 x 6,95 x 12,21 m
            Height above floor 8,21 m
            Description :
            year of manufacture 1983
            overhaul 1993
            with oilhydraulic drive, drawing cushion in table, drawing cushion in ram (drawing cushion surface) approx. 3410 x 1650 mm), cutting impact cushioning, controllabel dependant on pressure/time and way
            machine can be inspected under power
            as is where is
            WITHOUT dismantling, WITHOUT loading
          Datasheet
          Request / Contact

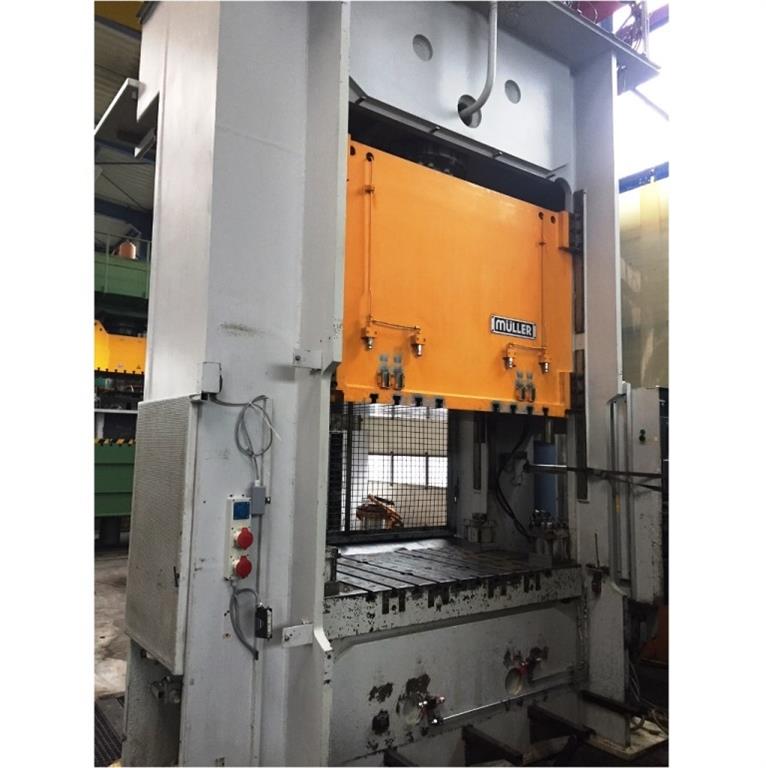

          used  Double Column Drawing Press -Hydr. MUELLER SLUZ 315-20.1.1 (UVV)


          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland

          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-183046V · Double Column Drawing Press -Hydr.

          MUELLER - SLUZ 315-20.1.1 (UVV) - - 1993 - Option: Siemens S7-1500 F (neu

          Technical details
          pressure 315 t︱distance between columns 2060 mm︱stroke 700 mm︱Distance table/ram, stroke up 1100 mm︱Table surface area 2000 x 1000 mm︱Die cushion pressure in table 125 t︱Die cushion stroke in table 200 mm︱die cushion area 1200 x 600 mm︱Table height above floor 750 mm︱table height over floor (if standing without pit) 1100 mm︱Side window 720 mm︱Ram surface 2000 x 1000 mm︱Oil volume 1800 l︱Power capacity 90,0 kW︱Weight 35,0 t︱Dimensions (WxDxH) 3,6 x 2,75 x 5,65 m︱
          permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning (with motoric depth adjustment) No foundation pit necessary
            pressure 315 t
            distance between columns 2060 mm
            stroke 700 mm
            Distance table/ram, stroke up 1100 mm
            Table surface area 2000 x 1000 mm
            Die cushion pressure in table 125 t
            Die cushion stroke in table 200 mm
            die cushion area 1200 x 600 mm
            Table height above floor 750 mm
            table height over floor (if stan. 1100 mm
            Side window 720 mm
            Ram surface 2000 x 1000 mm
            Oil volume 1800 l
            Power capacity 90,0 kW
            Weight 35,0 t
            Dimensions (WxDxH) 3,6 x 2,75 x 5,65 m
            Description :
            permitted for manual loading according to the German Safety Regulations (UVV)
            with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning (with motoric depth adjustment)
            No foundation pit necessary
          Datasheet
          Request / Contact
          •
          •
          • 1
          • 2
          • 3
          • 4
          • 5
          • 6
          •
          •

          Vögtle Service GmbH   73054 - Eislingen Friedhofstr. 115 Deutschland
          Vögtle Service GmbH

          Friedhofstr. 115



          Contact Trader


            Vögtle Service GmbH
           Friedhofstr. 115
            73054 - Eislingen
            Deutschland
            +49 71 61 99 73- 0
            +49 71 61 99 73- 13
            Thomas.Ruckh@voegtle.de
            www.voegtle.de
            Contact person:

            Haben Sie eine Presse abzugeben? Wir kaufen Ihre gute Gebrauchte. Bitte nehmen Sie Kontakt mit uns auf!




          Machine category


          Abfallschere · Abgratpresse · Abrollmulde-Richtmaschine · Abwickelhaspel · Abwickelhaspel-Richtmaschine · Aufspannplatte · Auswerfer · Bandanlage · Bandbeöler · Differenzwegpresse · Doppelständer - Kurbelpresse · Doppelständerpresse - Hydraulisch · Doppelständerziehpresse - Hydraulisch · Doppelständerziehpresse - Mechanisch · Einsenkpresse · Einständerpresse - Hydraulisch · Einständerziehpresse - Hydraulisch · Exzenterpresse - Einständer · Haspel · Hydroformpresse · Kniegelenkpresse - Einständer · Kniehebelpresse - Einständer · Luftkessel · Nutenstanze · Pneumatische Presse · Richtmaschine · Richtplatte · Richtpresse - Einständer · Schmiedepresse · Spindelpresse · Stanzautomat-Doppelständer · Taumel- und Nietmaschine · Tuschierpresse · Vorschubrichtmaschine · Walzenvorschub · Werkzeugprobierpresse · Werkzeugwechselwagen · Zangenvorschub · Ziehkissen ·
