          Schiess Moweg GmbH - Stockist for used machines

          Machinelist:


          Center Lathe

          used  Center Lathe STANKO SAMAT 400 L


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04012 · Center Lathe

          STANKO - SAMAT 400 L - - 1998 -

          Technical details
          turning diameter over bed 400 mm︱turning diameter over slide rest 295 mm︱turning length 1500 mm︱spindle turning speed range 25 - 2000 U/min︱feeds 0,05 - 2,8 mm/U︱tailstock quill taper MT 5 ︱tailstock quill stroke 130 mm︱spindle drive 5,5 kW︱spindle bore 47 mm︱weight of the machine ca. 3,5 t︱dimensions of the machine ca. 3,2 x 1,5 x 1,6 m︱total power requirement 10 kW︱
          Machine equiped with 3-axis digital readout - coolant device, chuck guard - Multifix quick tool holder system - 3-jaw chuck 200 mm
            turning diameter over bed 400 mm
            turning diameter over slide rest 295 mm
            turning length 1500 mm
            spindle turning speed range 25 - 2000 U/min
            feeds 0,05 - 2,8 mm/U
            tailstock quill taper MT 5
            tailstock quill stroke 130 mm
            spindle drive 5,5 kW
            spindle bore 47 mm
            weight of the machine ca. 3,5 t
            dimensions of the machine ca. 3,2 x 1,5 x 1,6 m
            total power requirement 10 kW
            Description :
            Machine equiped with 3-axis digital readout
            - coolant device, chuck guard
            - Multifix quick tool holder system
            - 3-jaw chuck 200 mm
          Datasheet
          Request / Contact
          used  Center Lathe WOHLENBERG V 1000


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04047 · Center Lathe

          WOHLENBERG - V 1000 - - 1986 -

          Technical details
          turning diameter over bed 1000 mm︱turning diameter over slide rest 770 mm︱turning length 2000 mm︱Height of centres 500 mm︱upper slide 250 ︱spindle bore 104 mm︱spindle turning speed range 4,5 - 900 U/min︱longitudinal feeds, infinitely variable 0,063 - 140 mm/U︱feeds of cross-slide 0,032 - 71 mm/U︱max. workpiece weight between centres 5000 kg︱total power requirement 35 kW︱weight of the machine ca. 8 t︱dimensions of the machine ca. 5,0 x 1,5 x 1,9 m︱
          Machine with 2-axis digital readout - faceplate 1000 mm, 3-jaw chuck 500 mm - powered top slide - rapid traverse - misc. accessories
            turning diameter over bed 1000 mm
            turning diameter over slide rest 770 mm
            turning length 2000 mm
            Height of centres 500 mm
            upper slide 250
            spindle bore 104 mm
            spindle turning speed range 4,5 - 900 U/min
            longitudinal feeds, infinitely v. 0,063 - 140 mm/U
            feeds of cross-slide 0,032 - 71 mm/U
            max. workpiece weight between ce. 5000 kg
            total power requirement 35 kW
            weight of the machine ca. 8 t
            dimensions of the machine ca. 5,0 x 1,5 x 1,9 m
            Description :
            Machine with 2-axis digital readout
            - faceplate 1000 mm, 3-jaw chuck 500 mm
            - powered top slide
            - rapid traverse
            - misc. accessories
          Datasheet
          Request / Contact
          used  Center Lathe WEIPERT W 802


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04015 · Center Lathe

          WEIPERT - W 802 - - 1981 -

          Technical details
          turning diameter over bed 800 mm︱turning diameter over slide rest 560 mm︱turning length 3000 mm︱turning diameter before face plate at 500 mm 850 mm︱spindle turning speed range 9 - 1800 U/min︱spindle bore 106 mm︱bed width 5,4 x 1,8 x 1,9 mm︱max. workpiece weight between centres 2500 kg︱main drive 27 kW︱total power requirement 32 kW︱weight of the machine ca. 6 t︱dimensions of the machine ca. 5 x 2 x 2 m︱
          - digital readout - rapid traverse - 3 jaw chuck, faceplate 760 mm - 1 fixed steady rest dia. 400 mm - MULTIFIX toolholder system - coolant attachment, splash guarding - various MULTIFIX holder and jaws
            turning diameter over bed 800 mm
            turning diameter over slide rest 560 mm
            turning length 3000 mm
            turning diameter before face pla. 850 mm
            spindle turning speed range 9 - 1800 U/min
            spindle bore 106 mm
            bed width 5,4 x 1,8 x 1,9 mm
            max. workpiece weight between ce. 2500 kg
            main drive 27 kW
            total power requirement 32 kW
            weight of the machine ca. 6 t
            dimensions of the machine ca. 5 x 2 x 2 m
            Description :
            - digital readout
            - rapid traverse
            - 3 jaw chuck, faceplate 760 mm
            - 1 fixed steady rest dia. 400 mm
            - MULTIFIX toolholder system
            - coolant attachment, splash guarding
            - various MULTIFIX holder and jaws
          Datasheet
          Request / Contact

          CNC Lathe

          used  CNC Lathe VDF-WOHLENBERG E 1600 S


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04046 · CNC Lathe

          VDF-WOHLENBERG - E 1600 S - - 1983/2005 - SIEMENS 840 D

          Technical details
          turning diameter 1600 mm︱turning length 4000 mm︱total power requirement 75 kW︱main drive 63 kW︱turning diameter over slide 1250 mm︱max. workpiece weight between centres 8000 kg︱spindle bore 163 mm︱spindle turning speed range 3,55 - 710 U/min︱weight of the machine ca. 27 t︱dimensions of the machine ca. 9,5 x 2,4 x 2,3 m︱
          with Siemens 840 D with Manual Turn 2 fixed stedies rests 70 - 450 mm / 450 - 800 mm chip conveyor, coolant attachment diverse accessories
            turning diameter 1600 mm
            turning length 4000 mm
            total power requirement 75 kW
            main drive 63 kW
            turning diameter over slide 1250 mm
            max. workpiece weight between ce. 8000 kg
            spindle bore 163 mm
            spindle turning speed range 3,55 - 710 U/min
            weight of the machine ca. 27 t
            dimensions of the machine ca. 9,5 x 2,4 x 2,3 m
            Description :
            with Siemens 840 D with Manual Turn
            2 fixed stedies rests 70 - 450 mm / 450 - 800 mm
            chip conveyor, coolant attachment
            diverse accessories
          Datasheet
          Request / Contact

          CNC Lathe - Inclined Bed Type

          used  CNC Lathe - Inclined Bed Type VDF - BOEHRINGER NG 200 - 2/2


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-03998 · CNC Lathe - Inclined Bed Type

          VDF - BOEHRINGER - NG 200 - 2/2 - - 2003 - SIEMENS 840 D

          Technical details
          turning diameter 600 mm︱turning length 850 mm︱control 840 ︱turning diameter over slide 290 mm︱turning speed range - stepless 30 - 3000 U/min︱spindle bore 103 mm︱rapid traverse 25 m/min︱cross movement 220 / 200 mm︱total power requirement 65 kW︱weight of the machine ca. 11 t︱dimensions of the machine ca. 6 x 3 x 2,5 m︱
          with CNC SIEMENS 840 D C-axis driven tools 3 jaw power chuck SMW HFKND 260/3 A8 4-axis 2 saddles upper support with driven tools 20 - 4000 U/min. 5kW NC controlled tailstock, automatic door chip conveyor, coolant attachment 22 bar / 20 l/min. diverse driven toolholders and turning toolholders, VDI 50 shaft
            turning diameter 600 mm
            turning length 850 mm
            control 840
            turning diameter over slide 290 mm
            turning speed range - stepless 30 - 3000 U/min
            spindle bore 103 mm
            rapid traverse 25 m/min
            cross movement 220 / 200 mm
            total power requirement 65 kW
            weight of the machine ca. 11 t
            dimensions of the machine ca. 6 x 3 x 2,5 m
            Description :
            with CNC SIEMENS 840 D
            C-axis driven tools
            3 jaw power chuck SMW HFKND 260/3 A8
            4-axis 2 saddles
            upper support with driven tools 20 - 4000 U/min. 5kW
            NC controlled tailstock, automatic door
            chip conveyor, coolant attachment 22 bar / 20 l/min.
            diverse driven toolholders and turning toolholders, VDI 50 shaft
          Datasheet
          Request / Contact

          CNC Turning- and Milling Center

          used  CNC Turning- and Milling Center WFL M65 x 2000


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13642 · CNC Turning- and Milling Center

          WFL - M65 x 2000 - - 2006 - SIEMENS 840 D

          Technical details
          turning diameter 820 mm︱turning length 2070 mm︱control 840 ︱turning diameter over bed slide 750 ︱z-axis 2150 mm︱c-axis 0,001° ︱y-axis 500 mm︱x-axis 720 mm︱b-axis -110/+90 °︱spindle diameter in front bearing 240 mm︱spindle bore 145 mm︱spindle motor 40 kW︱spindle turning speed range 10 - 3300 U/min︱rapid traverse X-axis 15 m/min︱rapid traverse Z-axis 20 m/min︱tailstock-quill taper dia./stroke 180 mm︱no. of tools in the magazine 36 Stück︱work piece power 25 kW︱speeds of tool 10 - 4000 U/min︱total power requirement 75 kW︱
          Machine with SIEMENS 840 D pl control for 5 axes Software for gear hobbing external/internal, drill breakage control and collision monitoring. Actual geometrical and condition report available - tool changer for 36 tools CAPTO C 8 - NC self centering steady rest 35 - 245 mm - NC tail stock - coolant device with paperband filtration, coolant through spindle 80 bar, outside coolant - spindle upgrade TBM with 25 kW and 300 Nm - workpiece measuring MARPOSS - power chuck SMW 400-128 - PROMOT gantry loader with tilting device, gripper changer for chuck or shaft parts, workpiece palette changer and straigthening unit. - disc brake for C-axes
            turning diameter 820 mm
            turning length 2070 mm
            control 840
            turning diameter over bed slide 750
            z-axis 2150 mm
            c-axis 0,001°
            y-axis 500 mm
            x-axis 720 mm
            b-axis -110/+90 °
            spindle diameter in front bearin. 240 mm
            spindle bore 145 mm
            spindle motor 40 kW
            spindle turning speed range 10 - 3300 U/min
            rapid traverse X-axis 15 m/min
            rapid traverse Z-axis 20 m/min
            tailstock-quill taper dia./strok. 180 mm
            no. of tools in the magazine 36 Stück
            work piece power 25 kW
            speeds of tool 10 - 4000 U/min
            total power requirement 75 kW
            Description :
            Machine with SIEMENS 840 D pl control for 5 axes
            Software for gear hobbing external/internal, drill breakage control and collision monitoring.
            Actual geometrical and condition report available
            - tool changer for 36 tools CAPTO C 8
            - NC self centering steady rest 35 - 245 mm
            - NC tail stock
            - coolant device with paperband filtration, coolant through spindle 80 bar, outside coolant
            - spindle upgrade TBM with 25 kW and 300 Nm
            - workpiece measuring MARPOSS
            - power chuck SMW 400-128
            - PROMOT gantry loader with tilting device, gripper changer for chuck or shaft parts, workpiece palette changer and straigthening unit.
            - disc brake for C-axes
          Datasheet
          Request / Contact

          CNC-Vertical Turret Lathe - Single Col.

          used  CNC-Vertical Turret Lathe - Single Col. DÖRRIES VCE 1600/140


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04037 · CNC-Vertical Turret Lathe - Single Col.

          DÖRRIES - VCE 1600/140 - - 2000 - SIEMENS 840 D

          Technical details
          faceplate diameter 1400 mm︱swing diameter 1600 mm︱turning height 1500 mm︱z-axis 1000 mm︱x-axis +/- 950 mm︱faceplate turning speed range -stepless- 1 - 400 U/min︱cross rail adjustment 700 mm︱ram head dimension 250 x 250 mm︱toolpiece turning speed range 1 - 3000 U/min︱tool taper Capto C 6 / ISO 50 ︱workpiece weight 8000 kg︱total power requirement 100 kW︱weight of the machine ca. 48 t︱dimensions of the machine ca. 9,4 x 4,9 x 6,2 m︱
          Machine with CNC SIEMENS 840 D - hydrostatic in X and Z-axes - autom. toolchanger for 40 tools - autom. head changer - angular milling head, grinding spindle, boring bar adpater and base holder for turning tools ( CAPTO ) - C-axis driven tools 1-3000 rpm 30 kW - adjustable crossrail positioning - coolant attachment with through spindle coolant - dust exhauster, chip conveyor and complete machine splash housing with outom. door and walkable working area - diverse toolholders system CAPTO
            faceplate diameter 1400 mm
            swing diameter 1600 mm
            turning height 1500 mm
            z-axis 1000 mm
            x-axis +/- 950 mm
            faceplate turning speed range -s. 1 - 400 U/min
            cross rail adjustment 700 mm
            ram head dimension 250 x 250 mm
            toolpiece turning speed range 1 - 3000 U/min
            tool taper Capto C 6 / ISO 50
            workpiece weight 8000 kg
            total power requirement 100 kW
            weight of the machine ca. 48 t
            dimensions of the machine ca. 9,4 x 4,9 x 6,2 m
            Description :
            Machine with CNC SIEMENS 840 D
            - hydrostatic in X and Z-axes
            - autom. toolchanger for 40 tools
            - autom. head changer
            - angular milling head, grinding spindle, boring bar adpater and base holder for turning tools ( CAPTO )
            - C-axis driven tools 1-3000 rpm 30 kW
            - adjustable crossrail positioning
            - coolant attachment with through spindle coolant
            - dust exhauster, chip conveyor and complete machine splash housing
            with outom. door and walkable working area
            - diverse toolholders system CAPTO
          Datasheet
          Request / Contact

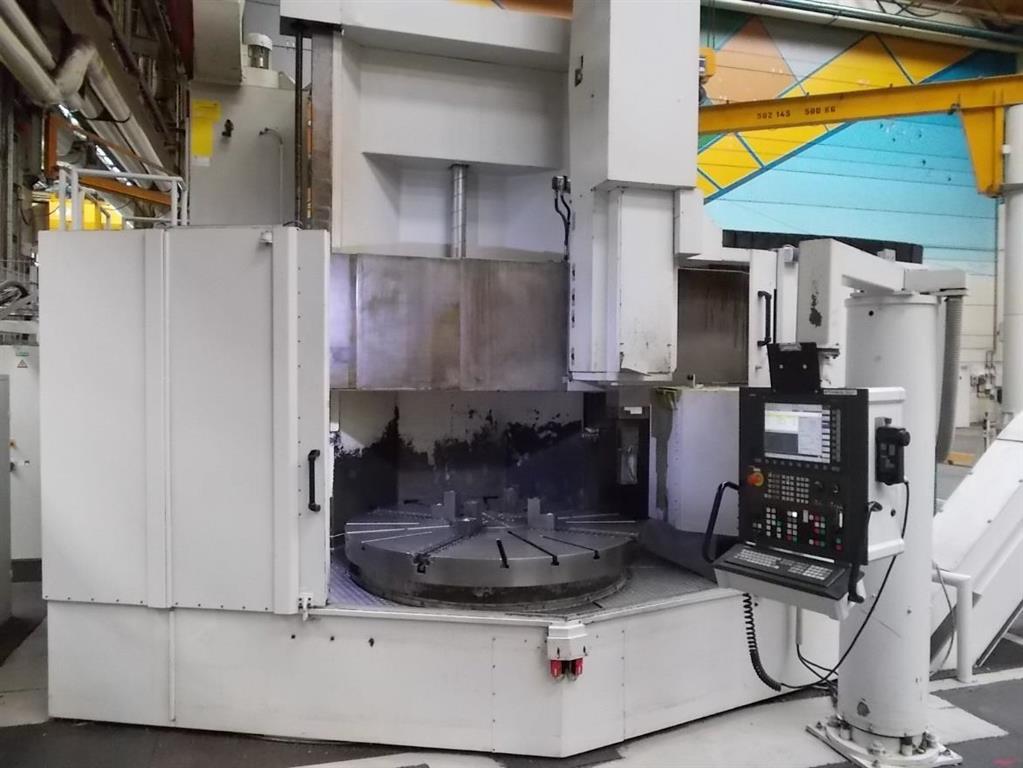

          used  CNC-Vertical Turret Lathe - Single Col. DÖRRIES VCE 200


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04063 · CNC-Vertical Turret Lathe - Single Col.

          DÖRRIES - VCE 200 - - 1985/2010 - SIEMENS 840 D

          Technical details
          faceplate diameter 2000 mm︱swing diameter 2400 mm︱turning height 2370 mm︱workpiece weight 25 t︱cross rail adjustment 2000 mm︱x-axis 1350 mm︱z-axis 1750 mm︱faceplate speeds from - to 2 - 224 U/min︱rapid traverse: 6000 mm/min︱main drive motor 105 kW︱dimensions of the machine ca. 6,6 x 4,1 x 8,2 m︱total power requirement 135 kW︱weight of the machine ca. 46 t︱
          Machine complete overhould and retrofit with SIEMENS 840 D in 2010 - Tool changer 12-fold - coolant device, oil mist exhauster, chip conveyor - complete splash housing
            faceplate diameter 2000 mm
            swing diameter 2400 mm
            turning height 2370 mm
            workpiece weight 25 t
            cross rail adjustment 2000 mm
            x-axis 1350 mm
            z-axis 1750 mm
            faceplate speeds from - to 2 - 224 U/min
            rapid traverse: 6000 mm/min
            main drive motor 105 kW
            dimensions of the machine ca. 6,6 x 4,1 x 8,2 m
            total power requirement 135 kW
            weight of the machine ca. 46 t
            Description :
            Machine complete overhould and retrofit with SIEMENS 840 D in 2010
            - Tool changer 12-fold
            - coolant device, oil mist exhauster, chip conveyor
            - complete splash housing
          Datasheet
          Request / Contact
          used  CNC-Vertical Turret Lathe - Single Col. BERTHIEZ TFM 250 SP


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13479 · CNC-Vertical Turret Lathe - Single Col.

          BERTHIEZ - TFM 250 SP - - 1979/1997 - SIEMENS 810 T

          Technical details
          faceplate diameter 2550 mm︱swing diameter 2800 mm︱turning height 3200 mm︱no. of tools in the magazine 12 Stück︱faceplate speeds: 0,8 - 100 ︱workpiece weight max. 25000 kg︱main drive motor 55 kW︱tool taper CAPTO C6 ︱cross rail adjustment 2600 mm︱max. ram stroke 1600 mm︱ram head - cross travel -885/+2280 mm︱total power requirement kW︱weight of the machine ca. 30 t︱dimensions of the machine ca. 9,0 x 7,9 x 7,4 m︱
          Machine equiped with SIEMENS 810 T control -12-fold tool changer - coolant through spindle - chip conveyor
            faceplate diameter 2550 mm
            swing diameter 2800 mm
            turning height 3200 mm
            no. of tools in the magazine 12 Stück
            faceplate speeds: 0,8 - 100
            workpiece weight max. 25000 kg
            main drive motor 55 kW
            tool taper CAPTO C6
            cross rail adjustment 2600 mm
            max. ram stroke 1600 mm
            ram head - cross travel -885/+2280 mm
            weight of the machine ca. 30 t
            dimensions of the machine ca. 9,0 x 7,9 x 7,4 m
            Description :
            Machine equiped with SIEMENS 810 T control
            -12-fold tool changer
            - coolant through spindle
            - chip conveyor
          Datasheet
          Request / Contact

          Facing Lathe

          used  Facing Lathe WMW - ZERBST DPS 1600 x 2000/1


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-03932 · Facing Lathe

          WMW - ZERBST - DPS 1600 x 2000/1 - - 1970/2008 -

          Technical details
          turning diameter over bed 1600 mm︱turning diameter over slide rest 1200 mm︱turning length 2000 mm︱turning diameter in the gap 2300 mm︱max. workpiece weight between centres 8000 kg︱main drive 37 kW︱bed width 1400 mm︱spindle passage 100 mm︱spindle turning speed range 2 - 140 U/min︱faceplate diameter 1600 mm︱weight of the machine ca. 17 t︱total power requirement 45 kW︱dimensions of the machine ca. 4,6 x 2,4 x 2,1 m︱
          heavy duty lathe with separate headstock - new thyrsistor main motor control, digital readout and switch cabinet in 2008 - self feed for top slide - fixing device for headstock and bed section
            turning diameter over bed 1600 mm
            turning diameter over slide rest 1200 mm
            turning length 2000 mm
            turning diameter in the gap 2300 mm
            max. workpiece weight between ce. 8000 kg
            main drive 37 kW
            bed width 1400 mm
            spindle passage 100 mm
            spindle turning speed range 2 - 140 U/min
            faceplate diameter 1600 mm
            weight of the machine ca. 17 t
            total power requirement 45 kW
            dimensions of the machine ca. 4,6 x 2,4 x 2,1 m
            Description :
            heavy duty lathe with separate headstock
            - new thyrsistor main motor control, digital readout and switch cabinet in 2008
            - self feed for top slide
            - fixing device for headstock and bed section
          Datasheet
          Request / Contact

          Lathe - cycle-controlled

          used  Lathe -  cycle-controlled ROMI M 580


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04011 · Lathe - cycle-controlled

          ROMI - M 580 - - 2005 - FANUC 21 iT

          Technical details
          turning diameter 580 mm︱turning length 3000 mm︱control 21 ︱turning diameter over bed slide 305 ︱spindle turning speed range 2 - 2500 U/min︱spindle bore 80 mm︱chucking diameter 315 mm︱spindle -2 steps 15 kW︱number of workpiece supports 8 ︱total power requirement 20 kW︱weight of the machine ca. 6,5 t︱dimensions of the machine ca. 6 x 2,5 x 2 m︱
          Machine with FANUC 21 IT cycle control with electronic handwheels - 8-fold SAUTER revolving head with coolant supply - hydraulical tailstock quill - chip conveyor, splash doors - coolant attachment
            turning diameter 580 mm
            turning length 3000 mm
            control 21
            turning diameter over bed slide 305
            spindle turning speed range 2 - 2500 U/min
            spindle bore 80 mm
            chucking diameter 315 mm
            spindle -2 steps 15 kW
            number of workpiece supports 8
            total power requirement 20 kW
            weight of the machine ca. 6,5 t
            dimensions of the machine ca. 6 x 2,5 x 2 m
            Description :
            Machine with FANUC 21 IT cycle control with electronic handwheels
            - 8-fold SAUTER revolving head with coolant supply
            - hydraulical tailstock quill
            - chip conveyor, splash doors
            - coolant attachment
          Datasheet
          Request / Contact
          used  Lathe -  cycle-controlled MONFORTS KNC 6 x 3000


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04031 · Lathe - cycle-controlled

          MONFORTS - KNC 6 x 3000 - - 2003 - R&D Euroturn

          Technical details
          turning diameter 650 mm︱turning length 3000 mm︱control ︱turning diameter over bed slide 350 ︱bed width 550 mm︱spindle diameter in front bearing 120 mm︱spindle bore 71 mm︱spindle motor 15 kW︱spindle turning speed range 2 - 1800 U/min︱rapid traverse 10/5 m/min︱weight of the machine ca. 5,5 t︱total power requirement 23 kW︱dimensions of the machine ca. 4,1 x 1,9 x 2,1 m︱
          Teach In controll R&D Euroturn - 8-fold revolvong head SAUTER with VDI 40 taper - C-axis 1° indexing driven tool 3000 rpm - moveable splash door - chip convyor with coolant device - 2 fixed steady rests dia. 160 mm
            turning diameter 650 mm
            turning length 3000 mm
            turning diameter over bed slide 350
            bed width 550 mm
            spindle diameter in front bearin. 120 mm
            spindle bore 71 mm
            spindle motor 15 kW
            spindle turning speed range 2 - 1800 U/min
            rapid traverse 10/5 m/min
            weight of the machine ca. 5,5 t
            total power requirement 23 kW
            dimensions of the machine ca. 4,1 x 1,9 x 2,1 m
            Description :
            Teach In controll R&D Euroturn
            - 8-fold revolvong head SAUTER with VDI 40 taper
            - C-axis 1° indexing driven tool 3000 rpm
            - moveable splash door
            - chip convyor with coolant device
            - 2 fixed steady rests dia. 160 mm
          Datasheet
          Request / Contact
          used  Lathe -  cycle-controlled VDF BOEHRINGER DUS 800


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de

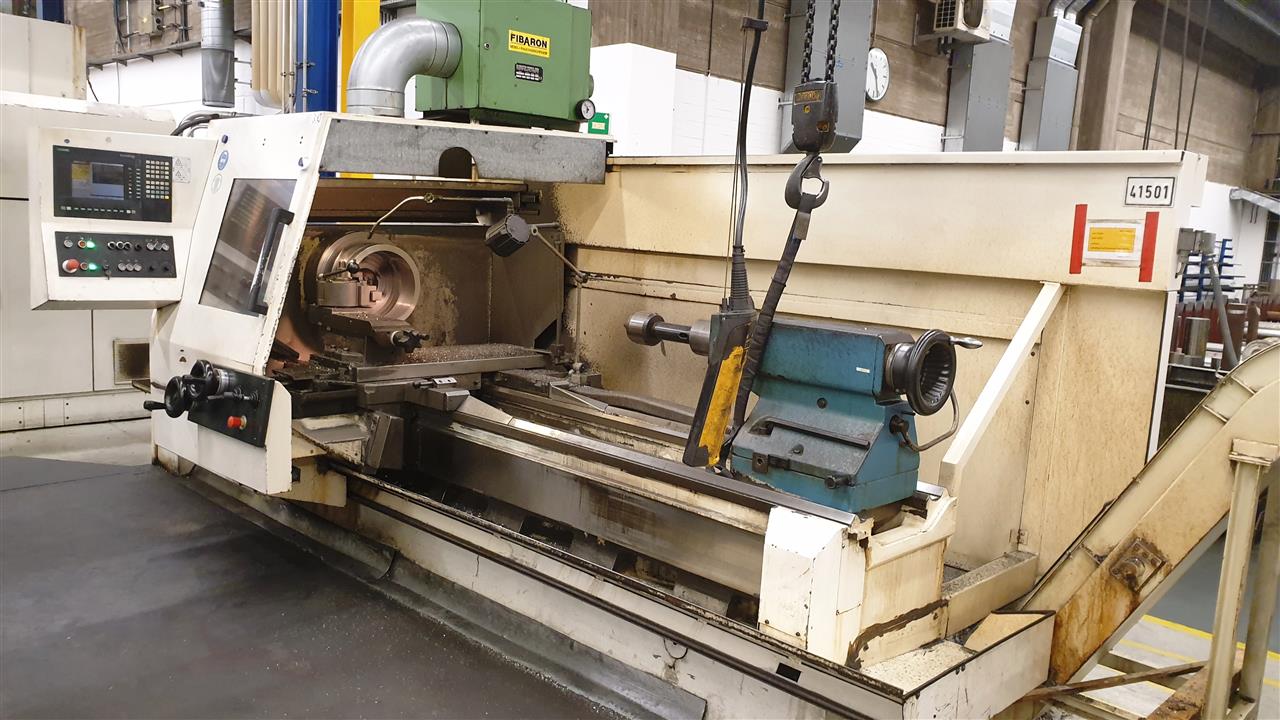

          #1034-04045 · Lathe - cycle-controlled

          VDF BOEHRINGER - DUS 800 - - 1998 - SIEMENS 810 D

          Technical details
          turning diameter 820 mm︱turning length 2000 mm︱total power requirement 40 kW︱turning diameter over slide 515 mm︱spindle turning speed range 6,3 - 1600 U/min︱spindle bore 128 mm︱weight of the machine ca. 9 t︱dimensions of the machine ca. 7,0 x 2,8 x 2,3 m︱
          with CNC SIEMENS 810 D 3 jaw chuck MULTIFIX quick change toolholder system 1 fixed steady 20-315 mm chip conveyor, coolant attachment diverse accessories
            turning diameter 820 mm
            turning length 2000 mm
            total power requirement 40 kW
            turning diameter over slide 515 mm
            spindle turning speed range 6,3 - 1600 U/min
            spindle bore 128 mm
            weight of the machine ca. 9 t
            dimensions of the machine ca. 7,0 x 2,8 x 2,3 m
            Description :
            with CNC SIEMENS 810 D
            3 jaw chuck
            MULTIFIX quick change toolholder system
            1 fixed steady 20-315 mm
            chip conveyor, coolant attachment
            diverse accessories
          Datasheet
          Request / Contact

          Vertical Turret Lathe - Double Column

          used  Vertical Turret Lathe - Double Column CARNAGHI AC 57 TM


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13611 · Vertical Turret Lathe - Double Column

          CARNAGHI - AC 57 TM - - 2002/2012 - SIEMENS 840 D sl

          Technical details
          faceplate diameter 5000 mm︱swing diameter 5700 mm︱turning height 4945 mm︱z-axis 2500 mm︱workpiece weight 100 t︱cross rail adjustment - vertical 3600 mm︱main drive DC 100 kW︱rapid traverse feeds 10000 mm/min︱total power requirement 183 kW︱weight of the machine ca. 195 t︱dimensions of the machine ca. 17 x 11 x 11,5 m︱
          Machine retrofit in 2012 with SIEMENS 840 D sl - Tool changer - Head changer - V and B-axis for heads - C-axis and driven tools - elevating operators platform
            faceplate diameter 5000 mm
            swing diameter 5700 mm
            turning height 4945 mm
            z-axis 2500 mm
            workpiece weight 100 t
            cross rail adjustment - vertical 3600 mm
            main drive DC 100 kW
            rapid traverse feeds 10000 mm/min
            total power requirement 183 kW
            weight of the machine ca. 195 t
            dimensions of the machine ca. 17 x 11 x 11,5 m
            Description :
            Machine retrofit in 2012 with SIEMENS 840 D sl
            - Tool changer
            - Head changer
            - V and B-axis for heads
            - C-axis and driven tools
            - elevating operators platform
          Datasheet
          Request / Contact
          used  Vertical Turret Lathe - Double Column CARNAGHI AP 80 TM


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-03975 · Vertical Turret Lathe - Double Column

          CARNAGHI - AP 80 TM - - 2002 - SIEMENS 840 C

          Technical details
          faceplate diameter 8000 mm︱swing diameter 8500 mm︱turning height 6550 mm︱z-axis 3200 mm︱workpiece weight max. 200000 kg︱cross rail adjustment - vertical 4800 mm︱faceplate turning speed range -stepless- 1 - 42 U/min︱slide travel X-axis 10800 mm︱ram head dimension 400 x 400 mm︱main drive motor 100 kW︱max. torque on the faceplate 286000 Nm︱rapid traverse 10 m/min︱total power requirement 187 kW︱weight of the machine ca. 300 t︱dimensions of the machine ca. 23 x 13 x 14,4 m︱
          Machine equiped with SIEMENS 840 C control - hydrostatic guideways in x and z-axis - C-axis for faceplate - 12-station head changer - standard turning toolholder , boring bar - universal milling head with 1° indexing - U-axis for adjustment of accessories , g head - driven tools with ISO 50 taper / 55 KW / 2000 rpm - working area with camera control - coolant device, chip conveyor - height adjustable operators platform
            faceplate diameter 8000 mm
            swing diameter 8500 mm
            turning height 6550 mm
            z-axis 3200 mm
            workpiece weight max. 200000 kg
            cross rail adjustment - vertical 4800 mm
            faceplate turning speed range -s. 1 - 42 U/min
            slide travel X-axis 10800 mm
            ram head dimension 400 x 400 mm
            main drive motor 100 kW
            max. torque on the faceplate 286000 Nm
            rapid traverse 10 m/min
            total power requirement 187 kW
            weight of the machine ca. 300 t
            dimensions of the machine ca. 23 x 13 x 14,4 m
            Description :
            Machine equiped with SIEMENS 840 C control
            - hydrostatic guideways in x and z-axis
            - C-axis for faceplate
            - 12-station head changer
            - standard turning toolholder , boring bar
            - universal milling head with 1° indexing
            - U-axis for adjustment of accessories , g head
            - driven tools with ISO 50 taper / 55 KW / 2000 rpm
            - working area with camera control
            - coolant device, chip conveyor
            - height adjustable operators platform
          Datasheet
          Request / Contact
          used  Vertical Turret Lathe - Double Column DÖRRIES-SCHARMANN VC 4600/450


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-04042 · Vertical Turret Lathe - Double Column

          DÖRRIES-SCHARMANN - VC 4600/450 - - 1996/2011 - SIEMENS 840 D sl

          Technical details
          faceplate diameter 4500 mm︱swing diameter 4600 mm︱turning height 4500 mm︱workpiece weight 100 t︱cross rail adjustment - vertical 3400 mm︱z-axis 2500 mm︱support travel x-axis -2500/+2500 mm︱faceplate turning speed range -stepless- 0,45 - 80 U/min︱feeds 0 - 3000 mm/min︱rapid traverse feeds 8000 mm/min︱weight of the machine ca. 190 t︱total power requirement 250 kVA︱dimensions of the machine ca. 10 x 16 x 11,0 m︱
          Machine overhould and retrofit with SIEMENS 840 D sl control in 2011 - hydrostatic guideways - C-axis and driven tools - b-axis milling head - tool changer for 12 tools - height adjustable operator platform . workpiece measuring device - coolant attachment, chip conveyor
            faceplate diameter 4500 mm
            swing diameter 4600 mm
            turning height 4500 mm
            workpiece weight 100 t
            cross rail adjustment - vertical 3400 mm
            z-axis 2500 mm
            support travel x-axis -2500/+2500 mm
            faceplate turning speed range -s. 0,45 - 80 U/min
            feeds 0 - 3000 mm/min
            rapid traverse feeds 8000 mm/min
            weight of the machine ca. 190 t
            total power requirement 250 kVA
            dimensions of the machine ca. 10 x 16 x 11,0 m
            Description :
            Machine overhould and retrofit with SIEMENS 840 D sl control in 2011
            - hydrostatic guideways
            - C-axis and driven tools
            - b-axis milling head
            - tool changer for 12 tools
            - height adjustable operator platform
            . workpiece measuring device
            - coolant attachment, chip conveyor
          Datasheet
          Request / Contact

          Vertical Turret Lathe - Single Column

          used  Vertical Turret Lathe - Single Column SCHIESS MOWEG KSM 140


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13491 · Vertical Turret Lathe - Single Column

          SCHIESS MOWEG - KSM 140 - - 1994 -

          Technical details
          faceplate diameter 1400 mm︱swing diameter 1600 mm︱turning height 1000 mm︱workpiece weight 6,3 t︱faceplate speeds from - to 1 - 250 U/min︱main drive DC 65 kW︱support travel x-axis 950 mm︱support travel z-axis 700 mm︱total power requirement 70 kW︱weight of the machine ca. 23,5 t︱dimensions of the machine ca. 4,3 x 2,8 x 4,1 m︱
          Machine with 1 vertical and 1 side head - digital readout for 4 axis - DC main motor - 5-fold revolving head
            faceplate diameter 1400 mm
            swing diameter 1600 mm
            turning height 1000 mm
            workpiece weight 6,3 t
            faceplate speeds from - to 1 - 250 U/min
            main drive DC 65 kW
            support travel x-axis 950 mm
            support travel z-axis 700 mm
            total power requirement 70 kW
            weight of the machine ca. 23,5 t
            dimensions of the machine ca. 4,3 x 2,8 x 4,1 m
            Description :
            Machine with 1 vertical and 1 side head
            - digital readout for 4 axis
            - DC main motor
            - 5-fold revolving head
          Datasheet
          Request / Contact

          Floor Type Boring and Milling M/C - Hor.

          used  Floor Type Boring and Milling M/C - Hor. WOTAN Rapid 3 K


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-03306 · Floor Type Boring and Milling M/C - Hor.

          WOTAN - Rapid 3 K - - 1993/2000 - SIEMENS 840 D

          Technical details
          spindle diameter 160 mm︱x-travel 7000 mm︱y-travel 3500 mm︱z-travel 1000 mm︱w-axis 900 mm︱rotary table: 2500 x 2000 mm︱table load ca. 20 t︱table adjustment - longitudinal 1000 mm︱b-axis 360 °︱spindle taper ISO 50 ︱spindle turning speed - stepless 2 - 2000 U/min︱feed speeds infinitely variable 1 - 5000 mm/min︱rapid traverse z-16, x-y-w- 20 m/min︱total power requirement 125 kW︱weight of the machine ca. 110 t︱dimensions of the machine ca. 13,2 x 12,8 x üF 6,0 m︱
          - General overhauled in 2000 with new electric, motors and CNC SIEMENS 840 D - aerostatic guideways, hydrostatic spindle bearing - rotary table generally overhauled in 2007 - 8o-pockets automatic toolchanger - 4 x 90° angular milling head - chip conveyor, spindle support bearing - through spindle coolant 17,5 / 4,4 bar
            spindle diameter 160 mm
            x-travel 7000 mm
            y-travel 3500 mm
            z-travel 1000 mm
            w-axis 900 mm
            rotary table: 2500 x 2000 mm
            table load ca. 20 t
            table adjustment - longitudinal 1000 mm
            b-axis 360 °
            spindle taper ISO 50
            spindle turning speed - stepless 2 - 2000 U/min
            feed speeds infinitely variable 1 - 5000 mm/min
            rapid traverse z-16, x-y-w- 20 m/min
            total power requirement 125 kW
            weight of the machine ca. 110 t
            dimensions of the machine ca. 13,2 x 12,8 x üF 6,0 m
            Description :
            - General overhauled in 2000 with new electric, motors and CNC SIEMENS 840 D
            - aerostatic guideways, hydrostatic spindle bearing
            - rotary table generally overhauled in 2007
            - 8o-pockets automatic toolchanger
            - 4 x 90° angular milling head
            - chip conveyor, spindle support bearing
            - through spindle coolant 17,5 / 4,4 bar
          Datasheet
          Request / Contact
          used  Floor Type Boring and Milling M/C - Hor. SCHARMANN Ecocut 1.6


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-03912 · Floor Type Boring and Milling M/C - Hor.

          SCHARMANN - Ecocut 1.6 - - 1986/2003 - HEIDENHAIN iTNC 530

          Technical details
          spindle diameter 125 mm︱x-travel 5600 mm︱y-travel 1600 mm︱z-travel 800 mm︱spindle stroke 600 mm︱spindle taper ISO 50 ︱spindle turning speed range 12 - 3000 U/min︱spindle drive 40 kW︱rapid speed 15 m/min︱total power requirement 65 kW︱weight of the machine ca. 60 t︱dimensions of the machine ca. 12,1 x 4,8 x 3,9 m︱
          with CNC HEIDENHAIN iTNC 530 modernized in 2003 automatic toolchanger 60 pockets boring table make: RÜCKLE 2000 x 1800 mm max. 20 to. load floor plates 3500 x 2000 and 2500 x 2000 mm coolant attachment
            spindle diameter 125 mm
            x-travel 5600 mm
            y-travel 1600 mm
            z-travel 800 mm
            spindle stroke 600 mm
            spindle taper ISO 50
            spindle turning speed range 12 - 3000 U/min
            spindle drive 40 kW
            rapid speed 15 m/min
            total power requirement 65 kW
            weight of the machine ca. 60 t
            dimensions of the machine ca. 12,1 x 4,8 x 3,9 m
            Description :
            with CNC HEIDENHAIN iTNC 530 modernized in 2003
            automatic toolchanger 60 pockets
            boring table make: RÜCKLE 2000 x 1800 mm max. 20 to. load
            floor plates 3500 x 2000 and 2500 x 2000 mm
            coolant attachment
          Datasheet
          Request / Contact

          Jig Boring Machine - Double Column

          used  Jig Boring Machine - Double Column GSP 45 P 16 N


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-03933 · Jig Boring Machine - Double Column

          GSP - 45 P 16 N - - 1984/2008 - HEIDENHAIN TNC 310

          Technical details
          spindle diameter 95 mm︱x-travel 2000 mm︱distance between columns 2400 mm︱table clamping surface: 1800 x 2200 ︱cross rail - adjustment 1000 mm︱Distance-Boring spindle & boring table-adjustable 1200 mm︱spindle stroke 320 mm︱spindle turning speed range 40 - 1800 U/min︱spindle taper: ISO 40 ︱spindle motor 4 kW︱Boring power 65 mm︱weight of the machine ca. 12 t︱total power requirement 10 kW︱dimensions of the machine ca. 4,2 x 3,8 x 3,4 m︱
          Machine retrofit with Heidenhain NC control TNC 310 in 2008 - hand operating panel - automatic clamping - ball screws - misc. arbors
            spindle diameter 95 mm
            x-travel 2000 mm
            distance between columns 2400 mm
            table clamping surface: 1800 x 2200
            cross rail - adjustment 1000 mm
            Distance-Boring spindle & boring. 1200 mm
            spindle stroke 320 mm
            spindle turning speed range 40 - 1800 U/min
            spindle taper: ISO 40
            spindle motor 4 kW
            Boring power 65 mm
            weight of the machine ca. 12 t
            total power requirement 10 kW
            dimensions of the machine ca. 4,2 x 3,8 x 3,4 m
            Description :
            Machine retrofit with Heidenhain NC control TNC 310 in 2008
            - hand operating panel
            - automatic clamping
            - ball screws
            - misc. arbors
          Datasheet
          Request / Contact

          Machining Center - Universal

          used  Machining Center - Universal MATEC 30 HV


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13440 · Machining Center - Universal

          MATEC - 30 HV - - 2007 - HEIDENHAIN iTNC 530

          Technical details
          x-travel 3000 mm︱y-travel 1200 mm︱z-travel 1100 mm︱spindle turning speed range 12000 U/min︱table load 6,3 t︱rapid travel range 30 m/min︱spindle drive 30 kW︱spindle taper HSK 63 ︱table surface area 3500 x 1230 mm︱no. of workpieces in the magazine 36 Stück︱weight of the machine ca. 37 t︱total power requirement 42 kW︱dimensions of the machine ca. 10,8 x 6,0 x 4,1 m︱
          - CNC control HEIDENHAIN iTNC 530 for 4 axis - toolchanger 36-fold - B-axis +/- 105° head swivelling - coolant through spindle 40 bar, coolant device - hand operating panel - oil mist exhauster with filter, chip conveyor 2 x - 3-D probe head, tool length and breakage control
            x-travel 3000 mm
            y-travel 1200 mm
            z-travel 1100 mm
            spindle turning speed range 12000 U/min
            table load 6,3 t
            rapid travel range 30 m/min
            spindle drive 30 kW
            spindle taper HSK 63
            table surface area 3500 x 1230 mm
            no. of workpieces in the magazin. 36 Stück
            weight of the machine ca. 37 t
            total power requirement 42 kW
            dimensions of the machine ca. 10,8 x 6,0 x 4,1 m
            Description :
            - CNC control HEIDENHAIN iTNC 530 for 4 axis
            - toolchanger 36-fold
            - B-axis +/- 105° head swivelling
            - coolant through spindle 40 bar, coolant device
            - hand operating panel
            - oil mist exhauster with filter, chip conveyor 2 x
            - 3-D probe head, tool length and breakage control

          Datasheet
          Request / Contact
          used  Machining Center - Universal LIECHTI g-Mill 550


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13632 · Machining Center - Universal

          LIECHTI - g-Mill 550 - - 2004 - SIEMENS 840 D

          Technical details
          x-travel 600 mm︱y-travel 600 mm︱z-travel 600 mm︱A-axis 360 °︱b-axis 320 °︱spindle motor 22 kW︱spindle taper HSK 63 ︱spindle turning speed range 1- 15000 U/min︱no. of tools in the magazine 50 Stück︱max. workpiece diameter 550 mm︱total power requirement 40 kW︱feeds -stepless- 50/70 m/min︱weight of the machine ca. 18 t︱dimensions of the machine ca. 8,5 x 4,5 x 3,4 m︱
          Machine with SIEMENS 840 D Powerline control for 5-axis simultaneous operation - tool cchanger for 50 tools - workpiece changer for 20 parts - complete splash housing - chip conveyor, coolant device
            x-travel 600 mm
            y-travel 600 mm
            z-travel 600 mm
            A-axis 360 °
            b-axis 320 °
            spindle motor 22 kW
            spindle taper HSK 63
            spindle turning speed range 1- 15000 U/min
            no. of tools in the magazine 50 Stück
            max. workpiece diameter 550 mm
            total power requirement 40 kW
            feeds -stepless- 50/70 m/min
            weight of the machine ca. 18 t
            dimensions of the machine ca. 8,5 x 4,5 x 3,4 m
            Description :
            Machine with SIEMENS 840 D Powerline control for 5-axis simultaneous operation
            - tool cchanger for 50 tools
            - workpiece changer for 20 parts
            - complete splash housing
            - chip conveyor, coolant device
          Datasheet
          Request / Contact
          used  Machining Center - Universal MATEC 30 HV


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13404 · Machining Center - Universal

          MATEC - 30 HV - - 2002 - SIEMENS 840 D

          Technical details
          x-travel 1000 mm︱y-travel 800 mm︱z-travel 800 mm︱table surface area mm︱control SIEMENS 840 D ︱turning speeds 20 - 12000 1/min︱tool adaptor SK 40 ︱tool change unit 24 fach ︱total power requirement 35 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          CNC SIEMENS 840 D control Milling Head sviwable (B-axis +-90° / 1° indexing) automatic toolchanger round table dia. 500mm (C-axis) through spindle coolant 40bar chip conveyor and coolant attachment
            x-travel 1000 mm
            y-travel 800 mm
            z-travel 800 mm
            control SIEMENS 840 D
            turning speeds 20 - 12000 1/min
            tool adaptor SK 40
            tool change unit 24 fach
            total power requirement 35 kW
            Description :
            CNC SIEMENS 840 D control
            Milling Head sviwable (B-axis +-90° / 1° indexing)
            automatic toolchanger
            round table dia. 500mm (C-axis)
            through spindle coolant 40bar
            chip conveyor and coolant attachment
          Datasheet
          Request / Contact
          used  Machining Center - Universal HECKERT CWK 1000 H/V


          • Schiess Moweg GmbH
          • Egerstraße 73-75
          • 41236 Mönchengladbach
          • Deutschland

          • +49 (0) 2166 61530
            +49 (0)2166 615315
          • info@schiess-moweg.de
            www.schiess-moweg.de
          #1034-13415 · Machining Center - Universal

          HECKERT - CWK 1000 H/V - - 1997 - SIEMENS 840 C

          Technical details
          x-travel 1700 mm︱y-travel 1100 mm︱z-travel 1450 mm︱B-axis (table) 360.000 x 0,001 mm︱pallet size: 1000 x 800 ︱spindle taper ISO 50 ︱workpiece weight 2500 kg︱max. workpiece diameter 1650 mm︱spindle motor 22 kW︱spindle turning speed range 10 - 4200 U/min︱spindle diameter in front bearing 100 mm︱feeds 1 - 24000 mm/min︱rapid travel x/y/z 24 mm/min︱weight of the machine ca. 22,5 t︱total power requirement 60 kW︱dimensions of the machine ca. 11 x 6,5 x 3,4 m︱
          - CNC SIEMENS 840 C for 4 axis - Horizontal/Vertical head - toolchanger for 130 tools - full B-axis - tool breakage monitoring - through spindle coolant 30/40/50 bar - palette changer
            x-travel 1700 mm
            y-travel 1100 mm
            z-travel 1450 mm
            B-axis (table) 360.000 x 0,001 mm
            pallet size: 1000 x 800
            spindle taper ISO 50
            workpiece weight 2500 kg
            max. workpiece diameter 1650 mm
            spindle motor 22 kW
            spindle turning speed range 10 - 4200 U/min
            spindle diameter in front bearin. 100 mm
            feeds 1 - 24000 mm/min
            rapid travel x/y/z 24 mm/min
            weight of the machine ca. 22,5 t
            total power requirement 60 kW
            dimensions of the machine ca. 11 x 6,5 x 3,4 m
            Description :
            - CNC SIEMENS 840 C for 4 axis
            - Horizontal/Vertical head
            - toolchanger for 130 tools
            - full B-axis
            - tool breakage monitoring
            - through spindle coolant 30/40/50 bar
            - palette changer
          Datasheet
          Request / Contact
          •
          •
          • 1
          • 2
          • 3
          • 4
          • 5
          •
          •

          Schiess Moweg GmbH   41236 - Mönchengladbach Egerstraße 73-75 Deutschland


          Contact Trader


            Schiess Moweg GmbH
           Egerstraße 73-75
            41236 - Mönchengladbach
            Deutschland
            +49 (0) 2166 61530
            +49 (0)2166 615315
            info@schiess-moweg.de
            www.schiess-moweg.de
            Contact person:






          Machine category


          3D Universal Messmaschine · Abkantpresse - hydraulisch · Aufspanntisch · Aufspannwinkel · Aufspannwürfel · Ausdrehkopf · Bandsäge - horizontal · Bandsäge - Vertikal · Bearbeitungszentrum - Universal · Bearbeitungszentrum - Vertikal · Bettfräsmaschine - Universal · Bohrkopf · Bohrwerkstisch · CNC Dreh- und Fräszentrum · CNC Drehmaschine · CNC Drehmaschine - Schrägbettmaschine · CNC-Karusselldrehmaschine - Einständer · Drehmaschine - zyklengesteuert · Flachschleifmaschine - Horizontal · Fräsmaschine - Universal · Futter · Gewindebohrvorrichtung · Hochfrequenzspindel · Karusselldrehmaschine - Doppelständer · Karusselldrehmaschine - Einständer · Koordinatenbohrwerk - Zweiständer · Koordinatenschleifmaschine · Kopiereinrichtung · Langfräsmaschine - Doppelständer · Lateralfräsmaschine · Leit- und Zugspindeldrehmaschine · Lynette · Messmaschine · Nutenfräsmaschine - Vertikal · Plandrehmaschine · Planscheibe · Plattenbohrwerk - Horizontal · Plattenbohrwerk - Traghülse · Radialbohrmaschine · Radialbohrmaschine - transportabel · Rundschleifmaschine · Schleifapparat · Schleifbock · Schraubstock · Spannmittel · Späneförderer · Steinmeßplatte · Teilapparat · Tischbohrwerk · Tuschierplatte · Universal-Fräs- und Bohrwerk · Werkzeug Voreinstellgerät · Werkzeugfräsmaschine - Universal · Werkzeughalter · Werkzeugschrank · Winkelkopf ·
