          Walter Kames GmbH - Stockist for used machines

          Machinelist:


          Center Lathe

          used  Center Lathe LEINEN LB


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-10009 · Center Lathe

          LEINEN - LB - - 1975 -

          Technical details
          turning diameter over bed 130 mm︱turning diameter over slide rest 100 mm︱turning length 420 mm︱total power requirement 1 kW︱weight of the machine ca. 0,5 t︱dimensions of the machine ca. 1,4 x 0,9 x 1,2 m︱
          - push out collet - tailstock - 3-jaw chuck - MULTIFIX toolholder with various holders
            turning diameter over bed 130 mm
            turning diameter over slide rest 100 mm
            turning length 420 mm
            total power requirement 1 kW
            weight of the machine ca. 0,5 t
            dimensions of the machine ca. 1,4 x 0,9 x 1,2 m
            Description :
            - push out collet
            - tailstock
            - 3-jaw chuck
            - MULTIFIX toolholder with various holders

          Datasheet
          Request / Contact

          CNC Lathe

          used  CNC Lathe MAX MUELLER MD 7 it-4A


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-10031 · CNC Lathe

          MAX MUELLER - MD 7 it-4A - - 1996 - EPL II

          Technical details
          turning diameter 650 mm︱turning length 760 mm︱control EPL II ︱swing diameter over slide rest 420 mm︱workpiece weight 500 kg︱longitudinal stroke 1025/625 mm︱face stroke 325/202 ︱spindle motor 38 kW︱spindle turning speed range 10 - 2800 U/min︱spindle bore 101 mm︱spindle diameter in front bearing 160 mm︱spindle head A11 ︱total power requirement 65 kW︱weight of the machine ca. 11,6 t︱dimensions of the machine ca. 4,9 x 2,3 x 2,5 m︱
          Machine equiped with EPL II CNC control for 4 axis - power chuck 400 mm diameter - 2 turret heads with each 12 tools - chip conveyor, coolant device and oil mist exhauster
            turning diameter 650 mm
            turning length 760 mm
            control EPL II
            swing diameter over slide rest 420 mm
            workpiece weight 500 kg
            longitudinal stroke 1025/625 mm
            face stroke 325/202
            spindle motor 38 kW
            spindle turning speed range 10 - 2800 U/min
            spindle bore 101 mm
            spindle diameter in front bearin. 160 mm
            spindle head A11
            total power requirement 65 kW
            weight of the machine ca. 11,6 t
            dimensions of the machine ca. 4,9 x 2,3 x 2,5 m
            Description :
            Machine equiped with EPL II CNC control for 4 axis

            - power chuck 400 mm diameter
            - 2 turret heads with each 12 tools
            - chip conveyor, coolant device and oil mist exhauster

          Datasheet
          Request / Contact
          used  CNC Lathe GILDEMEISTER NEF 560


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-10030 · CNC Lathe

          GILDEMEISTER - NEF 560 - - 1984 - EPL 1

          Technical details
          turning diameter 560 mm︱turning length 1000 mm︱control EPL 1 ︱spindle turning speed range 10 - 2240 U/min︱spindle motor 15 kW︱turning diameter over bed slide 250 ︱bed width 360 mm︱cross movement 310 mm︱spindle bore 65 mm︱rapid traverse feeds 6000 mm/min︱total power requirement 22 kW︱weight of the machine ca. 3 t︱dimensions of the machine ca. 4,5 x 2,5 x 1,8 m︱
          - power chuck 315 mm - steady rest - PARAT tool carrier with various inserts - coolant device - misc. accessories
            turning diameter 560 mm
            turning length 1000 mm
            control EPL 1
            spindle turning speed range 10 - 2240 U/min
            spindle motor 15 kW
            turning diameter over bed slide 250
            bed width 360 mm
            cross movement 310 mm
            spindle bore 65 mm
            rapid traverse feeds 6000 mm/min
            total power requirement 22 kW
            weight of the machine ca. 3 t
            dimensions of the machine ca. 4,5 x 2,5 x 1,8 m
            Description :
            - power chuck 315 mm
            - steady rest
            - PARAT tool carrier with various inserts
            - coolant device
            - misc. accessories
          Datasheet
          Request / Contact
          used  CNC Lathe INDEX GFG 100


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09753 · CNC Lathe

          INDEX - GFG 100 - - 1981/1999 - SIEMENS 810D

          Technical details
          turning diameter 600 mm︱turning length 500 mm︱control SIEMENS 810D ︱spindle diameter in front bearing 160 mm︱turning speed range - spindle 25 - 1450 U/min︱spindle motor 37 kW︱number of tapers in turret head 16 ︱rapid power traverse in X-and Z direction 10 m/min︱powered chuck diameter 315 mm︱spindle bore 100 mm︱tool holder -shaft diameter 50 mm︱total power requirement 60 kVA︱weight of the machine ca. 6,8 t︱dimensions of the machine ca. 4,7 x 2,5 x 2,7 m︱
          Machine retrofit in 1999 with SIEMENS 810 D control and new drive controler, feed motors ans swichting cabinet. - chip conveyor - 400 mm 3-jaw power chuck
            turning diameter 600 mm
            turning length 500 mm
            control SIEMENS 810D
            spindle diameter in front bearin. 160 mm
            turning speed range - spindle 25 - 1450 U/min
            spindle motor 37 kW
            number of tapers in turret head 16
            rapid power traverse in X-and Z . 10 m/min
            powered chuck diameter 315 mm
            spindle bore 100 mm
            tool holder -shaft diameter 50 mm
            total power requirement 60 kVA
            weight of the machine ca. 6,8 t
            dimensions of the machine ca. 4,7 x 2,5 x 2,7 m
            Description :
            Machine retrofit in 1999 with SIEMENS 810 D control and new drive controler,
            feed motors ans swichting cabinet.
            - chip conveyor
            - 400 mm 3-jaw power chuck
          Datasheet
          Request / Contact
          used  CNC Lathe MAX MUELLER MDW 20


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09960 · CNC Lathe

          MAX MUELLER - MDW 20 - - 1970/2001 - SIEMENS 840D

          Technical details
          turning diameter 800 mm︱turning length 630 mm︱control SIEMENS 840D ︱swing diameter over slide rest 410 mm︱z-axis 630 mm︱x-axis 500 mm︱spindle head 11 ︱spindle diameter in front bearing 130 mm︱spindle bore 73 mm︱spindle motor 37 kW︱spindle turning speed range 10 - 1000 U/min︱max. torque on the spindle 3700 Nm︱total power requirement 78 kW︱weight of the machine ca. 10 t︱dimensions of the machine ca. 6,5 x 3,5 x 2,8 m︱
          - Machine general overhould and retrofit with SIEMENS 840 D control in 2002 - power chuck 600 mm FORKHARDT - 12-fold drum type tool magazine - chip conveyor and coolant device - various tolholders
            turning diameter 800 mm
            turning length 630 mm
            control SIEMENS 840D
            swing diameter over slide rest 410 mm
            z-axis 630 mm
            x-axis 500 mm
            spindle head 11
            spindle diameter in front bearin. 130 mm
            spindle bore 73 mm
            spindle motor 37 kW
            spindle turning speed range 10 - 1000 U/min
            max. torque on the spindle 3700 Nm
            total power requirement 78 kW
            weight of the machine ca. 10 t
            dimensions of the machine ca. 6,5 x 3,5 x 2,8 m
            Description :
            - Machine general overhould and retrofit with SIEMENS 840 D control in 2002
            - power chuck 600 mm FORKHARDT
            - 12-fold drum type tool magazine
            - chip conveyor and coolant device
            - various tolholders
          Datasheet
          Request / Contact

          Machining Center - Vertical

          used  Machining Center - Vertical NORTE VS 500 Speed


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09449 · Machining Center - Vertical

          NORTE - VS 500 Speed - - 1997/2005 - SIEMENS 840D

          Technical details
          x-travel 2000 mm︱y-travel 500 mm︱z-travel 600 mm︱table-size 2120 x 550 mm︱table load capacity 2000 kp︱feed 1 - 8000 mm/min︱rapid traverse X-axis 40 m/min︱rapid traverse Z-axis 20 m/min︱tool taper HSK 63 A ︱spindle turning speed - stepless 0 - 16000 U/min︱spindle motor 20 kW︱spindle diameter in front bearing 70 mm︱control SIEMENS 840D ︱tool diameter 63 / 126 mm︱toolpiece magazine: chain magazine 40 Stück︱tool length - max. 250 mm︱weight of tools max. 8 kg︱total power requirement 55 kVA︱weight of the machine ca. 12 t︱dimensions of the machine ca. 5,33 x 3,1 x 3,1 m︱
          - digital drive and control components SIEMENS 840 D - motor-spindle - 1,3 second spindle accelaration to 16000 rpm - pendulum machining - coolant plant for 70 bar - internal coolant supply - table with hydraulic workpiece clamping (T-sloted table retrofitable) - exhauster, chip convejor, levelling elements
            x-travel 2000 mm
            y-travel 500 mm
            z-travel 600 mm
            table-size 2120 x 550 mm
            table load capacity 2000 kp
            feed 1 - 8000 mm/min
            rapid traverse X-axis 40 m/min
            rapid traverse Z-axis 20 m/min
            tool taper HSK 63 A
            spindle turning speed - stepless 0 - 16000 U/min
            spindle motor 20 kW
            spindle diameter in front bearin. 70 mm
            control SIEMENS 840D
            tool diameter 63 / 126 mm
            toolpiece magazine: chain magazi. 40 Stück
            tool length - max. 250 mm
            weight of tools max. 8 kg
            total power requirement 55 kVA
            weight of the machine ca. 12 t
            dimensions of the machine ca. 5,33 x 3,1 x 3,1 m
            Description :
            - digital drive and control components SIEMENS 840 D
            - motor-spindle - 1,3 second spindle accelaration to 16000 rpm
            - pendulum machining
            - coolant plant for 70 bar
            - internal coolant supply
            - table with hydraulic workpiece clamping (T-sloted table retrofitable)
            - exhauster, chip convejor, levelling elements
          Datasheet
          Request / Contact

          Pillar Drilling Machine

          used  Pillar Drilling Machine ERFI REKORD


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00442 · Pillar Drilling Machine

          ERFI REKORD - - - 1972 -

          Technical details
          bore capacity in steel (diameter) 20 mm︱throat 300 mm︱bore stroke 80 mm︱spindle turning speed range 116 - 3650 U/min︱total power requirement 1,2 kW︱weight of the machine ca. 0,3 t︱dimensions of the machine ca. 0,5 x 0,4 x 2,1 m︱
            bore capacity in steel (diameter. 20 mm
            throat 300 mm
            bore stroke 80 mm
            spindle turning speed range 116 - 3650 U/min
            total power requirement 1,2 kW
            weight of the machine ca. 0,3 t
            dimensions of the machine ca. 0,5 x 0,4 x 2,1 m
          Datasheet
          Request / Contact

          Portal - Machining Center

          used  Portal - Machining Center AXA UPFZ 50


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-30675 · Portal - Machining Center

          AXA - UPFZ 50 - - 2011 - SIEMENS 840 D

          Technical details
          Control SIEMENS 840 D ︱x-axis 6000 mm︱y-axis Y1= 4600 / Y2= 3400 mm︱z-axis Z1 / Z2 = 1000 mm︱rotary table diameter 4000 mm︱circular table speeds 60 U/min︱table load 50 t︱max. torque on the faceplate 46000 ︱spindle turning speed - stepless 30-7500 U/min︱column: max. dist. table - spindle nose 1800 mm︱distance between columns 4300 mm︱table width 2500 mm︱table length 4200 mm︱total power requirement 125 kW︱weight of the machine ca. 112 t︱dimensions of the machine ca. 14,4 x 10 x 5,5 m︱
          5 axis portal machining center incl following accessories: Ø 4000mm DEMMELER turning table with 50 to capacity and RÖHM magnetic chuck. RAM for turning process CAPTO C6 axes (Y2) toolcanger for 11 tools milling spindel with 28 kW, 2 axis head, 30-7500 rpm , SK 50 (axes Y1) with 60 tools for the milling spindle stationary pick up holder for 5 large tools new milling spindle in 2018
            Control SIEMENS 840 D
            x-axis 6000 mm
            y-axis Y1= 4600 / Y2= 3400 mm
            z-axis Z1 / Z2 = 1000 mm
            rotary table diameter 4000 mm
            circular table speeds 60 U/min
            table load 50 t
            max. torque on the faceplate 46000
            spindle turning speed - stepless 30-7500 U/min
            column: max. dist. table - spind. 1800 mm
            distance between columns 4300 mm
            table width 2500 mm
            table length 4200 mm
            total power requirement 125 kW
            weight of the machine ca. 112 t
            dimensions of the machine ca. 14,4 x 10 x 5,5 m
            Description :
            5 axis portal machining center incl following accessories:
            Ø 4000mm DEMMELER turning table with 50 to capacity and RÖHM
            magnetic chuck.
            RAM for turning process CAPTO C6 axes (Y2)
            toolcanger for 11 tools
            milling spindel with 28 kW, 2 axis head, 30-7500 rpm , SK 50 (axes Y1)
            with 60 tools for the milling spindle
            stationary pick up holder for 5 large tools
            new milling spindle in 2018
          Datasheet
          Request / Contact

          Ram-Type Floor Boring and Milling M/C

          used  Ram-Type Floor Boring and Milling M/C WOTAN Rapid 4 P


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09717 · Ram-Type Floor Boring and Milling M/C

          WOTAN - Rapid 4 P - - 1992 -

          Technical details
          spindle diameter 140 mm︱x-travel 5000 mm︱y-travel 3000 mm︱spindle stroke 700 mm︱ram: horizontal adjustment 500 mm︱dimension of the ram 310 x 310 mm︱spindle taper ISO 50 ︱spindle turning speed range 2 - 2000 U/min︱feed 5000 mm/min︱rapid traverse 10 m/min︱spindle motor 40 kW︱semi-automatic operated SIEMENS 850 ︱total power requirement 100 kW︱weight of the machine ca. 42 t︱dimensions of the machine ca. 9,5 x 3,8 x 5,95 m︱
          - control SIEMENS 850 CNC - floor plate approx. 5 x 2 m - aero-static guideways - hydrostatic spindlebearings - device for coolant through spindle - HEIDENHAIN scales - leveling elements, hand-held pendant, misc. arbors and spare parts
            spindle diameter 140 mm
            x-travel 5000 mm
            y-travel 3000 mm
            spindle stroke 700 mm
            ram: horizontal adjustment 500 mm
            dimension of the ram 310 x 310 mm
            spindle taper ISO 50
            spindle turning speed range 2 - 2000 U/min
            feed 5000 mm/min
            rapid traverse 10 m/min
            spindle motor 40 kW
            semi-automatic operated SIEMENS 850
            total power requirement 100 kW
            weight of the machine ca. 42 t
            dimensions of the machine ca. 9,5 x 3,8 x 5,95 m
            Description :
            - control SIEMENS 850 CNC
            - floor plate approx. 5 x 2 m
            - aero-static guideways
            - hydrostatic spindlebearings
            - device for coolant through spindle
            - HEIDENHAIN scales
            - leveling elements, hand-held pendant, misc. arbors and spare parts

          Datasheet
          Request / Contact

          Double Column Milling M/C - Gantry Type

          used  Double Column Milling M/C - Gantry Type INGERSOLL


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09556 · Double Column Milling M/C - Gantry Type

          INGERSOLL - - - 1975/1995 - SIEMENS 840C

          Technical details
          x-travel 16500 mm︱y-travel 6000 mm︱z-travel 600 mm︱w-axis 2915 mm︱surface area 16460 x 4875 mm︱table load 200 t︱distance between columns 5590 mm︱distance table - lower edge spindle 45 - 3580 mm︱spindle diameter 152 mm︱spindle motor 30 kW︱spindle taper ISO 50 ︱spindle turning speed range 25 - 600 U/min︱feed in x - axis 6,3 m/min︱feed in y - axis 3 m/min︱control SIEMENS 840C ︱total power requirement kW︱weight of the machine ca. 300 t︱dimensions of the machine ca. 30 x 10 x 9 m︱
          - 1995 retrofitted with CNC control SIEMENS 840 C - universal milling heads - 2 milling heads on crossrail with ram-section 420 x 420 mm - crossrail movement by ac motor and with hydr. clamping - measuring system for x- and y-axis via rack/shaft - column movement by double rack/pinion - floor plate
            x-travel 16500 mm
            y-travel 6000 mm
            z-travel 600 mm
            w-axis 2915 mm
            surface area 16460 x 4875 mm
            table load 200 t
            distance between columns 5590 mm
            distance table - lower edge spin. 45 - 3580 mm
            spindle diameter 152 mm
            spindle motor 30 kW
            spindle taper ISO 50
            spindle turning speed range 25 - 600 U/min
            feed in x - axis 6,3 m/min
            feed in y - axis 3 m/min
            control SIEMENS 840C
            weight of the machine ca. 300 t
            dimensions of the machine ca. 30 x 10 x 9 m
            Description :
            - 1995 retrofitted with CNC control SIEMENS 840 C
            - universal milling heads
            - 2 milling heads on crossrail with ram-section 420 x 420 mm
            - crossrail movement by ac motor and with hydr. clamping
            - measuring system for x- and y-axis via rack/shaft
            - column movement by double rack/pinion
            - floor plate


          Datasheet
          Request / Contact

          Planer-Type Milling M/C - Double Column

          used  Planer-Type Milling M/C - Double Column WALDRICH COBURG 17-10 FP 225


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09949 · Planer-Type Milling M/C - Double Column

          WALDRICH COBURG - 17-10 FP 225 - - 85/2003 - SIEMENS 840D

          Technical details
          x-travel 6600 mm︱y-travel 3200 mm︱z-travel 1000 mm︱w-axis 1750 mm︱spindle motor 55 kW︱spindle turning speed range 5 - 2000 U/min︱spindle taper ISO 60 ︱spindle diameter in front bearing 170 mm︱table lenght 1 + 2 6400 mm︱table width 2250 mm︱daylight between the side columns 2650 mm︱table load 50 t︱no. of tools in the magazine 60 Stück︱distance spindle nose and table 2500 mm︱control SIEMENS 840D ︱feed range - table 10 - 15000 mm/min︱feeds crossrail-slide horizontal 10 - 10000 mm/min︱feed in w - axe 10 - 2000 mm/min︱total power requirement 85 kW︱weight of the machine ca. 125 t︱
          Machine general overhauled and equipped with SIEMENS 840 D control in 2003 - new digital motors, drive controllers, measuring systems and switch cabinet - tool changer for 60 tools (45 ISO 50, 15 ISO 60) - 3 angular milling heads (HSD 175, WFD 800) with service device 4 x 90° indexing - hydrostatic table guideways - adjustable crossrail - 2 tables coupled - chip conveyor - coolant device
            x-travel 6600 mm
            y-travel 3200 mm
            z-travel 1000 mm
            w-axis 1750 mm
            spindle motor 55 kW
            spindle turning speed range 5 - 2000 U/min
            spindle taper ISO 60
            spindle diameter in front bearin. 170 mm
            table lenght 1 + 2 6400 mm
            table width 2250 mm
            daylight between the side column. 2650 mm
            table load 50 t
            no. of tools in the magazine 60 Stück
            distance spindle nose and table 2500 mm
            control SIEMENS 840D
            feed range - table 10 - 15000 mm/min
            feeds crossrail-slide horizontal 10 - 10000 mm/min
            feed in w - axe 10 - 2000 mm/min
            total power requirement 85 kW
            weight of the machine ca. 125 t
            Description :
            Machine general overhauled and equipped with SIEMENS 840 D control in 2003

            - new digital motors, drive controllers, measuring systems and switch cabinet
            - tool changer for 60 tools (45 ISO 50, 15 ISO 60)
            - 3 angular milling heads (HSD 175, WFD 800) with service device 4 x 90°
            indexing
            - hydrostatic table guideways
            - adjustable crossrail
            - 2 tables coupled
            - chip conveyor
            - coolant device
          Datasheet
          Request / Contact
          used  Planer-Type Milling M/C - Double Column INGERSOLL 108 x 120 x 56FT


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09557 · Planer-Type Milling M/C - Double Column

          INGERSOLL - 108 x 120 x 56FT - - 1972/2001 -

          Technical details
          x-travel 17900 mm︱y-travel 2900 mm︱z-travel 2900 mm︱clamping surface table 1 10400 x 2540 mm︱clamping surface table 2 6000 x 2540 mm︱clamping surface table 1+2 , coupled 17000 x 2540 mm︱distance table - lower edge spindle 3048 mm︱column daylight 2945 mm︱spindle motor 2 x 86/70 kW︱table load 80 t︱diameter of quill 305 mm︱quill stroke 380 mm︱spindle taper metric 100 ︱total power requirement 370 kW︱weight of the machine ca. 260 t︱dimensions of the machine ca. 36,6 x 10,5 x 8,1 m︱
          - electrics modernized in 2001 (incl. new drive controllers) - 2 milling heads on crossrail - 2 side milling heads - crossrail with vertical adjustment - angular milling heads - x-axis drive by worm and worm-rack system
            x-travel 17900 mm
            y-travel 2900 mm
            z-travel 2900 mm
            clamping surface table 1 10400 x 2540 mm
            clamping surface table 2 6000 x 2540 mm
            clamping surface table 1+2 , cou. 17000 x 2540 mm
            distance table - lower edge spin. 3048 mm
            column daylight 2945 mm
            spindle motor 2 x 86/70 kW
            table load 80 t
            diameter of quill 305 mm
            quill stroke 380 mm
            spindle taper metric 100
            total power requirement 370 kW
            weight of the machine ca. 260 t
            dimensions of the machine ca. 36,6 x 10,5 x 8,1 m
            Description :
            - electrics modernized in 2001 (incl. new drive controllers)
            - 2 milling heads on crossrail
            - 2 side milling heads
            - crossrail with vertical adjustment
            - angular milling heads
            - x-axis drive by worm and worm-rack system

          Datasheet
          Request / Contact

          Cold Rolling Machine

          used  Cold Rolling Machine GROB ZRM 12 NC-DR-A890


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09847 · Cold Rolling Machine

          GROB - ZRM 12 NC-DR-A890 - - 2004 - SIEMENS 840D

          Technical details
          root circle diameter 79 - 230 mm︱centre height 1215 mm︱roll head turning speed range 1400 U/min︱x-axis 2 x 95 mm︱feed speeds infinitely variable 0 - 18000 mm/min︱rapid speed 18000 mm/min︱workpiece spindle stepless 500 U/min︱required air pressure 6 bar︱control SIEMENS 840D ︱total connected load 71 kW︱Dimensions (L x W x H) 10 x 4,5 x 3,4 mm︱Total weight, approx. 16 to︱
          Machine designed for operations on thin wall hollow parts with external/internal gears, internal gears, cluth disc carrier and gear rims. - CNC control SIEMENS 840D - installed axis X, Z, B, C, U, V - automatic workpiece handling (pallet conveyor, gantry loader FLEXOMAT) - oil processing plant (cleaning, cooling, lubrication) - manual control device - soundproofing cabin - documentation complete available - distance main spindle and rolling-spindle center (z-axis) 450 - 1250 mm - swing dia. of rolling spindles 205 mm - useable rolling spindle adjustment 95 mm per side - max. speed of workpiece spindle dep. on jigger - 500 rpm - feed for z-axis - 0 -18000 mm/min. - piston stroke of tailstock 430 mm
            root circle diameter 79 - 230 mm
            centre height 1215 mm
            roll head turning speed range 1400 U/min
            x-axis 2 x 95 mm
            feed speeds infinitely variable 0 - 18000 mm/min
            rapid speed 18000 mm/min
            workpiece spindle stepless 500 U/min
            required air pressure 6 bar
            control SIEMENS 840D
            total connected load 71 kW
            Dimensions (L x W x H) 10 x 4,5 x 3,4 mm
            Total weight, approx. 16 to
            Description :
            Machine designed for operations on thin wall hollow parts with
            external/internal gears, internal gears, cluth disc carrier and gear rims.

            - CNC control SIEMENS 840D
            - installed axis X, Z, B, C, U, V
            - automatic workpiece handling (pallet conveyor, gantry loader FLEXOMAT)
            - oil processing plant (cleaning, cooling, lubrication)
            - manual control device
            - soundproofing cabin
            - documentation complete available
            - distance main spindle and rolling-spindle center (z-axis) 450 - 1250 mm
            - swing dia. of rolling spindles 205 mm
            - useable rolling spindle adjustment 95 mm per side
            - max. speed of workpiece spindle dep. on jigger - 500 rpm
            - feed for z-axis - 0 -18000 mm/min.
            - piston stroke of tailstock 430 mm


          Datasheet
          Request / Contact

          Cylindrical Grinding Machine

          used  Cylindrical Grinding Machine KOPP SN 800


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-10033 · Cylindrical Grinding Machine

          KOPP - SN 800 - - 1999 -

          Technical details
          grinding diameter 470 mm︱grinding length 800 mm︱centre height 225 mm︱workpiece length 650 mm︱swing diameter 450 mm︱number of spindles 1 ︱travel -x axis 470 mm︱travel -z axis 800 mm︱spindle motor 20 kW︱spindle turning speed range - 1500 U/min︱rapid traverse 15000 mm/min︱max. workpiece weight 50 kg︱grinding wheel diam. min/max. 380/750 ︱max. width of grinding wheel 40 mm︱b-axis 360.000 x 0,001 °︱total power requirement 30 kW︱weight of the machine ca. 11,5 t︱dimensions of the machine ca. m︱
          . machine with SIEMENS 840 C control for 3 axis - NC controled splash nozzles - DITTEL auto balancer - dressing device - coolant device with paper band filtration and complete splash housing
            grinding diameter 470 mm
            grinding length 800 mm
            centre height 225 mm
            workpiece length 650 mm
            swing diameter 450 mm
            number of spindles 1
            travel -x axis 470 mm
            travel -z axis 800 mm
            spindle motor 20 kW
            spindle turning speed range - 1500 U/min
            rapid traverse 15000 mm/min
            max. workpiece weight 50 kg
            grinding wheel diam. min/max. 380/750
            max. width of grinding wheel 40 mm
            b-axis 360.000 x 0,001 °
            total power requirement 30 kW
            weight of the machine ca. 11,5 t
            Description :
            . machine with SIEMENS 840 C control for 3 axis
            - NC controled splash nozzles
            - DITTEL auto balancer
            - dressing device
            - coolant device with paper band filtration and complete splash housing

          Datasheet
          Request / Contact

          Cylindrical Grinding Machine - Universal

          used  Cylindrical Grinding Machine - Universal STUDER S140


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-10047 · Cylindrical Grinding Machine - Universal

          STUDER - S140 - - 2002 - Siemens 840 D

          Technical details
          grinding diameter 120 mm︱grinding length 110 mm︱centre height 60 mm︱x-axis 300 mm︱internal diameter 100 mm︱grinding depth max 300 mm︱swing diameter 120 mm︱rapid traverse 15 m/min︱z-axis 300 mm︱solution in X-, Y- und Z-axis 0,0001 mm︱spindle turning speed range 0-1000 U/min︱tailstock taper MT 5 ︱control Siemens 840 D ︱grinding diameter max. 120 mm︱grinding wheel diameter 400 mm︱grinding wheel width 32 mm︱grinding wheel hole diameter 127 mm︱grinding wheel speeds 3150 U/min︱total power requirement 56 kW︱weight of the machine ca. 6,3 t︱
          two 120mm internal grinding spindels 60.000 and 90.000 rpm installed DIETTEL M5000 balancing dresser CO2 fire extinguishing cooling with oil granite machine bed OD grinding dia 120 mm OD grinding legth 100 mm simultanious ID - OD operation X2 = OD travel X1 = IDtravel
            grinding diameter 120 mm
            grinding length 110 mm
            centre height 60 mm
            x-axis 300 mm
            internal diameter 100 mm
            grinding depth max 300 mm
            swing diameter 120 mm
            rapid traverse 15 m/min
            z-axis 300 mm
            solution in X-, Y- und Z-axis 0,0001 mm
            spindle turning speed range 0-1000 U/min
            tailstock taper MT 5
            control Siemens 840 D
            grinding diameter max. 120 mm
            grinding wheel diameter 400 mm
            grinding wheel width 32 mm
            grinding wheel hole diameter 127 mm
            grinding wheel speeds 3150 U/min
            total power requirement 56 kW
            weight of the machine ca. 6,3 t
            Description :
            two 120mm internal grinding spindels 60.000 and 90.000 rpm installed
            DIETTEL M5000 balancing
            dresser
            CO2 fire extinguishing
            cooling with oil
            granite machine bed
            OD grinding dia 120 mm
            OD grinding legth 100 mm
            simultanious ID - OD operation
            X2 = OD travel
            X1 = IDtravel
          Datasheet
          Request / Contact

          Double Wheel Grinding Machine - horiz.

          used  Double Wheel Grinding Machine - horiz. THIELENHAUS H 600 Twinstar


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-09776 · Double Wheel Grinding Machine - horiz.

          THIELENHAUS - H 600 Twinstar - - 2000 - SIEMENS 840D

          Technical details
          grinding dia max continuous grinding 80 ︱grinding dia rotary grinding 80 ︱grinding dia min rotary grinding ︱grinding dia min continuous grinding ︱grinding wheel diameter 600 mm︱grinding wheel speed 45 m/sec︱workpiece width - max. 80 mm︱max. workpiece diameter 65 mm︱grinding spindle drive 2 x 21 kW︱spindle stroke 190 mm︱spindle turning speed range 300 - 1100 U/min︱control SIEMENS 840D ︱total power requirement 50 kW︱weight of the machine ca. 9 t︱dimensions of the machine ca. m︱
          - CNC control SIEMENS 840D - grinding spindles with direct drive - maintenance-free spindle bearings - NC controlled workpiece transport disc for continous and dis-continous workpiece-transport in infeed, thorughfeed or combined process - workpiece separation - measuring system
            grinding dia max continuous grin. 80
            grinding dia rotary grinding 80
            grinding wheel diameter 600 mm
            grinding wheel speed 45 m/sec
            workpiece width - max. 80 mm
            max. workpiece diameter 65 mm
            grinding spindle drive 2 x 21 kW
            spindle stroke 190 mm
            spindle turning speed range 300 - 1100 U/min
            control SIEMENS 840D
            total power requirement 50 kW
            weight of the machine ca. 9 t
            Description :
            - CNC control SIEMENS 840D
            - grinding spindles with direct drive
            - maintenance-free spindle bearings
            - NC controlled workpiece transport disc for continous and dis-continous
            workpiece-transport in infeed, thorughfeed or combined process
            - workpiece separation
            - measuring system
          Datasheet
          Request / Contact

          Internal Grinding Machine

          used  Internal Grinding Machine STUDER S140


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-10045 · Internal Grinding Machine

          STUDER - S140 - - 2002 - Siemens 840 D

          Technical details
          internal diameter 100 mm︱grinding depth 100 mm︱swing diameter 120 mm︱x-axis 300 mm︱rapid traverse 15 m/min︱z-axis 300 mm︱solution in X-, Y- und Z-axis 0,0001 mm︱spindle turning speed range 0-1000 U/min︱tailstock taper MT 5 ︱control Siemens 840 D ︱total power requirement 56 kW︱weight of the machine ca. 6,3 t︱dimensions of the machine ca. 3,8 x 2,6 x 2,2 m︱
          two 120mm grinding spindels installed 90.000 rpm and 45.000 rpm DIETTEL M5000 balancing dresser CO2 fire extinguishing cooling with oil granite machine bed
            internal diameter 100 mm
            grinding depth 100 mm
            swing diameter 120 mm
            x-axis 300 mm
            rapid traverse 15 m/min
            z-axis 300 mm
            solution in X-, Y- und Z-axis 0,0001 mm
            spindle turning speed range 0-1000 U/min
            tailstock taper MT 5
            control Siemens 840 D
            total power requirement 56 kW
            weight of the machine ca. 6,3 t
            dimensions of the machine ca. 3,8 x 2,6 x 2,2 m
            Description :
            two 120mm grinding spindels installed 90.000 rpm and 45.000 rpm
            DIETTEL M5000 balancing
            dresser
            CO2 fire extinguishing
            cooling with oil
            granite machine bed
          Datasheet
          Request / Contact

          Hand-Operated Press

          used  Hand-Operated Press WMW VST 3-10,5


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00389 · Hand-Operated Press

          WMW - VST 3-10,5 - - 1990 -

          Technical details
          pressure 1 t︱table-size 150 mm︱throat 200 mm︱total power requirement kW︱weight of the machine ca. 70 kg︱dimensions of the machine ca. m︱
          Lever press with 12-fold indexing table. Press designed for table mounting. 3 pieces available, price per piece. Presses are unused.
            pressure 1 t
            table-size 150 mm
            throat 200 mm
            weight of the machine ca. 70 kg
            Description :
            Lever press with 12-fold indexing table. Press designed for table mounting.
            3 pieces available, price per piece.
            Presses are unused.
          Datasheet
          Request / Contact

          Protective Gas Welding Machine

          used  Protective Gas Welding Machine CASTOLIN + EUTECTIC CASTOWIG 200 GW


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00473 · Protective Gas Welding Machine

          CASTOLIN + EUTECTIC - CASTOWIG 200 GW - - -

          Technical details
          current intensivity 200 A︱total power requirement 16 kVA︱weight of the machine ca. 0,2 t︱dimensions of the machine ca. 1,0 x 0,6 x 0,8 m︱
          Schutzgasschweissanlage mit Armatur, Schlauchset und Wasserkühlung - 100% 200 A, 20 V - 60% 250 A, 18 V
            current intensivity 200 A
            total power requirement 16 kVA
            weight of the machine ca. 0,2 t
            dimensions of the machine ca. 1,0 x 0,6 x 0,8 m
            Description :
            Schutzgasschweissanlage mit Armatur, Schlauchset und Wasserkühlung

            - 100% 200 A, 20 V
            - 60% 250 A, 18 V
          Datasheet
          Request / Contact

          Welding Table

          used  Welding Table


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00432 · Welding Table

          - - - 1980 -

          Technical details
          table length 1200 mm︱table width 750 mm︱table height 870 mm︱Plate thickness 60 mm︱total power requirement kW︱weight of the machine ca. 0,4 t︱dimensions of the machine ca. 1,2 x 0,8 x 0,9 m︱
          table with 2 rolls movable
            table length 1200 mm
            table width 750 mm
            table height 870 mm
            Plate thickness 60 mm
            weight of the machine ca. 0,4 t
            dimensions of the machine ca. 1,2 x 0,8 x 0,9 m
            Description :
            table with 2 rolls movable
          Datasheet
          Request / Contact

          Measuring- and Marking Machine

          used  Measuring- and Marking Machine STIEFELMAYER


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-08549 · Measuring- and Marking Machine

          STIEFELMAYER - - - 1978 -

          Technical details
          x-travel 2000 mm︱y-travel 1250 mm︱z-travel 1000 mm︱floor-plate length 2000 mm︱floor-plate width 2000 mm︱voltage 380 V︱weight of the machine ca. 6 t︱dimensions of the machine ca. 2 x 2 x 2 m︱levelling steadies 6 Stück︱
          - rotary table dia. 500 mm - GRUNDIG data screen
            x-travel 2000 mm
            y-travel 1250 mm
            z-travel 1000 mm
            floor-plate length 2000 mm
            floor-plate width 2000 mm
            voltage 380 V
            weight of the machine ca. 6 t
            dimensions of the machine ca. 2 x 2 x 2 m
            levelling steadies 6 Stück
            Description :
            - rotary table dia. 500 mm
            - GRUNDIG data screen




          Datasheet
          Request / Contact

          Adjusting Instrument

          used  Adjusting Instrument KELCH Trabant 200 P


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00271 · Adjusting Instrument

          KELCH - Trabant 200 P - - 1983 -

          Technical details
          longitudinal travel 200 mm︱cross travel 100 mm︱table length mm︱table width mm︱screen dia. 95 mm︱enlargement 20 x ︱reading precision 0,01 mm︱voltage 380 V︱total power requirement kW︱weight of the machine ca. 0,1 t︱dimensions of the machine ca. 1 x 1 x 2 m︱
            longitudinal travel 200 mm
            cross travel 100 mm
            screen dia. 95 mm
            enlargement 20 x
            reading precision 0,01 mm
            voltage 380 V
            weight of the machine ca. 0,1 t
            dimensions of the machine ca. 1 x 1 x 2 m
          Datasheet
          Request / Contact

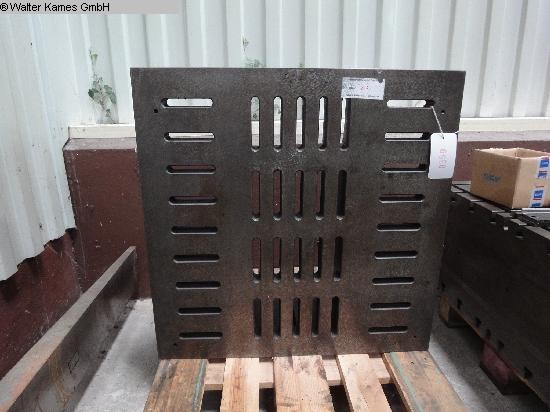

          Angular Clamping Device

          used  Angular Clamping Device UNBEKANNT


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00359 · Angular Clamping Device

          UNBEKANNT - - - -

          Technical details
          length 800 mm︱width 450 mm︱height 800 mm︱total power requirement kW︱weight of the machine ca. 0,5 t︱dimensions of the machine ca. m︱
            length 800 mm
            width 450 mm
            height 800 mm
            weight of the machine ca. 0,5 t
          Datasheet
          Request / Contact

          Angular Head

          used  Angular Head WALDRICH WFD 100


          • Walter Kames GmbH
          • Dillenburger Weg 34
          • 40229 Düsseldorf
          • Deutschland

          • +49 211 215066 0
            +49 211 215067
          • info@kames.de
            www.kames.de
          #1004-00355 · Angular Head

          WALDRICH - WFD 100 - - 1970 -

          Technical details
          throat 450 mm︱tool adaptor 60 ISO︱power requirement 100 kW︱spindle distance 720 mm︱speeds 12 - 450 U/min︱total power requirement kW︱weight of the machine ca. 2 t︱dimensions of the machine ca. m︱
            throat 450 mm
            tool adaptor 60 ISO
            power requirement 100 kW
            spindle distance 720 mm
            speeds 12 - 450 U/min
            weight of the machine ca. 2 t
          Datasheet
          Request / Contact
          •
          •
          • 1
          • 2
          • 3
          •
          •

            Trader Profile:   Walter Kames GmbH

          Contact Trader



            Walter Kames GmbH
           Dillenburger Weg 34
            40229 - Düsseldorf
            Deutschland
            +49 211 215066 0">+49 211 215066 0
            +49 211 215067
            info@kames.de
            www.kames.de

          Profile of Trader

          The company Walter Kames
          is known worldwide for the trade with high-quality secondhand machinetools.

          The company is buying and selling individual machines, production lines and complete factory inventory for the metalcutting and metalforming industry.
          On an area of more than 10000 sqm with crane capacity upto 70 tons customers from all over the world are finding one of the biggest warehouses for used machines in Europe. From the simple lathe to the biggest CNC plano milling machine we are able to demonstrate the majority of our machines to the interested customer under power. The modification, overhauling and control retrofits are part of the services offered.

          Latest communication means and access to specific online records enable our highly qualified team of employees to react flexible and quickly to the requirements of our customers. Only in the year 2005 we have supplied different machinetools with a total weight of more than 3500 tons to customers in 25 countries on all continents.


          A look at the history:

          1922 .......... Company Kames was founded by Josef Kames.
          1957 .......... Walter Kames takes over ownership and management.
          1985 .......... The company was renamed WALTER KAMES LTD.
          2010 .......... Mr. Alexander Kames gets appointed as managing director.

          Walter Kames GmbH
          Dillenburger Weg 34
          40229 Düsseldorf

          Tel.: 0211-215066-0
          Fax: 0211-215067
          eMail: info@kames.de

          Geschäftsführer: Alexander Kames




          Walter Kames GmbH   40229 - Düsseldorf Dillenburger Weg 34 Deutschland
          Walter Kames GmbH

          Dillenburger Weg 34



          Contact Trader


            Walter Kames GmbH
           Dillenburger Weg 34
            40229 - Düsseldorf
            Deutschland
            +49 211 215066 0
            +49 211 215067
            info@kames.de
            www.kames.de
            Contact person:
          Herrn Thomas Nieting +49 211 215066 12
          Herrn Alexander Kames +49 211 215066 13






          Machine category


          Aufspannplatte · Aufspanntisch · Aufspannwinkel · Bearbeitungszentrum - Horizontal · Bearbeitungszentrum - Universal · Bearbeitungszentrum - Vertikal · Bohrwürfeltisch · Breitband-Schleifmaschine · CNC Dreh- und Fräszentrum · CNC Drehmaschine · Doppelscheibenschleifmaschine - horiz. · Dreh-,Schwenk-, und Kipptisch · Drehmaschine - zyklengesteuert · Einstellgerät · Ersatzteile · Fahrständerfräsmaschine · Fixatoren · Flachschleifmaschine · Fräsmaschine - Vertikal · Futter · Führungsbahnschleifmaschine · Handhebelpresse · Hochfrequenzspindel · Hydraulische Presse · Innenschleifmaschine · Kaltwalzmaschine · Karusselldreh- und Schleifma.-Doppelst. · Karusselldrehmaschine - Doppelständer · Kettenzug - von Hand · Kreisteiltisch · Leit- und Zugspindeldrehmaschine · LuZ · Messerköpfe · Meß- und Anreißanlage · Mischer und Kneter · Portal - Bearbeitungszentrum · Portalfräsmaschine · Portalfräsmaschine verfahrbar · Radialbohrmaschine · Rundschleifmaschine · Rundschleifmaschine - Außen · Rundschleifmaschine - Universal · Rundtisch · Schutzgasschweißanlage · Schweißtisch · Schwerdrehbank · Schwerdrehmaschine · Spiralkegelradschneidmaschine · Spitzendrehbank · Spitzenlose - Rundschleifmaschine · Stangenautomat - Einspindel · Stangenzuführung · Säulenbohrmaschine · Tischbohrwerk · Traghülsenplattenbohrwerk · Transformator · Vertikal - Bandsäge · Vertikaldrehmaschine · Werkzeugfräsmaschine - Universal · Werkzeugschrank · Winkelkopf · Würfeltisch - schwenkbar · Wälzfräserschärfmaschine · Zahnflankenschleifmaschine · Zubehör ·
