Oskar Frech GmbH & Co. KG - Stockist for used machines

---

isolated crucible cover for multi chamber Meltec furnace ZC80/180

total power requirement kW︱

---

used weightcontrol WC2000 for die casting machines up to a unit weight of 2000 grams. The device has been checked and repaired by the manufacturer

pan capacity 820 Kg︱connected load 36 kW︱

---

pan capacity 420 kg︱

---

Single-Chamber Meltec Furnace Typ Z20/120C unused as new for DAW20A or DAW20S with stainless steel crucible. Crucible content 420kg/Zn. Melting capacity 120kg/Zn/h Electrical Connection 21,5kW With control cabinet.

connected load 36 kW︱

---

Used machine furnace type Meltec ZC 200/250 for use on hot chamber die casting machines type Oskar Frech with 200 tons locking force for processing zinc alloys. Melting capacity per hour 250kg / h 36 kW connected load.

heating capacity 1x12 kW︱Cooling capacity 2x35 kW︱

---

Used heating and cooling unit from Robamat for die casting machines. This two-circuit device is designed for the temperature control of die casting tools with water. Available ex stock. Checked, maintained and repaired at service partner of the manufacturer Circuits: 2 Flow temperature max. 160°C Heating capacity 2x 12kW Cooling capacity 2x 35kW Voltage 3x 400V / 50Hz flow measurement pump protection filter casing

heating capacity 1 x 10 kW︱Cooling capacity 1 x 20 kW︱

---

Used heating and cooling unit from Robamat for die casting machines. This two-circuit device is designed for the temperature control of die casting tools with water. Available ex stock. Checked, maintained and repaired at service partner of the manufacturer Circuits: 2 Flow temperature max. 160°C Heating capacity 2x 12kW Cooling capacity 2x 35kW Voltage 3x 400V / 50Hz Production cycle - break Central fault indication

---

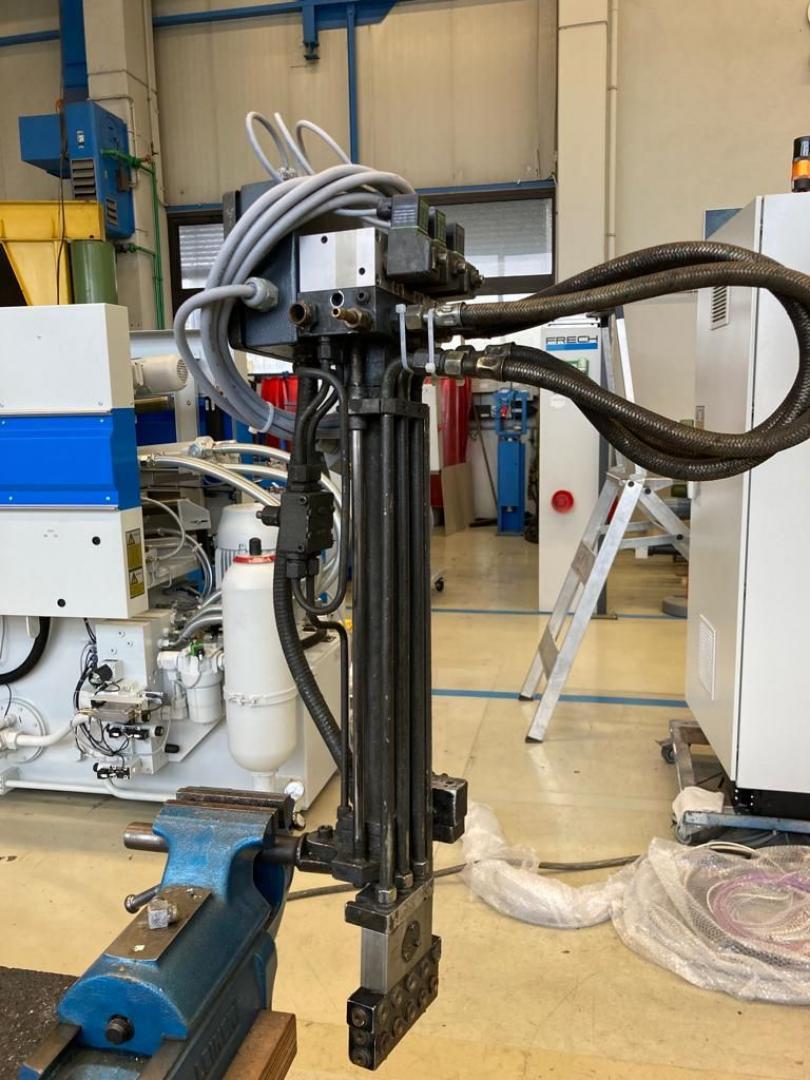

used electric sprayer Spraymotion 411 E for die casting machines. The device has been tested by the manufacturer for function Included support unit and spray- and blowrail (system SR) Connection 24 pin plug electric driving unit with 400mm stroke length

heating capacity 20 kW︱

---

Used heating unit from Robamat for die casting machines. This single-circuit device is designes for the temperature control of die casting tools with oil. The device has been testet for function by the service partner of the manufacturer. Circuits: 1 Flow temperature max. 250°C Heating capacity 1x 20kW Voltage 3x 400V / 50Hz Pump typ / capacity PM3 80L/min

heating capacity 10 kW︱Cooling capacity 40 kW︱

---

Used heating and cooling unit from Robamat for die casting machines. This single-circuit device is designes for the temperature control of die casting tools with oil. The device has been serviced and repaired by the service partner of the manufacturer. Circuits: 1 Flow temperature max. 250°C Heating capacity 1x 10kW Cooling capacity 1x 40kW Voltage 3x 400V / 50Hz Pump typ / capacity PM1

---

Used Meltec furnace Typ Z50/180 B (gas heated) incl. used steel crucible and substructure and control cabinet heating capacity 40kW suitable for DAW 40 and DAW 50

connected load 54 kW︱

---

Used machine furnace type Meltec M 200/120 for use on hot chamber die casting machines type Oskar Frech with 200 tons locking force for processing magnesium alloys. Melting capacity per hour 120kg / h 54 kW connected load. A suitable control cabinet can be built if required.

---

Used Meltec electric furnace MELTEC Typ Z20/120 incl. used iron steel crucible, isolated cover, substructure and control cabinet heating capacity 21,5kW suitable for DAW 20F and W20Zn Delivery of cable set possible at extra charge

total power requirement kW︱weight of the machine ca. t︱required space m︱

---

Used furnace cabinet for die casting machine Frech type DAW 80 - suitable for multi-chamber furnace MELTEC - type 80/180 with individual controls. Has been checked for functionality by the manufacturer.

total power requirement kW︱weight of the machine ca. t︱required space m︱

---

Used Rauch furnace Typ MO50E incl. used cast iron crucible and substructure. Without control cabinet heating capacity 17,5kW, 3x400V 50Hz suitable for DAW 40 and DAW 50

closing pressure 900 kN︱clamping plate 540x540 mm︱distance between columns 350x350 mm︱weight of the machine ca. 5,1 t︱lock stroke 280 mm︱capacity of ejector 61 kN︱ejector stroke 70 mm︱height of form 160-400 mm︱column diameter 65 mm︱casting capacity 78 kN︱casting plunger stroke 130 m/m︱injection plunger diameter 50,55,60 mm︱casting volume (DIN 24480) 147, 191, 241 cm 2︱volume cast pressure 396, 327, 275 da/cm²︱casting area 226, 274, 326 cm 2︱Traverse Stroke 220 m/m︱

---

Equipment of the machine: 1.0.1 Cover for drop through area at the subframe 1.0.2 Cover for drop through area at the subframe with scale/chute 1.1.0 Motorized guard in casting direction left 1.4.0 Machine positioning mounting pads 1.5.4 Machine interior illumination 1.11.0 Convenience package energy efficiency 2.0.1 Ejector assistance packages 2.0.1.2 Ejector assistance package Technology incl. SensiEject 2.6.4 Machine assistance system SensiLock 2.8.0 Hydraulic adjustment of locking unit for shot positioning 3.0.1 Casting assistance packages 3.0.1.2 Casting assistance package Technology incl. SensiInject 3.2.9 EcoMelTec Multi-Chamber furnace with pump 3.4.4 Prefilling process 3.4.5 Simplified piston removal 3.4.6 Piston stop during return stroke 3.5.2 Electric nozzle and gooseneck heating 3.5.3 Plug-in connections for el. nozzle and gooseneck heating 4.0.1 Hydraulic system for water glycol 4.5.0 Shut-off facility for hydraulic locking and injection unit 4.6.1.3 Integrated water circuit 2+6 circuits 5.1.0 Machine control DATADIALOG - Realtime Control (RC) 5.1.5 Maintenance plus package 5.6.0 Special cable lengths 6.1.3.1 Digital interface for Non-FRECH extractor (Dispo 10) 6.1.4 Serial interface for 4 heating-cooling circuits ROBAMAT 3.1 6.1.5 Interface for Vacuum unit 6.3.1.1 Hanging operating desk with monitor 6.5.2 Service Package RSD with Switch for each additional machine 7.2.2.2 Spraymotion 611 E with servo drive, 1-circuit 7.2.10 Extended spraying program for spraymotion 7.3.1 Lubricant container TD 20 7.4.0.3 Spray rail CR 275

closing pressure 600 kN︱clamping plate 460x460 mm︱distance between columns 300x300 mm︱lock stroke 230 mm︱ejector stroke 70 mm︱capacity of ejector 40 kN︱height of form 120-350 mm︱Column diameter 56 mm︱casting capacity 54 kN︱Injection stroke 130 mm︱injection piston diameter 45, 50, 55 mm︱Casting volum 109. 150, 194 cm³︱volume cast pressure 339. 274, 226 daN/cm²︱Casting area 176, 218, 264 cm²︱weight of the machine ca. 3,5 t︱

---

Equipment of the machine 1.0.1 Cover for drop through area at the subframe 1.0.2 Cover for drop through area at the subframe with scale/chute 1.1.0 Motorized guard in casting direction left 1.4.0 Machine positioning mounting pads 1.5.4 Machine interior illumination 1.11.0 Convenience package energy efficiency 2.0.1 Ejector assistance packages 2.4.2 Securing of ejector platen 2.6.4 Machine assistance system SensiLock 2.8.0 Hydraulic adjustment of locking unit for shot positioning 3.1.1 Nitrogen pressure control for piston accumulator 3.2.4 Multi-Chamber furnace with pump 3.2.5 Isolated Cover for Crucible Multi-chamber-furnace 3.4.4 Prefilling process 3.4.5 Simplified piston removal 3.4.6 Piston stop during return stroke 3.5.2 Electric nozzle and gooseneck heating (extended version) 4.5.0 Shut-off facility for hydraulic locking and injection unit 4.6.1.2 Integrated water circuit 2+4 circuits 5.1.0 Machine control DATADIALOG - Realtime Control (RC) 5.1.2 Convenience Package – Casting – 5.2.1 Ejector Pressure graphics in DATADIALOG control 5.4.1 Data logging Scope 5.4.2 Configurable In- and Outputs 5.6.0 Special cable lengths 6.1.3.1 Digital interface for Non-FRECH extractor (Dispo 10) 6.1.4 Serial interface for 4 heating-cooling circuits ROBAMAT 3.1 6.3.1.1 Hanging operating desk with monitor 6.5.2 Service Package RSD with Switch for each additional machine 7.2.2.2 Spraymotion 611 E with servo drive, 1-circuit 7.2.10 Extended spraying program for spraymotion 7.3.1 Lubricant container TD 20 7.4.0.2 Spray rail CR 245 7.12.3 Low noise chute

closing pressure 1250 kN︱clamping plate 620x620 mm︱distance between columns 400x400 mm︱weight of the machine ca. 6 t︱lock stroke 340 mm︱capacity of ejector 80 kN︱ejector stroke 90 mm︱height of form 170-500 mm︱column diameter 75 mm︱casting capacity 100 kN︱casting plunger stroke 150 m/m︱injection plunger diameter 60,70,80 mm︱casting volume (DIN 24480) 205,330,475 cm 2︱volume cast pressure 355,260,200 kp/cm²︱casting area 352,480,625 cm 2︱Traverse Stroke 200 m/m︱

---

Used Die Casting machine DAW 125 with SBC control for the use of zinc alloys. Available from used machine stock. The machine is equipped with an electric furnace from Meltec Typ Z125/xxx. Without sprayer. Recommendation from the manufacturer is some repair / general overhaul in the overhaul plant. It can be carried out in the scope of agreement.

closing pressure 900 kN︱clamping plate 540x540 mm︱distance between columns 350x350 mm︱weight of the machine ca. 5,5 t︱lock stroke 280 mm︱capacity of ejector 60 kN︱ejector stroke 70 mm︱height of form 160-400 mm︱column diameter 65 mm︱casting capacity 75 kN︱casting plunger stroke 130 mm︱injection plunger diameter 50,55,60 mm︱casting volume (DIN 24480) 119, 163, 214 cm 2︱volume cast pressure 380, 315, 265 kp/cm²︱casting area 236, 285, 340 cm 2︱Traverse Stroke 150 mm︱

---

Used Die Casting machine DAW 80 S with Datacontrol real time control injection for the use of zinc alloys. Available from used machine stock. The machine is equipped with an electric multichamber furnace from Meltec Typ ZC80/180 and a pneumatic sprayer Spraymat 601. Recommendation from the manufacturer is some repair / general overhaul in the overhaul plant. It can be carried out in the scope of agreement.

closing pressure 900 kN︱clamping plate 540x540 mm︱distance between columns 350x350 mm︱weight of the machine ca. 5,5 t︱lock stroke 280 mm︱capacity of ejector 60 kN︱ejector stroke 70 mm︱height of form 160-400 mm︱column diameter 65 mm︱casting capacity 75 kN︱casting plunger stroke 130 m/m︱injection plunger diameter 50,55,60 mm︱casting volume (DIN 24480) 119, 163, 214 cm 2︱volume cast pressure 380, 315, 265 kp/cm²︱casting area 236, 285, 340 cm 2︱Traverse Stroke 150 m/m︱

---

Generaloverhauled diecasting machine DAW80 GO with Datalogic Control for the used of zinc alloys Available upon aggreement

closing pressure 3150 kN︱clamping plate 900x900 mm︱distance between columns 550x550 mm︱weight of the machine ca. 15,5 t︱lock stroke 500 mm︱capacity of ejector 159 kN︱ejector stroke 120 mm︱height of form 300-700 mm︱column diameter 110 mm︱casting capacity 158 kN︱casting plunger stroke 250 mm︱injection plunger diameter 70,80,90,100 mm︱casting volume (DIN 24480) 514,791,1105,1455 cm 2︱volume cast pressure 410,316,249,201 kp/cm²︱casting area 768,996,1265,1597 cm 2︱Traverse Stroke 300 mm︱

---

Used Die Casting machine DAM 315 S with Datacontrol for the use of magnesium alloys. Available from used machine stock. The machine is equipped with an electric furnace from Rauch Typ MMO 315E. Without sprayer. Recommendation from the manufacturer is some repair / general overhaul in the overhaul plant. It can be carried out in the scope of agreement.

closing pressure 900 kN︱clamping plate 540x540 mm︱distance between columns 350x350 mm︱weight of the machine ca. 5,5 t︱lock stroke 280 mm︱capacity of ejector 60 kN︱ejector stroke 70 mm︱height of form 160-400 mm︱column diameter 65 mm︱casting capacity 75 kN︱casting plunger stroke 130 mm︱injection plunger diameter 50,55,60 mm︱casting volume (DIN 24480) 119, 163, 214 cm 2︱volume cast pressure 380, 315, 265 kp/cm²︱casting area 236, 285, 340 cm 2︱Traverse Stroke 150 mm︱

---

Used Die Casting machine DAW 80 S with Datacontrol real time for the use of zinc alloys. Available from used machine stock. The machine is equipped with an electric furnace from Rauch Typ MO50E. Without sprayer. Recommendation from the manufacturer is some repair / general overhaul in the overhaul plant. It can be carried out in the scope of agreement.

closing pressure 240 kN︱clamping plate 380x380 mm︱distance between columns 250x250 mm︱weight of the machine ca. 3000 Kg︱lock stroke 180 mm︱capacity of ejector 30 kN︱ejector stroke 50 mm︱height of form 120-300 mm︱column diameter 45 mm︱casting capacity 40 kN︱Casting stroke 85 mm︱Injection plunger diameter 36, 40, 45 mm︱Casting volume (DIN 24480) 39, 56, 79 cm³︱volume cast pressure 392, 317, 250 kp/cm²︱Casting area 61, 76, 96 cm²︱Carriage retraction stroke 105 mm︱

---

Used Die Casting machine DAW 20S with Datamat control for the use of zinc alloys. Available from used machine stock. The machine is equipped with an electric furnace from Rauch Typ MO20E and used pneumatic sprayer Spraymat 401.

closing pressure 2200 kN︱clamping plate 755x755 mm︱distance between columns 500x500 mm︱weight of the machine ca. 8 t︱lock stroke 430 mm︱capacity of ejector 110 kN︱ejector stroke 100 mm︱height of form 250-600 mm︱column diameter 85 mm︱casting capacity 130 kN︱casting plunger stroke 175 mm︱injection plunger diameter 70,80,90 mm︱casting volume (DIN 24480) 450,636,856 cm ³︱volume cast pressure 335,260,203 kp/cm²︱casting area 656,846,1078 cm 2︱Traverse Stroke 230 mm︱

---

Used Die Casting machine DAW 200 S with Datavario control for the use of zinc alloys. Available from used machine stock. The machine is equipped with a furnace from Rauch Typ MO200G/R gas heated and a used electric sprayer Spraymotion 611E. Recommendation from the manufacturer is some repair / general overhaul in the overhaul plant. It can be carried out in the scope of agreement.
