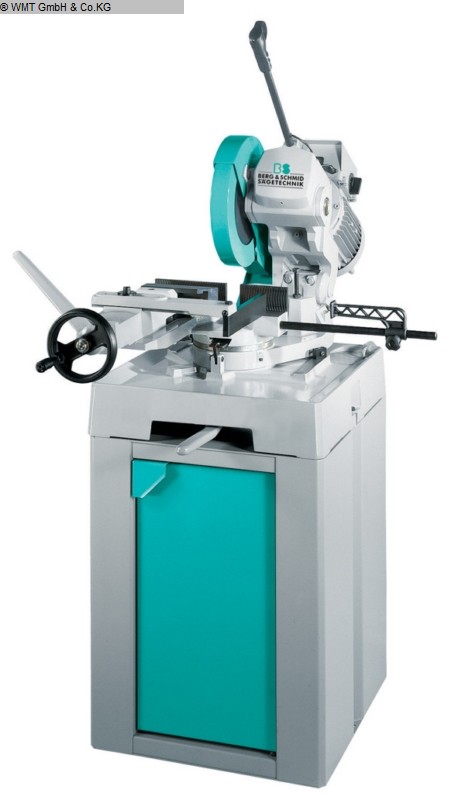

Cold Circular Saw

saw blade diameter 315 mm︱cutting diameter 85 mm︱stroke mm︱mitter cutting - all-position ± 45 °︱turning speed range 19 / 38 1/min︱power requirement 0,75 / 1,5 kW︱coolant ︱voltage 400 V︱total power requirement 1,5 kW︱weight of the machine ca. 235 kg︱dimensions of the machine ca. 0,55 x 0,90 x 1,75 m︱

---

- Coolant device - Machine base - without circular saw blade

saw blade diameter 350 x 32 x 2,5 mm︱ 15/30/45/90 U/min︱vice 190 mm︱capacity 90 degrees: round 115 mm︱capacity 90 degrees: square 95 mm︱capacity 90 degrees: flat 180x95 mm︱ 90 mm︱ 90 mm︱ 110 mm︱ 95 mm︱ 125x95 mm︱ 110 mm︱ 95 mm︱ 125x95 mm︱total power requirement 1,8/2,5 kW︱weight 375 kg︱

---

saw blade diameter 350x32x2,5 mm︱ 15-90 U/min︱vice 190 mm︱capacity 90 degrees: round 115 mm︱capacity 90 degrees: square 95 mm︱capacity 90 degrees: flat 180x95 mm︱ 90 mm︱ 90 mm︱ 90x90 mm︱ 110 mm︱ 95 mm︱ 125x95 mm︱ 110 mm︱ 95 mm︱ 125x95 mm︱total power requirement 3 kW︱weight 685 kg︱Overall size 2050x1100x1800 mm︱

---

saw blade diameter 370x32x3 mm︱ 15-150 U/min︱vice 190 mm︱capacity 90 degrees: round 120 mm︱capacity 90 degrees: square 110 mm︱capacity 90 degrees: flat 180x100 mm︱ 115 mm︱ 90 mm︱ 90x90 mm︱ 115 mm︱ 100 mm︱ 120x100 mm︱ 115 mm︱ 100 mm︱ 120x100 mm︱total power requirement 5,5 kW︱weight 615 kg︱Overall size 1400x1400x2000 mm︱

---

saw blade diameter 350 x 32 x 2,5 mm︱ 15/30/45/90 U/min︱vice 190 mm︱capacity 90 degrees: round 115 mm︱capacity 90 degrees: square 95 mm︱capacity 90 degrees: flat 180x95 mm︱ 90 mm︱ 90 mm︱ 110 mm︱ 95 mm︱ 125x95 mm︱ 110 mm︱ 95 mm︱ 125x95 mm︱total power requirement 1,8/2,5 kW︱weight 410 kg︱

---

saw blade diameter 315 mm︱cutting diameter 90 mm︱stroke -- mm︱mitre joint cuts -/+ degrees -45 + 45 Grad︱turning speeds 40 / 80 U/min︱weight of the machine ca. 165 kg︱dimensions of the machine ca. 1,0 x 1,15 x 1,48 m︱

---

Manual metal circular saw MKS 315 N Action set / Item no. 3620303SET - two cutting speeds - Rotatable machine head 45° to the left and 45° to the right - Reduction gear, running quietly in an oil bath - automatic diaphragm coolant pump with coolant filter - Vice with counter vice, quick release and anti-burr jaws guarantees a precise and burr-free cut - Lateral material support arm with roller - Vice swivels 45° to the left and 45° to the right - Movable guard ensures optimal safety when cutting - Control handle with safety switch - Vice with counter vice, quick release and anti-burr jaws - Lateral material support arm with roller - Vise can be moved longitudinally and thus for longitudinal cuts and for suitable for slots 0° (round) solid material 55 mm 0° (round) tube 90 mm 0° (square) tube 80 x 80 mm 0° (rectangular) tube 115 x 70 mm -45° (round) solid material 50 mm -45° (round) tube 80 mm -45° (square) tube 70 x 70 mm -45° (rectangular) tube 70 x 70 mm +45° (round) solid material 50 mm +45° (round) tube 80 mm +45° (square) tube 70 x 70 mm +45° (rectangular) tube 70 x 70 mm

saw blade diameter 400 mm︱cutting diameter 130 mm︱stroke 135 mm︱mitter cutting - all-position 0-45 °︱turning speed range 1420 / 2840 U/min︱capacity 45 degrees: square 110 mm︱capacity 45 degrees: flat 50 x 240 mm︱capacity 90 degrees: flat 95 x 240 mm︱capacity 90 degrees: round 130 mm︱capacity 90 degrees: square 120 mm︱voltage 400 V︱total power requirement 3,7 / 4,5 kW︱weight of the machine ca. 600 kg︱dimensions of the machine ca. 1,15 x 1,20 x 1,60 m︱

---

- Serial-No.: 102752 - cutting range round 130 mm - cutting range square 120 mm - cutting range flat 95 x 240 mm - vertical pneumatic clamping

saw blade diameter 350 x 32 mm︱cutting diameter 115 mm︱stroke -- mm︱capacity 90 degrees: square 95 mm︱capacity 90 degrees: flat 180 x 95 mm︱capacity 45 degrees: round li. 110 / re. 110 mm︱capacity 45 degrees: square li. 95 / re. 95 mm︱capacity 45 degrees: flat li. 125x95 / re . 125x95 mm︱capacity 60 degrees: round 90 mm︱capacity 60 degrees: square 90 mm︱capacity 60 degrees: flat 90 x 90 mm︱total power requirement 1,8 / 2,5 kW︱weight of the machine ca. 375 t︱dimensions of the machine ca. 700 x 900 x 1800 m︱

---

-The powerful, 2-stage gear was specially designed for cuts in solid material designed -The user has a total of 4 blade speeds for optimal adjustment the material available -The large bearing rotary table with internal table clamping and Precision stops at 0/45/60° ensure quick adjustability miter cuts -The vice with quick clamping (optional is a pneumatic one Vise = MA, available) is with screwed vise jaws Mistake. With their ribbing, these ensure optimal hold of the workpiece -Underframe with lockable door, chip drawer and removable Coolant pan with electric coolant pump -Chip removal brush

Sägeblatt-Ø 315 mm︱cutting diameter 100 mm︱sawblade width 2,5 mm︱capacity 90 degrees: round 100 mm︱capacity 90 degrees: flat 130 x 90 mm︱capacity 45 degrees: round 100 mm︱capacity 45 degrees: flat 100 x 90 mm︱turning speeds 18 + 36 U/min︱voltage 400 V︱frequency 50 Hz︱power capacity 0,75 - 1,3 kW︱weight of the machine ca. 220 Kg︱range L-W-H 0,7 x 0,6 x 1,3, m︱

---

• mitre possibility by adjustment of the sawhead, • self-scrolled vise, self-ajdustable protection cover, • cooling pump with bin, • 2 steps of cutting speed • with under frame

Sägeblatt-Ø 315 mm︱cutting diameter 100 mm︱sawblade width 2,5 mm︱capacity 90 degrees: round 100 mm︱capacity 90 degrees: flat 130 x 90 mm︱capacity 45 degrees: round 100 mm︱capacity 45 degrees: flat 100 x 90 mm︱turning speeds 18 + 36 U/min︱voltage 400 V︱frequency 50 Hz︱power capacity 0,75 - 1,3 kW︱weight of the machine ca. 220 Kg︱range L-W-H 0,7 x 0,6 x 1,3, m︱

---

• mitre possibility by adjustment of the sawhead, • self-scrolled vise, self-ajdustable protection cover, • cooling pump with bin, • 2 steps of cutting speed • with under frame

saw blade diameter 400 x 50 mm︱cutting diameter 130 mm︱turning speeds 3000 U/min︱reus variabel einstellbar U/min︱capacity 90 degrees: round 130 mm︱capacity 45 degrees: round 115 mm︱capacity 90 degrees: square 110 x 110 mm︱capacity 45 degrees: square 100 x 100 mm︱capacity 90 degrees: flat 250 x 85 mm︱capacity 45 degrees: flat 160 x 70 mm︱voltage 400 V / 50 Hz︱total power requirement 3 kW︱weight of the machine ca. 380 Kg︱dimensions of the machine ca. 0,8 x 0,7 x 1,3 m︱

---

• Cold circular saw for aluminium, • with pneumatical double clamping of the workpiece, • clamping is adjustable horizontally and vertically, • equipped with mist lubrication, • adjustable saw blade feed, • additional roller conveyor: Height = 850 - 1200 mm, Width = 250 mm, Length = 1000 mm, with 4 posts, Price: € 290.00

saw blade diameter 500 x 50 mm︱cutting diameter 180 mm︱turning speeds 3000 U/min︱capacity 90 degrees: round 180 mm︱capacity 45 degrees: round 180 mm︱capacity 90 degrees: square 150 x 150 mm︱capacity 45 degrees: square 120 x 120 mm︱capacity 90 degrees: flat 300 x 125 mm︱capacity 45 degrees: flat 145 x 120 mm︱voltage 400 V / 50 Hz︱total power requirement 4 kW︱weight of the machine ca. 430 Kg︱dimensions of the machine ca. 0,8 x 0,7 x 1,3 m︱

---

• Cold circular saw for aluminium, • with pneumatical double clamping of the workpiece, • clamping is adjustable horizontally and vertically, • equipped with mist lubrication, • adjustable saw blade feed, • additional roller conveyor: Height = 850 - 1200 mm, Width = 250 mm, Length = 1000 mm, with 4 posts

Sägeblatt-Ø 315 mm︱cutting diameter 100 mm︱sawblade width 2,5 mm︱capacity 90 degrees: round 100 mm︱capacity 90 degrees: flat 130 x 90 mm︱capacity 45 degrees: round 100 mm︱capacity 45 degrees: flat 100 x 90 mm︱turning speeds 18 + 36 U/min︱voltage 400 V︱frequency 50 Hz︱power capacity 0,75 - 1,3 kW︱weight of the machine ca. 220 Kg︱range L-W-H 0,7 x 0,6 x 1,3, m︱

---

• mitre possibility by adjustment of the sawhead, • self-scrolled vise, self-ajdustable protection cover, • cooling pump with bin, • 2 steps of cutting speed • with under frame

Sägeblatt-Ø 315 mm︱cutting diameter 90 mm︱sawblade width 2,5 mm︱capacity 90 degrees: round 90 mm︱capacity 90 degrees: flat 120 x 70 mm︱capacity 45 degrees: round 80 mm︱capacity 45 degrees: flat 80 x 70 mm︱turning speeds 52 -104 U/min︱voltage 400 V︱frequency 50 Hz︱power capacity 1,32 -1,9 kW︱weight of the machine ca. 220 Kg︱range L-W-H 0,7 x 0,6 x 1,3, m︱

---

• mitre possibility by adjustment of the sawhead, • self-scrolled vise, self-ajdustable protection cover, • cooling pump with bin, • 2 steps of cutting speed • with under frame

saw blade diameter 500 mm︱turning speeds 2988 U/min︱Table dimensions 1110x750 mm︱ 400 Volt︱table height 850 mm︱hole of sawblade 30 mm︱

---

saw blade diameter 350 x 32 mm︱cutting diameter 125 mm︱Saw blade 125 mm︱turning speeds 3000 U/min︱capacity 90 degrees: round 125 mm︱capacity 45 degrees: round 105 mm︱capacity 90 degrees: square 110 x 110 mm︱capacity 45 degrees: square 85 x 85 mm︱capacity 90 degrees: flat 175 x 75 mm︱capacity 45 degrees: flat 100 x 80 mm︱voltage 400 V / 50 Hz︱total power requirement 1,5 kW︱weight of the machine ca. 150 Kg︱dimensions of the machine ca. 0,8 x 0,7 x 1,3 m︱

---

• Cold circular saw for aluminium,

saw blade diameter 300 x 32 mm︱cutting diameter 100 mm︱Saw blade 100 mm︱turning speeds 3000 U/min︱capacity 90 degrees: round 100 mm︱capacity 45 degrees: round 80 mm︱capacity 90 degrees: square 85 x 85 mm︱capacity 45 degrees: square 60 x 60 mm︱capacity 90 degrees: flat 120 x 50 mm︱capacity 45 degrees: flat 75 x 45 mm︱voltage 400 V / 50 Hz︱total power requirement 1,5 kW︱weight of the machine ca. 80 Kg︱dimensions of the machine ca. 0,6 x 0, 5 x 0,6 m︱

---

• Cold circular saw for aluminium, • additional under frame, price: EUR 425.00

saw blade diameter 315 mm︱cutting diameter 120 mm︱total power requirement 1,3 / 1,8 kW︱weight of the machine ca. 230 kg︱

---

Capacity 90° Round: 75 mm Capacity 90° Square: 70 mm Capacity 90° Rectangle: 95 X 60 mm Capacity 45° Round: 65 mm Capacity 45° Square: 60 mm Capacity 45° Rectangle: 70 X 55 mm Saw Size: 250 x 2.00 x 32 mm Boron Oil: 20 l Main Motor: 1.3/1.8 kW Saw Speed: 25/50 - 45/90 m/min Voltage: 380 V Vise size: 120 mm Working Hight: 1.300 mm Length: 700 mm Width: 450 mm Height: 670 mm Weight: 160 kg Equipments: - Metal circular saw - 2-step gearbox engine - double miter circular saw until up to 45 ° left / right - new saw blade - Coolant device - Attack - Machine base

saw blade diameter 275 x 2,00 x 32 mm︱total power requirement 1,3 / 1,8 kW︱weight of the machine ca. 220 kg︱

---

Double Miter Circular Saw Capacity 90° Round: 80 mm Capacity 90° Square: 70 mm Capacity 90° Rectangle: 95 X 60 mm Capacity 45° Round: 70 mm Capacity 45° Square: 60 mm Capacity 45° Rectangle: 70 X 50 mm Saw Size: 275 x 2.00 x 32 mm Boron Oil: 20 l Main Motor: 1.3/1.8 kW Saw Speed: 25/50 - 45/90 m/min Voltage: 380 V Vise size: 120 mm Working Height: 550 mm Length: 1.100 mm Width: 800 mm Height: 1.700 mm Weight: 220 kg Equipment: - Metal circular saw - 2-step gearbox engine - Double miter circular saw up to 45 ° left / right - new saw blade - Coolant device - Attack - Machine base

saw blade diameter 315 mm︱capacity 90 degrees: round 108 mm︱capacity 90 degrees: square 93 mm︱ 150 x 90 mm︱Working height 920 mm︱saw blade turning speeds 33+66 U/min︱total power requirement 1,5/1,8 kW︱weight of the machine ca. 0,328 t︱dimensions of the machine ca. 0,8 x 0,9 x 1,7 m︱

---

Feed roller conveyor 4000mm Removal roller conveyor with stop system 3950mm new replacement saw blade Transport dimensions 2000 x 1000 x 1700 Weight 700kg

saw blade diameter 315/350 mm︱capacity 90 degrees: round 125 mm︱capacity 90 degrees: square 110 mm︱capacity 90 degrees: flat 160x90 mm︱capacity 45 degrees: round 105 mm︱capacity 45 degrees: square 90 mm︱capacity 60 degrees: flat 80x100 mm︱total power requirement 1,8/2,5 kW︱weight of the machine ca. 0,2 t︱dimensions of the machine ca. 0,6 x 1,22 x 1,06 m︱

---

saw blade diameter 315 mm︱cutting diameter 90,0 mm︱height of material-table 950 mm︱cutting speed 26/63 m/min︱dimensions of saw-blade 315 x 2,5 x 32 mm︱capacity 90 degrees: round 90,0 mm︱capacity 90 degrees: flat 120 x 70 mm︱capacity 90 degrees: square 85 x 85 mm︱capacity 45 degrees: round 70,0 mm︱capacity 45 degrees: flat 75 x 70 mm︱capacity 45 degrees: square 70 x 70 mm︱total power requirement 1,5/2,2 kW︱weight of the machine ca. 257 kg.︱dimensions of the machine ca. 940 x 1230 x 1530 mm︱

---

** Exhibition machine - like NEW (!!) ** New price with accessories: 4.122 euros The KASTO radial M 6 is a manual circular saw machine with two Cutting speeds for universal workshop use. Furnishing: - Miter circular saw -45 / 90 / +45 degrees - Cooling device - User manual in German including special accessories: - Machine base - quick-clamp measuring stop - Material support stand

saw blade diameter 315 mm︱cutting diameter 95,0 mm︱dimensions of saw-blade 315 x 2,5 x 32 mm︱height of material-table 900 mm︱cutting speed 33/66 m/min︱capacity 90 degrees: round 95,0 mm︱capacity 90 degrees: flat 130 x 75 mm︱capacity 90 degrees: square 85 x 85 mm︱capacity 45 degrees: round 95,0 mm︱capacity 45 degrees: flat 90 x 75 mm︱capacity 45 degrees: square 80 x 80 mm︱capacity 60 degrees: round 80,0 mm︱capacity 60 degrees: flat 65 x 70 mm︱capacity 60 degrees: square 65 x 65 mm︱total power requirement 1,8 kW︱weight of the machine ca. 300 kg.︱dimensions of the machine ca. 450 x 1050 x 2000 mm︱

---

** little used - good condition (!!) ** New price ~ 9.000 euros ** Machine with micro dosing device (cooling) The KASTOradial U 7 is a semi-automatic vertical circular saw with two Cutting speeds and steplessly adjustable saw feed for the universal use in workshop and production. The machines stands out through precise dovetail guides, robust gears and large cutting area. The asily swiveling upper part enables miter cuts of 45°(-) left and 60° (+) right. The pneumatic material clamping, Infinitely adjustable saw feed with height limitation allow a semi-automatic work cycle using a CE-compliant two- hand safety operation is triggered. Furnishing: - semi-automatic circular miter saw 90 / -45 / +45 / + 60 degrees - Vice with counter-clamping device for low-burr cuts - pneumatic material clamping - Coolant device (micro spray device) - Material support roller - Pin chip clearer and chip drawer - Infinitely adjustable saw feed with cutting height limitation - Saw blade + spare saw blades - Machine base cabinet - User manual in German

Saw blade diameter 315 mm ø︱Speed 53 - 105 RPM︱Machine weight 170 kg︱

---
