#1048-746523 · Double-Column Presse

FAGOR - H4-2500-5000-3000 - - 2018 - SIEMENS Simatic TouchControl

Technical details

pressure 2500 t︱distance between columns 5050 mm︱stroke 1800 mm︱Controls SIEMENS Simatic TouchCont ︱----------------------------------- ︱PRESS DESIGN . ︱ - frame design : H-frame . ︱ - openings in uprights : yes . ︱ - moving bolster : yes . ︱PRESS FORCES . ︱ - total force (nominal) 2500 to︱PRESS TABLE . ︱ - clamping surface (left-right) 5000 mm︱ - clamping surface (front-back) 3000 mm︱ - Table height over floor 820 mm︱RAM . ︱ - clamping surface (left-right) 5000 mm︱ - clamping surface (front-back) 3000 mm︱ - stroke 1800 mm︱RAM (HYDR. PRESS) . ︱

Technical description : - Hydraulic press equipped with: - front moving bolster, - draw cushion in the table - cushion inside the ram, - 16 hydraulic tool clamping units, - two hydraulic cylinders for " out of center pressure " compensation - Siemens HMI touch control, - ideal for tryout of tools. - max. rapid speed of ram 490 mm/sec - ram and table deflection accuracy 0,125 mm/m. Description of condition : This FAGOR machine was manufactured in 2018 and commissioned in 2019 and was only used sporadically after that. The condition can be described as new. !! ONLY 4.900 strokes in total !! A visit to the machine in the factory is possible with a certain amount of lead time due to the pandemic. VIDEO from the pressure test, April 2021: https://youtu.be/D_2_eUSJL-E

pressure 2500 t

distance between columns 5050 mm

stroke 1800 mm

Controls SIEMENS Simatic TouchCont

PRESS DESIGN .

- frame design : H-frame .

- openings in uprights : yes .

- moving bolster : yes .

PRESS FORCES .

- total force (nominal) 2500 to

PRESS TABLE .

- clamping surface (left-right. 5000 mm

- clamping surface (front-back. 3000 mm

- Table height over floor 820 mm

RAM .

- clamping surface (left-right. 5000 mm

- clamping surface (front-back. 3000 mm

- stroke 1800 mm

RAM (HYDR. PRESS) .

Description :

Technical description :

- Hydraulic press equipped with:
- front moving bolster,
- draw cushion in the table
- cushion inside the ram,
- 16 hydraulic tool clamping units,
- two hydraulic cylinders for " out of center pressure " compensation
- Siemens HMI touch control,
- ideal for tryout of tools.
- max. rapid speed of ram 490 mm/sec
- ram and table deflection accuracy 0,125 mm/m.

Description of condition :

This FAGOR machine was manufactured in 2018 and commissioned in 2019 and was only used sporadically after that. The condition can be described as new.
!! ONLY 4.900 strokes in total !!
A visit to the machine in the factory is possible with a certain amount of lead time due to the pandemic.

VIDEO from the pressure test, April 2021:

https://youtu.be/D_2_eUSJL-E

Datasheet

used Presses Double-Column Presse CAVENAGHI & RIDOLFI 620 t (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

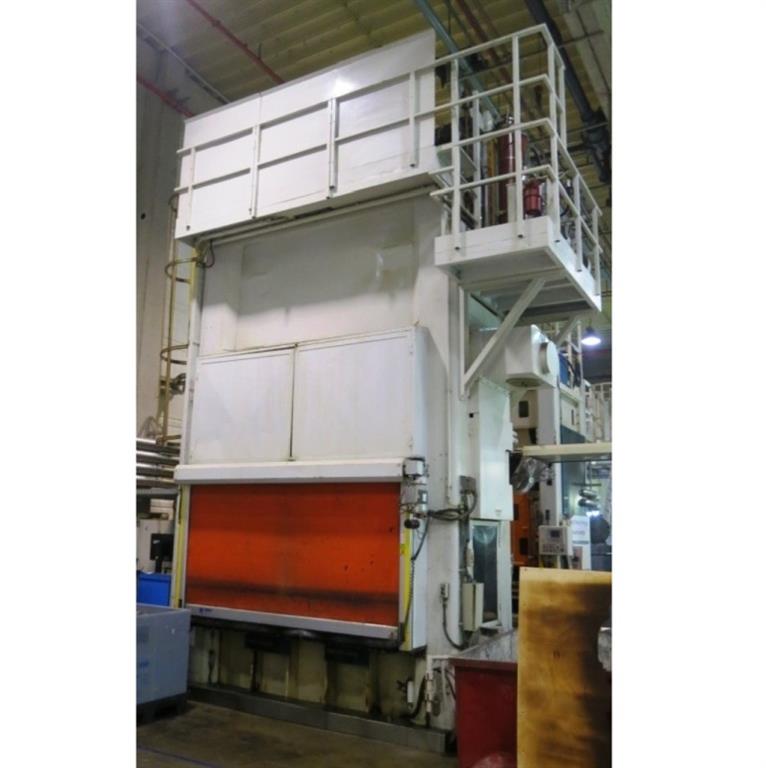

#1050-163012V · Double-Column Presse

CAVENAGHI & RIDOLFI - 620 t (CE) - - 2011 - Siemens S 5

Technical details

pressure 620 t︱distance between columns 2250 mm︱stroke 1250 mm︱Distance table/ram, max. stroke up, adjustment up 1600 mm︱table surface area 2200 x 1280 mm︱ram surface 2200 x 1500 mm︱table height over floor 800 / 1000 mm︱column travel -side 750 mm︱feed down 10 - 250 mm/sec︱feed up 10 - 500 mm/sec︱working feed 1 - 24 mm/sec︱oil volume 2000 l︱power capacity 45,0 + kW︱weight 42,0 t︱Dimensions (WxDxH) 3,7 x 2,6 x 6,8 m︱

year of manufacture 1997 - overhaul 2011 permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, two-hand operation no foundation pit necessary can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F - video at seller's site before dismantling available

pressure 620 t

distance between columns 2250 mm

stroke 1250 mm

Distance table/ram, max. stroke . 1600 mm

table surface area 2200 x 1280 mm

ram surface 2200 x 1500 mm

table height over floor 800 / 1000 mm

column travel -side 750 mm

feed down 10 - 250 mm/sec

feed up 10 - 500 mm/sec

working feed 1 - 24 mm/sec

oil volume 2000 l

power capacity 45,0 + kW

weight 42,0 t

Dimensions (WxDxH) 3,7 x 2,6 x 6,8 m

Description :

year of manufacture 1997 - overhaul 2011
permitted for manual put-in according to the CE Regulations
with oil-hydraulic drive, two-hand operation
no foundation pit necessary
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F - video at seller's site before dismantling available

Datasheet

used Presses Double-Column Presse MEYER-SCHNEGG AM 4-120/420 (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-163022V · Double-Column Presse

MEYER-SCHNEGG - AM 4-120/420 (CE) - - 2011 - Siemens S 7

Technical details

pressure 120 t︱distance between columns 430 mm︱stroke 125 mm︱distance table/ram, stroke up 400 mm︱table surface area 430 x 450 mm︱table height over floor 860 mm︱side window 230 mm︱ram surface 250 mm︱working speed 10 mm/s︱oil volume l︱power requirement 11,0 kW︱weight 2,5 t︱dimensions (WxDxH) 1,6 x 1,3 x 2,4 m︱

year of manufacture 1974 overhaul 2011 permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, two-hand and foot operation No foundation pit necessary can be inspected in running condition in our warehouse

pressure 120 t

distance between columns 430 mm

stroke 125 mm

distance table/ram, stroke up 400 mm

table surface area 430 x 450 mm

table height over floor 860 mm

side window 230 mm

ram surface 250 mm

working speed 10 mm/s

power requirement 11,0 kW

weight 2,5 t

dimensions (WxDxH) 1,6 x 1,3 x 2,4 m

Description :

year of manufacture 1974
overhaul 2011
permitted for manual put-in according to the CE Regulations
with oil-hydraulic drive, two-hand and foot operation
No foundation pit necessary
can be inspected in running condition in our warehouse

Datasheet

used Presses Double-Column Presse ZEULENRODA PYZ 160 F (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-213018 · Double-Column Presse

ZEULENRODA - PYZ 160 F (CE) - - 2008 - SPS (Pilz)

Technical details

pressure 160 t︱distance between columns 1300 mm︱stroke 400 mm︱distance table/ram, max. stroke up, adjustment up 850 mm︱table surface area 1300 x 800 mm︱table height over floor 920 mm︱side window 320 mm︱ram surface 1000 x 700 mm︱speed down 300 mm/s︱speed up 200 mm/s︱working speed 11 - 45 mm/s︱oil volume l︱power requirement 22,0 + 7,0 kW︱weight 12,50 t︱dimensions (WxDxH) 2,8 x 2,2 x 3,9 m︱

permitted for manual loading according to the CE-norm with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick), ram interlocking, two-hand operation can be inspected in running condition in our warehouse

pressure 160 t

distance between columns 1300 mm

stroke 400 mm

distance table/ram, max. stroke . 850 mm

table surface area 1300 x 800 mm

table height over floor 920 mm

side window 320 mm

ram surface 1000 x 700 mm

speed down 300 mm/s

speed up 200 mm/s

working speed 11 - 45 mm/s

power requirement 22,0 + 7,0 kW

weight 12,50 t

dimensions (WxDxH) 2,8 x 2,2 x 3,9 m

Description :

permitted for manual loading according to the CE-norm
with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick), ram interlocking, two-hand operation
can be inspected in running condition in our warehouse

Datasheet

used Presses Double-Column Presse SCHOEN NH/LF 200 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-113046 · Double-Column Presse

SCHOEN - NH/LF 200 (UVV) - - 2008 - Siemens S 7

Technical details

pressure 200 t︱distance between columns 1050 mm︱stroke 150 mm︱distance table/ram, max. stroke up, adjustment up 450 mm︱table surface area 1000 x 1200 mm︱table height over floor 850 mm︱side window 500 mm︱ram surface 1050 x 870 mm︱speed down 300 mm/s︱speed up 300 mm/s︱working speed 18 - 36 mm/s︱oil volume l︱power requirement 37,0 kW︱weight 16,0 t︱dimensions (WxDxH) 4,0 x 3,6 x 3,4 m︱

year of manufacture 1988 2008: NEW control Siemens S 7 permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, hydraulic cutting impact cushioning, two-hand operation No foundation pit necessary can be offered without or with putting into operation in given condition

pressure 200 t

distance between columns 1050 mm

stroke 150 mm

distance table/ram, max. stroke . 450 mm

table surface area 1000 x 1200 mm

table height over floor 850 mm

side window 500 mm

ram surface 1050 x 870 mm

speed down 300 mm/s

speed up 300 mm/s

working speed 18 - 36 mm/s

power requirement 37,0 kW

weight 16,0 t

dimensions (WxDxH) 4,0 x 3,6 x 3,4 m

Description :

year of manufacture 1988
2008: NEW control Siemens S 7
permitted for manual put-in according to the CE Regulations
with oil-hydraulic drive, hydraulic cutting impact cushioning, two-hand operation
No foundation pit necessary
can be offered without or with putting into operation in given condition

Datasheet

used Presses Double-Column Presse SCHULER-HYDRAP SH 250-2.5x1.3 (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-183052V · Double-Column Presse

SCHULER-HYDRAP - SH 250-2.5x1.3 (CE) - - 2006 - Option: Siemens S7-1500 F (neu

Technical details

pressure 250 t︱distance between columns 3000 mm︱stroke 600 mm︱Distance table/ram, stroke up 900 mm︱Table surface area 2500 x 1300 mm︱Table height above floor 1050 mm︱Side window 1350 mm︱Ram surface 2500 x 1300 mm︱Speed down 500 mm/s︱Speed up 400 mm/s︱Working speed 36 - 64 mm/s︱Oil volume 2700 l︱Power capacity 137,0 kW︱Weight 54,0 t︱Dimensions (WxDxH) 4,1 x 4,55 x 6,15 m︱

permitted for manual loading according to the CE Regulations with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking No foundation pit necessary can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

pressure 250 t

distance between columns 3000 mm

stroke 600 mm

Distance table/ram, stroke up 900 mm

Table surface area 2500 x 1300 mm

Table height above floor 1050 mm

Side window 1350 mm

Ram surface 2500 x 1300 mm

Speed down 500 mm/s

Speed up 400 mm/s

Working speed 36 - 64 mm/s

Oil volume 2700 l

Power capacity 137,0 kW

Weight 54,0 t

Dimensions (WxDxH) 4,1 x 4,55 x 6,15 m

Description :

permitted for manual loading according to the CE Regulations
with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking
No foundation pit necessary
can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Datasheet

used Presses Double-Column Presse LUIGART DRPY 300 SO (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-183006A · Double-Column Presse

LUIGART - DRPY 300 SO (CE) - - 2003 - Siemens S 7

Technical details

pressure 300 t︱distance between columns 1640 mm︱stroke 900 mm︱Distance table/ram, stroke up 1200 mm︱table surface area 1600 x 1300 mm︱table height over floor 890 mm︱ram surface 1600 x 1300 mm︱Speed down 400 mm/s︱Speed up 300 mm/s︱Working speed 10 mm/s︱Oil volume 1150 l︱power requirement 42,5 kW︱weight 25 t︱dimensions (WxDxH) 2,8 x 2,5 x 5,0 m︱

year of manufacture 1994 overhaul 2003 permitted for manual loading according to the CE Regulations with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick) on front and back, ram interlocking, two-hand operation No foundation pit necessary

pressure 300 t

distance between columns 1640 mm

stroke 900 mm

Distance table/ram, stroke up 1200 mm

table surface area 1600 x 1300 mm

table height over floor 890 mm

ram surface 1600 x 1300 mm

Speed down 400 mm/s

Speed up 300 mm/s

Working speed 10 mm/s

Oil volume 1150 l

power requirement 42,5 kW

weight 25 t

dimensions (WxDxH) 2,8 x 2,5 x 5,0 m

Description :

year of manufacture 1994
overhaul 2003
permitted for manual loading according to the CE Regulations
with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick) on front and back, ram interlocking, two-hand operation
No foundation pit necessary

Datasheet

used Presses Double-Column Presse SCHULER-HYDRAP SH 250 1.6/1.3 (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-223049 · Double-Column Presse

SCHULER-HYDRAP - SH 250 1.6/1.3 (CE) - - 2003 - Siemens S7 / Pilz

Technical details

pressure 250 t︱distance between columns 1740 mm︱stroke 800 mm︱Distance table/ram, stroke up 1200 mm︱Table surface area 1600 x 1300 mm︱Table height above floor 900 mm︱Side window 850 mm︱Ram surface 1600 x 1300 mm︱Speed down 500 mm/s︱Speed up 450 mm/s︱Working speed 24 - 65 mm/s︱Oil volume 2160 l︱Power capacity 80,0 kW︱Weight 30,0 t︱Dimensions (WxDxH) 4,0 x 4,2 x 5,75 m︱

permitted for manual loading according to the CE-norm with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick) on front and back, hydraulic ram interlocking, two-hand operation No foundation pit necessary can be offered without or with putting into operation in given condition

pressure 250 t

distance between columns 1740 mm

stroke 800 mm

Distance table/ram, stroke up 1200 mm

Table surface area 1600 x 1300 mm

Table height above floor 900 mm

Side window 850 mm

Ram surface 1600 x 1300 mm

Speed down 500 mm/s

Speed up 450 mm/s

Working speed 24 - 65 mm/s

Oil volume 2160 l

Power capacity 80,0 kW

Weight 30,0 t

Dimensions (WxDxH) 4,0 x 4,2 x 5,75 m

Description :

permitted for manual loading according to the CE-norm
with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick) on front and back, hydraulic ram interlocking, two-hand operation
No foundation pit necessary
can be offered without or with putting into operation in given condition

Datasheet

used Presses Double-Column Presse LAUFFER 4 SPY 50 SO

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-223050 · Double-Column Presse

LAUFFER - 4 SPY 50 SO - - 2003 - Siemens S 7

Technical details

Pressure 50 t︱stroke 800 mm︱distance between columns 2250 mm︱Distance table/ram, max. stroke up, adjustment up 1600 mm︱Table surface area 2250 x 1200 mm︱Ram surface 2250 x 1200 mm︱Side window mm︱feed down 350 mm/s︱feed up 190 mm/s︱working feed 27,5 mm/s︱oil volume 800 l︱power requirement 24,2 kW︱Weight 13,0 t︱dimensions of the machine ca. 3,75 x 2,75 x 4,67 mxmxm︱

Pressure 50 t

stroke 800 mm

distance between columns 2250 mm

Distance table/ram, max. stroke . 1600 mm

Table surface area 2250 x 1200 mm

Ram surface 2250 x 1200 mm

feed down 350 mm/s

feed up 190 mm/s

working feed 27,5 mm/s

oil volume 800 l

power requirement 24,2 kW

Weight 13,0 t

dimensions of the machine ca. 3,75 x 2,75 x 4,67 mxmxm

Description :

permitted for manual loading according to the CE-norm
with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick) on front and back, hydraulic ram interlocking (Sitema), light guard with active start

Datasheet

used Presses Double-Column Presse AP&T ZM 3150-25/10

Pressen HAAS GmbH
Kreuzsteig 6
72479 Straßberg
Deutschland

+49 7574 59 97 59
+49 7574 92 17 24
info@pressen-haas.de
www.pressen-haas.de

#2053-0310 · Double-Column Presse

AP&T - ZM 3150-25/10 - - 2002 -

Technical details

Pressure total 315 t︱Stroke 1100 mm︱Daylight 2200 mm︱Table surface area 2500 x 1000 mm︱Approach speed 600 mm / s︱Working speed 32 - 230 mm / s︱Return speed 600 mm / s︱Weight of machine approx. 44 t︱Height over floor approx. 6175 mm︱

Pressure total 315 t

Stroke 1100 mm

Daylight 2200 mm

Table surface area 2500 x 1000 mm

Approach speed 600 mm / s

Working speed 32 - 230 mm / s

Return speed 600 mm / s

Weight of machine approx. 44 t

Height over floor approx. 6175 mm

Datasheet

used Presses Double-Column Presse DUNKES HS 2-63

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-143064 · Double-Column Presse

DUNKES - HS 2-63 - - 1998 - konventionell

Technical details

Pressure 63 t︱distance between columns 1000 mm︱stroke 300 mm︱Distance table/ram, max. stroke up, adjustment up 850 mm︱table surface area 980 x 500 mm︱table height above floor 850 mm︱ram surface 130 mm︱speed down 400 mm/s︱speed up 461 mm/s︱working speed 14 - 97 mm/s︱power requirement 15,0 kW︱Weight 5,0 t︱Dimensions (WxDxH) 2,0 x 1,6 x 3,9 m︱

with oil-hydraulic drive, controllable dependent on pressure, mechanical depth stop No foundation pit necessary

Pressure 63 t

distance between columns 1000 mm

stroke 300 mm

Distance table/ram, max. stroke . 850 mm

table surface area 980 x 500 mm

table height above floor 850 mm

ram surface 130 mm

speed down 400 mm/s

speed up 461 mm/s

working speed 14 - 97 mm/s

power requirement 15,0 kW

Weight 5,0 t

Dimensions (WxDxH) 2,0 x 1,6 x 3,9 m

Description :

with oil-hydraulic drive, controllable dependent on pressure, mechanical depth stop
No foundation pit necessary

Datasheet

used Presses Double-Column Presse HYDRAP HPDb 250 (CE)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-183033V · Double-Column Presse

HYDRAP - HPDb 250 (CE) - - 1996 - Option: Siemens S7-1500 F (neu

Technical details

pressure 250 t︱distance between columns 2100 mm︱stroke 300 mm︱Distance table/ram, stroke up 850 mm︱Table surface area 2000 x 1300 mm︱Table height above floor 900 mm︱Side window 1300 mm︱Ram surface 2000 x 1300 mm︱Speed down mm/s︱Speed up mm/s︱Working speed mm/s︱Oil volume 1300 l︱Power capacity 60,0 kW︱Weight 39,5 t︱Dimensions (WxDxH) 3,4 x 3,4 x 4,6 m︱

permitted for manual loading according to the CE Regulations with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking No foundation pit necessary can be offered without putting into operation, with putting into operation or alternatively with new control Siemens S 7-1500 F

pressure 250 t

distance between columns 2100 mm

stroke 300 mm

Distance table/ram, stroke up 850 mm

Table surface area 2000 x 1300 mm

Table height above floor 900 mm

Side window 1300 mm

Ram surface 2000 x 1300 mm

Oil volume 1300 l

Power capacity 60,0 kW

Weight 39,5 t

Dimensions (WxDxH) 3,4 x 3,4 x 4,6 m

Description :

permitted for manual loading according to the CE Regulations
with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking
No foundation pit necessary
can be offered without putting into operation, with putting into operation or alternatively with new control Siemens S 7-1500 F

Datasheet

used Presses Double-Column Presse HYDRAP HPD-S 100 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-183049V · Double-Column Presse

HYDRAP - HPD-S 100 (UVV) - - 1993 - Siemens S 5

Technical details

pressure 100 t︱distance between columns 1900 mm︱stroke 500 mm︱Distance table/ram, stroke up 800 mm︱table surface area 1850 x 1000 mm︱Hole in the table 160 mm︱table height over floor 850 mm︱ram surface 1850 x 800 mm︱Side window 540 mm︱speed down 400 mm/s︱speed up 400 mm/s︱working speed 20 - 70 m/min︱oil volume 900 l︱Power capacity 34,0 kW︱Weight 13,0 t︱Dimensions (WxDxH) 2,7 x 2,2 x 4,0 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking No foundation pit necessary can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

pressure 100 t

distance between columns 1900 mm

stroke 500 mm

Distance table/ram, stroke up 800 mm

table surface area 1850 x 1000 mm

Hole in the table 160 mm

table height over floor 850 mm

ram surface 1850 x 800 mm

Side window 540 mm

speed down 400 mm/s

speed up 400 mm/s

working speed 20 - 70 m/min

oil volume 900 l

Power capacity 34,0 kW

Weight 13,0 t

Dimensions (WxDxH) 2,7 x 2,2 x 4,0 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking
No foundation pit necessary
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

Datasheet

used Presses Double-Column Presse EXNER EX 40 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-123054 · Double-Column Presse

EXNER - EX 40 (UVV) - - 1992 - konventionell

Technical details

pressure 40 t︱distance between columns 500 mm︱stroke 150 mm︱distance table/ram, max. stroke up, adjustment up 300 mm︱table surface area 480 x 400 mm︱hole in the table 50 mm︱table height over floor 950 mm︱side window 150 mm︱ram surface 150 mm︱speed down 480 mm/s︱speed up 480 mm/s︱working speed 20 mm/s︱oil volume 160 l︱power requirement 7,5 kW︱weight 2,6 t︱dimensions (WxDxH) 1,1 x 1,4 x 2,4 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, light-guard (Sick), cutting impact cushioning, mechanical depth stop, two-hand and foot operation No foundation pit necessary

pressure 40 t

distance between columns 500 mm

stroke 150 mm

distance table/ram, max. stroke . 300 mm

table surface area 480 x 400 mm

hole in the table 50 mm

table height over floor 950 mm

side window 150 mm

ram surface 150 mm

speed down 480 mm/s

speed up 480 mm/s

working speed 20 mm/s

oil volume 160 l

power requirement 7,5 kW

weight 2,6 t

dimensions (WxDxH) 1,1 x 1,4 x 2,4 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, light-guard (Sick), cutting impact cushioning, mechanical depth stop, two-hand and foot operation
No foundation pit necessary

Datasheet

used Presses Double-Column Presse HYDRAP HPDb 400

Hans Klein Werkzeugmaschinenhandel GmbH
Im Mühlgut 2-4
77815 Bühl
Deutschland

0049 (0) 7223 9617-0
0049 (0) 7223 58512
info@klein-werkzeugmaschinen.de
www.klein-werkzeugmaschinen.de

#1052-08040 · Double-Column Presse

HYDRAP - HPDb 400 - - 1991 - SIEMENS Simatic S 5

Technical details

pressure 400 t︱stroke 300 mm︱table surface area 1200 x 700 mm︱ram surface 1200 x 700 mm︱dayligth 500 mm︱adjustment of stroke 300 mm︱return capacity 348 kN︱capacity of ejector 100 kN︱ejector stroke 100 mm︱control SIEMENS Simatic S 5 ︱total power requirement 65 kW︱weight of the machine ca. 28 t︱dimensions of machine L x W x H 4,4 x 2,75 x 4,0 m︱

= Frame press Accessories: tool changing table - with cutting shock absorption damping force 4000 kN damping stroke 5 mm spindle adjustment 200 m

pressure 400 t

stroke 300 mm

table surface area 1200 x 700 mm

ram surface 1200 x 700 mm

dayligth 500 mm

adjustment of stroke 300 mm

return capacity 348 kN

capacity of ejector 100 kN

ejector stroke 100 mm

control SIEMENS Simatic S 5

total power requirement 65 kW

weight of the machine ca. 28 t

dimensions of machine L x W x H 4,4 x 2,75 x 4,0 m

Description :

= Frame press

Accessories: tool changing table

- with cutting shock absorption
damping force 4000 kN
damping stroke 5 mm
spindle adjustment 200 m

Datasheet

used Presses Double-Column Presse LAEPPLE SE 500 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-083071 · Double-Column Presse

LAEPPLE - SE 500 (UVV) - - 1991 -

Technical details

pressure 500 t︱distance between columns 3200 mm︱stroke 1250 mm︱distance table/ram, max. stroke up, adjustment up 1810 mm︱table surface area 3000 x 1900 mm︱pressure of drawing cushion in ram 150 t︱stroke of drawing cushion in ram 200 mm︱drawing cushion area in ram 2400 x 1200 mm︱ram surface 3160 x 1900 mm︱speed down 400 mm/s︱speed up 250 mm/s︱working speed 18 - 58 mm/s︱oil volume l︱height over floor 6,5 m︱power requirement 90,0 + 36,5 kW︱weight 110 t︱Dimensions (WxDxH) m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in ram, ram interlocking year of manufacture 1976 year of modernization 1991 can only be offered without putting into operation

pressure 500 t

distance between columns 3200 mm

stroke 1250 mm

distance table/ram, max. stroke . 1810 mm

table surface area 3000 x 1900 mm

pressure of drawing cushion in r. 150 t

stroke of drawing cushion in ram 200 mm

drawing cushion area in ram 2400 x 1200 mm

ram surface 3160 x 1900 mm

speed down 400 mm/s

speed up 250 mm/s

working speed 18 - 58 mm/s

height over floor 6,5 m

power requirement 90,0 + 36,5 kW

weight 110 t

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, hydraulic drawing cushion in ram, ram interlocking
year of manufacture 1976
year of modernization 1991
can only be offered without putting into operation

Datasheet

used Presses Double-Column Presse DIEFFENBACHER PD 500 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-163039V · Double-Column Presse

DIEFFENBACHER - PD 500 (UVV) - - 1991 - konventionell

Technical details

pressure 500 t︱distance between columns 1910 mm︱stroke 500 mm︱Distance table/ram, max. stroke up, adjustment up 700 mm︱table surfache without cutting impact cushions 1910 x 1360 mm︱table surfache with cutting impact cushions 1600 x 1360 mm︱table height over floor 800 mm︱ram surface 1600 x 1270 mm︱Side window 600 mm︱speed down 400 mm/s︱speed up 330 mm/s︱working speed 10 - 28 mm/s︱oil volume 1200 l︱power requirement 60,0 kW︱weight 40,0 t︱Dimensions (WxDxH) 3,6 x 2,5 x 5,0 m︱height over floor 4,5 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, cutting impact cushioning, two-hand operation table size depending on cutting impact devices: - without approx. 1910 x 1360 mm - with approx. 1600 x 1360 mm can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

pressure 500 t

distance between columns 1910 mm

stroke 500 mm

Distance table/ram, max. stroke . 700 mm

table surfache without cutting i. 1910 x 1360 mm

table surfache with cutting impa. 1600 x 1360 mm

table height over floor 800 mm

ram surface 1600 x 1270 mm

Side window 600 mm

speed down 400 mm/s

speed up 330 mm/s

working speed 10 - 28 mm/s

oil volume 1200 l

power requirement 60,0 kW

weight 40,0 t

Dimensions (WxDxH) 3,6 x 2,5 x 5,0 m

height over floor 4,5 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, cutting impact cushioning, two-hand operation
table size depending on cutting impact devices:
- without approx. 1910 x 1360 mm
- with approx. 1600 x 1360 mm
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

Datasheet

used Presses Double-Column Presse EXNER H4SP 150 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-113018 · Double-Column Presse

EXNER - H4SP 150 (UVV) - - 1991 - konventionell

Technical details

pressure 150 t︱distance between columns 300 mm︱stroke 180 mm︱distance table/ram, max. stroke up, adjustment up 300 mm︱table surface area 570x180 / 300x410 mm︱table height over floor 875 mm︱side window 180 mm︱ram surface 180 mm︱speed down 250 mm/s︱speed up 160 mm/s︱working speed 6 - 12 mm/s︱oil volume 250 l︱power requirement 11,0 kW︱weight 2,4 t︱dimensions (WxDxH) 1,3 x 1,3 x 2,4 m︱

year of manufacture 1972 - overhaul 1991 permitted for manual loading according to the German Safety Regulations (UVV §20) with oil-hydraulic drive No foundation pit necessary

pressure 150 t

distance between columns 300 mm

stroke 180 mm

distance table/ram, max. stroke . 300 mm

table surface area 570x180 / 300x410 mm

table height over floor 875 mm

side window 180 mm

ram surface 180 mm

speed down 250 mm/s

speed up 160 mm/s

working speed 6 - 12 mm/s

oil volume 250 l

power requirement 11,0 kW

weight 2,4 t

dimensions (WxDxH) 1,3 x 1,3 x 2,4 m

Description :

year of manufacture 1972 - overhaul 1991
permitted for manual loading according to the German Safety Regulations (UVV §20)
with oil-hydraulic drive
No foundation pit necessary

Datasheet

used Presses Double-Column Presse MUELLER-WEINGARTEN SKD 160.2.10

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-173044V · Double-Column Presse

MUELLER-WEINGARTEN - SKD 160.2.10 - - 1990 / 05 - Siemens S 7

Technical details

pressure 160 t︱distance between columns 1360 mm︱stroke 300 mm︱Distance table/ram, max. stroke up, adjustment up 620 mm︱table surface area 1300 x 900 mm︱table height over floor 950 mm︱side window 640 mm︱ram surface 1300 x 900 mm︱oil volume l︱power requirement 45,0 kW︱weight 16,0 t︱Dimensions (WxDxH) 2,5 x 2,1 x 4,1 m︱

with oil-hydraulic drive, controllable dependent on pressure/time and way, cutting impact cushioning, mechanical depth stop No foundation pit necessary

pressure 160 t

distance between columns 1360 mm

stroke 300 mm

Distance table/ram, max. stroke . 620 mm

table surface area 1300 x 900 mm

table height over floor 950 mm

side window 640 mm

ram surface 1300 x 900 mm

power requirement 45,0 kW

weight 16,0 t

Dimensions (WxDxH) 2,5 x 2,1 x 4,1 m

Description :

with oil-hydraulic drive, controllable dependent on pressure/time and way, cutting impact cushioning, mechanical depth stop
No foundation pit necessary

Datasheet

used Presses Double-Column Presse HYDRAP HPDB 250

Maschinen Schwartpaul GmbH
Am Wasserwerk 1
58840 Plettenberg
Deutschland

+49 (0)2391-95960
+49 (0)2391-959620
info@maschinen-schwartpaul.de
www.maschinen-schwartpaul.de

#2020-15568 · Double-Column Presse

HYDRAP - HPDB 250 - - 1990 -

Technical details

pressure 250 t︱distance between columns 1100 mm︱stroke 400 mm︱dayligth 600 mm︱table surface area 1000x800 mm︱ram surface 1000x800 mm︱table height 950 mm︱total power requirement 65 kW︱weight of the machine ca. 25 t︱dimensions of the machine ca. BxTxH 0000x0000x3900mm m︱

pressure 250 t

distance between columns 1100 mm

stroke 400 mm

dayligth 600 mm

table surface area 1000x800 mm

ram surface 1000x800 mm

table height 950 mm

total power requirement 65 kW

weight of the machine ca. 25 t

dimensions of the machine ca. BxTxH 0000x0000x3900mm m

Datasheet

used Presses Double-Column Presse DUNKES HDS 160 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-073141 · Double-Column Presse

DUNKES - HDS 160 (UVV) - - 1988 - Siemens S 5

Technical details

pressure 160 t︱distance between columns 880 mm︱stroke 150 mm︱distance table/ram, max. stroke up, adjustment up 400 mm︱table surface area 830 x 1000 mm︱hole in the table 265 x 365 mm︱table height over floor 850 mm︱side window 610 mm︱ram surface 860 x 1000 mm︱oil volume l︱power requirement 55,0 kW︱weight 14,7 t︱Dimensions (WxDxH) 2,2 x 2,0 x 4,3 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, depth stop, adjustable table, two-hand operation No foundation pit necessary can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

pressure 160 t

distance between columns 880 mm

stroke 150 mm

distance table/ram, max. stroke . 400 mm

table surface area 830 x 1000 mm

hole in the table 265 x 365 mm

table height over floor 850 mm

side window 610 mm

ram surface 860 x 1000 mm

power requirement 55,0 kW

weight 14,7 t

Dimensions (WxDxH) 2,2 x 2,0 x 4,3 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, controllable dependent on pressure/time and way, depth stop, adjustable table, two-hand operation
No foundation pit necessary
can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Datasheet

used Presses Double-Column Presse MUELLER-WEINGARTEN SKD 160.1.1 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-073008 · Double-Column Presse

MUELLER-WEINGARTEN - SKD 160.1.1 (UVV) - - 1988 - konventionell

Technical details

pressure 160 t︱distance between columns 1340 mm︱stroke 300 mm︱Distance table/ram, max. stroke up, adjustment up 620 mm︱table surface area 1300 x 900 mm︱table height over floor 930 mm︱side window 600 mm︱ram surface 1300 x 900 mm︱speed down 367 mm/s︱speed up 390 mm/s︱working speed 58 mm/s︱oil volume l︱power requirement 30,0 kW︱weight 15,0 t︱Dimensions (WxDxH) 2,5 x 2,2 x 4,0 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, depth stop, two-hand operation No foundation pit necessary can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

pressure 160 t

distance between columns 1340 mm

stroke 300 mm

Distance table/ram, max. stroke . 620 mm

table surface area 1300 x 900 mm

table height over floor 930 mm

side window 600 mm

ram surface 1300 x 900 mm

speed down 367 mm/s

speed up 390 mm/s

working speed 58 mm/s

power requirement 30,0 kW

weight 15,0 t

Dimensions (WxDxH) 2,5 x 2,2 x 4,0 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, depth stop, two-hand operation
No foundation pit necessary
can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Datasheet

used Presses Double-Column Presse WEMHOENER 300K 300 SO (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-153060V · Double-Column Presse

WEMHOENER - 300K 300 SO (UVV) - - 1988 - Option: Siemens S7-1500 F (neu

Technical details

pressure 300 t︱distance between columns 1800 mm︱stroke 1000 mm︱Distance table/ram, max. stroke up, adjustment up 1300 mm︱Table surface area 1600 x 1200 mm︱Table height above floor 1080 mm︱Ram surface 1600 x 1200 mm︱Oil volume l︱Power capacity kW︱Weight 24,0 t︱Dimensions (WxDxH) 2,8 x 2,1 x 6,0 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F Video at seller's site before dismantling available

pressure 300 t

distance between columns 1800 mm

stroke 1000 mm

Distance table/ram, max. stroke . 1300 mm

Table surface area 1600 x 1200 mm

Table height above floor 1080 mm

Ram surface 1600 x 1200 mm

Weight 24,0 t

Dimensions (WxDxH) 2,8 x 2,1 x 6,0 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive
can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
Video at seller's site before dismantling available

Datasheet

used Presses Double-Column Presse LAUFFER RA 160 (UVV)

VÖGTLE SERVICE GMBH
Friedhofstr. 115
73054 Eislingen
Deutschland

+49 71 61 99 73- 0
+49 71 61 99 73- 13
Thomas.Ruckh@voegtle.de
www.voegtle.de

#1050-153038V · Double-Column Presse

LAUFFER - RA 160 (UVV) - - 1988 - Option: Siemens S7-1500 F (neu

Technical details

pressure 160 t︱distance between columns 1600/1420 mm︱stroke 345 mm︱distance table/ram, max. stroke up, adjustment up 830 mm︱table surface area 1460 x 850 mm︱table height over floor 1100 mm︱side window 770 mm︱ram surface 1410 x 850 mm︱speed down 540 mm/s︱speed up 520 mm/s︱working speed 26 - 85 mm/s︱oil volume 2100 l︱power requirement 45,0 kW︱weight 23,0 t︱dimensions (WxDxH) 4,0 x 2,3 x 4,9 m︱

permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, ram interlocking

pressure 160 t

distance between columns 1600/1420 mm

stroke 345 mm

distance table/ram, max. stroke . 830 mm

table surface area 1460 x 850 mm

table height over floor 1100 mm

side window 770 mm

ram surface 1410 x 850 mm

speed down 540 mm/s

speed up 520 mm/s

working speed 26 - 85 mm/s

oil volume 2100 l

power requirement 45,0 kW

weight 23,0 t

dimensions (WxDxH) 4,0 x 2,3 x 4,9 m

Description :

permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, ram interlocking

Datasheet

TOP Manufacturer:

SCHOEN - SICMI - LAUFFER - HYDRAP - EXNER - SMG - MUELLER - DIEFFENBACHER - LUIGART - DUNKES -
