Milling Graver Grinding Machine

Machinelist: Milling Graver Grinding Machine

Milling Graver Grinding Machine

Plum & Partner Werkzeugmaschinen GmbH
Winkelstraße 32
32257 Bünde
Deutschland

+49 05223 574444
+49 5223188330
info@plum-maschinen.de
www.plum-maschinen.de

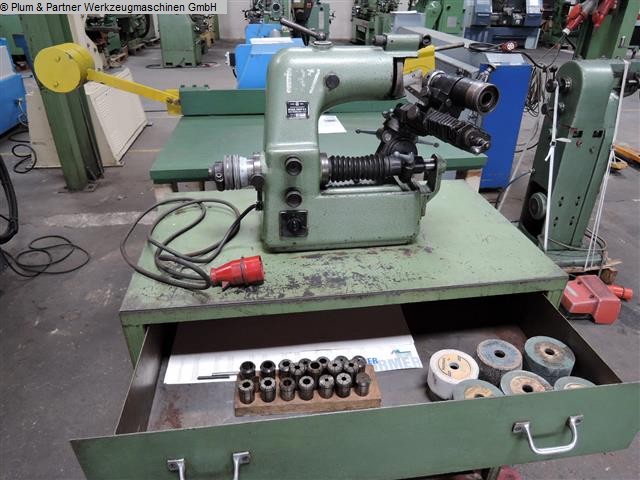

#1082-11621 · Milling Graver Grinding Machine

Kaempf - STM 2 - - -

Technical details

dia. of draw-in collets 4 - 24 mm︱max. radius to grind 12 mm︱grinding range 4 - 24 mm︱grinding wheel-diameter 100 mm︱total power requirement 0,4 kW︱weight of the machine ca. 100 kg︱dimensions of the machine ca. 1 x 0,6 x 0,4 m︱Electric 380 Volt ︱Base with drawer ︱Diverse collets ︱Draw-off device ︱

Machine has 19 clamping devices 4-14 mm, 12 pieces of grinding wheels 100 mm, puller for grinding wheel. Machine dealer with own stock of 2500 m².

dia. of draw-in collets 4 - 24 mm

max. radius to grind 12 mm

grinding range 4 - 24 mm

grinding wheel-diameter 100 mm

total power requirement 0,4 kW

weight of the machine ca. 100 kg

dimensions of the machine ca. 1 x 0,6 x 0,4 m

Description :

Machine has 19 clamping devices 4-14 mm, 12 pieces of grinding wheels 100 mm,
puller for grinding wheel.
Machine dealer with own stock of 2500 m².

Datasheet

used Machine tools grinding machines Milling Graver Grinding Machine DECKEL S 1

Emuk Maschinenhandel GmbH
Siemensstrasse 24
76316 Malsch
Deutschland

+49 (0) 7246 943161
info@emuk.info
www.emuk.info

#2070-E2196 · Milling Graver Grinding Machine

DECKEL - S 1 - - -

Technical details

dia. of draw-in collets 0 - 25 mm︱internal taper of cone draw-in collets MK 4 ︱max. grinding diameter 130 / 250 mm︱grinding length 250 mm︱workpiece length 300 mm︱turning speeds 3750 / 7500 U/min︱longitudinal feed 260 mm︱cross travel 70 mm︱max. radius to grind mm︱total power requirement 0,7 kW︱weight of the machine ca. 0,6 t︱dimensions of the machine ca. 1,0 x 0,8 x 1,5 m︱

dia. of draw-in collets 0 - 25 mm

internal taper of cone draw-in c. MK 4

max. grinding diameter 130 / 250 mm

grinding length 250 mm

workpiece length 300 mm

turning speeds 3750 / 7500 U/min

longitudinal feed 260 mm

cross travel 70 mm

total power requirement 0,7 kW

weight of the machine ca. 0,6 t

dimensions of the machine ca. 1,0 x 0,8 x 1,5 m

Datasheet

used Machine tools grinding machines Milling Graver Grinding Machine DECKEL SO

Marcels Maschinen AG
Anthoptstrasse 11
8222 Beringen (Schaffhausen)
Schweiz

(0041) 44 872 3400
(0041) 44 872 3403
info@marcels-maschinen.ch
http://www.marcels-maschinen.ch

#1065-4771 · Milling Graver Grinding Machine

DECKEL - SO - - -

Technical details

dia. of draw-in collets 0,5-17,5 mm︱internal taper of cone draw-in collets x ︱max. radius to grind x mm︱weight of the machine ca. 0.1 t︱

Dressing attachment Several collets More details on www.marcels-maschinen.ch

dia. of draw-in collets 0,5-17,5 mm

internal taper of cone draw-in c. x

max. radius to grind x mm

weight of the machine ca. 0.1 t

Description :

Dressing attachment
Several collets

More details on www.marcels-maschinen.ch

Datasheet

TOP Manufacturer:

DECKEL - KAEMPF -
