          Metal Processing - Vertical Turret Lathe - Double Column

          Machinelist: Vertical Turret Lathe - Double Column


          Vertical Turret Lathe - Double Column

          used Lathes Vertical Turret Lathe - Double Column SCHIESS-FRORIEP 3K420/450NC/C


          • Harry Vraets Machinery B.V.
          • Gezellenstraat 2
          • 3861RD Nijkerk
          • Niederlande

          • +31 (0)332452145
          • info@vraetsmachinery.com
            www.vraetsmachinery.com
          #2039-12648D · Vertical Turret Lathe - Double Column

          SCHIESS-FRORIEP - 3K420/450NC/C - - unbekannt - Siemens

          Technical details
          faceplate diameter 4200 mm︱swing diameter 4500 mm︱turning height 4000 mm︱Control Siemens ︱turning speeds 40 U/min︱table load 100 t︱max. ram stroke 2000 mm︱side head - cross travel 2600 mm︱main drive 147 kW︱live tooling ︱c-axis ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          Overhauled in 2005 C axle live tooling
            faceplate diameter 4200 mm
            swing diameter 4500 mm
            turning height 4000 mm
            Control Siemens
            turning speeds 40 U/min
            table load 100 t
            max. ram stroke 2000 mm
            side head - cross travel 2600 mm
            main drive 147 kW
            Description :
            Overhauled in 2005
            C axle
            live tooling
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column CINCINATTI 2000/2250


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020026 · Vertical Turret Lathe - Double Column

          CINCINATTI - 2000/2250 - - nb -

          Technical details
          faceplate diameter 2000 mm︱swing diameter 2250 mm︱turning height 1900 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          Stocknumber 1020026 Type of machine Vertikal Turret Lathe Make CINCINATI Type of control conventionel/ DRO Faceplate diameter 2000 mm Max. Swing diameter 2250 mm Turning height max. 1900 mm Max. adjustment off cross rail 800 mm Max. vertikal adjustment crossrail support 900 mm Turning speeds of the faceplate (Rpm)
            faceplate diameter 2000 mm
            swing diameter 2250 mm
            turning height 1900 mm
            Description :
            Stocknumber 1020026
            Type of machine Vertikal Turret Lathe
            Make CINCINATI
            Type of control conventionel/ DRO
            Faceplate diameter 2000 mm
            Max. Swing diameter 2250 mm
            Turning height max. 1900 mm
            Max. adjustment off cross rail 800 mm
            Max. vertikal adjustment crossrail support 900 mm
            Turning speeds of the faceplate (Rpm)

          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column HANKOOK VTB  50/65 E


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17035 · Vertical Turret Lathe - Double Column

          HANKOOK - VTB 50/65 E - - 2018 - FANUC 31i-A

          Technical details
          faceplate diameter 5000 mm︱swing diameter 6500 mm︱turning height 4000 mm︱Control FANUC 31i-A ︱faceplate turning speed range 1-50 U/min︱main drive motor 150 kW︱tool change unit 12-fold ︱x-travel 4245 mm︱z-travel 2500 mm︱w-axis 3000 mm︱ram diameter 400 x 400 mm︱workpiece weight max. 60.000 kg︱X- + Z-axis each 14 kW︱total power requirement ca 180 kW︱weight of the machine ca. 270 t︱dimensions of the machine ca. 19 x 12 x 12,1 m︱
          new/unused machine! Vertical Turning Center equipped with: - CNC control FANUC 31i-A - 1 ram on crossrail - A.T.C. (12-fold) MAS BT 50 - Coolant system - Hydraulic unit - Ladder - Splash Guard - X-axis slide way protect steel cover - Work light - Through tool coolant (At use of through tool holder) - Patrol lamp - Auto. Lubrication system for slide way - Lubrication oil cooler - Leveling blocks - Foundation bolts and nuts - Tool box with maintenance tools - NC Power off - Tool setter - Air-conditioner for electrical cabinet - Chip conveyor & bucket - X-axis scale, Z-axis scale, W-axis scale - Transformer
            faceplate diameter 5000 mm
            swing diameter 6500 mm
            turning height 4000 mm
            Control FANUC 31i-A
            faceplate turning speed range 1-50 U/min
            main drive motor 150 kW
            tool change unit 12-fold
            x-travel 4245 mm
            z-travel 2500 mm
            w-axis 3000 mm
            ram diameter 400 x 400 mm
            workpiece weight max. 60.000 kg
            X- + Z-axis each 14 kW
            total power requirement ca 180 kW
            weight of the machine ca. 270 t
            dimensions of the machine ca. 19 x 12 x 12,1 m
            Description :
            new/unused machine!
            Vertical Turning Center equipped with:
            - CNC control FANUC 31i-A
            - 1 ram on crossrail
            - A.T.C. (12-fold) MAS BT 50
            - Coolant system
            - Hydraulic unit
            - Ladder
            - Splash Guard
            - X-axis slide way protect steel cover
            - Work light
            - Through tool coolant (At use of through tool holder)
            - Patrol lamp
            - Auto. Lubrication system for slide way
            - Lubrication oil cooler
            - Leveling blocks
            - Foundation bolts and nuts
            - Tool box with maintenance tools
            - NC Power off
            - Tool setter
            - Air-conditioner for electrical cabinet
            - Chip conveyor & bucket
            - X-axis scale, Z-axis scale, W-axis scale
            - Transformer

          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column HANKOOK VTC 90/120 E


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17034 · Vertical Turret Lathe - Double Column

          HANKOOK - VTC 90/120 E - - 2018 - FANUC 31i-B

          Technical details
          faceplate diameter 9000 mm︱swing diameter 12000 mm︱turning height 6000 mm︱Control FANUC 31i-B ︱faceplate turning speed range 1-16 U/min︱main drive motor 2x 100 kW︱tool change unit ︱x-travel 6700 mm︱z-travel 3000 mm︱w-axis 4500 mm︱ram diameter 500 x 500 mm︱c-axis 0,111 U/min︱workpiece weight max. 400.000 kg︱total power requirement ca 320 kW︱weight of the machine ca. ca 600 t︱dimensions of the machine ca. 20,1 x 15 x 13,8 m︱
          new/unused machine: Vertical Turning Center with Live Tooling equipped with: - CNC control FANUC 31i-B - 2 ram on crossrail - Live Tooling / C-axis 0,001° - Milling Motor 60/75 kW, 15 - 1500 Upm - A.T.C. MAS BT 60 - 5 Axis controlled X,Z,C,W1,W2 (2 simultanious) - Coolant system - Hydraulic unit - Ladder - X-axis slide way protect steel cover - Work light - Through tool coolant - Auto. Lubrication system for slideway - Lubrication system for slideway - NC power off - Leveling blocks - Foundation bolts and nuts - Tool box with maintenance tools - C-axis scale - Chip conveyor and bucket - Tool setter - Work probe - Air-conditioner for electrical cabinet - OP Station elevator & adjustable op device - Transformer - X-axis scale,Z-axis scale, W-axis scale - Tool holder
            faceplate diameter 9000 mm
            swing diameter 12000 mm
            turning height 6000 mm
            Control FANUC 31i-B
            faceplate turning speed range 1-16 U/min
            main drive motor 2x 100 kW
            x-travel 6700 mm
            z-travel 3000 mm
            w-axis 4500 mm
            ram diameter 500 x 500 mm
            c-axis 0,111 U/min
            workpiece weight max. 400.000 kg
            total power requirement ca 320 kW
            weight of the machine ca. ca 600 t
            dimensions of the machine ca. 20,1 x 15 x 13,8 m
            Description :
            new/unused machine:
            Vertical Turning Center with Live Tooling equipped with:
            - CNC control FANUC 31i-B
            - 2 ram on crossrail
            - Live Tooling / C-axis 0,001°
            - Milling Motor 60/75 kW, 15 - 1500 Upm
            - A.T.C. MAS BT 60
            - 5 Axis controlled X,Z,C,W1,W2 (2 simultanious)
            - Coolant system
            - Hydraulic unit
            - Ladder
            - X-axis slide way protect steel cover
            - Work light
            - Through tool coolant
            - Auto. Lubrication system for slideway
            - Lubrication system for slideway
            - NC power off
            - Leveling blocks
            - Foundation bolts and nuts
            - Tool box with maintenance tools
            - C-axis scale
            - Chip conveyor and bucket
            - Tool setter
            - Work probe
            - Air-conditioner for electrical cabinet
            - OP Station elevator & adjustable op device
            - Transformer
            - X-axis scale,Z-axis scale, W-axis scale
            - Tool holder
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SCHIESS SEDIN Vertiturn 4


          • Isabelle Knops
          • Opladener Str. 126
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 (0)2173-4999611
            +49 (0)2173-8546560
          • isabelle.knops@isabelleknops.com
            www.isabelleknops.com
          #2013-E02224 · Vertical Turret Lathe - Double Column

          SCHIESS SEDIN - Vertiturn 4 - - 2008 - SINUMERIK 840D

          Technical details
          faceplate diameter 2.240 mm︱swing diameter 2.500 mm︱turning height 2.000 mm︱Control SINUMERIK 840D ︱total power requirement kVA︱weight of the machine ca. t︱
          Vertical Turret Lathe - Double Column - SCHIESS SEDIN - Vertiturn 4 - YOM: 2008 Operating hours: 4.816 h The machine can be inspected by appointment under power in the factory. TECHNICAL SPECIFICATIONS: * CNC control: SIEMENS SINUMERIK 840D Main dimensions: * Turning diameter: 2.500 mm * Swing diameter: 2.500 mm * Processing -/workpiece height max.: 2.000 mm * Faceplate diameter: 2.240 mm * Dimensions of the base: 3.400 x 2.500 mm * Prism height of the support guide: 750 mm * Workpiece weight max.: 20 tons * Number of claw boxes: 4 pieces * Dimensions of the base: 3.400 x 2.500 mm * Prism height of the support guide: 750 mm Crossbeam support: * Cross section of the chisel: 210 x 210 mm * Smallest dive diameter: 300 mm Travels: * Horizontal adjustment X-axis (total): 1.720 mm * Horizontal adjustment of the support from the center of the faceplate to the left: 100 mm * Horizontal adjustment des Support von Planscheibenmitte nach rechts: 1.720 mm * Vertical adjustment of the chisel Z-axis: 1.250 mm * Crossbeam adjustment in 5 stages à 240 mm W-axis: 1.200 mm Speeds, feeds, adjustment speeds, cutting forces Faceplate drive: * Number of gear steps: 3 pieces * Speed range of the I. gear step: 0,10 - 17,6 rpm * Speed range of the II. gear step: 0,76 - 49,3 rpm * Speed range of the III. gear step: 2,12 - 150 rpm Feed drive, crossbeam, cross slide, vertical and horizontal: * Vorschubgeschwindigkeit: 0,1 - 2.000 mm/min * Cutting force max.: 50 kN Power, speeds, torques: faceplate drive: * Engine power: 55 kW * Motor speed: 50 - 1.250 - 2.800 rpm Feed drive (a three-phase servomotor for each feed axis): * Motor speed: 0,02 / 2.000 rpm * Torque of the motor: 20 Nm Pneumatics: * Air consumption: 200 i/min * Pressure: 20 bar Connected Electricity: * Voltage: 400 V / 50 Hz * Total power requirement: 400 V * Electrical protection: 250 A Space requirement: * Length/Width/Height: 6.310 x 7.090 x 5.790 mm Equipment: * Automatic tool changer: 10 stations * Chip conveyor * Complete enclosure * Documentation Please note: The machine is sold without a cooling lubricant system, as it is centrally installed ! There is no guarantee for correctness and completeness of the technical details and and accessories.
            faceplate diameter 2.240 mm
            swing diameter 2.500 mm
            turning height 2.000 mm
            Control SINUMERIK 840D
            Description :
            Vertical Turret Lathe - Double Column - SCHIESS SEDIN - Vertiturn 4 - YOM: 2008

            Operating hours: 4.816 h

            The machine can be inspected by appointment under power in the factory.

            TECHNICAL SPECIFICATIONS:
            * CNC control: SIEMENS SINUMERIK 840D

            Main dimensions:
            * Turning diameter: 2.500 mm
            * Swing diameter: 2.500 mm
            * Processing -/workpiece height max.: 2.000 mm
            * Faceplate diameter: 2.240 mm
            * Dimensions of the base: 3.400 x 2.500 mm
            * Prism height of the support guide: 750 mm

            * Workpiece weight max.: 20 tons
            * Number of claw boxes: 4 pieces

            * Dimensions of the base: 3.400 x 2.500 mm
            * Prism height of the support guide: 750 mm

            Crossbeam support:
            * Cross section of the chisel: 210 x 210 mm
            * Smallest dive diameter: 300 mm

            Travels:
            * Horizontal adjustment X-axis (total): 1.720 mm
            * Horizontal adjustment of the support from the center of the faceplate
            to the left: 100 mm
            * Horizontal adjustment des Support von Planscheibenmitte nach rechts: 1.720 mm
            * Vertical adjustment of the chisel Z-axis: 1.250 mm
            * Crossbeam adjustment in 5 stages à 240 mm W-axis: 1.200 mm

            Speeds, feeds, adjustment speeds, cutting forces
            Faceplate drive:
            * Number of gear steps: 3 pieces
            * Speed range of the I. gear step: 0,10 - 17,6 rpm
            * Speed range of the II. gear step: 0,76 - 49,3 rpm
            * Speed range of the III. gear step: 2,12 - 150 rpm

            Feed drive, crossbeam, cross slide, vertical and horizontal:
            * Vorschubgeschwindigkeit: 0,1 - 2.000 mm/min
            * Cutting force max.: 50 kN

            Power, speeds, torques:
            faceplate drive:
            * Engine power: 55 kW
            * Motor speed: 50 - 1.250 - 2.800 rpm

            Feed drive (a three-phase servomotor for each feed axis):
            * Motor speed: 0,02 / 2.000 rpm
            * Torque of the motor: 20 Nm

            Pneumatics:
            * Air consumption: 200 i/min
            * Pressure: 20 bar

            Connected Electricity:
            * Voltage: 400 V / 50 Hz
            * Total power requirement: 400 V
            * Electrical protection: 250 A

            Space requirement:
            * Length/Width/Height: 6.310 x 7.090 x 5.790 mm

            Equipment:
            * Automatic tool changer: 10 stations
            * Chip conveyor
            * Complete enclosure
            * Documentation

            Please note:
            The machine is sold without a cooling lubricant system, as it is centrally
            installed !

            There is no guarantee for correctness and completeness of the technical details
            and and accessories.
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column STANKO-KOLOMNA 1550


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17772 · Vertical Turret Lathe - Double Column

          STANKO-KOLOMNA - 1550 - - 2003 rebuild - Siemens 840C

          Technical details
          faceplate diameter 4500 mm︱swing diameter 5000 mm︱turning height 2500 mm︱workpiece weight max. 63 t︱no. of the slides 2 ︱max. ram stroke 1600 mm︱faceplate turning speed range 0,3 - 32 U/min︱Anzahl der Drehzahlstufen 4 ︱Control Siemens 840C ︱total power requirement 180 kW︱weight of the machine ca. 145 t︱dimensions of the machine ca. 6,6 x 11,4 x 8,4 m︱
          Maschine has been overhauled in 2003 with for example new Motors and new electric / cables and CNC Control equipped with: - 2 rams (swivable) on crossrail - CNC Control Siemens 840C
            faceplate diameter 4500 mm
            swing diameter 5000 mm
            turning height 2500 mm
            workpiece weight max. 63 t
            no. of the slides 2
            max. ram stroke 1600 mm
            faceplate turning speed range 0,3 - 32 U/min
            Anzahl der Drehzahlstufen 4
            Control Siemens 840C
            total power requirement 180 kW
            weight of the machine ca. 145 t
            dimensions of the machine ca. 6,6 x 11,4 x 8,4 m
            Description :
            Maschine has been overhauled in 2003 with for example new Motors and new
            electric / cables and CNC Control
            equipped with:
            - 2 rams (swivable) on crossrail
            - CNC Control Siemens 840C
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column FEICHTER FKD 40


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17615 · Vertical Turret Lathe - Double Column

          FEICHTER - FKD 40 - - 2003 - Siemens 840D

          Technical details
          faceplate diameter 3200 mm︱swing diameter 4000 mm︱turning height 3000 mm︱max. ram stroke 2000 mm︱faceplate turning speed range 0,25 - 100 U/min︱c-axis 1/1000 °︱table load 50 t︱main drive - kW︱milling spindle drive 52 kW︱hob turning speeds 5-520 / 30-3150 U/min︱x-axis (Hor.) 5500 mm︱y-axis (Faceplate) +/- 2200 mm︱z-axis (Ram) 2000 mm︱w-axis (Cross-Rail) 1800 mm︱Control Siemens 840D ︱ram head dimension 500 x 500 mm︱total power requirement ca 350 kW︱weight of the machine ca. - t︱dimensions of the machine ca. - m︱
          equipped with: - CNC control Siemens 840D - y-axis (movable face plate) - 30-fold tool changer (ISO 50) - CNC milling head 3150 rpm Swiveling range: +/95°. - straight drilling & milling head 52KW - 3150 rpm - SK 50 - Coolant through Spindle - Multiple turning tool holder (8-fold) Capto 8
            faceplate diameter 3200 mm
            swing diameter 4000 mm
            turning height 3000 mm
            max. ram stroke 2000 mm
            faceplate turning speed range 0,25 - 100 U/min
            c-axis 1/1000 °
            table load 50 t
            main drive - kW
            milling spindle drive 52 kW
            hob turning speeds 5-520 / 30-3150 U/min
            x-axis (Hor.) 5500 mm
            y-axis (Faceplate) +/- 2200 mm
            z-axis (Ram) 2000 mm
            w-axis (Cross-Rail) 1800 mm
            Control Siemens 840D
            ram head dimension 500 x 500 mm
            total power requirement ca 350 kW
            weight of the machine ca. - t
            dimensions of the machine ca. - m
            Description :
            equipped with:
            - CNC control Siemens 840D
            - y-axis (movable face plate)
            - 30-fold tool changer (ISO 50)
            - CNC milling head 3150 rpm Swiveling range: +/95°.
            - straight drilling & milling head 52KW - 3150 rpm - SK 50
            - Coolant through Spindle
            - Multiple turning tool holder (8-fold) Capto 8
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SCHIESS VMG 4-PWS

          -

          • Gerd Seidler Werkzeugmaschinen
          • Parkstraße 12
          • 09456 Annaberg-Buchholz
          • Deutschland

          • +49 37335068501
          • info@seidler-machines.de
            www.seidler-machines.de

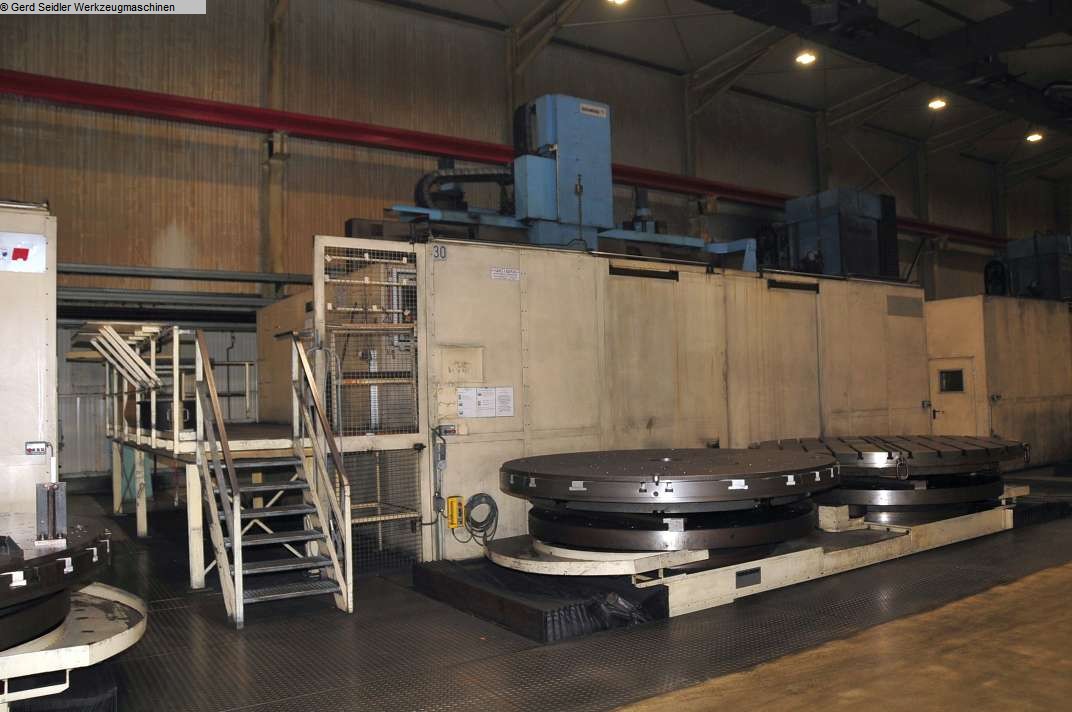

          #2017-7735 · Vertical Turret Lathe - Double Column

          SCHIESS - VMG 4-PWS - - 2002 - SINUMERIK 840D

          Technical details
          Control SINUMERIK 840D ︱speeds max. 3150 U/min︱tool taper SK 50 ︱total power requirement 160 kW︱
          Max. Turning and circulation diameter - 3200 mm Portal passage width - 3000 mm Max. Machining / workpiece height (turning) - 2350 mm Max. Machining / workpiece height (milling) - 2310 mm Max. Workpiece weight - 25000 kg Diameter of the machine clamping station (pallet) - 3000 mm Nutenbild - star-shaped / Cartesian Groove width - 36 H12 mm Number of integrated cocking slides - 4 pieces Stepless speed - for turning 0,50 - 180 rpm Stepless speed - for milling 0.0004 - 4 rpm Max. Torque on the faceplate - 75 kNm Main drive power - 110 kW Horizontal adjustment of the support - 1900 mm Horizontal adjustment of the support - 2800 mm Horizontal guide length of the support - 1000 mm Prism height of the support guide - 1000 mm Vertical adjustment of the chisel pusher - 1400 mm Guide length of the chisel slide - 1200 mm Cross section of the chisel pusher - 280 x 240 mm Max. permissible cutting force for turning - 50 kN smallest immersion diameter - 375 mm Drilling and milling device Power 1.4-52 kW Spindle speeds level 1 5-180-520 rpm Stage 2 30-1100-3150 rpm Torque at the spindle Stage 1 2400-2400-850 Nm Torque at spindle stage 2 450-450-160 Nm Infeed / Feedrate X / Z Axis - 0.1-16000 mm / min Crossbar adjustment vertically stepless - 1900 mm Crossbeam adjustment speed - 4000 mm / min Portal adjustment Y-axis - 1600 mm Adjustment speed of the portal 0.1 - 8000 mm / min electrical equipment Operating voltage - 400 V Frequency - 50 Hz Height of the working area protection over the corridor - 2500 mm Number of integrated chip conveyor 3 pieces Coolant device (connection to central bulk container) internal coolant supply Pump capacity - 15 l / min Pressure - 20 bar external coolant supply Pump capacity 40 l / min Pressure 2 bar hardware components Flat Panel Panel 0F'31 Width 19 " TFT color Fiachbildschirm 19 "machine control panel machine-specific keyboard Modules in the control cabinet digital converter system SIMODRIVE 611 NCU module with CNC, PLC and communication tasks SIMATIC S7 peripheral modules serial interface RS 232 C Max. Spindle torque 2400 Nm Tool changer - 27x electronic handwheel
            Control SINUMERIK 840D
            speeds max. 3150 U/min
            tool taper SK 50
            total power requirement 160 kW
            Description :
            Max. Turning and circulation diameter - 3200 mm
            Portal passage width - 3000 mm
            Max. Machining / workpiece height (turning) - 2350 mm
            Max. Machining / workpiece height (milling) - 2310 mm
            Max. Workpiece weight - 25000 kg
            Diameter of the machine clamping station (pallet) - 3000 mm
            Nutenbild - star-shaped / Cartesian
            Groove width - 36 H12 mm
            Number of integrated cocking slides - 4 pieces
            Stepless speed - for turning 0,50 - 180 rpm
            Stepless speed - for milling 0.0004 - 4 rpm
            Max. Torque on the faceplate - 75 kNm
            Main drive power - 110 kW
            Horizontal adjustment of the support - 1900 mm
            Horizontal adjustment of the support - 2800 mm
            Horizontal guide length of the support - 1000 mm
            Prism height of the support guide - 1000 mm
            Vertical adjustment of the chisel pusher - 1400 mm
            Guide length of the chisel slide - 1200 mm
            Cross section of the chisel pusher - 280 x 240 mm
            Max. permissible cutting force for turning - 50 kN
            smallest immersion diameter - 375 mm

            Drilling and milling device
            Power 1.4-52 kW
            Spindle speeds level 1 5-180-520 rpm
            Stage 2 30-1100-3150 rpm
            Torque at the spindle Stage 1 2400-2400-850 Nm
            Torque at spindle stage 2 450-450-160 Nm
            Infeed / Feedrate X / Z Axis - 0.1-16000 mm / min
            Crossbar adjustment vertically stepless - 1900 mm
            Crossbeam adjustment speed - 4000 mm / min
            Portal adjustment Y-axis - 1600 mm
            Adjustment speed of the portal 0.1 - 8000 mm / min

            electrical equipment

            Operating voltage - 400 V
            Frequency - 50 Hz

            Height of the working area protection over the corridor - 2500 mm
            Number of integrated chip conveyor 3 pieces

            Coolant device (connection to central bulk container)
            internal coolant supply

            Pump capacity - 15 l / min
            Pressure - 20 bar
            external coolant supply
            Pump capacity 40 l / min
            Pressure 2 bar

            hardware components

            Flat Panel Panel 0F'31 Width 19 "
            TFT color Fiachbildschirm
            19 "machine control panel
            machine-specific keyboard

            Modules in the control cabinet
            digital converter system SIMODRIVE 611
            NCU module with CNC, PLC and communication tasks
            SIMATIC S7 peripheral modules

            serial interface RS 232 C
            Max. Spindle torque 2400 Nm
            Tool changer - 27x
            electronic handwheel
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column DORRIES VCE 2400/220


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020038 · Vertical Turret Lathe - Double Column

          DORRIES - VCE 2400/220 - - 2000 -

          Technical details
          faceplate diameter 2.200 mm︱swing diameter 2.400 mm︱turning height 1.700 mm︱Control ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          Stocknumber 1020038 Type of machine CNC VTL Make DORRIES Type VCE 2400/220 Build in 2000 Type of control SIEMENS Sinumerik 840 Faceplate diameter 2200 mm Max. Swing diameter 2400 mm Turning height max. 1700 mm Max. adjustment off cross rail 1100 mm Max. workload on the table 17.000 kg Turning speeds of the faceplate (Rpm) 3.15 - 280 Additional information Mit C-axe and driven tools ATC for 60 tool With 3 axis simultaneous software on the machine MBF Chipconveyor incl. grinding spindle Can be inspected under power in our wharehouse in Holland
            faceplate diameter 2.200 mm
            swing diameter 2.400 mm
            turning height 1.700 mm
            Description :
            Stocknumber 1020038
            Type of machine CNC VTL
            Make DORRIES
            Type VCE 2400/220
            Build in 2000
            Type of control SIEMENS Sinumerik 840
            Faceplate diameter 2200 mm
            Max. Swing diameter 2400 mm
            Turning height max. 1700 mm
            Max. adjustment off cross rail 1100 mm
            Max. workload on the table 17.000 kg
            Turning speeds of the faceplate (Rpm) 3.15 - 280


            Additional information
            Mit C-axe and driven tools
            ATC for 60 tool
            With 3 axis simultaneous software on the machine
            MBF Chipconveyor
            incl. grinding spindle
            Can be inspected under power in our wharehouse in Holland

          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column HOMMA HTM-7/9


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17797 · Vertical Turret Lathe - Double Column

          HOMMA - HTM-7/9 - - 1991 - Fanuc 15M

          Technical details
          faceplate diameter 7000 mm︱swing diameter 9000 mm︱turning height 4350 mm︱table load 250 ton︱main drive motor 100 kW︱x-axis 11300 mm︱y-axis 10850 mm︱z-axis 3000 mm︱control Fanuc 15M ︱w-axis 2000 mm︱table rotation speed 0,25 - 30 U/min︱table - indexing 0,001 °︱ram diameter 500 x 500 mm︱table drive 150 kW︱milling spindle ︱milling head speed 10 - 1000 U/min︱milling spindle drive 37 / 45 kW︱milling spindle diameter / taper ISO 50 ︱total power requirement 400 kVA︱dimensions of the machine ca. 0 m︱
          equipped with: - CNC Control FANUC 15M - C-Axis (0,001°/0,1-100 °/min) - Turning & Milling Head
            faceplate diameter 7000 mm
            swing diameter 9000 mm
            turning height 4350 mm
            table load 250 ton
            main drive motor 100 kW
            x-axis 11300 mm
            y-axis 10850 mm
            z-axis 3000 mm
            control Fanuc 15M
            w-axis 2000 mm
            table rotation speed 0,25 - 30 U/min
            table - indexing 0,001 °
            ram diameter 500 x 500 mm
            table drive 150 kW
            milling head speed 10 - 1000 U/min
            milling spindle drive 37 / 45 kW
            milling spindle diameter / taper ISO 50
            total power requirement 400 kVA
            Description :
            equipped with:
            - CNC Control FANUC 15M
            - C-Axis (0,001°/0,1-100 °/min)
            - Turning & Milling Head


          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SEDIN 1L532


          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-02180 · Vertical Turret Lathe - Double Column

          SEDIN - 1L532 - - 1989 - Sienens 840 D

          Technical details
          faceplate diameter 2800 mm︱swing diameter 3200 mm︱turning height 1500 mm︱slide adjustment 1200 mm︱turning speeds 50 U/min︱Control Sienens 840 D︱side head - cross travel 900 mm︱power capacity 55 kW︱ ︱workpiece weight 16 t︱total power requirement kW︱weight of the machine ca. 50 t︱dimensions of the machine ca. m︱
          The engine was rebuilt in 2008/2009 to CNC control Siemens 840 D. The right support is operated CNC and the face plate. The left side of the support and assistance are conventional. Acu Rite Digital Display
            faceplate diameter 2800 mm
            swing diameter 3200 mm
            turning height 1500 mm
            slide adjustment 1200 mm
            turning speeds 50 U/min
            Control Sienens 840 D
            side head - cross travel 900 mm
            power capacity 55 kW
            workpiece weight 16 t
            weight of the machine ca. 50 t
            Description :
            The engine was rebuilt in 2008/2009 to CNC control Siemens 840 D.
            The right support is operated CNC and the face plate.
            The left side of the support and assistance are conventional.
            Acu Rite Digital Display
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SEDIN 1L532


          • Harry Vraets Machinery B.V.
          • Gezellenstraat 2
          • 3861RD Nijkerk
          • Niederlande

          • +31 (0)332452145
          • info@vraetsmachinery.com
            www.vraetsmachinery.com
          #2039-12085DH · Vertical Turret Lathe - Double Column

          SEDIN - 1L532 - - 1989 - Sienens 840 D

          Technical details
          faceplate diameter 2800 mm︱swing diameter 3200 mm︱turning height 1500 mm︱slide adjustment 1200 mm︱turning speeds 50 U/min︱Control Sienens 840 D︱side head - cross travel 900 mm︱power capacity 55 kW︱ ︱workpiece weight 16 t︱total power requirement kW︱weight of the machine ca. 50 t︱dimensions of the machine ca. m︱
          The engine was rebuilt in 2008/2009 to CNC control Siemens 840 D. The right support is operated CNC and the face plate. The left side of the support and assistance are conventional. Acu Rite Digital Display
            faceplate diameter 2800 mm
            swing diameter 3200 mm
            turning height 1500 mm
            slide adjustment 1200 mm
            turning speeds 50 U/min
            Control Sienens 840 D
            side head - cross travel 900 mm
            power capacity 55 kW
            workpiece weight 16 t
            weight of the machine ca. 50 t
            Description :
            The engine was rebuilt in 2008/2009 to CNC control Siemens 840 D.
            The right support is operated CNC and the face plate.
            The left side of the support and assistance are conventional.
            Acu Rite Digital Display
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column PIETRO CARNAGHI AC10 CNC


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020042 · Vertical Turret Lathe - Double Column

          PIETRO CARNAGHI - AC10 CNC - - 1987 - SIEMENS 850M

          Technical details
          faceplate diameter 1000 mm︱swing diameter 1400 mm︱turning height 1400 mm︱Control SIEMENS 850M ︱total power requirement 125 kW︱weight of the machine ca. 38 t︱dimensions of the machine ca. m︱
          Stocknumber 1020042 Type of machine CNC VTL Make PIETRO CARNAGHI Type AC 10 CNC Build in 1987 Type of control Siemens 850 M/E Faceplate diameter 1000 mm Max. Swing diameter 1400 mm Turning height max. 1400 mm Total Power (KW) totaal 125 Lenght (mm) 11000 Width (mm) 8000 Height (mm) 6000 Weight 38000 kg Additional information with driven tools with pallet changer
            faceplate diameter 1000 mm
            swing diameter 1400 mm
            turning height 1400 mm
            Control SIEMENS 850M
            total power requirement 125 kW
            weight of the machine ca. 38 t
            Description :
            Stocknumber 1020042
            Type of machine CNC VTL
            Make PIETRO CARNAGHI
            Type AC 10 CNC
            Build in 1987
            Type of control Siemens 850 M/E
            Faceplate diameter 1000 mm
            Max. Swing diameter 1400 mm
            Turning height max. 1400 mm
            Total Power (KW) totaal 125
            Lenght (mm) 11000
            Width (mm) 8000
            Height (mm) 6000
            Weight 38000 kg


            Additional information
            with driven tools
            with pallet changer

          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SEDIN 1L532


          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-02416 · Vertical Turret Lathe - Double Column

          SEDIN - 1L532 - - 1986 -

          Technical details
          faceplate diameter 2800 mm︱swing diameter 3200 mm︱turning height 1600 mm︱slide adjustment 1200 mm︱turning speeds 1,25-63 U/min︱side head - cross travel 900 mm︱power capacity 55 kW︱main drive motor 55 kW︱total power requirement 69 kW︱weight of the machine ca. 50 t︱dimensions of the machine ca. 6,1x5,5x4,91 m︱
          The engine was rebuilt in 2008/2009 to CNC control Siemens 840 D. The right support is operated CNC and the face plate. The left side of the support and assistance are conventional. Acu Rite Digital Display
            faceplate diameter 2800 mm
            swing diameter 3200 mm
            turning height 1600 mm
            slide adjustment 1200 mm
            turning speeds 1,25-63 U/min
            side head - cross travel 900 mm
            power capacity 55 kW
            main drive motor 55 kW
            total power requirement 69 kW
            weight of the machine ca. 50 t
            dimensions of the machine ca. 6,1x5,5x4,91 m
            Description :
            The engine was rebuilt in 2008/2009 to CNC control Siemens 840 D.
            The right support is operated CNC and the face plate.
            The left side of the support and assistance are conventional.
            Acu Rite Digital Display
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column STANKO-SEDIN 1L532


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17926 · Vertical Turret Lathe - Double Column

          STANKO-SEDIN - 1L532 - - 1984 -

          Technical details
          faceplate diameter 2800 mm︱swing diameter 3150 mm︱turning height 1600 mm︱slide adjustment 1200 mm︱turning speeds 1,25 - 63 U/min︱power capacity 55 kW︱workpiece weight 16 t︱total power requirement - kW︱weight of the machine ca. 42 t︱dimensions of the machine ca. 5,5 x 6,12 x 4,9 m︱
          Maximum Horizontal Travel of Carriage: 1720 mm Carriage Inclination Angle: 30 dgr Carriage Feeds Number: 16 Carriages Feeds Range: 0.09 - 16 mm/rev Feeds of Traversal Beam: 360 mm/min Maximum Distance Between Ram's Axis: 360 mm Distance Between Table and Ram: 0 - 1780 mm Distance Between Table and Lower Surface of Traversal Beam: 400 - 1640 mm Revolution Speeds Number: 18 Table Speeds: 1.25-63 rpm
            faceplate diameter 2800 mm
            swing diameter 3150 mm
            turning height 1600 mm
            slide adjustment 1200 mm
            turning speeds 1,25 - 63 U/min
            power capacity 55 kW
            workpiece weight 16 t
            total power requirement - kW
            weight of the machine ca. 42 t
            dimensions of the machine ca. 5,5 x 6,12 x 4,9 m
            Description :

            Maximum Horizontal Travel of Carriage: 1720 mm
            Carriage Inclination Angle: 30 dgr
            Carriage Feeds Number: 16
            Carriages Feeds Range: 0.09 - 16 mm/rev
            Feeds of Traversal Beam: 360 mm/min
            Maximum Distance Between Ram's Axis: 360 mm
            Distance Between Table and Ram: 0 - 1780 mm
            Distance Between Table and Lower Surface of Traversal Beam: 400 - 1640 mm
            Revolution Speeds Number: 18
            Table Speeds: 1.25-63 rpm

          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SEDIN 1525


          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-02838 · Vertical Turret Lathe - Double Column

          SEDIN - 1525 - - 1979 -

          Technical details
          faceplate diameter 2200 mm︱swing diameter 2500 mm︱turning height 1700 mm︱turning speeds 1,6-80 U/min︱Feed 0,004-1800 mm/min︱max. ram stroke 1200 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            faceplate diameter 2200 mm
            swing diameter 2500 mm
            turning height 1700 mm
            turning speeds 1,6-80 U/min
            Feed 0,004-1800 mm/min
            max. ram stroke 1200 mm
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column TOSHIBA-SHIBAURA TMG 10750 S


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17933 · Vertical Turret Lathe - Double Column

          TOSHIBA-SHIBAURA - TMG 10750 S - - 1977/2004 - Fanuc 18i

          Technical details
          faceplate diameter 8000 mm︱swing diameter 10700 mm︱turning height 3000 mm︱turning speeds 0,16 - 16 U/min︱power capacity 75 kW︱workpiece weight 250 t︱Control Fanuc 18i ︱column travel +/- 2500 mm︱milling spindle speeds 3,15 - 630 U/min︱total power requirement - kW︱weight of the machine ca. 405 t︱dimensions of the machine ca. - m︱
          2004 overhauled and equipped with new FANUC control equipped with: - Movable stand/column - CNC control FANUC 18-iTB / 18-iMB - left ram with milling spindle (55kW) and right ram for turning function - C-axis - 3 additional milling heads • Vertical Travel of Ram: Right 2,600mm / Left 1,250mm • Vertival Travel of Cross Rail: 2,000mm • Max. Swivel Angle of Right Ram: 30 deg. • Diameter of Milling Spindle Nose: 290mm
            faceplate diameter 8000 mm
            swing diameter 10700 mm
            turning height 3000 mm
            turning speeds 0,16 - 16 U/min
            power capacity 75 kW
            workpiece weight 250 t
            Control Fanuc 18i
            column travel +/- 2500 mm
            milling spindle speeds 3,15 - 630 U/min
            total power requirement - kW
            weight of the machine ca. 405 t
            dimensions of the machine ca. - m
            Description :
            2004 overhauled and equipped with new FANUC control
            equipped with:
            - Movable stand/column
            - CNC control FANUC 18-iTB / 18-iMB
            - left ram with milling spindle (55kW) and right ram for turning function
            - C-axis
            - 3 additional milling heads

            • Vertical Travel of Ram: Right 2,600mm / Left 1,250mm
            • Vertival Travel of Cross Rail: 2,000mm
            • Max. Swivel Angle of Right Ram: 30 deg.
            • Diameter of Milling Spindle Nose: 290mm

          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column JUNGENTHAL JU 20 K


          • AS Maschinenhandel
          • Welserstr. 10e
          • 51149 Köln
          • Deutschland

          • +49 (0)22031864856
            +49 (0)22031864857
          • mail@asmaschinenhandel.de
            www.asmaschinenhandel.de
          #2044-10045 · Vertical Turret Lathe - Double Column

          JUNGENTHAL - JU 20 K - - 1975 - Siemens 840 C

          Technical details
          faceplate diameter 2000 mm︱swing diameter 2400 mm︱turning height 1460 mm︱turning diameter 2400 mm︱control Siemens 840 C ︱total power requirement kW︱weight of the machine ca. 50 t︱dimensions of the machine ca. m︱
            faceplate diameter 2000 mm
            swing diameter 2400 mm
            turning height 1460 mm
            turning diameter 2400 mm
            control Siemens 840 C
            weight of the machine ca. 50 t
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column RAFAMET KCF 200

          -

          • Karl Günter Wirths GmbH
          • Scharpenberger Strasse 96-98
          • 58256 Ennepetal
          • Deutschland

          • 02333-79050
            02333-790555
          • sales@wirths.net
            www.wirths.net
          #1041-400100 · Vertical Turret Lathe - Double Column

          RAFAMET - KCF 200 - - 1974 -

          Technical details
          faceplate diameter 2000 mm︱swing diameter 2230 mm︱turning height 1250 mm︱drilling depth in one stroke 850 mm︱horizontal travel of side carriages 850 mm︱distance face plate/tool carrier 1250 mm︱vertical adjustment of the crossrail 750 mm︱workpiece weight 10 t︱speeds 10- 100 U/min︱feeds 0,0125 - 11,2 mm/U︱rapid traverse 1900 mm/min︱weight of the machine ca. 35 t︱dimensions of the machine ca. 3,5 x 4 x 4,5 m︱voltage 400 V︱
          Machine has two vertical heads and one side head.
            faceplate diameter 2000 mm
            swing diameter 2230 mm
            turning height 1250 mm
            drilling depth in one stroke 850 mm
            horizontal travel of side carria. 850 mm
            distance face plate/tool carrier 1250 mm
            vertical adjustment of the cross. 750 mm
            workpiece weight 10 t
            speeds 10- 100 U/min
            feeds 0,0125 - 11,2 mm/U
            rapid traverse 1900 mm/min
            weight of the machine ca. 35 t
            dimensions of the machine ca. 3,5 x 4 x 4,5 m
            voltage 400 V
            Description :
            Machine has two vertical heads and one side head.
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column WMW- NILES DKZ6300

          - - -

          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-03213 · Vertical Turret Lathe - Double Column

          WMW- NILES - DKZ6300 - - 1957 -

          Technical details
          faceplate diameter 5300 mm︱swing diameter 6300 mm︱turning height 3300 mm︱Slide: 2 ︱Slide movement vertical 1800 mm︱side head - cross travel 1000 mm︱total power requirement 70 kW︱weight of the machine ca. 120 t︱dimensions of the machine ca. m︱
            faceplate diameter 5300 mm
            swing diameter 6300 mm
            turning height 3300 mm
            Slide: 2
            Slide movement vertical 1800 mm
            side head - cross travel 1000 mm
            total power requirement 70 kW
            weight of the machine ca. 120 t
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column FRORIEP 125 KZ 800/1500  CNC


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17683 · Vertical Turret Lathe - Double Column

          FRORIEP - 125 KZ 800/1500 CNC - - 1956/reb - NUM 1060

          Technical details
          faceplate diameter 8000 mm︱swing diameter 15000 mm︱turning height 4200 mm︱faceplate turning speed range 0,16 - 16 U/min︱workpiece weight 300 t︱vertical feeds: 0,00196 - 40 mm/U︱feed range - horizontal 0,00196 - 40 mm/U︱table drive 156 kW︱cross rail motor 38 kW︱bed length x bed width 10400 x 2275 mm︱column travel ca 7250 mm︱ram adjustment min/max: 830 - 10430 mm︱Control NUM 1060 ︱ram stroke - horizontal 2600 mm︱ram stroke - vertical 2200 mm︱total power requirement ca 220 kW︱weight of the machine ca. 455 t︱
          Vertical Lathe with retractable portal completely overhauled and converted to CNC control with new Electric etc, equipped with: - CNC control NUM 1060 - 2 vertical Ram supports - movable stand/portal - 2 control panels (switchable) - manual tool change - Chip Conveyor - Oil Chiller
            faceplate diameter 8000 mm
            swing diameter 15000 mm
            turning height 4200 mm
            faceplate turning speed range 0,16 - 16 U/min
            workpiece weight 300 t
            vertical feeds: 0,00196 - 40 mm/U
            feed range - horizontal 0,00196 - 40 mm/U
            table drive 156 kW
            cross rail motor 38 kW
            bed length x bed width 10400 x 2275 mm
            column travel ca 7250 mm
            ram adjustment min/max: 830 - 10430 mm
            Control NUM 1060
            ram stroke - horizontal 2600 mm
            ram stroke - vertical 2200 mm
            total power requirement ca 220 kW
            weight of the machine ca. 455 t
            Description :
            Vertical Lathe with retractable portal completely overhauled and converted to
            CNC control with new Electric etc, equipped with:
            - CNC control NUM 1060
            - 2 vertical Ram supports
            - movable stand/portal
            - 2 control panels (switchable)
            - manual tool change
            - Chip Conveyor
            - Oil Chiller
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column SCHIESS-FRORIEP GK 26-800/1000


          • Isabelle Knops
          • Opladener Str. 126
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 (0)2173-4999611
            +49 (0)2173-8546560
          • isabelle.knops@isabelleknops.com
            www.isabelleknops.com
          #2013-E0192 · Vertical Turret Lathe - Double Column

          SCHIESS-FRORIEP - GK 26-800/1000 - - 1956/2005 - SINUMERIK 840D powerline

          Technical details
          faceplate diameter 8.000 mm︱swing diameter 10.000 mm︱turning height 5.750 mm︱Control SINUMERIK 840D powerline ︱total power requirement 172 kW︱weight of the machine ca. 570 t︱
          Vertical Turret Lathe - Double Column / SCHIESS-FRORIEP / GK 26-800/1000 / Year of construction: 1956 / First modernization: 1988 / Second extensive modernization/retrofit in 2005 The retrofit in 2005 included: complete mechanical and electrical overhaul. Mechanically overhauled, carried out by renowned German machine manufacturer: crossbeam, worm drive, column, guideways. Electricl overhaul: new electrical cabinets, completely new wiring, hydraulic hoses ... Detailed information on the retrofit is available during the inspection of the machine. The positioning accuracy of the machine has been checked every year. The machine can be inspected by appointment in operational condition. Operating hours,since modernization in 2005: 23.892 h (21.01.2019). The machine is/was used for machining workpieces made of cast iron and steel. TECHNICAL DETAILS: - Control: SIEMENS SINUMERIK 840D powerline - Turning- and swing diameter: 10.000 mm - Turning height over faceplate: 5.750 mm - Diameter circle faceplate: 8.000 mm - Diameter core faceplate: 4.000 mm - max. workpiece weight circle faceplate: 140 t - max. workpiece weight core faceplate: 65 t - max. horizontal travel crossbeam support (X-/U-axis): 7.430/6.630 mm - max. vertical travel chisel slider (Z-/W-axis): 3.700 mm - Chisel slider dimension: 500 x 460 mm - max. rotating angle of the faceplate: +/- 9999.9999 ° (degree) - Vertical travel of the crossbeam: 6.640 mm - Smallest collision dimension of the crossbeam supports: 1.240 mm Main drive: - DC-main engine Siemens: Max. speed: 1.700 rpm Rated power: 172 kW Gear core faceplate: Gear stage 1: 0,23 - 1,35 rpm `` `` 2: 1,35 - 3,73 `` `` `` 3: 3,75 - 10,4 `` `` `` 4: 10,4 - 28,8 `` Gear circle faceplate: Gear stage 1: 0,12 - 0,67 rpm `` `` 2: 0,67 - 1,85 `` `` `` 3: 1,86 - 5,15 `` `` `` 4: 5,15 - 14,3 `` Feed drives: X-/U-axis: 115 Nm Z-/W-axis: 90 Nm EQUIPMENT: - Crossbeam with 2 angle-adjustable chisel slides - 2 x moving operating platforms at the crossbeam - Linear length measuring systems - Oil cooling unit - Coolant system - Chip conveyor - Removable chip protection wall - Tool holder Capto C6 - Electrical cabinet with main switch and EMERGENCY OFF Connection values: - Current type: Three-phase A.C. current - Connection voltage: 380 V - Frequency: 50 Hz Machine weight: ca. 570 t The existing foundation plans are currently being digitized and can also be provided. The following defects can be named: Faceplate: • Inadmissible gear backlash on main gearbox, primary reduction-side(speed stage 2 and 4) - For the repair of the gearbox spare parts costs of € 71.000,- are calculated. • Abrasion motor brushes at the main drive • Axis: insertion tracks/-grooves at X- and U-axis There is no guarantee for correctness and completeness of the technical details and and accessories.
            faceplate diameter 8.000 mm
            swing diameter 10.000 mm
            turning height 5.750 mm
            Control SINUMERIK 840D powerline
            total power requirement 172 kW
            weight of the machine ca. 570 t
            Description :
            Vertical Turret Lathe - Double Column / SCHIESS-FRORIEP / GK 26-800/1000 /
            Year of construction: 1956 / First modernization: 1988 / Second extensive
            modernization/retrofit in 2005

            The retrofit in 2005 included: complete mechanical and electrical overhaul.
            Mechanically overhauled, carried out by renowned German machine manufacturer:
            crossbeam, worm drive, column, guideways.
            Electricl overhaul: new electrical cabinets, completely new wiring,
            hydraulic hoses ...
            Detailed information on the retrofit is available during the inspection of the
            machine.

            The positioning accuracy of the machine has been checked every year.

            The machine can be inspected by appointment in operational condition.

            Operating hours,since modernization in 2005: 23.892 h (21.01.2019).

            The machine is/was used for machining workpieces made of cast iron and steel.

            TECHNICAL DETAILS:
            - Control: SIEMENS SINUMERIK 840D powerline

            - Turning- and swing diameter: 10.000 mm
            - Turning height over faceplate: 5.750 mm
            - Diameter circle faceplate: 8.000 mm
            - Diameter core faceplate: 4.000 mm

            - max. workpiece weight circle faceplate: 140 t
            - max. workpiece weight core faceplate: 65 t

            - max. horizontal travel crossbeam support (X-/U-axis): 7.430/6.630 mm
            - max. vertical travel chisel slider (Z-/W-axis): 3.700 mm
            - Chisel slider dimension: 500 x 460 mm
            - max. rotating angle of the faceplate: +/- 9999.9999 ° (degree)
            - Vertical travel of the crossbeam: 6.640 mm
            - Smallest collision dimension of the crossbeam supports: 1.240 mm

            Main drive:
            - DC-main engine Siemens:
            Max. speed: 1.700 rpm
            Rated power: 172 kW

            Gear core faceplate:
            Gear stage 1: 0,23 - 1,35 rpm
            `` `` 2: 1,35 - 3,73 ``
            `` `` 3: 3,75 - 10,4 ``
            `` `` 4: 10,4 - 28,8 ``

            Gear circle faceplate:
            Gear stage 1: 0,12 - 0,67 rpm
            `` `` 2: 0,67 - 1,85 ``
            `` `` 3: 1,86 - 5,15 ``
            `` `` 4: 5,15 - 14,3 ``

            Feed drives:
            X-/U-axis: 115 Nm
            Z-/W-axis: 90 Nm

            EQUIPMENT:
            - Crossbeam with 2 angle-adjustable chisel slides
            - 2 x moving operating platforms at the crossbeam
            - Linear length measuring systems
            - Oil cooling unit
            - Coolant system
            - Chip conveyor
            - Removable chip protection wall
            - Tool holder Capto C6
            - Electrical cabinet with main switch and EMERGENCY OFF

            Connection values:
            - Current type: Three-phase A.C. current
            - Connection voltage: 380 V
            - Frequency: 50 Hz

            Machine weight: ca. 570 t

            The existing foundation plans are currently being digitized and can also be
            provided.

            The following defects can be named:
            Faceplate:
            • Inadmissible gear backlash on main gearbox, primary reduction-side(speed
            stage 2 and 4) - For the repair of the gearbox spare parts costs of
            € 71.000,- are calculated.
            • Abrasion motor brushes at the main drive
            • Axis: insertion tracks/-grooves at X- and U-axis


            There is no guarantee for correctness and completeness of the technical details
            and and accessories.


          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column FRORIEP KZ310 350-360


          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-V0041 · Vertical Turret Lathe - Double Column

          FRORIEP - KZ310 350-360 - - - Fagor 8035

          Technical details
          faceplate diameter 3100 mm︱swing diameter 3600 mm︱turning height 3600 mm︱control Fagor 8035 ︱table load 35 t︱turning speeds 0,32 - 40 U/min︱max. ram stroke 3000 mm︱table load 35 t︱turning speeds 0,32-40 U/min︱total power requirement 70 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            faceplate diameter 3100 mm
            swing diameter 3600 mm
            turning height 3600 mm
            control Fagor 8035
            table load 35 t
            turning speeds 0,32 - 40 U/min
            max. ram stroke 3000 mm
            table load 35 t
            turning speeds 0,32-40 U/min
            total power requirement 70 kW
          Datasheet
          Request / Contact
          used Lathes Vertical Turret Lathe - Double Column RAFAMET KCG 200


          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-V0102 · Vertical Turret Lathe - Double Column

          RAFAMET - KCG 200 - - -

          Technical details
          faceplate diameter 2000 mm︱turning height 1500 mm︱turning diameter over bed 2400 mm︱table load 10 t︱turning speeds 2 - 100 (18x) U/min︱voltage 380 V︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            faceplate diameter 2000 mm
            turning height 1500 mm
            turning diameter over bed 2400 mm
            table load 10 t
            turning speeds 2 - 100 (18x) U/min
            voltage 380 V
          Datasheet
          Request / Contact

          Double column vertical turret lathe at LagerMaschinen

          Double column vertical turret lathe from LagerMaschinen

          When searching for used machines the online market can be overwhelming and frustrating. LagerMaschinen aims to solve this problem with its online platform which connects buyers sellers and experts in the field in one online location. Whether you're search for a double column vertical turret lathe or any other machine you're sure to find the machine that will best suit your needs on LagerMaschinen. The double column vertical turret lathe is available in manual or CNC format single or multiple column and with various speeds. The machinery purchasing process need not be overwhelming or complicated let LagerMaschinen do your research for you! Find the double column vertical turret lathe that best fits your business needs on LagerMaschinen.

          LagerMaschinen's used machines: double column vertical turret lathe

          The double column vertical turret lathe can be used for a variety of products and is highly adaptable to suit your manufacturing needs. A double column vertical turret lathe may of course be bought new but this may fall outside of your budget as well as being a decision made without much available information. By purchasing a used double column vertical turret lathe through LagerMaschinen you'll be able to contact sellers (thereby networking with colleagues in your area while you search) research various features and components to find the perfect machine for your business as well as utilize LagerMaschinen's delivery and installation services. Get started today on LagerMaschinen and find the perfect used machine for your new or growing business.
