          Metal Processing - Vertical Turning Machine

          Machinelist: Vertical Turning Machine


          Vertical Turning Machine

          used Lathes Vertical Turning Machine SCHIESS-ASCHERSLEBEN Vertimaster V 12 PWS


          • SK Maschinen-Service GmbH
          • Tackweg 4
          • 47918 Tönisvorst
          • Deutschland

          • 02151 79350
            02151 793535
          • info@sk-maschinen.de
            www.sk-maschinen.de
          #1038-90294 · Vertical Turning Machine

          SCHIESS-ASCHERSLEBEN - Vertimaster V 12 PWS - - 2017 - Siemens 840D sl

          Technical details
          turning diameter 1600 mm︱swing diameter 1600 mm︱turning height 950 mm︱Control Siemens 840D sl ︱size of pallet D=1250 mm︱workpiece weight 8 t︱drive of faceplate 57 kW︱torque - rotary table 19.500 Nm︱faceplate turning speed range -stepless- 400 U/min︱cutting capacity in case of turning 36000 N︱travel -x axis -650 +1.250 mm︱travel -z axis 1.200 mm︱ram cross section 280x240 mm︱power capacity - milling spindle 46 kW︱milling spindle - turning speed 3.500 ︱max. torque on the milling spindle 1.200 Nm︱numbers of tools in magazin 32 ︱coolant tank 1.200 l︱total power requirement kW︱weight of the machine ca. t︱
          C-axis linear measuring Heidenhain milling spindle manual transmission wit 2 steps Masterhead with automatic change of head automatic head and tool change (disc changer) 6 head storing places - straight milling head, autom. tool changer 46 kW, 1.200 Nm, 3.500 1/min - angular milling head, autom. tool changer 37 kW, 1.200 Nm, 2.500 1/min - Capto-C8 holder, horizontal, autom. tool changer - Capto-C8 holder, vertical, autom. tool changer - steelholder 40 x 40 coolant device 1.200 l inside cooling system 301 l/min mit 25 - 40 bar chip conveyor Video monitoring workpiece measuring RMP 60 tool measuring HPGA heating
            turning diameter 1600 mm
            swing diameter 1600 mm
            turning height 950 mm
            Control Siemens 840D sl
            size of pallet D=1250 mm
            workpiece weight 8 t
            drive of faceplate 57 kW
            torque - rotary table 19.500 Nm
            faceplate turning speed range -s. 400 U/min
            cutting capacity in case of turn. 36000 N
            travel -x axis -650 +1.250 mm
            travel -z axis 1.200 mm
            ram cross section 280x240 mm
            power capacity - milling spindle 46 kW
            milling spindle - turning speed 3.500
            max. torque on the milling spind. 1.200 Nm
            numbers of tools in magazin 32
            coolant tank 1.200 l
            Description :
            C-axis
            linear measuring Heidenhain
            milling spindle manual transmission wit 2 steps
            Masterhead with automatic change of head

            automatic head and tool change (disc changer)
            6 head storing places
            - straight milling head, autom. tool changer 46 kW, 1.200 Nm, 3.500 1/min
            - angular milling head, autom. tool changer 37 kW, 1.200 Nm, 2.500 1/min
            - Capto-C8 holder, horizontal, autom. tool changer
            - Capto-C8 holder, vertical, autom. tool changer
            - steelholder 40 x 40

            coolant device 1.200 l
            inside cooling system 301 l/min mit 25 - 40 bar

            chip conveyor
            Video monitoring
            workpiece measuring RMP 60
            tool measuring HPGA
            heating

          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VTC 250


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17426 · Vertical Turning Machine

          EMAG - VTC 250 - - 2015 - SIN840D

          Technical details
          turning diameter max. 140 mm︱swing diameter Futter / Chuck Ø 250 mm︱turning height 630 mm︱Control SIN840D ︱spindle turning speed - stepless 1 - 5.000 U/min︱power capacity at 40 % load 38,00 kW︱Spindle head DIN55026 - Size 6 ︱spindle diameter in front bearing 110 mm︱travel -x axis 300 mm︱feed X-axis 1 - 30.000 mm/min︱rapid traverse X-axis 30,00 m/min︱feed force X axis 9.000 N︱travel -z axis 740 mm︱feed Z-Axis 1 - 40.000 mm/min︱rapid traverse Z-axis 40,00 m/min︱feed force Z axis 10.000 N︱no. of tools in turret 1 5 + 1 ︱no. of tools in turret 2 5 + 1 ︱tool taper HSK-C63/F80 ︱total power requirement 50,00 kW︱
          Vertical lathe with SIEMENS SINUMERIK840D control; C-axis; driven tools; probe; loading device; chip conveyor; tailstock. workpiece gripper in machine for max. Ø90mm.
            turning diameter max. 140 mm
            swing diameter Futter / Chuck Ø 250 mm
            turning height 630 mm
            Control SIN840D
            spindle turning speed - stepless 1 - 5.000 U/min
            power capacity at 40 % load 38,00 kW
            Spindle head DIN55026 - Size 6
            spindle diameter in front bearin. 110 mm
            travel -x axis 300 mm
            feed X-axis 1 - 30.000 mm/min
            rapid traverse X-axis 30,00 m/min
            feed force X axis 9.000 N
            travel -z axis 740 mm
            feed Z-Axis 1 - 40.000 mm/min
            rapid traverse Z-axis 40,00 m/min
            feed force Z axis 10.000 N
            no. of tools in turret 1 5 + 1
            no. of tools in turret 2 5 + 1
            tool taper HSK-C63/F80
            total power requirement 50,00 kW
            Description :
            Vertical lathe with SIEMENS SINUMERIK840D control; C-axis; driven tools;
            probe; loading device; chip conveyor; tailstock.
            workpiece gripper in machine for max. Ø90mm.
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VL 6


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8069 · Vertical Turning Machine

          EMAG - VL 6 - - 2015 - Fanuc 32 iB

          Technical details
          turning diameter max. 420 mm︱turning height max. 250 mm︱Control Fanuc 32 iB ︱max. workpiecediameter 300 mm︱max. workpiece height 250 mm︱max. workpiece weight 205 kg︱ ︱Main spindle: ︱Max. rpm 3.100 min/-1︱power capacity - main spindel 39 / 28 kW︱max. Torque 460 Nm︱spindle bearing diameter 140 mm︱spindle nose 8 / DIN 55026 ︱C-Axis 0,01 °︱ ︱turret: ︱number of toolpositions 12 pos.︱tool taper VDI 40 DIN 69880︱Shank diameter 40 mm︱Number of driven toolspositions 12 pos.︱
          CNC-Pick-Up-Vertical-Lathe EMAG - VL 6 - WITHOUT chuck
            turning diameter max. 420 mm
            turning height max. 250 mm
            Control Fanuc 32 iB
            max. workpiecediameter 300 mm
            max. workpiece height 250 mm
            max. workpiece weight 205 kg
            Max. rpm 3.100 min/-1
            power capacity - main spindel 39 / 28 kW
            max. Torque 460 Nm
            spindle bearing diameter 140 mm
            spindle nose 8 / DIN 55026
            C-Axis 0,01 °
            number of toolpositions 12 pos.
            tool taper VDI 40 DIN 69880
            Shank diameter 40 mm
            Number of driven toolspositions 12 pos.
            Description :
            CNC-Pick-Up-Vertical-Lathe
            EMAG - VL 6

            - WITHOUT chuck
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VTC 100-4


          • IVW GMBH
          • Niederrheinstr.298
          • 40489 Düsseldorf
          • Deutschland

          • (0049)211-4184428
            (0049)211-4184430
          • cd@ivwgmbh.com
            www.ivwgmbh.com
          #1088-E00562 · Vertical Turning Machine

          EMAG - VTC 100-4 - - 2014 - Siemens 840 D

          Technical details
          turning diameter 100 mm︱swing diameter 120 mm︱turning height 400 mm︱Control Siemens 840 D ︱total power requirement 44 kW︱weight of the machine ca. 6 t︱dimensions of the machine ca. 2.5 x 2.5 x 2.2 m︱
            turning diameter 100 mm
            swing diameter 120 mm
            turning height 400 mm
            Control Siemens 840 D
            total power requirement 44 kW
            weight of the machine ca. 6 t
            dimensions of the machine ca. 2.5 x 2.5 x 2.2 m
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VTC 250-4 D


          • IVW GMBH
          • Niederrheinstr.298
          • 40489 Düsseldorf
          • Deutschland

          • (0049)211-4184428
            (0049)211-4184430
          • cd@ivwgmbh.com
            www.ivwgmbh.com
          #1088-E00563 · Vertical Turning Machine

          EMAG - VTC 250-4 D - - 2014 - Siemens 840 D

          Technical details
          turning diameter 250 mm︱swing diameter 300 mm︱turning height 400 mm︱Control Siemens 840 D ︱total power requirement 43 kW︱weight of the machine ca. 7 t︱dimensions of the machine ca. 3 x 3 x 2.5 m︱
            turning diameter 250 mm
            swing diameter 300 mm
            turning height 400 mm
            Control Siemens 840 D
            total power requirement 43 kW
            weight of the machine ca. 7 t
            dimensions of the machine ca. 3 x 3 x 2.5 m
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VTC 250


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17427 · Vertical Turning Machine

          EMAG - VTC 250 - - 2013 - SIN840D

          Technical details
          turning diameter max. 140 mm︱swing diameter Futter / Chuck Ø 250 mm︱turning height 630 mm︱Control SIN840D ︱spindle turning speed - stepless 1 - 5.000 U/min︱power capacity at 40 % load 38,00 kW︱Spindle head DIN55026 - Size 6 ︱spindle diameter in front bearing 110 mm︱travel -x axis 300 mm︱feed X-axis 1 - 30.000 mm/min︱rapid traverse X-axis 30,00 m/min︱feed force X axis 9.000 N︱travel -z axis 740 mm︱feed Z-Axis 1 - 40.000 mm/min︱rapid traverse Z-axis 40,00 m/min︱feed force Z axis 10.000 N︱no. of tools in turret 1 5 + 1 ︱no. of tools in turret 2 5 + 1 ︱tool taper HSK-C63/F80 ︱total power requirement 50,00 kW︱
          Vertical lathe with SIEMENS SINUMERIK840D control; C-axis; driven tools; probe; loading device; chip conveyor; tailstock. workpiece gripper in machine for max. Ø90mm.
            turning diameter max. 140 mm
            swing diameter Futter / Chuck Ø 250 mm
            turning height 630 mm
            Control SIN840D
            spindle turning speed - stepless 1 - 5.000 U/min
            power capacity at 40 % load 38,00 kW
            Spindle head DIN55026 - Size 6
            spindle diameter in front bearin. 110 mm
            travel -x axis 300 mm
            feed X-axis 1 - 30.000 mm/min
            rapid traverse X-axis 30,00 m/min
            feed force X axis 9.000 N
            travel -z axis 740 mm
            feed Z-Axis 1 - 40.000 mm/min
            rapid traverse Z-axis 40,00 m/min
            feed force Z axis 10.000 N
            no. of tools in turret 1 5 + 1
            no. of tools in turret 2 5 + 1
            tool taper HSK-C63/F80
            total power requirement 50,00 kW
            Description :
            Vertical lathe with SIEMENS SINUMERIK840D control; C-axis; driven tools;
            probe; loading device; chip conveyor; tailstock.
            workpiece gripper in machine for max. Ø90mm.
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VTC 250


          • IVW GMBH
          • Niederrheinstr.298
          • 40489 Düsseldorf
          • Deutschland

          • (0049)211-4184428
            (0049)211-4184430
          • cd@ivwgmbh.com
            www.ivwgmbh.com
          #1088-E00564 · Vertical Turning Machine

          EMAG - VTC 250 - - 2012 - Siemens 840 D

          Technical details
          turning diameter 250 mm︱swing diameter 300 mm︱turning height 400 mm︱Control Siemens 840 D ︱total power requirement 45 kW︱weight of the machine ca. 7 t︱dimensions of the machine ca. 3 x 3 x 2.5 m︱
            turning diameter 250 mm
            swing diameter 300 mm
            turning height 400 mm
            Control Siemens 840 D
            total power requirement 45 kW
            weight of the machine ca. 7 t
            dimensions of the machine ca. 3 x 3 x 2.5 m
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine SCHERER-FEINBAU VDZ 220 DS


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17085 · Vertical Turning Machine

          SCHERER-FEINBAU - VDZ 220 DS - - 2012 - Indramat MTX

          Technical details
          turning diameter 300 mm︱x-travel 626 mm︱z-travel 250 mm︱chucking diameter 250 mm︱rapid traverse X-axis 60 m/min︱rapid traverse Z-axis 30 m/min︱spindle motor 38 kW︱spindle head A6 ︱spindle turning speed - stepless 5500 U/min︱spindle diameter in front bearing 120 mm︱Control Indramat MTX ︱dimensions of the machine ca. 3,9 x 3,4 x 3 m︱weight of the machine ca. 16 t︱
          equipped with: - CNC control Rexroth-Indramat MTX - Round table loading device - 2 turret Sauter 0.5.440.220 12-fold (VDI 40) machine dismantled and stored.
            turning diameter 300 mm
            x-travel 626 mm
            z-travel 250 mm
            chucking diameter 250 mm
            rapid traverse X-axis 60 m/min
            rapid traverse Z-axis 30 m/min
            spindle motor 38 kW
            spindle head A6
            spindle turning speed - stepless 5500 U/min
            spindle diameter in front bearin. 120 mm
            Control Indramat MTX
            dimensions of the machine ca. 3,9 x 3,4 x 3 m
            weight of the machine ca. 16 t
            Description :
            equipped with:
            - CNC control Rexroth-Indramat MTX
            - Round table loading device
            - 2 turret Sauter 0.5.440.220 12-fold (VDI 40)

            machine dismantled and stored.
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VL5i


          • Meister Maschinen
          • Overhagener Weg 44
          • 59597 Erwitte
          • Deutschland

          • +49 (0) 2943-870946
            +49 (0) 2943-870885
          • info@meister-maschinen.com
            www.meister-maschinen.com
          #2005-102007 · Vertical Turning Machine

          EMAG - VL5i - - 2011 - Fanuc

          Technical details
          turning diameter mm︱swing diameter mm︱turning height mm︱total power requirement kW︱weight of the machine ca. t︱required space m︱
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VSC 250


          • IVW GMBH
          • Niederrheinstr.298
          • 40489 Düsseldorf
          • Deutschland

          • (0049)211-4184428
            (0049)211-4184430
          • cd@ivwgmbh.com
            www.ivwgmbh.com
          #1088-E00572 · Vertical Turning Machine

          EMAG - VSC 250 - - 2010 - Siemens 840 D

          Technical details
          turning diameter 250 mm︱swing diameter 300 mm︱turning height 200 mm︱Control Siemens 840 D ︱total power requirement 43 kW︱weight of the machine ca. 7 t︱dimensions of the machine ca. 2 x 2.5 x 3 m︱
            turning diameter 250 mm
            swing diameter 300 mm
            turning height 200 mm
            Control Siemens 840 D
            total power requirement 43 kW
            weight of the machine ca. 7 t
            dimensions of the machine ca. 2 x 2.5 x 3 m
          Datasheet
          Request / Contact

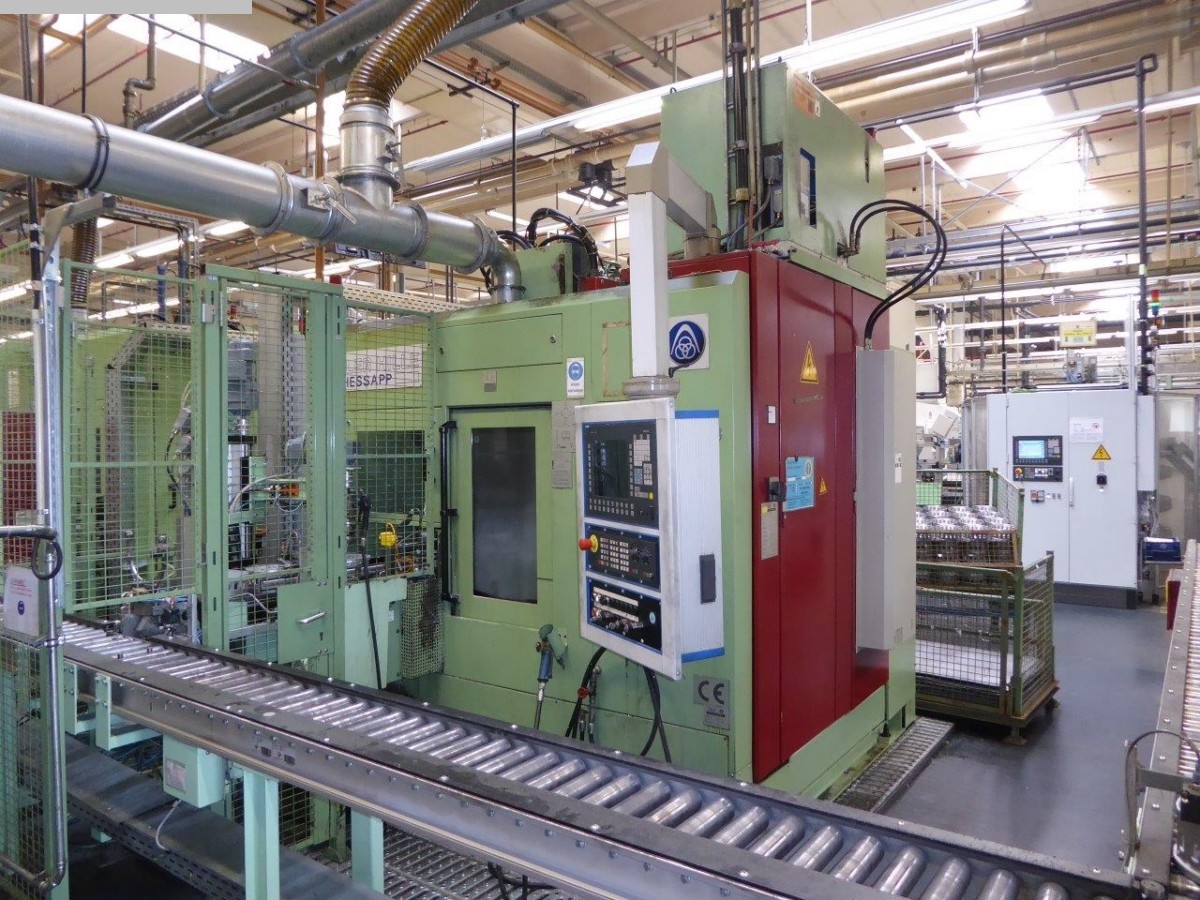

          used Lathes Vertical Turning Machine HESSAPP DVT 550 L


          • Leyendecker & Hollmann GmbH
          • Konrad-Zuse-Str. 5
          • 40789 Monheim
          • Deutschland

          • +49 (2173) 22 55 0
            +49 (2173) 25627
          • info@LHmachine.com
            www.LHmachine.com
          #1083-02964 · Vertical Turning Machine

          HESSAPP - DVT 550 L - - 2009 - Siemens 840D

          Technical details
          turning diameter 550 mm︱swing diameter 550 mm︱turning height 450 mm︱control Siemens 840D ︱turning spindle ︱spindle head nach DIN55026 A11︱spindle diameter in front bearing 180 mm︱Spindle speed min. 750 U/min︱Spindle speed max. 2800 U/min︱capacity at 100% load 65 kW︱capacity at 40% load 80 kW︱feed 30000 mm/min︱rapid speed 60000 mm/min︱travel -y axis 450 mm︱travel -z axis 350 mm︱total power requirement 110 kW︱weight of the machine ca. 25 t︱
          First class condition Equipment / Accessories: - operating hours: approx. 33750 h - CNC SIEMENS 840D - both revolver are equipped with tool drive
            turning diameter 550 mm
            swing diameter 550 mm
            turning height 450 mm
            control Siemens 840D
            spindle head nach DIN55026 A11
            spindle diameter in front bearin. 180 mm
            Spindle speed min. 750 U/min
            Spindle speed max. 2800 U/min
            capacity at 100% load 65 kW
            capacity at 40% load 80 kW
            feed 30000 mm/min
            rapid speed 60000 mm/min
            travel -y axis 450 mm
            travel -z axis 350 mm
            total power requirement 110 kW
            weight of the machine ca. 25 t
            Description :
            First class condition

            Equipment / Accessories:
            - operating hours: approx. 33750 h
            - CNC SIEMENS 840D
            - both revolver are equipped with tool drive
          265.000 €
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine GILDEMEISTER CTV250


          • Meister Maschinen
          • Overhagener Weg 44
          • 59597 Erwitte
          • Deutschland

          • +49 (0) 2943-870946
            +49 (0) 2943-870885
          • info@meister-maschinen.com
            www.meister-maschinen.com
          #2005-102010 · Vertical Turning Machine

          GILDEMEISTER - CTV250 - - 2009 - Siemens 840D

          Technical details
          turning diameter mm︱swing diameter 320 mm︱turning height mm︱total power requirement 32 kW︱weight of the machine ca. 5.5 t︱required space m︱
            swing diameter 320 mm
            total power requirement 32 kW
            weight of the machine ca. 5.5 t
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine MAG HESSAPP DVH 450E


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17774 · Vertical Turning Machine

          MAG HESSAPP - DVH 450E - - 2008 - Fanuc 21i TB

          Technical details
          turning diameter 400 / 450 mm︱swing diameter 450 mm︱turning height 450 mm︱control Fanuc 21i TB ︱spindle diameter in front bearing 150 mm︱feed range 0,1 - 20000 mm/min︱rapid traverse 45/30 m/min︱spindle motor 31 / 45 kW︱spindle turning speed range 4000 U/min︱x-travel 450 mm︱z-travel 450 mm︱total power requirement 110 kW︱weight of the machine ca. 13,5 t︱dimensions of the machine ca. m︱
          equipped witht: - CNC Control Fanuc 21i TB - motorized Revolverhead (12-fold - VDI 50) - HD coolant (40bar) - Paperband Filter - Chip Cnveyor - Part Loader (15 pallets) - C-Axis - Live Tools approx 29.000h
            turning diameter 400 / 450 mm
            swing diameter 450 mm
            turning height 450 mm
            control Fanuc 21i TB
            spindle diameter in front bearin. 150 mm
            feed range 0,1 - 20000 mm/min
            rapid traverse 45/30 m/min
            spindle motor 31 / 45 kW
            spindle turning speed range 4000 U/min
            x-travel 450 mm
            z-travel 450 mm
            total power requirement 110 kW
            weight of the machine ca. 13,5 t
            Description :
            equipped witht:
            - CNC Control Fanuc 21i TB
            - motorized Revolverhead (12-fold - VDI 50)
            - HD coolant (40bar)
            - Paperband Filter
            - Chip Cnveyor
            - Part Loader (15 pallets)
            - C-Axis
            - Live Tools

            approx 29.000h
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VL 5


          • Klaus Rosenboom GmbH
          • Oppenheimer Str. 19
          • 28307 Bremen

          • +49 (0) 4 21 / 33 30 10
            +49 (0) 4 21 / 48 70 45
          • info@rosenboom-wzm.de
            www.rosenboom-wzm.de
          #1021-47010 · Vertical Turning Machine

          EMAG - VL 5 - - 2007 - Fanuc 18 iTB

          Technical details
          turning diameter 220 mm︱turning height 110 mm︱Control Fanuc 18 iTB ︱max. workpiecediameter 220 mm︱max. workpiece height 110 mm︱max. workpiece weight 40 kg︱Max. rpm 4500 min/-1︱power capacity - main spindel 27/18 kW︱max. Torque 303 Nm︱spindle bearing diameter 110 mm︱spindle nose 6 / DIN 55026 ︱C-Axis 0,01 °︱number of toolpositions 12 pos.︱tool taper VDI 40 DIN 69880︱Number of driven toolspositions 12 pos.︱max. speed driven tool stations 6.000 min/-1︱max. Torque 37 Nm︱x-axis 570 mm︱z-axis 200 mm︱rapid traverse X: 60 / Z: 30 m/min︱
          CNC-Pick-Up-Vertical-Lathe with driven tools - 13.480 h spindle on - chip conveyor - 3 jaw chuck Ø 200 mm - 4 driven tool holder - some fixed toolholder - parts belt for 14- 30 position
            turning diameter 220 mm
            turning height 110 mm
            Control Fanuc 18 iTB
            max. workpiecediameter 220 mm
            max. workpiece height 110 mm
            max. workpiece weight 40 kg
            Max. rpm 4500 min/-1
            power capacity - main spindel 27/18 kW
            max. Torque 303 Nm
            spindle bearing diameter 110 mm
            spindle nose 6 / DIN 55026
            C-Axis 0,01 °
            number of toolpositions 12 pos.
            tool taper VDI 40 DIN 69880
            Number of driven toolspositions 12 pos.
            max. speed driven tool stations 6.000 min/-1
            max. Torque 37 Nm
            x-axis 570 mm
            z-axis 200 mm
            rapid traverse X: 60 / Z: 30 m/min
            Description :
            CNC-Pick-Up-Vertical-Lathe with driven tools

            - 13.480 h spindle on
            - chip conveyor
            - 3 jaw chuck Ø 200 mm
            - 4 driven tool holder
            - some fixed toolholder
            - parts belt for 14- 30 position

          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine SCHERER-FEINBAU VDZ 420 XL/R


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17086 · Vertical Turning Machine

          SCHERER-FEINBAU - VDZ 420 XL/R - - 2007 - Siemens Sinumerik 840 D

          Technical details
          turning diameter 550 mm︱x-travel 1785 mm︱z-travel 380 mm︱chucking diameter 550 mm︱rapid traverse X-axis 60 m/min︱rapid traverse Z-axis 30 m/min︱spindle motor 64,4 kW︱spindle head A8 ︱spindle turning speed - stepless 3500 U/min︱spindle diameter in front bearing 150 mm︱Control Siemens Sinumerik 840 D ︱capacity 80 kW︱weight of the machine ca. 17 t︱dimensions of the machine ca. 2,8 x 3,55 x 3,5 m︱
          equipped with: - CNC Control Siemens Sinumerik 840 D with Hard Disk Drive - Siemens Simodrive 611 - Röhm Chuck OVS 200 (max 80bar) - Toolrevolver 12-fold (VDI 50) 2 machines available
            turning diameter 550 mm
            x-travel 1785 mm
            z-travel 380 mm
            chucking diameter 550 mm
            rapid traverse X-axis 60 m/min
            rapid traverse Z-axis 30 m/min
            spindle motor 64,4 kW
            spindle head A8
            spindle turning speed - stepless 3500 U/min
            spindle diameter in front bearin. 150 mm
            Control Siemens Sinumerik 840 D
            capacity 80 kW
            weight of the machine ca. 17 t
            dimensions of the machine ca. 2,8 x 3,55 x 3,5 m
            Description :
            equipped with:
            - CNC Control Siemens Sinumerik 840 D with Hard Disk Drive
            - Siemens Simodrive 611
            - Röhm Chuck OVS 200 (max 80bar)
            - Toolrevolver 12-fold (VDI 50)

            2 machines available
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VSC 400 DS


          • IVW GMBH
          • Niederrheinstr.298
          • 40489 Düsseldorf
          • Deutschland

          • (0049)211-4184428
            (0049)211-4184430
          • cd@ivwgmbh.com
            www.ivwgmbh.com
          #1088-E00566 · Vertical Turning Machine

          EMAG - VSC 400 DS - - 2006 - Siemens 840 D

          Technical details
          turning diameter 400 mm︱swing diameter 400 mm︱turning height 250 mm︱Control Siemens 840 D ︱total power requirement 50 kW︱weight of the machine ca. 9 t︱dimensions of the machine ca. 2.5 x 3 x 2.8 m︱
            turning diameter 400 mm
            swing diameter 400 mm
            turning height 250 mm
            Control Siemens 840 D
            total power requirement 50 kW
            weight of the machine ca. 9 t
            dimensions of the machine ca. 2.5 x 3 x 2.8 m
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine MAUS MTV 511


          • Leyendecker & Hollmann GmbH
          • Konrad-Zuse-Str. 5
          • 40789 Monheim
          • Deutschland

          • +49 (2173) 22 55 0
            +49 (2173) 25627
          • info@LHmachine.com
            www.LHmachine.com
          #1083-02966 · Vertical Turning Machine

          MAUS - MTV 511 - - 2006 - Siemens 840 D

          Technical details
          turning diameter 600 mm︱swing diameter ca. 800 mm︱turning height 700 mm︱Control Siemens 840 D ︱x-travel 1620 mm︱y-travel 700 mm︱total power requirement 131 kW︱weight of the machine ca. 15 t︱dimensions of the machine ca. 4,5 x 3 x 3,5 m︱
          equipment features/ accessories : This machine is integrated together with another Maus MTV 511 in a production cell. The production cell includes also a workpiece storage, and a workpiece loading/ unloading device. It is possible to buy a single machine as well as the complete production cell.
            turning diameter 600 mm
            swing diameter ca. 800 mm
            turning height 700 mm
            Control Siemens 840 D
            x-travel 1620 mm
            y-travel 700 mm
            total power requirement 131 kW
            weight of the machine ca. 15 t
            dimensions of the machine ca. 4,5 x 3 x 3,5 m
            Description :
            equipment features/ accessories :

            This machine is integrated together with another Maus MTV 511 in a production
            cell. The production cell includes also a workpiece storage, and a workpiece
            loading/ unloading device.

            It is possible to buy a single machine as well as the complete production cell.
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine DMG-GILDEMEISTER CTV 400 Linear


          • Knops Werkzeugmaschinen
          • Ronsdorfer Str. 143
          • 40233 Düsseldorf
          • Deutschland

          • 0211 8793140
            0211 8793134
          • maschinen@knops.de
            www.knops.de
          #1022-2104 · Vertical Turning Machine

          DMG-GILDEMEISTER - CTV 400 Linear - - 2006 - Siemens 840 D poweline

          Technical details
          turning diameter 505 mm︱swing diameter 505 mm︱turning height 340 mm︱Control Siemens 840 D poweline ︱spindle turning speed - stepless 10 - 4000 U/min︱x-axis 1620 mm︱z-axis 340 mm︱rapid power traverse in X-and Z direction 90 / 40 m/min︱main drive motor 36 kW︱max. torque on the spindle 560 Nm︱turning speed range - milling max. 4000 U/min︱power capacity - milling spindle 11,3 kW︱total power requirement 50 kVA︱weight of the machine ca. 14 t︱dimensions of the machine ca. 7,0 x 4,3 x 3,5 m︱
          First installation 20th August 2007. Equipped with: - CNC control Siemens 840 D powerline - C-axis - 12-station turret (VDI 50) with driven stations - 3-jaw power chuck, diameter 315 mm - Workpiece loading device EWAB PS 820 with 8 off tables (diameter approx. 470 mm), workpiece weight max. 100 kg, band speed 8 m/min. - Workpiece measuring probe Renishaw - Swarf conveyor - Coolant equipment - Coolant through spindle - 8 x standard-toolholders (4x external + 4x internal) - 1 x driven toolholder In February 2019 the turret was overhauled, cost more than 12.000 Euros.
            turning diameter 505 mm
            swing diameter 505 mm
            turning height 340 mm
            Control Siemens 840 D poweline
            spindle turning speed - stepless 10 - 4000 U/min
            x-axis 1620 mm
            z-axis 340 mm
            rapid power traverse in X-and Z . 90 / 40 m/min
            main drive motor 36 kW
            max. torque on the spindle 560 Nm
            turning speed range - milling max. 4000 U/min
            power capacity - milling spindle 11,3 kW
            total power requirement 50 kVA
            weight of the machine ca. 14 t
            dimensions of the machine ca. 7,0 x 4,3 x 3,5 m
            Description :
            First installation 20th August 2007.

            Equipped with:
            - CNC control Siemens 840 D powerline
            - C-axis
            - 12-station turret (VDI 50) with driven stations
            - 3-jaw power chuck, diameter 315 mm
            - Workpiece loading device EWAB PS 820 with 8 off tables (diameter approx. 470
            mm), workpiece weight max. 100 kg, band speed 8 m/min.
            - Workpiece measuring probe Renishaw
            - Swarf conveyor
            - Coolant equipment
            - Coolant through spindle
            - 8 x standard-toolholders (4x external + 4x internal)
            - 1 x driven toolholder

            In February 2019 the turret was overhauled, cost more than 12.000 Euros.
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VSC 400


          • IVW GMBH
          • Niederrheinstr.298
          • 40489 Düsseldorf
          • Deutschland

          • (0049)211-4184428
            (0049)211-4184430
          • cd@ivwgmbh.com
            www.ivwgmbh.com
          #1088-E00565 · Vertical Turning Machine

          EMAG - VSC 400 - - 2003 - Siemens 840 D

          Technical details
          turning diameter 400 mm︱swing diameter 420 mm︱turning height 250 mm︱Control Siemens 840 D ︱total power requirement 45 kW︱weight of the machine ca. 9 t︱dimensions of the machine ca. 2.5 x 3 x 2.8 m︱
            turning diameter 400 mm
            swing diameter 420 mm
            turning height 250 mm
            Control Siemens 840 D
            total power requirement 45 kW
            weight of the machine ca. 9 t
            dimensions of the machine ca. 2.5 x 3 x 2.8 m
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine GILDEMEISTER CTV 250 V3


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8329 · Vertical Turning Machine

          GILDEMEISTER - CTV 250 V3 - - 2003 - Sinumerik 840 D pl Siemens

          Technical details
          turning diameter 250 mm︱turning height 300 mm︱Control Sinumerik 840 D pl Siemens︱max. swing diameter 300 mm︱axis stroke: ︱x-axis 1.100 mm︱z-axis 300 mm︱Main spindle: ︱turning speed range - main spindle 25 - 5.000 min/-1︱power capacity - main spindel 27 / 20 kW︱max. Torque 284 Nm︱spindle head 170h5 ︱spindle diameter in front bearing 120 mm︱spindle bore 79 mm︱max. bar capacity 65 mm︱usable bar diameter ( - ) mm︱chucking diameter 210, max. 250 mm︱C-Axis 360 °︱turret: ︱number of toolpositions 12 pos.︱
          CNC - Vertical Lathe GILDEMEISTER - CTV 250 V3 - incl. pallet-system with 26 frames (up to 52 pos. possible) - C-Axis / Tool-Drive - function plate - right oriented machine version
            turning diameter 250 mm
            turning height 300 mm
            Control Sinumerik 840 D pl Siemens
            max. swing diameter 300 mm
            x-axis 1.100 mm
            z-axis 300 mm
            turning speed range - main spind. 25 - 5.000 min/-1
            power capacity - main spindel 27 / 20 kW
            max. Torque 284 Nm
            spindle head 170h5
            spindle diameter in front bearin. 120 mm
            spindle bore 79 mm
            max. bar capacity 65 mm
            usable bar diameter ( - ) mm
            chucking diameter 210, max. 250 mm
            C-Axis 360 °
            number of toolpositions 12 pos.
            Description :
            CNC - Vertical Lathe
            GILDEMEISTER - CTV 250 V3

            - incl. pallet-system with 26 frames (up to 52 pos. possible)
            - C-Axis / Tool-Drive
            - function plate
            - right oriented machine version


          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine Scherer Feinbau VDZ120


          • Meister Maschinen
          • Overhagener Weg 44
          • 59597 Erwitte
          • Deutschland

          • +49 (0) 2943-870946
            +49 (0) 2943-870885
          • info@meister-maschinen.com
            www.meister-maschinen.com
          #2005-102020 · Vertical Turning Machine

          Scherer Feinbau - VDZ120 - - 2003 - Siemens 840D

          Technical details
          turning diameter 180 mm︱swing diameter 200 mm︱turning height mm︱total power requirement 41 kW︱weight of the machine ca. 7 t︱required space m︱
            turning diameter 180 mm
            swing diameter 200 mm
            total power requirement 41 kW
            weight of the machine ca. 7 t
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine EMAG VSC 250


          • FIMOTEC
          • 20 RUE AMPERE
          • 67500 HAGUENAU
          • Frankreich

          • +33 (0)388720247
            +33 (0)388936066
          • FIMOTEC@WANADOO.FR
            WWW.FIMOTEC.FR
          #1105-02954 · Vertical Turning Machine

          EMAG - VSC 250 - - 2002 - FANUC 18 IT

          Technical details
          turning diameter 140 mm︱swing diameter 250 mm︱turning height 630 mm︱Control FANUC 18 IT ︱spindle turning speed - stepless 1 - 5.000 U/min︱power capacity at 40 % load 38,00 kW︱Spindle head DIN55026 - Size 6 ︱spindle diameter in front bearing 110 mm︱travel -x axis 300 mm︱feed X-axis 1 - 30.000 mm/min︱rapid traverse X-axis 30,00 m/min︱feed force X axis 9.000 N︱travel -z axis 740 mm︱feed Z-Axis 1 - 40.000 mm/min︱rapid traverse Z-axis 40,00 m/min︱feed force Z axis 10.000 N︱no. of tools in turret 1 5 + 1 ︱no. of tools in turret 2 5 + 1 ︱tool taper HSK-C63/F80 ︱Number of working hours 8.414 h︱
          Vertical lathe with FANUC 18 IT control, C-axis, driven tools, loading device, chip conveyor, workpiece gripper in machine for max. Ø90mm.
            turning diameter 140 mm
            swing diameter 250 mm
            turning height 630 mm
            Control FANUC 18 IT
            spindle turning speed - stepless 1 - 5.000 U/min
            power capacity at 40 % load 38,00 kW
            Spindle head DIN55026 - Size 6
            spindle diameter in front bearin. 110 mm
            travel -x axis 300 mm
            feed X-axis 1 - 30.000 mm/min
            rapid traverse X-axis 30,00 m/min
            feed force X axis 9.000 N
            travel -z axis 740 mm
            feed Z-Axis 1 - 40.000 mm/min
            rapid traverse Z-axis 40,00 m/min
            feed force Z axis 10.000 N
            no. of tools in turret 1 5 + 1
            no. of tools in turret 2 5 + 1
            tool taper HSK-C63/F80
            Number of working hours 8.414 h
            Description :
            Vertical lathe with FANUC 18 IT control, C-axis, driven tools,
            loading device, chip conveyor,
            workpiece gripper in machine for max. Ø90mm.
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine HESSAPP DVH 250


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-16138 · Vertical Turning Machine

          HESSAPP - DVH 250 - - 2002 - Siemens Sinumerik 840 D

          Technical details
          turning diameter 200 mm︱swing diameter 250 mm︱turning height 350 mm︱control Siemens Sinumerik 840 D ︱spindle diameter in front bearing 100 mm︱feed range 0,1 - 20000 mm/min︱rapid traverse 20 m/min︱stroke of vertical slide 300 mm︱spindle head DIN 55026 - Size A 650 - 6500 1/min︱Speed range drive tool 0 - 3000 1/min︱total power requirement 40 kW︱weight of the machine ca. 8 t︱dimensions of the machine ca. 4,5 x 4,0 x 3,5 m︱
          equipped with: - CNC Control Siemens 840 D - Tool turret for 12 tools VDI 40 - driven tools on station 1/4/7/10 - conveyor belt - no coolant system (machines was added to a centrelized coolant system)
            turning diameter 200 mm
            swing diameter 250 mm
            turning height 350 mm
            control Siemens Sinumerik 840 D
            spindle diameter in front bearin. 100 mm
            feed range 0,1 - 20000 mm/min
            rapid traverse 20 m/min
            stroke of vertical slide 300 mm
            spindle head DIN 55026 - Size A 6
            50 - 6500 1/min
            Speed range drive tool 0 - 3000 1/min
            total power requirement 40 kW
            weight of the machine ca. 8 t
            dimensions of the machine ca. 4,5 x 4,0 x 3,5 m
            Description :
            equipped with:
            - CNC Control Siemens 840 D
            - Tool turret for 12 tools VDI 40
            - driven tools on station 1/4/7/10
            - conveyor belt
            - no coolant system (machines was added to a centrelized coolant system)
          Datasheet
          Request / Contact
          used Lathes Vertical Turning Machine WEISSER Univertor A-90L


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-16745 · Vertical Turning Machine

          WEISSER - Univertor A-90L - - 2001 - SINUMERIK 840D

          Technical details
          turning diameter 200 mm︱turning length 120 mm︱turning height 120 mm︱control SINUMERIK 840D ︱x-axis 400 mm︱z-axis 280 mm︱rapid power traverse in X-and Z direction 60 / 30 m/min︱feeding force 10 / 8 kN︱turning speeds 3000 U/min︱front bearing 90 mm︱total power requirement kW︱weight of the machine ca. 11 t︱dimensions of the machine ca. 4,1 x 2,2 x 2,5 m︱
          SMW AUTOBLOC 3 chaw cuck Ø 210 mm
            turning diameter 200 mm
            turning length 120 mm
            turning height 120 mm
            control SINUMERIK 840D
            x-axis 400 mm
            z-axis 280 mm
            rapid power traverse in X-and Z . 60 / 30 m/min
            feeding force 10 / 8 kN
            turning speeds 3000 U/min
            front bearing 90 mm
            weight of the machine ca. 11 t
            dimensions of the machine ca. 4,1 x 2,2 x 2,5 m
            Description :
            SMW AUTOBLOC 3 chaw cuck Ø 210 mm
          Datasheet
          Request / Contact

          Find used measuring equipment and more at LagerMaschinen

          Find the best in used machines at LagerMaschinen

          The term 'measuring equipment' can refer to a range of different tools used to collect a diverse range of data. Conventional measuring equipment provides information about height, weight, distance, etc., while more sophisticated tools can be used to determine 3D dimensions, density, rigidity, smoothness and so on. Measuring equipment is also critical to a huge range of sectors from the automotive industry to the pharmaceutical manufacturing, from agriculture to construction. Find the best used measuring equipment at LagerMaschinen.

          Measuring machines for every possible need

          If you're in the market for industrial measuring equipment, you've come to the right place at LagerMaschinen. No matter what industry you specialize in, you'll be able to browse for measuring equipment to suit your specific business needs. In the field of metalworking, find used machines to measure the density, tensile strength or smoothness of your products. You can collect accurate data about structural dimensions if you work in the construction industry. Used machines are a great investment for anyone looking to save money without sacrificing quality.

          Shopping online is a smart way to save time and money

          Shopping online for used machines is the way of the future for industry professionals, business owners and home hobbyists alike. The days of spending endless hours on hold, sifting through hundreds of catalogues or travelling great distances to meet with sellers is a thing of the past. When you use LagerMaschinen's user-friendly interface, you guarantee yourself a hassle-free shopping experience. Sort results by price, location or model and find the best measuring equipment and more for your specific needs. It's never been easier.
