Floor Type Boring and Milling M-C - Hor.

spindle diameter 110 mm︱x-travel 4000 mm︱y-travel 2000 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

Stocknumber 1210014 Type of machine Floortype Boring Machine Make PEGARD Type AF11 Type of control Conventional Spindle diameter 110 mm X-stroke (mm) 4000 Y-stroke (mm) 2000 Z-stroke (mm) 300/750 Table dimensions (mm) 1200 x 1600 mm Table rotation (degrees) 360 Tool Taper Iso 50 Speeds (Rpm) 4 - 1000

spindle diameter 225 mm︱x-travel 8000 mm︱y-travel 5600 mm︱z-travel 2100 mm︱w-axis 1400 mm︱spindle turning speed - stepless 0-650 U/min︱spindle taper ISO 60 ︱feed stepless 5 - 3000 mm/min︱rapid traverse 5 m/min︱weight of the machine ca. 150 t︱dimensions of the machine ca. 12 x 5 x 8 m︱total power requirement 120 kW︱

---

Ram type horizontal boring machine was reconditioned and modernized in 2006, original yom was 1972. Control Siemens 840 C. Machine will come with tools and a vertical milling head.

spindle diameter 225 mm︱x-travel 8000 mm︱y-travel 5600 mm︱z-travel 2100 mm︱w-axis 1400 mm︱spindle turning speed - stepless 0-650 U/min︱spindle taper ISO 60 ︱feed stepless 5 - 3000 mm/min︱rapid traverse 5 m/min︱weight of the machine ca. 150 t︱dimensions of the machine ca. 12 x 5 x 8 m︱total power requirement 120 kW︱

---

Ram type horizontal boring machine was reconditioned and modernized in 2006, original yom was 1972. Control Siemens 840 C. Machine will come with tools and a vertical milling head.

spindle diameter 160 mm︱x-travel 10.000 mm︱y-travel 3.000 mm︱Control ︱total power requirement 120/63 spindel kW︱weight of the machine ca. 63 t︱dimensions of the machine ca. 15x3.85x7.36 m︱

---

Stocknumber 1210057 Type of machine CNC Floortype boring machine Make WOTAN Type Rapid 5C Build in 2004 Type of control HEIDENHAIN iTNC 530 Spindle diameter 160 mm X-stroke (mm) 10.000 Y-stroke (mm) 3.800 Z-stroke (mm) 700 W-stroke 700 mm Tool Taper Iso 50 Speeds (Rpm) 1,25 - 1250 Feeds (mm/R) 1 - 5000 mm/min Rapid feeds 5 mtr/min. Total Power (KW) 120 /spindel 83 Lenght (mm) 14.500 Width (mm) 3.850 Height (mm) 7.360 Weight 62.300 kg Additional information completely overhould in 2004 and retrofitted by Dorries Scharmann with CNC control HEIDENHAIN iTNC 530 - 4 different angular milling heads - hydrostatic spindle bearing - aerostatic guideways - coolant device - chip conveyor - oil cooler Film YouTube: https://www.youtube.com/watch?v=ks6D5rutslg

spindle diameter 150 mm︱x-travel 11.000 mm︱y-travel 2.800 mm︱z-travel 900 mm︱W-axis (movement quill) 800 mm︱Control SINUMERIK 840 C ︱Machining unit : ︱in hydrostatic design : ︱profile RAM 360 x 400 mm︱RAM movement (Z-axis) 900 mm︱spindle diameter 150 mm︱spindle movement (W-axis) 800 mm︱lowest position above table surface 0 mm︱spindle cone ISO 50 ︱spindle power S1 (100%) 60 kW︱max. torque at the spindle 2.900 Nm︱turning speed range - spindle 6-3.000 U/min︱max. feed 15.000 mm/min︱clamping surface floor plates (2 piece) 4.000 x 2.500 mm︱max. workpiece load 15.000 kg/m2︱

---

Design features X-Axis Slide for column with hydrostatic guideways on low-friction guideway plates. Drive system with Servomotor, Duplex-Pinions and Gear Rack. The pinions are pretensioned hydraulically for zero axial play. Spindle unit The high-precision RAM, made of meehanite cast iron in a rectangular shape, slides on hydrostatic wedge bars machined directly into the head unit. Inside the RAM runs - axially on bronze bearings - the boring quill. It is supported by front and rear angular contact ball bearings in high precision design. Accessories: 3D touchprobe Renishaw MP7 Chip conveyor between floor plates and X-bed Operator platform moving vertically Tool magazine with manipulator, 90 positions Tool breakage and wear monitoring (ARTIS) Movable Pick-up station 1+1 for speed milling head Speed milling head MG4, SK50, 13kW, i = 1:4 , M_max = 405Nm, U_max = 8,000 rpm

spindle diameter 130 mm︱x-travel 9000 mm︱y-travel 1800 mm︱z-travel 1000 mm︱B-axis (table) 3 U/min︱w-axis 1500 mm︱Control Siemens ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

spindle diameter 130 mm︱x-travel 2800 mm︱y-travel 2500 mm︱Control Heidenhain ︱total power requirement 57,4 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

spindle diameter 205 mm︱x-travel 10000 mm︱y-travel 2500 mm︱w-axis 500 mm︱spindle travel 1250 mm︱Control Heidenhain ︱type TNC 355 ︱spindle taper ISO 50 ︱transmission ratio 2 ︱feed - independent 0-3000 mm︱spindle motor 37 kW︱total power requirement 70 kW︱weight of the machine ca. t︱dimensions of the machine ca. 14,1x3,2x5,6 m︱

---

travel -x axis 13.000 mm︱travel -y axis 2.400 mm︱travel -z axis 1.200 mm︱spindle stroke 800 mm︱travel - v 1.900 mm︱control Siemens 880M ︱spindle diameter 150 mm︱number of spindle speeds 3.000 U/min︱dimensions of the machine ca. 10 x 25 m︱

---

Floor Type Boring and Milling M/C - Hor. | DöRRIES-SCHARMAN - EC2 The machine is in good condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: EC 2 | EC-2

spindle diameter 130 mm︱x-travel 5000 mm︱y-travel 3000 mm︱control Heidenhain TNC 426 ︱taper ISO 50 P.D.B. ︱w-axis 900 mm︱z-travel 500 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

spindle diameter 130 mm︱x-travel 9000 mm︱y-travel 3500 mm︱Control Siemens ︱type Sinumerik 850 M ︱spindle taper ISO 160 ︱turning speeds 2 - 1600 U/min︱power capacity 80 kW︱z-travel 1000 mm︱w-axis 900 mm︱total power requirement kW︱dimensions of the machine ca. m︱

---

Panel is optional and we charged extra

spindle diameter 130 mm︱x-travel 5000 mm︱y-travel 3000 mm︱control Heidenhain TNC 426 ︱taper ISO 50 P.D.B. ︱w-axis 900 mm︱z-travel 500 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

Right Angle Vertical Head Spindle Support Metal Way Covers Operator Platform

spindle diameter 160 mm︱x-axis 6000 mm︱y-axis 2500 mm︱z-axis 1180 mm︱b-axis 360 °︱V-axis 2450 mm︱ram: horizontal adjustment 750 mm︱spindle taper ISO 50 ︱surface area 2000x2500 mm︱max. load 25000 kg︱drilling depth in one stroke 1200 mm︱control Siemens 850 M ︱x-travel mm︱y-travel mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

spindle diameter 110 mm︱x-travel 4440 mm︱y-travel 1500 mm︱z-axis 400 mm︱turning speeds 7-1000 U/min︱Tool bore SK 50 ︱spindle stroke 800 mm︱digital readout ︱total power requirement kW︱weight of the machine ca. 15 t︱dimensions of the machine ca. m︱

---

optional with floor plate

spindle diameter 130 mm︱x-travel 6000 mm︱y-travel 2500 mm︱z-travel 900 mm︱w-axis 360 mm︱milling spindle / ram ISO 50 mm︱bore spindle turning speed range 6 - 900 U/min︱Control Heidenhain TNC 360 ︱weight of the machine ca. 35 t︱dimensions of the machine ca. 9 x 4 x 6 m︱

---

- CNC control HEIDENHAIN TNC 360 - facing Head - rotary table TI 1800, table surface 1800x2000 mm, table load 12500 kg, table move 1200 mm - no floor plates

spindle diameter 140 mm︱x-travel 7500 mm︱y-travel 2500 mm︱z-axis 800 mm︱w-axis 600 mm︱V-axis 1500 mm︱spindle taper ISO 50 ︱spindle turning speed range 4 - 1600 U/min︱rapid traverse feeds 10000 mm/min︱spindle drive motor 57 kW︱control HEIDENHAIN TNC426 ︱total power requirement 75 kW︱weight of the machine ca. 39 t︱dimensions of the machine ca. 11,5 x 3,5 x 6,05 m︱coolant ︱

---

- retrofit in 2000 with new HEIDNEHAIN TNC 426 control for 6 axis. - changer for 2 angular milling heads - tool changer for 60 tools - NC boring table FRORIEP, 1800 x 2000 mm, 16 to - RENISHAW measuring device with tracer head - chip conveyor - coolant through spindle

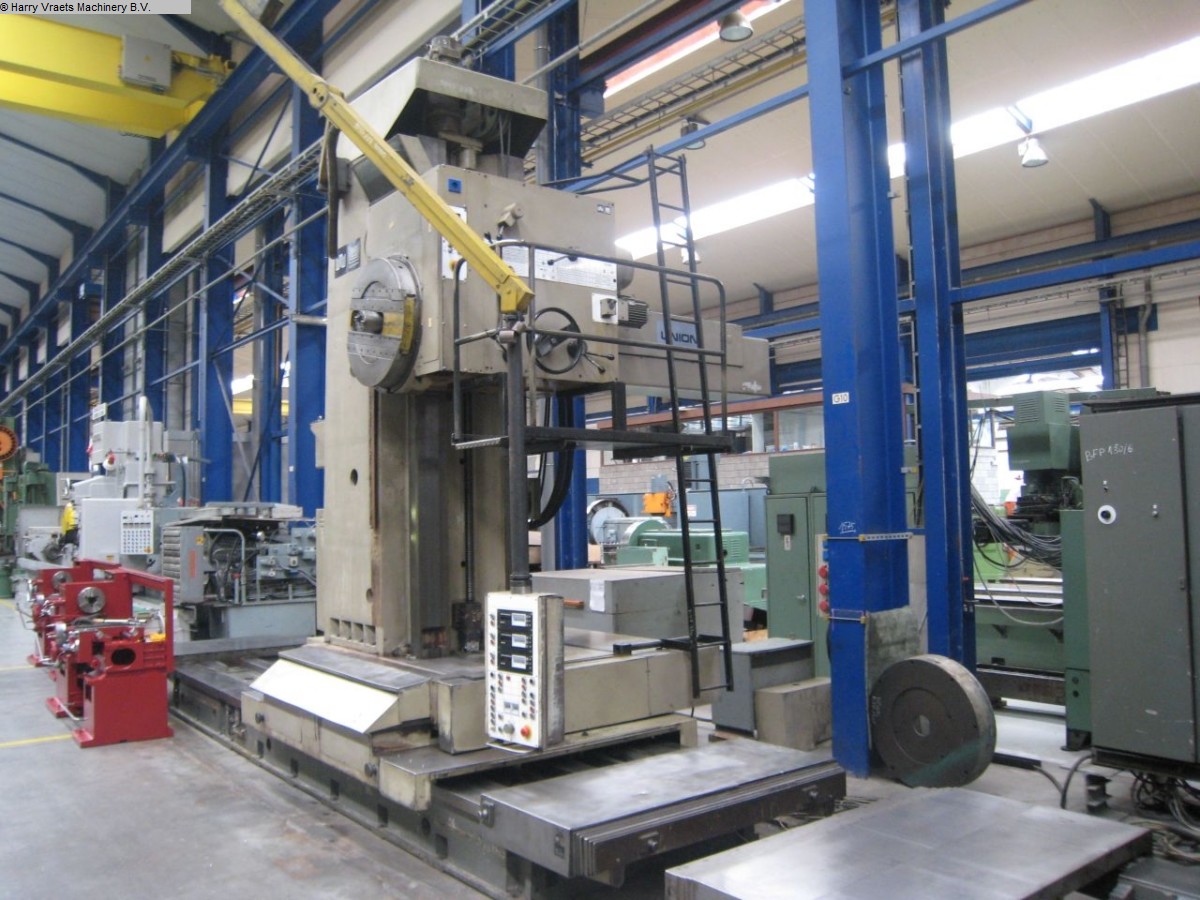

spindle diameter 125 mm︱x-travel 6000 mm︱y-travel 1800 mm︱spindle turning speed range 355 - 710 U/min︱spindle travel 1120 mm︱ 1600 x 1400 mm︱faceplate 800 mm︱table travel 1250 mm︱total power requirement 18 kW︱weight of the machine ca. 55 t︱dimensions of the machine ca. 6 x 3,5 x 3,5 m︱

---

equipped with: - digital readout 3-axes - Counterholder (with digital readout 2-axes) - Rotary table 1600 x 1400mm (360x 1°) - face plate with sleides - Central lubrication - 5 floor plates (3x 3000x1800mm & 2x 4600x1300mm) - Tools

spindle diameter 130 mm︱x-travel 7700 mm︱y-travel 1500 mm︱Control Siemens ︱type Sinumerik 840 C ︱spindle taper ISO 130 ︱turning speeds 1490 U/min︱power capacity 45 kW︱chip conveyor ︱Angle head ︱Angle head ︱Plate area 9000x6000 mm︱workpiece weight 100 t︱One direction thrust bearing ︱total power requirement kW︱dimensions of the machine ca. m︱

---

Panel is optional and we charged extra

spindle diameter 130 mm︱x-travel 7700 mm︱y-travel 1500 mm︱Control Siemens ︱type Sinumerik 840 C ︱spindle taper ISO 130 ︱turning speeds 1490 U/min︱power capacity 45 kW︱chip conveyor ︱Angle head ︱Angle head ︱Plate area 9000x6000 mm︱workpiece weight 100 t︱One direction thrust bearing ︱total power requirement kW︱dimensions of the machine ca. m︱

---

Panel is optional and we charged extra

spindle diameter 130 mm︱x-travel 2500 mm︱y-travel 1800 mm︱z-axis 350 mm︱W-axis (spindle longitudinal) 1100 mm︱spindle turning speed range 4,5 - 900 U/min︱total power requirement 30 kW︱weight of the machine ca. 52 t︱dimensions of the machine ca. - m︱

---

equipped with: - Face Plate / Slide 780mm - Floor plate 3,5 x 3,5m - Rotary Table 1800 x 1600mm - DRO - Angular Plates 1,4 x 1,5m

spindle diameter 125 mm︱x-travel 2500 mm︱y-travel 2100 mm︱spindle taper ISO 50 ︱spindle turning speed range 5-1000 U/min︱spindle travel 900 mm︱Radial face slide 650 mm︱radial face slide travel 250 mm︱angular milling head ︱rotary table: ︱table surface area 2000x2500 mm︱table height 800 mm︱table travel 1700 mm︱total power requirement kW︱weight of the machine ca. 25 t︱dimensions of the machine ca. m︱

---

Table, Floorplate, tools

spindle diameter 160 mm︱x-travel 3000 mm︱y-travel 2000 mm︱spindle stroke 1300 mm︱spindle taper ISO 50 ︱turning speeds 2-800 U/min︱spindle feeds: 0,03-12 mm/U︱rotary table: Union ︱type TT 2 mm︱table surface area 1800x2000 mm︱table-regulation 1250 mm︱rotation movement 360 Grad︱total power requirement 30 kW︱weight of the machine ca. 40 t︱dimensions of the machine ca. 6,5x7x5,1 m︱

---

Plate boring mill: Spindle stroke W-axis: 1300 mm Spindle mount: ISO 50 Spindle speed: 2-800 rpm Feeds: 0.03-12 mm / rev Rapid traverse: 2750 mm / min Boring table: Make: Union Type: TI 2 Dimensions: 1800x2000 mm Material weight max .: 12.5 t Rotatable: 360 degrees Telescopic cover

spindle diameter 125 mm︱x-travel 2360 mm︱y-travel 1570 mm︱z-travel 780 mm︱w-axis 410 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

spindle diameter 130 mm︱x-travel 3000 mm︱y-travel 2000 mm︱total power requirement 4,5 kW︱weight of the machine ca. 30 t︱

---

Spindle Ø 130 mm Spindle taper SK 50 Working range: X = column, longitudinal 3,000 mm Y = headstock, vertical 2,000 mm Z = spindle stroke 1,000 mm Lower table 3,300 x 2.400 mm Max. weight on table 10 tons/m² Min./ max position of work spindle above table 770 / 2,770 mm Feeds 0.9 - 2,000 mm/min Quick feed for headstock and column 5,000 mm/min Quill feed 0.5 - 1,200 mm/min Speed range, partially infinitely variable 4.5 - 1,250 rpm Weight, approx. 30,000 kg Accessories / Special Features * HEIDENHAIN Digital Display for 3 axes. * Hardened guideways. * Ball screw spindles. * Infinitely variable spindle speeds and feeds. Feeds can be individually driven with motor. * Moving operating platform. * Hanging control panel. * Manual operating control. * Platform. * Hydrostatics in the column displacement. * Mounting plate 3,200 x 2,500 mm, planed, with t-slots. * Top table approx. 1,400 x 2,600 x height 900 mm, one face is handled. * Hydraulic clamping of column and slides. * Motor driven tool clamp. * Lots of accessories, including tool holders with and without tools, separate chip extractor, clamping aids, 1 angle plate, and other plates. Lots of other accessories. This is a strong machine which is very suitable for heavy cuts and therefore ideal for the machine tool industry and for tool manufacturers. Condition : Good. Machine can soon be inspected under power. Delivery : Ex stock as inspected Payment : Net, after conclusion of contract Thank you for your interest. We have other horizontal borers on stock. Please let us know what you need.
