          Metal Processing - Drilling and Milling M-C

          Machinelist: Drilling and Milling M/C


          Drilling and Milling M/C

          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C ARBOGA U1 Combi


          • WeMa Antonius Pigge GmbH
          • Barnstorfer Str. 3
          • 49424 Goldenstedt
          • Deutschland

          • +49 (0)444496700
            +49 (0)4444967010
          • info@wema-pigge.de
            www.wema-pigge.de
          #2031-3466 · Drilling and Milling M/C

          ARBOGA - U1 Combi - - unbekannt -

          Technical details
          bore capacity in steel (diameter) 32 mm︱x-travel 400 mm︱y-travel 170 mm︱table-size 560 x 250 mm︱spindle taper MK 4 ︱number of spindle speeds 8 ︱spindle turning speed range 90 - 1500 U/min︱spindle stroke 160 mm︱spindle feeds: 0,1 / 0,16 / 0,24 / 0,33 mm/min︱total power requirement 1,5 kW︱weight of the machine ca. 730 kg︱dimensions of the machine ca. 1000 x 1500 x 1900 mm︱
            bore capacity in steel (diameter. 32 mm
            x-travel 400 mm
            y-travel 170 mm
            table-size 560 x 250 mm
            spindle taper MK 4
            number of spindle speeds 8
            spindle turning speed range 90 - 1500 U/min
            spindle stroke 160 mm
            spindle feeds: 0,1 / 0,16 / 0,24 / 0,33 mm/min
            total power requirement 1,5 kW
            weight of the machine ca. 730 kg
            dimensions of the machine ca. 1000 x 1500 x 1900 mm
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C SerrMac TCS VR TC


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-031453 · Drilling and Milling M/C

          SerrMac - TCS VR TC - - 2020 -

          Technical details
          bore capacity in steel (diameter) 50 mm︱x-travel 585 mm︱y-travel 240 mm︱throat 300 mm︱bore stroke 145 mm︱spindle turning speed range 64 - 2340 U/min︱workpiece height 250 - 860 mm︱spindle taper MT 4 ︱thread capacity M 26 ︱column diameter Primaförmig mm︱diameter of quill 72 mm︱table-size 800 x 255 (TC) mm︱longitudinal movement - automatic 520 ︱total power requirement 2,2 -3,0 kW︱weight of the machine ca. 780 t︱dimensions of the machine ca. 1340 x 1380 x 1982 m︱
            bore capacity in steel (diameter. 50 mm
            x-travel 585 mm
            y-travel 240 mm
            throat 300 mm
            bore stroke 145 mm
            spindle turning speed range 64 - 2340 U/min
            workpiece height 250 - 860 mm
            spindle taper MT 4
            thread capacity M 26
            column diameter Primaförmig mm
            diameter of quill 72 mm
            table-size 800 x 255 (TC) mm
            longitudinal movement - automati. 520
            total power requirement 2,2 -3,0 kW
            weight of the machine ca. 780 t
            dimensions of the machine ca. 1340 x 1380 x 1982 m
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HUVEMA HU 3 VHG 4 Topline


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de

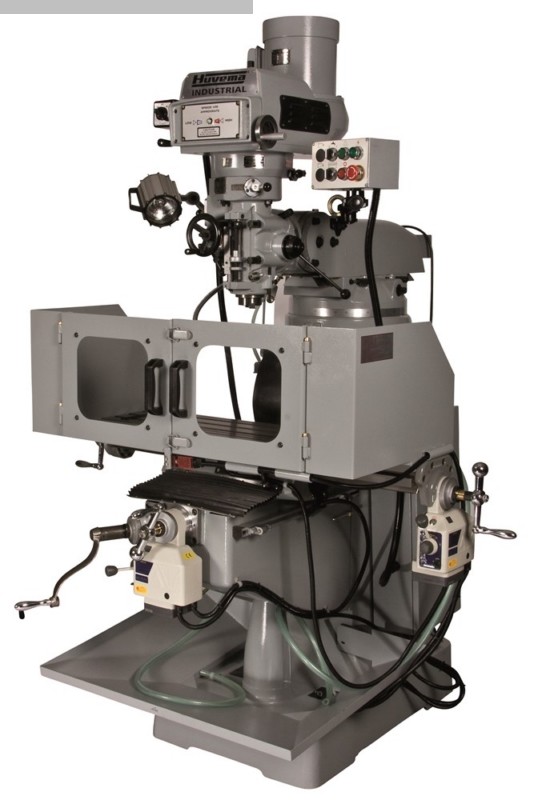

          #1100-021507 · Drilling and Milling M/C

          HUVEMA - HU 3 VHG 4 Topline - - 2020 -

          Technical details
          bore capacity in steel (diameter) 30 mm︱x-travel 914 mm︱y-travel 406 mm︱z-travel 406 mm︱table-size 1270 x 274 mm︱spindle speed: 60 - 4200 U/min.︱spindle taper ISO 40 ︱head swivability 2 x 90 °︱distance spindle /table 150 - 550 mm︱spindle diameter 86 mm︱bore depth 127 mm︱spindle feeds: 0,04, 0,08, 0,15 mm/U︱total power requirement 2,2 kW︱weight of the machine ca. 1280 t︱dimensions of the machine ca. 1750 x 1700 x 2200 m︱
            bore capacity in steel (diameter. 30 mm
            x-travel 914 mm
            y-travel 406 mm
            z-travel 406 mm
            table-size 1270 x 274 mm
            spindle speed: 60 - 4200 U/min.
            spindle taper ISO 40
            head swivability 2 x 90 °
            distance spindle /table 150 - 550 mm
            spindle diameter 86 mm
            bore depth 127 mm
            spindle feeds: 0,04, 0,08, 0,15 mm/U
            total power requirement 2,2 kW
            weight of the machine ca. 1280 t
            dimensions of the machine ca. 1750 x 1700 x 2200 m
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HUVEMA HU 45 DMI-4


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-021503 · Drilling and Milling M/C

          HUVEMA - HU 45 DMI-4 - - 2020 -

          Technical details
          bore capacity in steel (diameter) 32 mm︱x-travel 510 mm︱y-travel 240 mm︱table-size 820 x 240 mm︱spindle taper MT 3 ︱mx. distance bet.vert. milling head and table 445 mm︱bore depth 130 mm︱max. distance between table and spindle-nose 455 mm︱turning speeds 75-3200 U/min︱transmission ratio 12R/12L ︱head swivability 45 °︱quill stroke 130 mm︱ 400 V︱total power requirement 0,75 kW︱weight of the machine ca. 360 kg︱dimensions of the machine ca. 920 x 740 x 1000 mm︱
          solid column to avoid vibration gear wheels in oil bat left and right turning precision setting for milling depth with drawbar (M12)
            bore capacity in steel (diameter. 32 mm
            x-travel 510 mm
            y-travel 240 mm
            table-size 820 x 240 mm
            spindle taper MT 3
            mx. distance bet.vert. milling h. 445 mm
            bore depth 130 mm
            max. distance between table and . 455 mm
            turning speeds 75-3200 U/min
            transmission ratio 12R/12L
            head swivability 45 °
            quill stroke 130 mm
            400 V
            total power requirement 0,75 kW
            weight of the machine ca. 360 kg
            dimensions of the machine ca. 920 x 740 x 1000 mm
            Description :
            solid column to avoid vibration
            gear wheels in oil bat
            left and right turning
            precision setting for milling depth
            with drawbar (M12)

          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HUVEMA HU 45 DM-2


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-021502 · Drilling and Milling M/C

          HUVEMA - HU 45 DM-2 - - 2020 -

          Technical details
          bore capacity in steel (diameter) 32 mm︱x-travel 510 mm︱y-travel 240 mm︱table-size 820 x 240 mm︱spindle taper MT 3 ︱mx. distance bet.vert. milling head and table 445 mm︱bore depth 130 mm︱max. distance between table and spindle-nose 445 mm︱turning speeds 75-3200 U/min︱transmission ratio 12R/12L ︱head swivability 45 °︱quill stroke 130 mm︱ 230 V︱total power requirement 1,1 kW︱weight of the machine ca. 360 kg︱dimensions of the machine ca. 920 x 740 x 1000 mm︱
          ?solid column to avoid vibration ?gear wheels in oil bath ?left and right turning ?precision setting for milling depth ?with drawbar (M12)
            bore capacity in steel (diameter. 32 mm
            x-travel 510 mm
            y-travel 240 mm
            table-size 820 x 240 mm
            spindle taper MT 3
            mx. distance bet.vert. milling h. 445 mm
            bore depth 130 mm
            max. distance between table and . 445 mm
            turning speeds 75-3200 U/min
            transmission ratio 12R/12L
            head swivability 45 °
            quill stroke 130 mm
            230 V
            total power requirement 1,1 kW
            weight of the machine ca. 360 kg
            dimensions of the machine ca. 920 x 740 x 1000 mm
            Description :
            ?solid column to avoid vibration
            ?gear wheels in oil bath
            ?left and right turning
            ?precision setting for milling depth
            ?with drawbar (M12)

          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HUVEMA HU 430 DM 4 Super Vario


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de

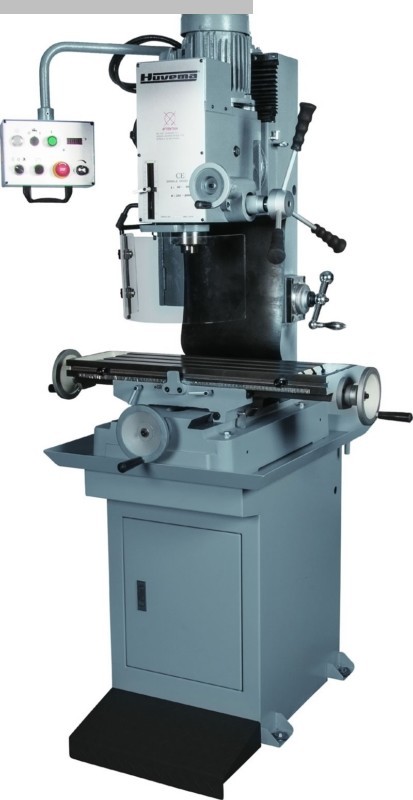

          #1100-021505 · Drilling and Milling M/C

          HUVEMA - HU 430 DM 4 Super Vario - - 2020 -

          Technical details
          bore capacity in steel (diameter) 32 mm︱x-travel 510 mm︱y-travel 240 mm︱table-size 210 x 730 mm︱spindle taper MT 3 ︱mx. distance bet.vert. milling head and table 450 mm︱bore depth 120 mm︱max. distance between table and spindle-nose 450 mm︱spindle turning speed - stepless 0-2500 U/min︱transmission ratio 12R/12L ︱head swivability 45L / 90R °︱ 400 V︱total power requirement 0,75 kW︱weight of the machine ca. 420 kg︱dimensions of the machine ca. 870 x 890 x 1920 mm︱
          ?solid column to avoid vibration ?gear wheels in oil bath ?left and right turning ?precision setting for milling depth ?with drawbar (M12)
            bore capacity in steel (diameter. 32 mm
            x-travel 510 mm
            y-travel 240 mm
            table-size 210 x 730 mm
            spindle taper MT 3
            mx. distance bet.vert. milling h. 450 mm
            bore depth 120 mm
            max. distance between table and . 450 mm
            spindle turning speed - stepless 0-2500 U/min
            transmission ratio 12R/12L
            head swivability 45L / 90R °
            400 V
            total power requirement 0,75 kW
            weight of the machine ca. 420 kg
            dimensions of the machine ca. 870 x 890 x 1920 mm
            Description :
            ?solid column to avoid vibration
            ?gear wheels in oil bath
            ?left and right turning
            ?precision setting for milling depth
            ?with drawbar (M12)

          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HUVEMA HU 430 DM 4 Super


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-021504 · Drilling and Milling M/C

          HUVEMA - HU 430 DM 4 Super - - 2020 -

          Technical details
          bore capacity in steel (diameter) 32 mm︱x-travel 510 mm︱y-travel 240 mm︱table-size 210 x 730 mm︱spindle taper MT 3 ︱mx. distance bet.vert. milling head and table 450 mm︱bore depth 120 mm︱max. distance between table and spindle-nose 450 mm︱turning speeds 0 - 2500 U/min︱transmission ratio 12R/12L ︱head swivability 45L / 90R °︱ 400 V︱total power requirement 0,75 kW︱weight of the machine ca. 420 kg︱dimensions of the machine ca. 870 x 890 x 1920 mm︱
          ?solid column to avoid vibration ?gear wheels in oil bath ?left and right turning ?precision setting for milling depth ?with drawbar (M12)
            bore capacity in steel (diameter. 32 mm
            x-travel 510 mm
            y-travel 240 mm
            table-size 210 x 730 mm
            spindle taper MT 3
            mx. distance bet.vert. milling h. 450 mm
            bore depth 120 mm
            max. distance between table and . 450 mm
            turning speeds 0 - 2500 U/min
            transmission ratio 12R/12L
            head swivability 45L / 90R °
            400 V
            total power requirement 0,75 kW
            weight of the machine ca. 420 kg
            dimensions of the machine ca. 870 x 890 x 1920 mm
            Description :
            ?solid column to avoid vibration
            ?gear wheels in oil bath
            ?left and right turning
            ?precision setting for milling depth
            ?with drawbar (M12)

          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HUVEMA HU 25-4


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-021506 · Drilling and Milling M/C

          HUVEMA - HU 25-4 - - 2020 -

          Technical details
          bore capacity in steel (diameter) 30 mm︱x-travel 250 mm︱y-travel 350 mm︱z-axis 350 mm︱table-size 240 x 800 mm︱spindle turning speed - stepless 115 - 1750 U/min︱spindle taper ISO 40 ︱upper slide-adjustment 500 mm︱ 200 -700 mm︱head swivability 2 x 45 °︱distance spindle /table 60 - 390 mm︱feed - longitudinal/cross ︱total power requirement 1,5 kW︱weight of the machine ca. 1050 kg︱dimensions of the machine ca. 1,28 x 1,10 x 1,92 m︱Coolant System ︱Digital Read Out
            bore capacity in steel (diameter. 30 mm
            x-travel 250 mm
            y-travel 350 mm
            z-axis 350 mm
            table-size 240 x 800 mm
            spindle turning speed - stepless 115 - 1750 U/min
            spindle taper ISO 40
            upper slide-adjustment 500 mm
            200 -700 mm
            head swivability 2 x 45 °
            distance spindle /table 60 - 390 mm
            total power requirement 1,5 kW
            weight of the machine ca. 1050 kg
            dimensions of the machine ca. 1,28 x 1,10 x 1,92 m
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C IBERDRILL / Ibarmia EBP 70 V


          • RS Sperling
          • von-Braun-Str. 20
          • 46244 Bottrop
          • Deutschland

          • +49 (0) 2045 / 41 43 22-0
            +49 (0) 2045 / 41 43 22-9
          • info@rs-sperling.de
            www.rs-sperling.de
          #1100-021600 · Drilling and Milling M/C

          IBERDRILL / Ibarmia - EBP 70 V - - 2020 -

          Technical details
          bore capacity in steel (diameter) 35 mm︱x-travel 700 mm︱y-travel 360 mm︱threading M 35 ︱spindle taper MT 4 ︱spindle turning speed range 16 ︱number of spindle speeds 94 - 2225 U/min︱feeds 3 mm/U︱feed 0,1 - 0,18 - 0,24 mm/U︱total power requirement 2 (1,5) kW︱weight of the machine ca. 1,4 t︱dimensions of the machine ca. 1,68 x 1,68 x 2,52 m︱
          STANDARD EQUIPMENT - Adjusting of the vertical position of the head by gearedmotor - 45º tilting head on both sides of the central axis - Hardened and ground high quality steel gears - Gear box lubrication by automatic pump - Automatic guide greasing by manual pump - High/low speed range selector - Coolant tank and pump in machine base - Worklight - Co-ordinate cross table - Automatic feed and cut-off by electromagnetic clutch - Front hand wheel for fine feed work - Depth scale and adjustable depth stop - Automatic tool ejector - Electric equipment integrated on machine’s head - Emergency STOP push button - Spindle reversing switch - Safety drill
            bore capacity in steel (diameter. 35 mm
            x-travel 700 mm
            y-travel 360 mm
            threading M 35
            spindle taper MT 4
            spindle turning speed range 16
            number of spindle speeds 94 - 2225 U/min
            feeds 3 mm/U
            feed 0,1 - 0,18 - 0,24 mm/U
            total power requirement 2 (1,5) kW
            weight of the machine ca. 1,4 t
            dimensions of the machine ca. 1,68 x 1,68 x 2,52 m
            Description :
            STANDARD EQUIPMENT
            - Adjusting of the vertical position of the head by gearedmotor
            - 45º tilting head on both sides of the central axis
            - Hardened and ground high quality steel gears
            - Gear box lubrication by automatic pump
            - Automatic guide greasing by manual pump
            - High/low speed range selector
            - Coolant tank and pump in machine base
            - Worklight
            - Co-ordinate cross table
            - Automatic feed and cut-off by electromagnetic clutch
            - Front hand wheel for fine feed work
            - Depth scale and adjustable depth stop
            - Automatic tool ejector
            - Electric equipment integrated on machine’s head
            - Emergency STOP push button
            - Spindle reversing switch
            - Safety drill
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C UNION TC 150


          • FLECKENSTEIN Werkzeugmaschinen GmbH
          • Sommerweg 15
          • 63831 Wiesen
          • Deutschland

          • +49 (0) 6096 9706 0
            +49 (0) 6096 9706 20
          • fleckenstein@fleckenstein-machine.com
            www.fleckenstein-machine.com
          #1118-1585 · Drilling and Milling M/C

          UNION - TC 150 - - 2007 -

          Technical details
          bore capacity in steel (diameter) 150 mm︱x-travel 2.500 mm︱y-travel 2.500 mm︱z-travel 1.500 mm︱w-travel 750 ︱B-axis rotary movement table 360 Grad︱b-axis, positioning accuracy 360.000 x 0,001 °︱Machining unit - ︱fixed spindle nosing, length 370 mm︱fixed spindle nosing, diameter 280 mm︱shortest distance, spindle nose to mid of table 850 mm︱lowest position above table surface 0 mm︱tool taper DIN 69871 ISO 50 ︱spindle power S1 (100%) S6 (60%) 37/46 kW︱max. torque at the spindle 2.179 Nm︱spindle speed, steppless adjustable 5 - 3.000 min-1︱Nc rotary table - ︱surface area 1.600 x 2.000 mm︱center hole in table ︱max. load 10.000 kg︱
            bore capacity in steel (diameter. 150 mm
            x-travel 2.500 mm
            y-travel 2.500 mm
            z-travel 1.500 mm
            w-travel 750
            B-axis rotary movement table 360 Grad
            b-axis, positioning accuracy 360.000 x 0,001 °
            Machining unit -
            fixed spindle nosing, length 370 mm
            fixed spindle nosing, diameter 280 mm
            shortest distance, spindle nose . 850 mm
            tool taper DIN 69871 ISO 50
            spindle power S1 (100%) S6 (60%) 37/46 kW
            max. torque at the spindle 2.179 Nm
            spindle speed, steppless adjusta. 5 - 3.000 min-1
            Nc rotary table -
            surface area 1.600 x 2.000 mm
            max. load 10.000 kg
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C FEHLMANN Picomax 54


          • Marcels Maschinen AG
          • Anthoptstrasse 11
          • 8222 Beringen (Schaffhausen)
          • Schweiz

          • (0041) 44 872 3400
            (0041) 44 872 3403
          • info@marcels-maschinen.ch
            http://www.marcels-maschinen.ch
          #1065-4634 · Drilling and Milling M/C

          FEHLMANN - Picomax 54 - - 2004 - HEIDENHAIN TNC310

          Technical details
          bore capacity in steel (diameter) 20 mm︱x-travel 500 mm︱y-travel 260 mm︱cross-moving table 880x320mm ︱spindle turning speed - stepless 100-9000 U/min︱control HEIDENHAIN TNC310 ︱dividing head AT-100 CNC ︱vertical movement 490 mm︱quill stroke 160 mm︱weight of the machine ca. 2.8 t︱
          With dividing head FEHLMANN AT-100CNC 3D measuring probe Lots of accessories www.marcels-maschinen.ch
            bore capacity in steel (diameter. 20 mm
            x-travel 500 mm
            y-travel 260 mm
            cross-moving table 880x320mm
            spindle turning speed - stepless 100-9000 U/min
            control HEIDENHAIN TNC310
            dividing head AT-100 CNC
            vertical movement 490 mm
            quill stroke 160 mm
            weight of the machine ca. 2.8 t
            Description :
            With dividing head FEHLMANN AT-100CNC
            3D measuring probe
            Lots of accessories

            www.marcels-maschinen.ch

          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C FEHLMANN Picomax 100 XL CNC 2


          • Aleman Machines e.K.
          • Am Mühlweg 1
          • 73466 Lauchheim
          • Deutschland

          • +49 (0)7363-6098 20
            +49 (0)7363-6098 19
          • info@aleman-machines.com
            www.aleman-machines.com
          #1120-100045 · Drilling and Milling M/C

          FEHLMANN - Picomax 100 XL CNC 2 - - 1994 - CNC 2

          Technical details
          x-travel 2100 mm︱y-travel 435 mm︱z - travel 210 mm︱w-axis 590 mm︱rapid travel x/y/z 10/5/manuell m/min︱solution in X-, Y- und Z-axis 0,001 mm︱precision 0,025 mm︱surface area 2100x650 mm︱table weight 1000 Kg︱table height 990 mm︱distance spindle nose and table 0-150-840 mm︱arm length 450 mm︱Boring power 30 mm︱Milling effort 100 cm³/min︱threading M 20 ︱coolant tank 100 l︱Control TNC 355 ︱voltage 3x380/50 V/Hz︱total connected load 20 kW︱control voltage 24 V︱
            x-travel 2100 mm
            y-travel 435 mm
            z - travel 210 mm
            w-axis 590 mm
            rapid travel x/y/z 10/5/manuell m/min
            solution in X-, Y- und Z-axis 0,001 mm
            precision 0,025 mm
            surface area 2100x650 mm
            table weight 1000 Kg
            table height 990 mm
            distance spindle nose and table 0-150-840 mm
            arm length 450 mm
            Boring power 30 mm
            Milling effort 100 cm³/min
            threading M 20
            coolant tank 100 l
            Control TNC 355
            voltage 3x380/50 V/Hz
            total connected load 20 kW
            control voltage 24 V
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C FEHLMANN PICOMAX 100 CNC


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-721324 · Drilling and Milling M/C

          FEHLMANN - PICOMAX 100 CNC - - 1985 - HEIDENHAIN TNC 150

          Technical details
          bore capacity in steel (diameter) 30 mm︱x-travel 850 mm︱y-travel 435 mm︱Control HEIDENHAIN TNC 150 ︱total power requirement 16 kW︱weight of the machine ca. 3500 kg︱dimensions of the machine ca. m︱
          F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _______________________________________________________________ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened ball screw spindles. * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.
            bore capacity in steel (diameter. 30 mm
            x-travel 850 mm
            y-travel 435 mm
            Control HEIDENHAIN TNC 150
            total power requirement 16 kW
            weight of the machine ca. 3500 kg
            Description :
            F E H L M A N N (Switzerland)
            CNC-Controlled High Precision Drilling and Milling Machine with
            HEIDENHAIN CNC-Control Model TNC 150
            Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109
            _______________________________________________________________

            Table travel: Longitudinal ( X-Axis) 850 mm
            Cross (Y-Axis) 435 mm
            Milling/Boring head travel vertical ( Z-Axis) 210 mm

            Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm

            Mounting height below spindle, approx. 140 / 690 mm
            Height adjustment of Milling head max. 540 mm
            Distance between spindle and column 450 mm

            Spindle taper SF 32
            Spindle quill travels 210 mm
            Drilling Capacity approx.. 30 mm

            Spindle speeds steplessly adjustable 50 – 2,500 rpm
            Feeds steplessly adjustable 1 – 8.000 mm/Min.
            Quick feed 8.000 mm/Min.

            Spindle drive, approx. 6 kW
            Total electrical load 16 kW - 400 V - 50 Hz
            Weight, approx. 3,500 kg

            Accessories / Special Features:

            * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen
            Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc.
            Mobile Control unit with electronic handwheel. Ideal for quick set-up and
            approach to the workpiece.
            * The quill movement can be actuated manually or also by the CNC-Control,
            * The Drilling depth can be presetted by a 12 fold turret drum for different
            quillstops and with a digital display of the values on monitor.
            * The complete Milling/Drilling head can be positioned in 3 different heights
            and with automatic clamping.
            * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened
            ball screw spindles.
            * With quick change tool holders, chucks, millers, etc. and with coolant
            device.

            Condition : Very Good to excellent - Machine under power, ideal for
            small batch production
            Delivery : Ex stock, as inspected.
            Payment : Net, after conclusion of contract.


          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C MEYER & SCHMIDT A68


          • Christoph Busch GmbH
          • Dieselstr. 22
          • 41352 Korschenbroich
          • Deutschland

          • +49 (0) 2182 570 5930
            +49 (0) 2182 5785202
          • mail@busch-gruppe.de
            www.busch-gruppe.de
          #2052-04557 · Drilling and Milling M/C

          MEYER & SCHMIDT - A68 - - 1978 -

          Technical details
          stroke 680 mm︱ 800 mm︱boring head 2 Stück︱table size 1.500 x 500 mm︱weight of the machine ca. 3,5 t︱
            stroke 680 mm
            800 mm
            boring head 2 Stück
            table size 1.500 x 500 mm
            weight of the machine ca. 3,5 t
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HBM BF 60


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76007 · Drilling and Milling M/C

          HBM - BF 60 - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 35 mm︱throat 230 mm︱bore stroke 125 mm︱spindle taper ISO 40 ︱spindle turning speed range 115 - 1750 U/min︱ 560 mm︱ 175 mm︱table surface area 1000 x 240 mm︱max. distance between table and spindle-nose 375 mm︱connected load frequency 400 V︱total power requirement 0,85/1,5 kW︱weight of the machine ca. 0,95 t︱dimensions of the machine ca. 1,3 x 1,2 x 2,1 m︱
          Domestic equipments: automatic feed and handwheel. Drill chuck with MK4 holder Digital depth display Left / right switch. Emergency stop switch Pivot head swiveling Spindle protection. Small toolbox Machine base and X-axis feed optional.
            bore capacity in steel (diameter. 35 mm
            throat 230 mm
            bore stroke 125 mm
            spindle taper ISO 40
            spindle turning speed range 115 - 1750 U/min
            560 mm
            175 mm
            table surface area 1000 x 240 mm
            max. distance between table and . 375 mm
            connected load frequency 400 V
            total power requirement 0,85/1,5 kW
            weight of the machine ca. 0,95 t
            dimensions of the machine ca. 1,3 x 1,2 x 2,1 m
            Description :
            Domestic equipments:
            automatic feed and handwheel.
            Drill chuck with MK4 holder
            Digital depth display
            Left / right switch.
            Emergency stop switch
            Pivot head swiveling
            Spindle protection.
            Small toolbox

            Machine base and X-axis feed optional.
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HBM X-2L


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76012 · Drilling and Milling M/C

          HBM - X-2L - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 13 mm︱throat 167 mm︱bore stroke 18050 mm︱ 20 mm︱spindle taper MK 2 ︱spindle turning speed range 50 - 2200 U/min︱ 130 mm︱ 300 mm︱vertical adjustment 190 mm︱table surface area 500 x 180 mm︱connected load frequency 230 V︱total power requirement 0,35 kW︱weight of the machine ca. 70 Kg︱dimensions of the machine ca. 0,7 x 0,7 x 0,9 m︱
          Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
            bore capacity in steel (diameter. 13 mm
            throat 167 mm
            bore stroke 18050 mm
            20 mm
            spindle taper MK 2
            spindle turning speed range 50 - 2200 U/min
            130 mm
            300 mm
            vertical adjustment 190 mm
            table surface area 500 x 180 mm
            connected load frequency 230 V
            total power requirement 0,35 kW
            weight of the machine ca. 70 Kg
            dimensions of the machine ca. 0,7 x 0,7 x 0,9 m
            Description :
            Drilling and milling machine
            - Cross Support
            - Cabinet
            - Swivel spindle head left / right 90 °
            - Feed via hand crank
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C KAMI FKM 365 PD-1 / SK40


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76003 · Drilling and Milling M/C

          KAMI - FKM 365 PD-1 / SK40 - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 45 mm︱throat 350 mm︱bore stroke 125 mm︱spindle taper SK 40 ︱spindle turning speed range 75 - 3200 U/min︱ 650 mm︱ 350 mm︱table surface area 900 x 250 mm︱connected load frequency 400 V︱diameter of hob max. 80 mm︱total power requirement 1,1/1,5 kW︱weight of the machine ca. 0,65 t︱dimensions of the machine ca. 1,2 x 1.2 x 1,5 m︱
          Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
            bore capacity in steel (diameter. 45 mm
            throat 350 mm
            bore stroke 125 mm
            spindle taper SK 40
            spindle turning speed range 75 - 3200 U/min
            650 mm
            350 mm
            table surface area 900 x 250 mm
            connected load frequency 400 V
            diameter of hob max. 80 mm
            total power requirement 1,1/1,5 kW
            weight of the machine ca. 0,65 t
            dimensions of the machine ca. 1,2 x 1.2 x 1,5 m
            Description :
            Drilling and milling machine
            - Cross Support
            - Cabinet
            - Swivel spindle head left / right 90 °
            - Feed via hand crank
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HBM BF 16


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76906 · Drilling and Milling M/C

          HBM - BF 16 - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 16 mm︱throat 170 mm︱bore stroke 50 mm︱ 16 mm︱spindle taper MK2 ︱spindle turning speed range 50 - 2250 U/min︱ 320 mm︱ 145 mm︱table surface area 500 x 140 mm︱connected load frequency 230 V︱total power requirement 0,5 kW︱weight of the machine ca. 90 Kg︱dimensions of the machine ca. 0,5 x 0,45 x 0,84 m︱
          Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content but without digital display !!
            bore capacity in steel (diameter. 16 mm
            throat 170 mm
            bore stroke 50 mm
            16 mm
            spindle taper MK2
            spindle turning speed range 50 - 2250 U/min
            320 mm
            145 mm
            table surface area 500 x 140 mm
            connected load frequency 230 V
            total power requirement 0,5 kW
            weight of the machine ca. 90 Kg
            dimensions of the machine ca. 0,5 x 0,45 x 0,84 m
            Description :
            Drilling and milling machine with
            - variable spindle speed
            - Digital depth display
            - Left / right switch
            - Cross support
            - swiveling spindle head
            - Feeds via hand crank
            - Tool case with content
            but without digital display !!
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HBM TYP 16


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76011 · Drilling and Milling M/C

          HBM - TYP 16 - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 16 mm︱throat 180 mm︱bore stroke 85 mm︱spindle taper MK 2 ︱spindle diameter 47 mm︱spindle turning speed range 320 - 3300 U/min︱ 230 mm︱ 100 mm︱table surface area 420 x 155 mm︱connected load frequency 230 V︱ 900 x 600 x 300 cm︱total power requirement 0,75 kW︱weight of the machine ca. 8o Kg︱dimensions 0,7 x 0,7 x 0,8 m︱
          Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
            bore capacity in steel (diameter. 16 mm
            throat 180 mm
            bore stroke 85 mm
            spindle taper MK 2
            spindle diameter 47 mm
            spindle turning speed range 320 - 3300 U/min
            230 mm
            100 mm
            table surface area 420 x 155 mm
            connected load frequency 230 V
            900 x 600 x 300 cm
            total power requirement 0,75 kW
            weight of the machine ca. 8o Kg
            dimensions 0,7 x 0,7 x 0,8 m
            Description :
            Drilling and milling machine
            - Cross Support
            - Cabinet
            - Swivel spindle head left / right 90 °
            - Feed via hand crank
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HBM 45 Profi


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76001 · Drilling and Milling M/C

          HBM - 45 Profi - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 45 mm︱throat 230 mm︱bore stroke 125 mm︱spindle taper ISO 30 ︱spindle turning speed range 75 - 1600 U/min︱max. milling cutter diameter 80 mm︱ 560 mm︱ 230 mm︱table surface area 800 x 240 mm︱max. distance between table and spindle-nose 460 mm︱connected load frequency 230 V︱total power requirement 1,1 kW︱weight of the machine ca. 320 Kg︱dimensions of the machine ca. 1,0 x 0,8 x 1,45 m︱
          Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
            bore capacity in steel (diameter. 45 mm
            throat 230 mm
            bore stroke 125 mm
            spindle taper ISO 30
            spindle turning speed range 75 - 1600 U/min
            max. milling cutter diameter 80 mm
            560 mm
            230 mm
            table surface area 800 x 240 mm
            max. distance between table and . 460 mm
            connected load frequency 230 V
            total power requirement 1,1 kW
            weight of the machine ca. 320 Kg
            dimensions of the machine ca. 1,0 x 0,8 x 1,45 m
            Description :
            Drilling and milling machine
            - Cross Support
            - Cabinet
            - Swivel spindle head left / right 90 °
            - Feed via hand crank
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C KAMI FKM 349 V


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76008 · Drilling and Milling M/C

          KAMI - FKM 349 V - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 25 mm︱throat 185 mm︱bore stroke 50 mm︱spindle taper MK 3 ︱spindle turning speed range 50 - 2500 U/min︱ 178 mm︱ 480 mm︱table surface area 700 x 180 mm︱connected load frequency 230 V︱total power requirement 0,75 kW︱weight of the machine ca. 160 t︱dimensions of the machine ca. 0,75 x 0,8 x 0,9 m︱
          domestic equipments • Digital depth gauge • Adjustable guides with wedges • Large 12-speed range from 75 to 3200 rpm • Smooth running due to hardened and ground gears running in an oil bath • • Right-left rotation • Prismatic guides in all axes • Gear head can be swiveled 90 ° • Chip protection with safety circuit Machine base optional.
            bore capacity in steel (diameter. 25 mm
            throat 185 mm
            bore stroke 50 mm
            spindle taper MK 3
            spindle turning speed range 50 - 2500 U/min
            178 mm
            480 mm
            table surface area 700 x 180 mm
            connected load frequency 230 V
            total power requirement 0,75 kW
            weight of the machine ca. 160 t
            dimensions of the machine ca. 0,75 x 0,8 x 0,9 m
            Description :
            domestic equipments
            • Digital depth gauge
            • Adjustable guides with wedges
            • Large 12-speed range from 75 to 3200 rpm
            • Smooth running due to hardened and ground gears running in an oil bath •
            • Right-left rotation
            • Prismatic guides in all axes
            • Gear head can be swiveled 90 °
            • Chip protection with safety circuit

            Machine base optional.
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C HBM H 40


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76020 · Drilling and Milling M/C

          HBM - H 40 - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 40 mm︱throat 275 mm︱bore stroke 120 mm︱spindle taper MK 4 ︱turning speed range 75 - 3200 U/min︱ 190 mm︱ 490 mm︱table surface area 700 x 210 mm︱connected load frequency 400 V︱diameter of hob max. 80 mm︱total power requirement 1,1/1,5 kW︱weight of the machine ca. 0,35 t︱dimensions of the machine ca. 0,8 x 0,75 x 1,85 m︱
          Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
            bore capacity in steel (diameter. 40 mm
            throat 275 mm
            bore stroke 120 mm
            spindle taper MK 4
            turning speed range 75 - 3200 U/min
            190 mm
            490 mm
            table surface area 700 x 210 mm
            connected load frequency 400 V
            diameter of hob max. 80 mm
            total power requirement 1,1/1,5 kW
            weight of the machine ca. 0,35 t
            dimensions of the machine ca. 0,8 x 0,75 x 1,85 m
            Description :
            Drilling and milling machine
            - Cross Support
            - Cabinet
            - Swivel spindle head left / right 90 °
            - Feed via hand crank
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C KAMI FKM 650A


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de

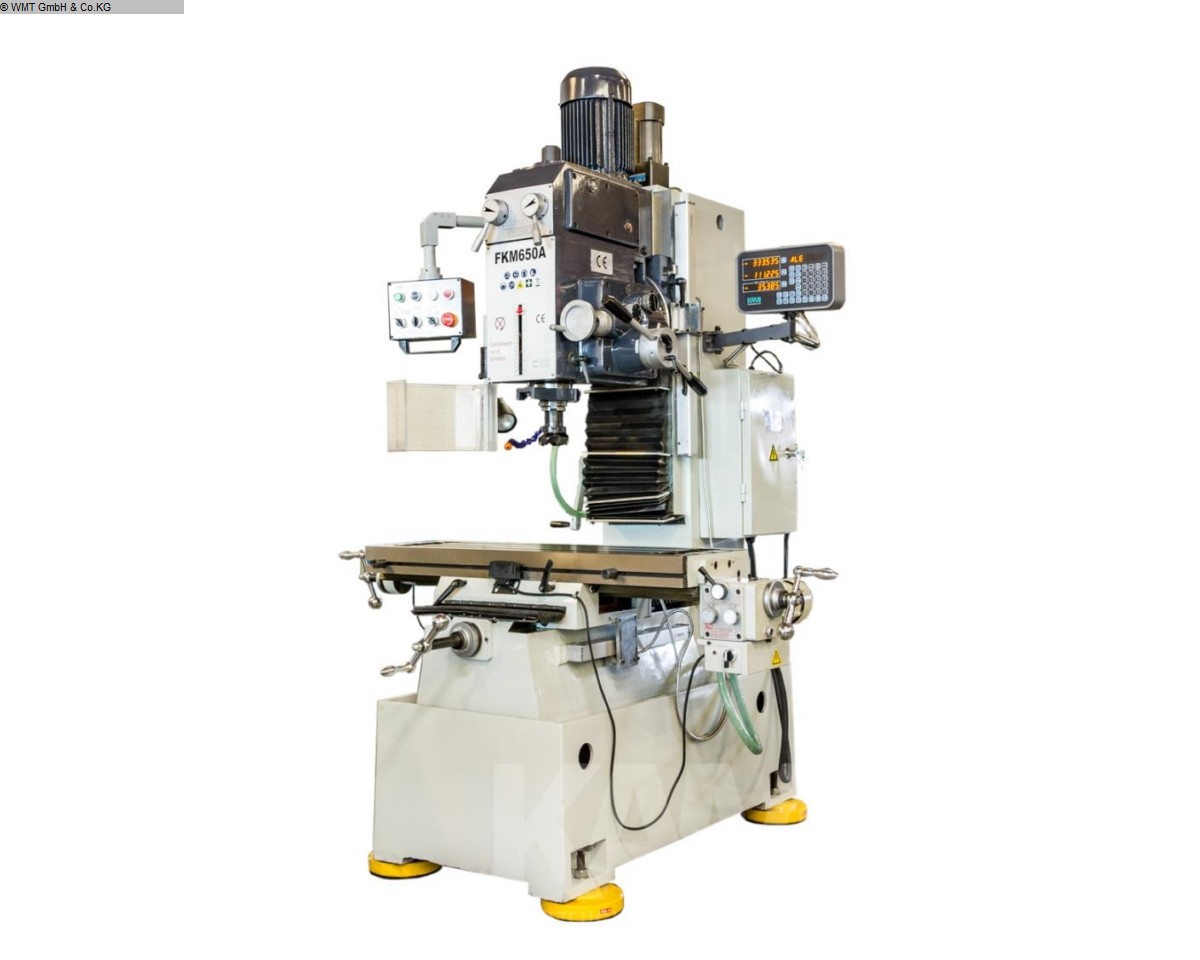

          #1108-76002 · Drilling and Milling M/C

          KAMI - FKM 650A - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 50 mm︱throat 360 mm︱bore stroke 150 mm︱spindle turning speed range 120 - 3000 U/min︱spindle taper SK 40650 mm︱ 320 mm︱vertical adjustment 500 mm︱table surface area 1000 x 300 mm︱connected load frequency 400 V︱diameter of hob max. 80 mm︱total power requirement 2,2 kW︱weight of the machine ca. 0,85 t︱dimensions of the machine ca. 1,25 x 1.5 x 2,3 m︱
          New Model Industrial Drilling and Milling Machine with Manual Transmission and High Speed Range. The prism guide in the Z-axis ensures a high degree of precision even in the most difficult milling jobs. Domestic equipments: • automatic feed in X-axis • 3-axis digital display • motorized Z-axis • Feed in quill • Left-right-run high • tapping attachment • Gear head swiveling • Coolant system
            bore capacity in steel (diameter. 50 mm
            throat 360 mm
            bore stroke 150 mm
            spindle turning speed range 120 - 3000 U/min
            spindle taper SK 40
            650 mm
            320 mm
            vertical adjustment 500 mm
            table surface area 1000 x 300 mm
            connected load frequency 400 V
            diameter of hob max. 80 mm
            total power requirement 2,2 kW
            weight of the machine ca. 0,85 t
            dimensions of the machine ca. 1,25 x 1.5 x 2,3 m
            Description :
            New Model Industrial Drilling and Milling Machine with Manual Transmission and
            High Speed Range. The prism guide in the Z-axis ensures a high degree of
            precision even in the most difficult milling jobs.

            Domestic equipments:
            • automatic feed in X-axis
            • 3-axis digital display
            • motorized Z-axis
            • Feed in quill
            • Left-right-run high
            • tapping attachment
            • Gear head swiveling
            • Coolant system
          Datasheet
          Request / Contact
          used Boring mills / Machining Centers / Drilling machines Drilling and Milling M/C KAMI FKM 350-1 PD / SK40


          • WMT GmbH & Co.KG
          • Siemensstraße 1
          • 46342 Velen-Ramsdorf
          • Deutschland

          • +49 2863 92477-47
            +49 2863 92477-50
          • info@w-m-t.de
            www.w-m-t.de
          #1108-76005 · Drilling and Milling M/C

          KAMI - FKM 350-1 PD / SK40 - - -Neu- -

          Technical details
          bore capacity in steel (diameter) 40 mm︱throat 290 mm︱bore stroke 130 mm︱spindle taper SK 40 ︱spindle turning speed range 75 - 3200 U/min︱ 500 mm︱ 230 mm︱table surface area 720 x 210 mm︱connected load frequency 400 V︱diameter of hob max. 80 mm︱total power requirement 1,1 kW︱weight of the machine ca. 0,35 t︱dimensions of the machine ca. 1,1 x 0,9 x 1,2 m︱
          domestic equipments • Digital display • Digital depth gauge for quill • Adjustable guides with wedges • Large 12-speed range from 75 to 3200 rpm • Smooth running due to hardened and ground gears running in an oil bath • • Right-left rotation • Prismatic guides in all axes • Gear head can be swiveled 90 ° • Chip protection with safety circuit Machine base optional.
            bore capacity in steel (diameter. 40 mm
            throat 290 mm
            bore stroke 130 mm
            spindle taper SK 40
            spindle turning speed range 75 - 3200 U/min
            500 mm
            230 mm
            table surface area 720 x 210 mm
            connected load frequency 400 V
            diameter of hob max. 80 mm
            total power requirement 1,1 kW
            weight of the machine ca. 0,35 t
            dimensions of the machine ca. 1,1 x 0,9 x 1,2 m
            Description :
            domestic equipments
            • Digital display
            • Digital depth gauge for quill
            • Adjustable guides with wedges
            • Large 12-speed range from 75 to 3200 rpm
            • Smooth running due to hardened and ground gears running in an oil bath •
            • Right-left rotation
            • Prismatic guides in all axes
            • Gear head can be swiveled 90 °
            • Chip protection with safety circuit

            Machine base optional.
          Datasheet
          Request / Contact
