Horn Werkzeugmaschinen - Stockist for used machines

---

High pressure unit / system SFB-600/700 for Star Micronics SR-20RIV type A-B Hinged belt conveyor with ejection height above floor 580mm High pressure system SFB-600-700 Frequency controlled high pressure pump 150 bar, 20l/min fixed displacement pump Fully enclosed with display and touch Tank volume 300L Changeable filter 40um and 10um 4 valve switching Interface for machine The machine can be viewed by appointment power. Changes and errors in the technical data and information and subject to prior sale!

---

High-pressure system / SFB-100 SMART system suitable for all CNC machines Currently prepared for Star, Hanwha, Citizen, Nomura, Nexturn, Tornos 65 bar Open system Flow rate 9-20l/min 4 valves 40 µm Interchangeable Mahle filter 65 bar / 9-20 l/min 40 µm 10 - 65 bar approx.650 x approx.380x approx.720 mm Delivery: L 1.20 x W 0.80 x H 1.20 Kg 200 The machine can be visited by appointment. We reserve the right to make changes and errors in technical data and specifications, and to intermediate sale! Lieferung ab Werk, (Produktionsstandort), exkl. Verpackung/delivery ex works,(production site), excluding packaging. Ohne Garantie oder Gewährleistung/without any guarantee or warranty. Die Ware bleibt bis zur vollständigen Bezahlung unser Eigentum/the goods remain our property until full payment. Es gelten die Bedingungen im Sinne von VDW-502, Stand Januar 2018/conditions applies in the sense of VDW-502, as of January 2018. Änderungen und Irrtümer, sowie Zwischenverkauf vorbehalten/subject to changes and errors, as well as prior sale.

---

High-pressure system / SFB-100 SMART system suitable for all CNC machines Currently prepared for Star, Hanwha, Citizen, Nomura, Nexturn, Tornos 65 bar Open system Flow rate 9-20l/min 4 valves 40 µm Interchangeable Mahle filter 65 bar / 9-20 l/min 40 µm 10 - 65 bar approx.650 x approx.380x approx.720 mm Delivery: L 1.20 x W 0.80 x H 1.20 Kg 200 The machine can be visited by appointment. We reserve the right to make changes and errors in technical data and specifications, and to intermediate sale!

---

High-pressure system / SFB-100 SMART system suitable for all CNC machines Currently prepared for Star, Hanwha, Citizen, Nomura, Nexturn, Tornos 65 bar Open system Flow rate 9-20l/min 4 valves 40 µm Interchangeable Mahle filter 65 bar / 9-20 l/min 40 µm 10 - 65 bar approx.650 x approx.380x approx.720 mm Delivery: L 1.20 x W 0.80 x H 1.20 Kg 200 The machine can be visited by appointment. We reserve the right to make changes and errors in technical data and specifications, and to intermediate sale!

turning diameter 36 mm︱ ︱ ︱total power requirement kW︱weight of the machine ca. 5000 t︱required space 3682 x 1430 x 1900 m︱

---

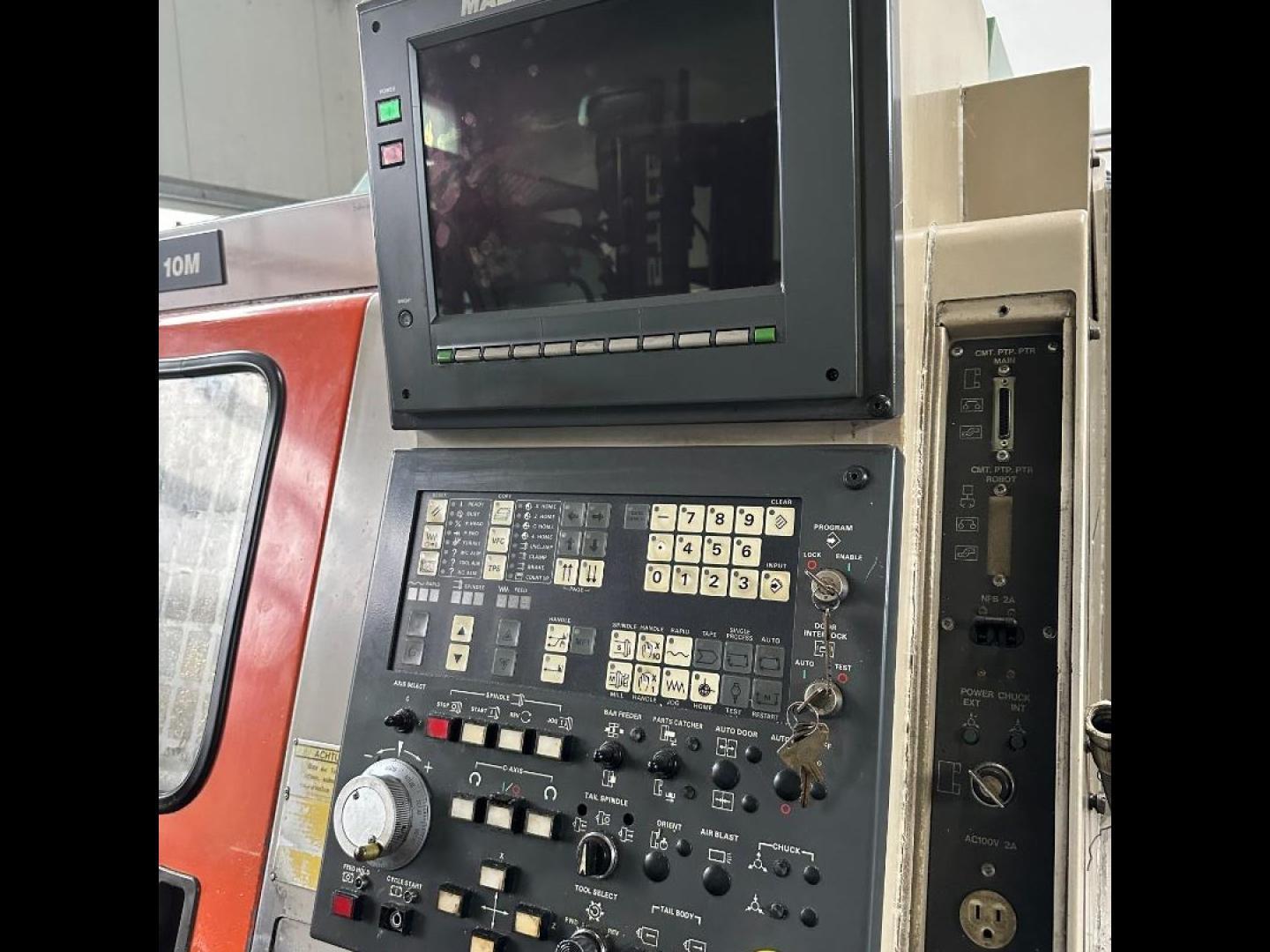

MAZAK SQT-10M CNC lathe Control system Mazatrol T32-3 Technical data P.No.:101335U Working area: Max. Swing diameter 435 mm Max. Turning diameter 230 mm Max. Turning length 305 mm Bar work up to diameter 42 mm Main spindle: Speed range 35-6,000 rpm Main drive power 11 kW Max. Torque 96 Nm Spindle nose A2 - 5 inch Spindle bore 42 - 52 mm Spindle positioning C-axis0° - 360°/0.001 ° Tool turret: Number of tool positions 12 Driven tools Speed range 120-3,000 rpm Drive power 2.2 kW Max. Torque 20.6 Nm Travel X-axis 160 mm Z-axis 360 mm Travel speed Rapid traverse: X/Z-axis30 m/min Tailstock: Quill stroke: 75 mm Mounting: MK 4 Tailstock travel: 275 mm Machine data: Year of construction 12/ 1991 Total connected load: 32 KVA Machine weight: approx. 2,800 kg Machine dimensions: L x W x H: approx. 2.50 x 1.50 x 1.90 m Hydr. KITAGAWA three-jaw chuck B-206, diameter 169 mm Tool presetting device (MAZAK Tool Eye System) C - axis Dual foot switch for opening/closing the chuck Feedback of the chuck status (open/closed) Manual tailstock Front door lock Complete coolant system Coolant and chip protection due to fully encapsulated work area Interface for MAZAK Mikro Disk and MSK Work area lighting The machine can be viewed by appointment under chip and power. Changes and errors in the technical data and information and subject to prior sale!

---

Technical data: first-class condition, only approx. 9000 operating hours Fanuc, high performance CNC control series 31i-B5, 3-channel-control, 3 turrets, 12 CNC axes, (X1/Z1/Y1/C1/X2/Y2/YA2/C2/X3/Z3/Y3), rapid traverse speed 30 mm/min, bar diameter max. 38 mm, turning length max. 350 mm, main spindle, speed max. 7,000 rpm, C-axis 0.001 deg, main spindle drive power 11 kW Counter spindle speed max. 7,000 rpm, C-axis 0.001 deg, counter spindle drive power 7.5 kW Turret speed max. 5,700 rpm, (with appropriate tool holder also higher) turret drive power 4 kW Tool holder stations for a total of 30 (10 per turret) (prepared for internally cooled tools) LTA fog extraction unit Oil cooler unit coolant application: oil Weight: 6,25 to Dimensions: (LxWxH) 3477x1860x1865 mm The machine can be inspected under power by appointment. Changes and errors in the technical data and information and subject to prior sale!

---

Technical data: first-class condition, only approx. 9000 operating hours Fanuc, high performance CNC control series 31i-B5, 3-channel-control, 3 turrets, 12 CNC axes, (X1/Z1/Y1/C1/X2/Y2/YA2/C2/X3/Z3/Y3), rapid traverse speed 30 mm/min, bar diameter max. 38 mm, turning length max. 350 mm, main spindle, speed max. 7,000 rpm, C-axis 0.001 deg, main spindle drive power 11 kW Counter spindle speed max. 7,000 rpm, C-axis 0.001 deg, counter spindle drive power 7.5 kW Turret speed max. 5,700 rpm, (with appropriate tool holder also higher) turret drive power 4 kW Tool holder stations for a total of 30 (10 per turret) (prepared for internally cooled tools) LTA fog extraction unit Oil cooler unit coolant application: oil Weight: 6,25 to Dimensions: (LxWxH) 3477x1860x1865 mm The machine can be inspected under power by appointment. Changes and errors in the technical data and information and subject to prior sale!

---

used Traub TNL 26 CNC sliding headstock automatic lathe Control: TX8i, incl. simulation main spindle: max. bar capacity: 32 mm headstock stroke: 250 mm max. speed: 8000 rpm drive power 100 % / 40 % ED: 6,7 / 10,7 kW C-axis resolution: 0.001 max. rapid traverse, Z1: 30 m/min counter spindle: max. bar capacity: 32 mm max. longitudinal stroke Z4: 250 mm max. speed: 8000 rpm drive power 100 % / 40 % ED: 6.7 / 10.7 kW C-axis resolution: 0.001 max. rapid traverse, Z4: 30 m/min tool turret, bottom: Tool holders: 12 Driven tools: 12 turning chisel cross section: 16 x 16 slide path, X1: 50 mm slide travel, Y1: +- 20 mm rapid traverse, X1/Y1: 15 m/min Chip-to-chip time: 0.50 s Tool turret, top: Tool holders: 12 Driven tools: 12 turning chisel cross section: 16 x 16 slide path, X2: 50 mm slide travel, Z2: 100 mm Carriage travel, Y2: +-20 mm rapid traverse X2/Z2/Y2: 15 m/min Chip-to-chip time: 0.50 s Tool drive for turret max. speed: 6000 rpm drive power 100 % / 15 % ED: 2/5.5 kW front attachment: max. speed: 6000 rpm drive power 100 % / 15 % ED: 2/5.5 kW tool holders: 5 Driven tools: 4 tool holder diameter: 40 mm spindle distance: 54 mm slide path X3: 370 mm slide path Z3: 250 mm max. rapid traverse X3 / Z3: 30 m/min back attachment: max. speed: 6000 rpm drive power 100 % / 15 % ED: 2/5,5 kW tool holders: 5 Driven tools: 4 tool holder diameter: 40 mm spindle distance: 54 mm slide path X4: 73 mm slide path Y4: +- 50 mm rapid traverse X4 / Y4: 15 / 15 m/min Machine dimensions length x width x height: 3811 x 1604 x 1660 mm weight: 4000 kg FMB bar feeder Turbo 5-42, year `05 Unit overlong parts Fire extinguishing system, Kraft & Bauer Knoll chip conveyor rest contact belt filter Oil bypass system Cooling and lubricating medium: oil The machine can be viewed by appointment. Changes and errors in the technical data and information and subject to prior sale!

---

used CNC lathe Citizen C16-VI, year 2004 control, make CINCOM MITSUBISHI Meldas 6 axes (X1/Z1/Y1/C1/X2/Z2), bar-Ø max. 16 mm, turning length max. 200 mm, main spindle, speed max. 10.000 rpm, C-axis 0,001 degree, counter spindle Ø max. 16 mm, counter spindle speed max. 10.000 rpm, incl. spindle indexing Tool holder for a total of 17 tools (linear tool holder, front attachment, backworking), parts conveyor belt Chip conveyor Fire extinguishing system loading magazine IEMCA Genius 118/3200 year of construction 2005 The machine can be inspected by appointment. Changes and errors in the technical data and information and subject to prior sale!

---

used CNC-lathe Citizen L520-VII, year 2003 control, Cincom Mitsubishi Meldas, 7 axes (X1/Z1/Y1/C1/X2/Z2/C2, bar-Ø max. 20 mm, turning length max. 205 mm, main spindle, speed max. 10.000 rpm, C-axis 0,001 deg, counter spindle, speed max. 10.000 rpm, C-axis 0,001 degree, tool holder for a total of 18 tools (linear tool holder, front attachment, backworking), parts conveyor belt, fire extinguishing system chip conveyor, loading magazine IEMCA BOSS 432r The machine can be inspected under power by appointment. Changes and errors in the technical data and information and subject to prior sale!

---

used CNC sliding headstock lathe STAR SV-12, Year 2003 (0450) FANUC 16i-T control with 9 axes, 9 axes (X / C1 / Y / E / B / A / X / c2), bar Ø max. 13 mm turning length max. 205 mm, main spindle, speed max. 12.000 rpm, C-axis, counter spindle with collet, speed max. 12.000 rpm, C-axis, 4-fold tool holder 3 cross drilling units turret with 8 stations various additional tool holders, quills, Extinguishing system Kraft and Bauer high pressure system SF-Systems Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves, parts conveyor belt manuals operation/programming/electrical/spare parts Operating tools machine Up to 29 turning tools and up to 19 applied tools possible 9,0KVA Tank capacity 170L Loading magazine FMB Turbo 2-16 /3200/A / from Ø2- Ø20 mm / Machine coolant: oil dimensions machine: ca. 2700 x 1400 x 1700 [mm] weight of machine: approx. 1700 [kg] Dimensions loading magazine: approx. 4300 x 600 x 1800 [mm]. Weight of loading magazine: approx. 700 [kg] dimensions peripheral HD system: approx. 1500 x 500 x 1000 [mm] Weight of HD system peripherals: approx. 250 [kg] Dimensions periphery & accessories: approx. 1200 x 800 x 1000 [mm] Weight of peripherals & accessories: approx. 200 [kg] Dimensions periphery & accessories: approx. 1200 x 800 x 1000 [mm] weight periphery & accessories: approx. 200 [kg] The machine can be inspected after appointment current. Changes and errors in the technical data and information and subject to prior sale!

---

used CNC sliding headstock lathe STAR SR20R, year 2001 control, make Fanuc, series 18i-T, 7 axes (X/Z/Y/C1/X1/Z1(C2), bar-Ø max. 20 mm, turning length max. 205 mm, main spindle, speed max. 10.000 rpm, C-axis 0,001 degree, counter spindle with collet, speed max. 8.000 rpm, C-axis, tool holder for a total of 19 tools (linear tool holder, front attachment, rear machining), parts conveyor belt, standard guide bush unit loading magazine FMB turbo 3-26/3200 / A /, year 2001 Machine coolant: oil. The machine can be inspected under power by appointment. Changes and errors in the technical data and information as well as subject to prior sale!

---

FANUC Series 31i Model B, 10.4", colored 12 months warranty on all FANUC parts (in single-shift operation) Operating hours: 0 cnc-lathe version, with sliding headstock, hydraulic clamping system, suitable for Hainbuch SK 52 7 axes (X/Z /Y/C/Z2/X2/C2), bar Ø max. 42 mm turning length max. 110 mm , Main spindle, speed max. 6,000 rpm, C axis, FANUC motor, hydraulic tension, 5.5kW 100%ED, 7.5kW 30 min ED Counter spindle, speed max. 6,000 rpm, C-axis, FANUC motor, 3.7kW 100%ED, 5.5kW 30 min ED 5-fold tool holder, 20x20mm 5-fold drill holder, 4 cross drilling units, driven, (2 pcs. modular), speed max. 6.000 rpm FANUC motor, 1.4kW 100%ED, 1.88kW 30 min ED 4 positions for backworking / driven, speed max. 5,000 rpm FANUC motor, 0.75kW 100%ED, 1.0kW 30 min ED Parts conveyor belt Oil cooler unit Coolant tank Chip conveyor, hinged belt type Manuals Operation/Programming/Electrical/Spare Parts Dimensions machine: approx. 2950 x 1550 x 2150 [mm]. Weight machine: ca. 3300 [kg] The machine can be inspected after appointment current. Changes and errors in the technical data and information and subject to prior sale!

︱ ︱ ︱total power requirement kW︱weight of the machine ca. t︱required space m︱

---

Used Mazak FH6000 Bros. Horizontal Machining Centers Year 2000 /06 number of tool magazine places 80 / ATC 80 tool holder SK50 / max. tool length 500mm / max. tool diameter 260 / 135mm (with free adjacent places) / max. tool weight 30kg Tool holder package Total machine running time: 87085std. spindle revolutions: 7,000 rpm / 7,000 RPM New spindle since 2017 currently has 10,657 hrs. Y-Couver 09/2018 Operation 8std / per day X-way 800 Y-way 800 Z-way 800 rapid traverse: 40 m/min Control Mazatrol Fusion 640M Coolant system with IKZ MAYFRAM CONSEP 2000 RENISHAW measuring probe / 11/2019 pallet size: approx. 500 x 500 mm number of pallets 2 Special equipment: pallet changer total power requirement 60,4 KVA Weight 18.700Kg Use of coolant in the machine: emulsion The machine can be inspected under power by appointment. Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

NEW E120 BSC-1-H FEATURES / CHARACTERISTICS: Service door opening direction: UP in airflow direction Air outlet: RADIAL with mechanical pre-filter and neutralization filter and an electrostatic filtration stage for aerosols consisting of Ionizer and collector with high-voltage generator Mode - Adjustable fan (ErP-Ready) - Display >ready for operation< - Electrical system according to EN 60204 - Design of the entire system in accordance with the Machinery Directive TECHNICAL DATA: Blower capacity: 3200 m³/h (free blowing) Extraction capacity: up to 1200 m³/h Operating voltage: 400 V +5/-10 % Frequency: 50 Hz Connected load: 1.23 kVA Differential pressure: 980 Pa Sound pressure level: approx. 70 dB (A) Temperature: max. 40°C Protection class: IP 54 Suitable for standard filtration systems For: E/M 120 (AC 300X) Consisting of: Straight transition piece, connection piece, process air hose, vibration damper, siphon, 1 meter condensate hose and hose clamps. hose clamps Dimensions (L x W x H): 800 x 660 x 610 mm Weight: approx. 90 kg Warranty: 12 months after delivery Paint finish: RAL 7035 (light gray) (or by arrangement) Delivery time: by arrangement Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

NEW E120 HCIP-2 PROPERTIES / FEATURES: HCIP SELF-CLEANING Service door opening direction: UP in airflow direction Air outlet: RADIAL HCIP SELF-CLEANING The E 120-HCIP and E 240-HCIP filtration systems are equipped with a built-in automatic cleaning system. automatic cleaning system, which ensures a consistently high degree of separation and constant operational reliability is achieved with minimum maintenance. The special feature of the cleaning system is cleaning without chemical additives or aqueous solutions, but only with the cooling lubricants used in the machines. cooling lubricants used in the machines. - Adjustable blower (ErP-Ready) - Display >ready for operation< - Electrical system according to EN 60204 - Design of the entire system in accordance with the Machinery Directive TECHNICAL DATA: Blower capacity: 3200 m³/h (free blowing) Extraction capacity: up to 1200 m³/h Operating voltage: 400 V +5/-10 % Suitable for standard filtration systems For: E/M 120 (AC 300X) Consisting of: Straight transition piece, connection piece, process air hose, vibration damper, siphon, 1 meter condensate hose and hose clamps. hose clamps Dimensions (L x W x H): 1285 x 640 x 610 mm Weight: approx. 115 kg Warranty: 12 months after delivery Paint finish: RAL 7035 (light gray) (or by arrangement) Delivery time: by arrangement Changes and errors in the technical data and information as well as prior sale reserved!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

NEW E120 BSC-2-H FEATURES / CHARACTERISTICS: Service door opening direction: UP in airflow direction Air outlet: RADIAL with mechanical pre-filter and neutralization filter and two electrostatic filtration stages for aerosolsconsisting of Ionizers and collectors with high-voltage generator Mode - Adjustable fan (ErP-Ready) - Display >ready for operation< - Electrical system according to EN 60204 - Design of the entire system in accordance with the Machinery Directive TECHNICAL DATA: Blower capacity: 3200 m³/h (free blowing) Extraction capacity: up to 1200 m³/h Operating voltage: 400 V +5/-10 % Frequency: 50 Hz Connected load: 1.38-1.8 kVA Differential pressure: 980 Pa Sound pressure level: approx. 70 dB Temperature: max. 40 °C Protection class: IP 54 Suitable for standard filtration systems For: E/M 120 (AC 300X) Consisting of: Straight transition piece, connection piece, process air hose, vibration damper, siphon, 1 meter condensate hose and hose clamps. hose clamps Dimensions (L x W x H): 1130 x 660 x 610 mm Weight: approx. 115 kg Warranty: 12 months after delivery Paint finish: RAL 7035 (light gray) (or by arrangement) Delivery time: by arrangement Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

RAL 7035 Basic Line 01 Bj. 2019 E = electrostatic - Infinitely variable fan (0-10V for 230V version) - Modularly expandable up to 7,200 m3/h (4,238 cfm) (AC 3061/3062) - Low energy consumption thanks to pressure loss-free filter elements and energy-efficient fans - Several filtration stages for the separation of cooling lubricant mist - Electrosatic or mechanical filtration principle - Universal use for oil & emulsion mist - High-voltage generator pre-programmed with two voltage levels -> oil, emulsion - Direct attachment to machine possible - Opening direction of the service door on the right - Separation efficiency > 99% - Dimensions: (LxWxH): 1130x625x610 mm - Weight: 135 KG Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

RAL 7035 Basic Line 02 Bj. 2019 E = electrostatic - Infinitely variable fan (0-10V for 230V version) - Modularly expandable up to 7,200 m3/h (4,238 cfm) (AC 3061/3062) - Low energy consumption thanks to pressure loss-free filter elements and energy-efficient fans - Several filtration stages for the separation of cooling lubricant mist - Electrosatic or mechanical filtration principle - Universal use for oil & emulsion mist - High-voltage generator pre-programmed with two voltage levels -> oil, emulsion - Direct attachment to machine possible - Opening direction of the service door on the right - Separation efficiency > 99% - Dimensions: (LxWxH): 1130x625x610 mm - Weight: 135 KG Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

gebr. 3Nine GREEN LINE SERIE Oil mist separator Nina EU 1200 m³/h year 2016 3nines oil mist separators can be used for all applications where oil or where oil or cooling lubricant is used. Last application: OIL Technology plate Other features: self-cleaning, high efficiency, compact. Suitable for medium to large housing volumes < 12 m³ Flow rate: 1,200 m³/h (42,377.6 ft³/h) Length 833mm x width 777mm x height 936mm Electrical connected load: 3 phase 200-230V 50/60Hz 13A 3 phases 400-460V 50/60Hz 10A Effect consumption 1,65 kW Noise level < 70db (A) Inner diameter intake Ø 200mm Weight 120 kg DESCRIPTION The Nina oil mist separator is specially designed for strong air flows and works on all machine tools with a booth volume of up to 12 m³. The Nina effectively cleans oil mist formed during the machining process and releases clean air into the work area, almost completely recycling your oil/coolant from the mist. The Nina is suitable for any application where processes involving oil, coolants or other lubricants are used. Even in difficult applications such as grinding and machining cast iron, you can expect up to 99.95% particle-free air. Installation - On a wall/column stand, On a pillar stand, Directly on the machine. The machine can be inspected by appointment. Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

gebr. 3Nine GREEN LINE SERIE Oil mist separator Nina EU 1200 m³/h year 2016 3nines oil mist separators can be used for all applications where oil or where oil or cooling lubricant is used. Last application: OIL Technology plate Other features: self-cleaning, high efficiency, compact. Suitable for medium to large housing volumes < 12 m³ Flow rate: 1,200 m³/h (42,377.6 ft³/h) Length 833mm x width 777mm x height 936mm Electrical connected load: 3 phase 200-230V 50/60Hz 13A 3 phases 400-460V 50/60Hz 10A Effect consumption 1,65 kW Noise level < 70db (A) Inner diameter intake Ø 200mm Weight 120 kg DESCRIPTION The Nina oil mist separator is specially designed for strong air flows and works on all machine tools with a booth volume of up to 12 m³. The Nina effectively cleans oil mist formed during the machining process and releases clean air into the work area, almost completely recycling your oil/coolant from the mist. The Nina is suitable for any application where processes involving oil, coolants or other lubricants are used. Even in difficult applications such as grinding and machining cast iron, you can expect up to 99.95% particle-free air. Installation - On a wall/column stand, On a pillar stand, Directly on the machine. The machine can be inspected by appointment. Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

- Infinitely variable blower (0-10V for 230V version) - Modularly expandable up to 7,200 m3/h (4,238 cfm) (AC 3061/3062) - Low energy consumption thanks to pressure loss-free filter elements and energy-efficient fans - Several filtration stages for the separation of cooling lubricant mist - Electrosatic or mechanical filtration principle - Universal use for oil & emulsion mist - High-voltage generator pre-programmed with two voltage levels -> oil, emulsion - Direct attachment to machine possible - Opening direction of the service door on the right - Separation efficiency > 99% - Dimensions: (LxWxH): 1130x625x610 mm - Weight: 135 KG Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

LTA Lufttechnik Oil mist separator AC 3002 - Infinitely variable blower (0-10V for 230V version) - modularly expandable up to 7,200 m3/h (4.238 cfm) (AC 3061/3062) - low energy consumption thanks to pressure loss-free filter elements and energy-efficient blowers - several filtration stages for the separation of cooling lubricant mist - electrosatic or mechanical filtration principle - universal use for oil & emulsion mist - high voltage generator with two voltage levels pre-programmed -> oil, emulsion - direct mounting to machine possible - Opening direction of service door right - Separation efficiency > 99 - dimensions: (LxWxH): 1130x625x610 mm - Weight: 135 KG The machine can be inspected by appointment power. Changes and errors in the technical data and information and subject to prior sale!

Suction- Tube mm︱Oil- drain- Tube mm︱ ︱

---

gebr. 3nine oil mist separator Clara 1000 1000 m³/h 400 V, 50 Hz CE, RAL7035 suction nozzle inner diameter: 160 mm approx. year 2005 HEPA filter H13 OUR OIL MIST SEPARATORS 3nines oil mist separators can be used for all applications where oil or where oil or cooling lubricant is used. The machine can be inspected under power by appointment. Changes and errors in the technical data and information and subject to prior sale!
