turning diameter over bed 432 mm︱turning diameter over slide rest 267 mm︱ 710 mm︱turning length 1000 mm︱spindle turning speed range 20 - 1600 U/min︱spindle bore 76 mm︱feeds 0,6 - 10 mm/U︱engine output 5,6 kW︱weight of the machine ca. 2000 kg︱ 2650 x 1100 x 1600 mm︱

---

turning length 750 mm︱centre height 165 mm︱spindle passage 40 mm︱turning speed range 22 - 2.800 UpM︱ 3,2 kW︱weight 1040 kg︱ 1850 x 880 x 1290 mm︱

---

turning length 750 mm︱centre height 165 mm︱spindle passage 40 mm︱turning speed range 22 - 2.800 UpM︱ 3,2 kW︱weight 1040 kg︱ 1850 x 880 x 1290 mm︱

---

turning diameter over bed 560 mm︱turning diameter over slide rest 380 mm︱turning length 1000 mm︱turning speeds 28-2800 U/min︱spindle bore 65 mm︱centre height 280 mm︱total power requirement 7,5 kW︱weight of the machine ca. 1950 kg︱dimensions of the machine ca. 1850x800x1700 mm︱

---

turning diameter over bed mm︱turning diameter over slide rest mm︱turning length 1000 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

turning diameter over bed 1600 mm︱centre distance 3000 mm︱bed length 5300 mm︱Compound slide 1400 mm︱swing diameter over slide rest 1200 mm︱control Heidenhain CNC Pilot 3190 ︱turning speeds 5,6-800 U/min︱weight of the machine ca. 21.800 kg︱dimensions of the machine ca. 8360x4000x2700 mm︱

---

1.1 Machine bed / processing area - 4-track flat bed (the 2 outer for Z-carriages, the 2 inner for tailstock) with movable Z-slide on the outer 2 guides; Distance 1,160 mm on the inner guides for tailstock 700 mm - Bed length: 5,300 mm - Top distance (turning length between feed height and tips): 3,000 mm - Center height: 800 mm - Turning diameter over bed: 1,600 mm - Turning diameter over cross slide (between tips): 1,400 mm - Circumferential diameter over slide: 1,200 mm - Bed width guide outside: 1.160 mm - Guide width center tailstock: 700 mm Welded bed: relaxed by WIAP replacement annealing and vibration dampened according to pat. method Guide pads ground: Guides exchangeable without bed removal 1.2 Headstock / main drive - fixed - Number of headstocks: 1 piece - Spindle measuring circuit: digital / linear - Axle position monitoring: none, because rotary axis - Spindle bore: 112 mm - Spindle nose: A15 DIN 55021 - Main spindle motor 100% ED: 46 kW - 305 Nm - Engine: 1PH7184 2NE - Power unit: 6SN112-1AA00-0FA - 3-speed gearbox built behind the headstock - Automatic gearbox programmable via M function  - Gear stage 1: 5.6 - 120 rpm  - Gear stage 2: 16 - 360 rpm  - Gear stage 3: 45 - 800 rpm  - Torque level 1 (100%): 15,236 Nm  - Torque level 2 (100%): 5,290 Nm  - Torque level 3 (100%): 1.904 Nm - Maximum speed: 800 rpm 1.3 longitudinal and cross slide - Number of cross slides: 1 piece - Number of longitudinal slides: 1 piece - digital / linear - Wheel alignment system on the engine: Balluff - Axis end position monitoring (3-circuit package): 2,000 rpm - Final drive Z-feed motor 27 Nm: 1.005 mm - 2 x X-slides independently movable - can be connected via M function X-carriages: 1 - 4 compartment Rev. and X-carriage 2 with Angetr. Revolver: 27 kN - Feed force: 6,000 mm - Max feed rate / rapid traverse Z: 63x10 mm - Feed type: backlash-free ball screw: 3,020 mm - Travel Z-axis: 6 m / min - Rapid Z-axis (rated at 10 m / min): 2,000 rpm - Final drive X-feed motor 1FT5076 18/22 Nm: 15 kN - Feed force: 6,000 mm - Max feed / rapid traverse X: 50x10 mm - Feed type: Backlash-free ball screw: 850 mm - Travel X-axis: 10 m / min 1.3a tailstock - manually adjustable; air assisted for easy shifting Vibration damping with taper for tailstock tip - Quill diameter: 200 mm - Quill stroke: 200 mm - Auxiliary towing device with the Z-slide available - clamping with nut & lever / ring nut with div. Threads in the area; displaceable 1.4 guides - All guides are on sanded surfaces and friction glued - Dimensions: 90x50 mm - Hardness of the steel guides: approx. HRC 55-60 - Counter guides plastic coated - Automatic central lubrication with electr. control - The heavy units are air-assisted for smooth running and against pollution using the WIAP® Press-Air method 1.5 Tool turret with driven tools - Tool turret: Baruffaldi TOER 320 type K18.0320.12041.B - Number Pos: 8 - Shank diameter: VDF 60 - Revolver disc outside diameter: 570 mm - Revolver disc diameter VDI 60: 476 mm - Slices thickness: 95 mm - Powered tools: 4 pieces - Engine Driven Tool 1PH7107 2NF: 9 kW - 114.6 Nm - Tool drive directly via coupling. Only the selected tool turns. Or, if only one partial circle is selected, the use of 12 driven tools is possible. - start and stop programmable via M-function; Speed ??programming of the driven tools with H and W function with integrated spindle positioning - Revolver control: Barrufaldi AG 820 1.5a Tool turret - Tool turret 4-fold; additionally TAN 265 - Tool turret 4-fold; Baruffaldi; Square: No. 63.5999.6200; 265 x 265 - Revolver connection module: AG 820 1.5b C-axis The C-axis enables 3D interpolation; End face machining with polar coordinates; Transmit and lateral surface processing - Engine: Siemens 1 FK6101 300 Umd. 27 NM 1.6 power clamping device - KNCS-NB-800-165 - Includes power clamping device SMW - Clamping cylinder SMW DIN HL 200 - Chuck diameter: 800 mm - Hydraulic unit and clamping cylinder with 2-pressure solution Oil-hydraulic Programmable   1.7 chip conveyor - 1 center and 2 side conveyors integrated in the machine - ejection height: 1,200 mm 1.8 Coolant system - integrated 1.9 Machine paneling - Subroom cladding with a sliding door; 3-fold armored protective glass 2. CNC control and electrical equipment - Heidenhain CNC Pilot 3190 logic unit - Color flat screen TFT 10.4 " - Axles 2 + spindle and C axis drive suitable for Simodrive 611D - Turn Plus software - 400 V / 50 Hz 2.1 Electrical equipment - Electric cabinet / voltage - Machine light integrated in the machine - HMI devices for automatic and manual operation - And CNC programming console convenient and clear in a Bedienpu

centre height 250 mm︱centre distance 1500 mm︱ 290 mm︱turning dia. over bed 500 mm︱spindle taper DIN 55027 ︱cross movement. (x-axis) 265 mm︱spindle motor 15 kW︱Number of axles 3 St.︱3-jaw-chuck diameter 250 mm︱4-jaw-chuck diameter 250 mm︱weight of the machine ca. 3000 kg︱ 3000 x 1800 x 1700 mm︱

---

centre distance 1000 mm︱turning diameter over bed 500 mm︱ 290 mm︱spindle bore 70 mm︱quill MK 5 ︱quill stroke 180 mm︱pinole diameter 80 mm︱total power requirement 24 kVA︱weight of the machine ca. 3050 kg︱dimensions of the machine ca. 3500 x 2000 x 1850 mm︱

---

14 mm︱ M 10 ︱ MK 2 ︱ 230-4.000 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱Machine height 825 mm︱total power requirement 0,7 kW︱weight 83 kg︱

---

16 mm︱ M 12 ︱ MK 2 ︱ 100-2.000 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱Machine height 825 mm︱total power requirement 0,54 kW︱

---

- AC motor 230 Volt, 50 Hz or 60 Hz - Digital RPM Read-out (LED) - Infinitely variable speed drive - Reverse switch for tapping - Spindle protection electrically secured - ON/OFF switches - EMERGENCY-OFF switch - Plug, fully assembled, cable length 3 m

18 mm︱ M 12 ︱ M 14 ︱ MK 2 ︱ 225-4.300 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱total power requirement 0,37/0,55 kW︱Machine height 840 mm︱weight 110 kg︱

---

Standard equipment: - Main switch with motor protection switch lockable - Reversing switch for clockwise and anti-clockwise rotation - Speed adjustment stepless - Protection IP 54 - Mushroom pushbutton (latching) for EMERGENCY STOP - Spindle protection with electrical protection

14 mm︱ M 10 ︱ MK 2 ︱ 230-4.000 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱Machine height 825 mm︱total power requirement 0,54 kW︱

---

Standard equipment: - AC motor 230 volts, 50 Hz - Speed display digital (LED) - Speed adjustment stepless - Reversing switch for clockwise and anti-clockwise rotation - Spindle protection with electrical protection - On / Off button - Mushroom pushbutton (latching) for EMERGENCY STOP - Connection plug fully assembled, cable length 3 m

16 mm︱ M 12 ︱ MK 2 ︱ 100-2.000 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱Machine height 825 mm︱total power requirement 0,7 kW︱weight 83 kg︱

---

23 ︱thread capacity M10 ︱bore stroke 90 mm︱Short spindle MK2 ︱throat 180 mm︱Machine table - usable table surface 285x285 mm︱table load 45 kg︱spindle turning speed range 150-1.250/350-3.000 UpM︱total power requirement 0,75 kW︱Overall size 735x470x1080 mm︱weight of the machine ca. 106 kg︱

---

23 mm︱threading in St 60 M14 ︱threading in GG 20 M16 ︱ MK 2 ︱ 125-2400 U/min.︱spindle stroke 100 mm︱throat 250 mm︱column diameter 90 mm︱ 370x300 mm︱ 2x14x160 mm︱distance spindle /table min./max. 125/455 mm︱ Handkurbel ︱ 320x250 mm︱ 2x14x160 mm︱ 625/625 mm︱feed von Hand ︱height of the machine 1095 mm︱weight of the machine ca. 160 kg︱

---

16 mm︱ M 12 ︱ MK 2 ︱ 100-2.000 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱Machine height 825 mm︱total power requirement 0,54 kW︱

---

Standard equipment: - AC motor 230 volts, 50 Hz - Speed display digital (LED) - Speed adjustment stepless - Reversing switch for clockwise and anti-clockwise rotation - Spindle protection with electrical protection - On / Off button - Mushroom pushbutton (latching) for EMERGENCY STOP - Connection plug fully assembled, cable length 3 m Pos.37.1 Digital drilling depth display 0-point determination (start of drilling) 4-digit LED display, character height: 13 mm

20 ︱bore stroke 80 mm︱Short spindle MK2 ︱throat 180 mm︱Machine table - usable table surface 285x285 mm︱table load 45 kg︱spindle turning speed range 210-2.500 UpM︱total power requirement 0,38 kW︱Overall size 620x470x1050 mm︱weight of the machine ca. 80 kg︱

---

14 mm︱ M 10 ︱ MK 2 ︱ 230-4.000 U/min.︱spindle stroke 80 mm︱throat 190 mm︱column diameter 65 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 75/357 mm︱ 300x240 mm︱ 2 x 12 x 80 mm︱ 437/437 mm︱feed von Hand ︱ Handkurbel ︱Machine height 825 mm︱total power requirement 0,54 kW︱

---

Standard equipment: - AC motor 230 volts, 50 Hz - Speed display digital (LED) - Speed adjustment stepless - Reversing switch for clockwise and anti-clockwise rotation - Spindle protection with electrical protection - On / Off button - Mushroom pushbutton (latching) for EMERGENCY STOP - Connection plug fully assembled, cable length 3 m

x-travel 500 mm︱y-travel 400 mm︱z-travel 400 mm︱control MillPlus HEIDENHAIN ︱surface area 700x500 mm︱Spindle Speed 20-9000 U/min.︱

---

x-travel 1060 mm︱y-travel 610 mm︱z-travel 610 mm︱b-axis +/- 92 °︱ 360 °︱rotary table dia. 600 mm︱control Ultimax ︱ 27799 h︱Spindle Speed 12000 U/min.︱rapid traverse 35000 mm/min︱total power requirement 23,8 kW︱

---

40 mm︱ M 24 ︱ M 30 ︱ MK 3 ︱spindle turning speed - stepless 160-2250 U/min︱spindle stroke 120 mm︱throat 293 mm︱column diameter 115 mm︱ 514x360 mm︱distance spindle /table min./max. 117/701 mm︱ 2 x 14 x 224 mm︱feed 0,1 + 0,2 mm/U︱drive motor 1,45/1,9 kW︱Machine height 1840 mm︱weight 270 kg︱

---

Standard equipment: 7 "TFT - LCD display with touch function: manual input of spindle speed Setpoint, actual speed display, integrated drilling depth display with touch Zero point transfer, virtual drilling depth scale in the display, machine Status displays and warnings in the display, service information, selectable User language: DE / EN / FR / ES / IT / NL / RU - Thread cutting device, for thread cutting with stop, max. 6 threads / min (thread cutting performance dependent on the spindle speed), thread depth adjustable via depth stop and in the TFT - LCD display (4 tools) - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical protection - Three separate buttons for clockwise - counterclockwise - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD structured paint signal white RAL 9003, PANTONE 7545c, black - Feed overload protection with AX 3 iTRONIC-V - Machine oil first filling: oil bottle, loose delivery; only for AX 3 iTRONIC-V Item 12 LED machine lamp, with radially adjustable light beam, protection class IP 65, additional switching functions in the display, connection voltage 24 V Item 25 Coolant system B, consisting of: separate container (33 l), pump with motor protection switch, complete fitting, non-return valve, switching functions for coolant supply Item 37.5 Technology computer in the display. The technology computer guides you through the machining task. Determination of the cutting data via the following parameters: manufacturing process, tool diameter, cutting speed, material table, transfer function of the spindle speed as Setpoint Item 37.6 Maximum drilling depth display as a measuring function for the current drilling depth Item 50.6 Drilling depth fine adjustment and fixed stop setting value 0.1 mm

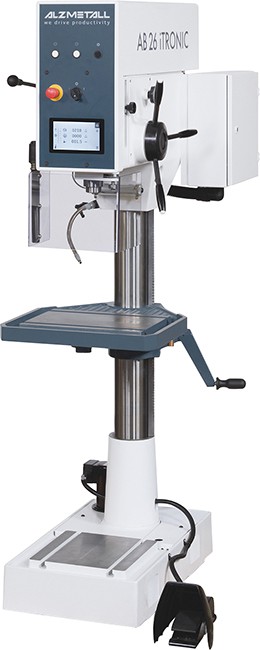

26 mm︱ 30 mm︱ 30 mm︱threading in St 60 M 20 ︱threading in GG 20 M 24 ︱ MK 3 ︱ 120-2.200 U/min.︱throat 293 mm︱ 514x360 mm︱ 2 x 14 x 224 mm︱ 90/675 mm︱column diameter 115 mm︱spindle stroke 160 mm︱feeds 0,1-0,2-0,3-0,4 mm/U︱total power requirement 1,0/1,6 kW︱Machine height 1865 mm︱weight 380 kg︱

---

Standard equipment: 7 "" TFT LCD display with touch function: manual input of spindle speed Setpoint, actual speed display, integrated drilling depth display with touch Zero point transfer, virtual drilling depth scale in the display, machine Status displays and warnings in the display, service information, selectable User language: DE / EN / FR / ES / IT / NL / RU - Thread cutting device, for thread cutting with stop, max. 6th Thread / min (thread cutting performance dependent on spindle speed), thread depth adjustable via depth stop and in the TFT - LCD display (4 tools) - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical protection - Three separate buttons for clockwise - counterclockwise - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD structured paint signal white RAL 9003, PANTONE 7545c, black - Electromagnetic feed clutch with overload protection and electrical comfort cross-handle switch - Machine oil first filling: oil bottle, loose delivery Pos. 20.5 Foot switch, in addition to the thread cutting device for switching the Spindle direction of rotation in the process Pos. 37.5 Technology computer in the display. The technology computer guides you through the Machining task. Determination of the cutting data using the following parameters: Manufacturing process, tool diameter, cutting speed, Material table, transfer function of the spindle speed as setpoint

Drilling capacity in St 60 40 mm︱threading in St 60 M 24 ︱threading in GG 20 M 30 ︱Short spindle MK 3 ︱bore stroke 120 mm︱throat 293 mm︱column diameter 115 mm︱Machine table - usable table surface 514x360 mm︱T-Slots Amount - Width - Distance 2 x 14 x 224 mm︱Distance spindle - machine table min./max. 117/701 mm︱feed 0,10 + 0,20 mm/U︱spindle turning speed range 160-2.250 UpM︱total power requirement 1,45/1,9 kW︱weight of the machine ca. 285 kg︱height of the machine 1840 mm︱

---

Standard equipment: 7 "TFT - LCD display with touch function: manual input of spindle speed Setpoint, speed display actual value, integrated drilling depth display with touch Zero point transfer, virtual drilling depth scale in the display, machine Status displays and warnings in the display, service information, selectable User language: DE / EN / FR / ES / IT / NL / RU Pos. 37.5 Technology computer in the display. The technology computer guides you through the machining task. Determination of the cutting data using the following parameters: manufacturing process, tool diameter, cutting speed, material table, transfer function of the spindle speed as setpoint

34 mm︱ 40 mm︱ 40 mm︱threading in St 60 M 24 ︱threading in GG 20 M 30 ︱ MK 4 ︱ 100-1.800 U/min.︱throat 300 mm︱ 615x430 mm︱ 2 x 14 x 224 mm︱ 138/688 mm︱column diameter 145 mm︱spindle stroke 160 mm︱feeds 0,1-0,2-0,3-0,4 mm/U︱total power requirement 1,4/2,2 kW︱Machine height 1865 mm︱weight 470 kg︱

---

Standard equipment: 7 "" TFT LCD display with touch function: manual input of spindle speed Setpoint, actual speed display, integrated drilling depth display with touch Zero point transfer, virtual drilling depth scale in the display, machine Status displays and warnings in the display, service information, selectable User language: DE / EN / FR / ES / IT / NL / RU - Thread cutting device, for thread cutting with stop, max. 6th Thread / min (thread cutting performance dependent on spindle speed), thread depth adjustable via depth stop and in the TFT - LCD display (4 tools) - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical protection - Three separate buttons for clockwise - counterclockwise - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD structured paint signal white RAL 9003, PANTONE 7545c, black - Electromagnetic feed clutch with overload protection and electrical comfort cross-handle switch - Machine oil first filling: oil bottle, loose delivery Pos. 20.5 Foot switch, in addition to the thread cutting device for switching the Spindle direction of rotation in the process Pos. 37.5 Technology computer in the display. The technology computer guides you through the Machining task. Determination of the cutting data using the following parameters: Manufacturing process, tool diameter, cutting speed, Material table, transfer function of the spindle speed as setpoint
